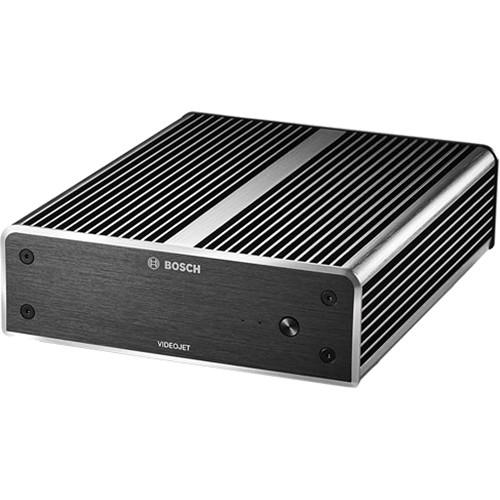

User Manual for Bosch VideoJet Decoder 8000 4K UHD and MP Recorder Click to enlarge the picture
Contents of the user manual for the Bosch VideoJet Decoder 8000 4K UHD
- Product category: Video Encoders & Decoders Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Video Encoders & Decoders
|
User manual for the Bosch VideoJet Decoder 8000 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description Provided by third party: VideoJet Decoder 8000 displays video from standard definition, high definition, 4K UHD, and megapixel cameras and encoders using H.264 or MPEG-4 encoding at up to 60 frames per second over IP networks. VideoJet Decoder 8000 can drive two 4K UHD displays directly, each with an independently configurable screen layout, and so is ideally suited for applications with flat-screen monitor walls at a moderate cost-per-monitor. Compact in size in relation to its decoding power, VideoJet Decoder 8000 is perfect for any display application that requires space-saving solutions. Control the viewing mode remotely and establish the video connections using comprehensive Bosch video management systems. VideoJet Decoder 8000 provides two Mini DisplayPorts, both capable of driving up to 4K UHD monitors simultaneously. The system is enclosed in a specially designed housing.
- Key Features
-
- HD, 4K UHD and MP decoding
- Flexible monitor layouts
- Directly drives up to two 4K UHD monitors
- Displays VCA metadata
- Compact size
- High performance
- Transmit 4K UHD and MP IP video to a high-performance VideoJetD 8000 and present it with ultimate clarity on large, flat-screen HD monitors, for example, high-performance HD LCD monitors. At a lower resolution, bit rate, or frame rate, the decoder is capable of displaying up to 60 video streams, arranged in various selectable screen layouts. Layouts can be switched at any time during operation, initiated by the controlling video management system. Layout switching can be based on alarm scenarios. VideoJet decoder supports landscape and portrait video and monitors. Layouts will adapt automatically to optimally utilize the available screen space.
- Access security
- The decoders offer various security levels for accessing the network, the unit, and the data channels. System access is password-protected with two levels. Also the communication channels - video, audio, or serial I/O - are then AES encrypted.
UPC: 800549801126 In the Box Bosch VideoJet Decoder 8000 4K UHD and MP Recorder Bosch VideoJet Decoder 8000 External power adapter, mounting kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch VideoJet Decoder 8000 4K UHD and MP Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch VJD-8000 Specs | | | Device Type | Video decoder | | Image Resolution | 3840x2160 | | Compression Format | MPEG-4, G.711, H.264 | | Package Content | External power adapter, mounting kit, video decoder | | Compliant Standards | UL, EN55022, IEC 60950, EN55024, FCC CFR47 Part 15 | | Color | Silver | | | | Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T | | Supported Protocols | DHCP, HTTP, TCP/IP, UDP/IP, ARP, ICMP, RTP, HTTPS, TLS, IPv4, RTCP, SSL, SNTP, IGMPv2, IGMPv3 | | Features | Auto-sensing per device, half duplex mode, full duplex mode, firmware upgradable, 4K resolution support, security lock slot (cable lock sold separately), 720p resolution support, 1080p resolution support | | | | Video Output Ports | DisplayPort x 2 | | Network Port | 10/100/1000Base-T | | Other Ports | USB 3.0 x 2 | | | | Voltage | 100 - 240 V | | Frequency | 50/60 Hz | | Power Consumption | 65 Watt | | | | Width | 5.9 in | | Depth | 7.3 in | | Height | 1.9 in | | Weight | 3.75 lbs | | | | Min Operating Temperature | 32
