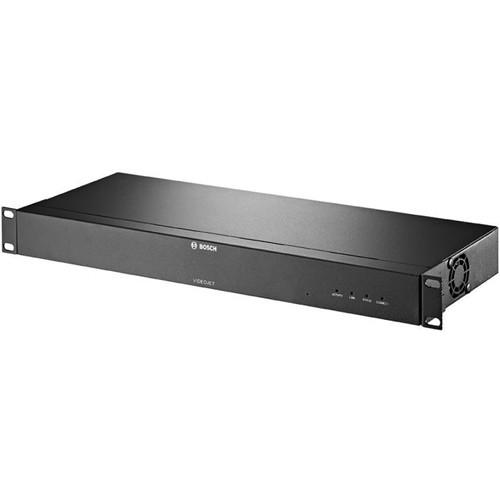

Product description The Videojet multi 4000 Encoder from Bosch is a 16⿿channel CCTV video encoder that offers good quality video-over-IP performance for CCTV applications. It uses H.264 High Profile video compression and delivers real-time compressed video over IPv4 and IPv6 networks.The encoder provides dual streaming per camera at the highest supported frame rate and best quality. In addition, it supports both PAL and NTSC sources and offers bi-directional audio communication in parallel to video. The encoder's 1 Gb/s interface allows quick streaming of IP video with low delay.The encoder's video output can be viewed on a PC using a Web browser or in Bosch Video Management System, with or without the IntuiKey Keyboard (available separately). The encoder can be integrated with third-party video management systems using Bosch VideoSDK. - Flexibility
- The encoder supports external iSCSI storage across an IP network. It also supports Bosch VRM software, which is available as standalone package or embedded into the Bosch Video Management System. The software allows flexible assignment of recording space (camera level), load balancing, and redundancy features.
- Dual Streaming
- The encoder uses the dual-streaming feature to generate two independent IP video streams per channel at variable resolutions.
- H.264 Video Compression
- This ONVIF-conformant encoder supports deinterlacing for video input and delivers real-time H.264 compressed video over IPv4 and IPv6 networks.
- Recording
- Each video input can be recorded on different media. This means video can be recorded centrally on iSCSI drives managed by VRM. The encoder features a flexible recording scheduler, providing up to ten programmable recording profiles and allowing individually assigned camera profiles. These profiles allow accelerating the frame rate as well as increasing the image quality on alarm, saving recording space during non-alarm periods.
- Access Security
- The encoder offers various security levels for accessing the unit, network, and data channels. It also provides password protection up to 3 levels and supports 802.1x authentication using a RADIUS server for identification. The Web browser access can be secured by HTTPS using an SSL certificate that is stored in the unit. For total data protection, each communication channel (video, audio, or serial I/O) can be independently AES encrypted.
- Intelligence
- The encoder comes with built-in MOTION+ video motion detection algorithm that is based on pixel change and includes object size filtering capabilities. On alarm, the device can send an email with JPEG images attached.
- Viewing
- The encoder's video output can be viewed using on a PC using a Web browser or in the Bosch Video Management System. It can also be integrated into a third-party video management system. By routing the IP video to the Bosch VideoJet Decoder or video wall, videos can be displayed with high clarity.
- Easy Upgrade
- The encoder can be remotely upgraded whenever a firmware update is available.
UPC: 800549758031 In the Box Bosch Videojet multi 4000 16-Channel Encoder Accessory Bag Power Cord Data Sheet PDF 903.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch Videojet multi 4000 16-Channel Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch VJM-4016-US Specs | | | Video | Input: 16
Connector Type: BNC
Impedance: 75 Ω, terminated
Signal: Analog composite, 0.7 to 1.2 Vpp , NTSC or PAL | | Audio | Input: 2 x mono, microphone/line
Output: 1 x mono
Connector: 2 x 1/8" (3.5 mm) stereo-jacks
Signal Line-in: 9 kΩ typical, 5.5 Vpp maximum
Microphone Amplifier: 60 dB maximum
Signal Line-out: 3 Vpp @ 10 kΩ | | Alarm | Inputs: 4
Connector: Clamp (non-isolated closing contact)
Activation resistance: 10 Ω maximum | | Relays | Output: 1
Connector: Clamp
Signal: 30 Vpp (SELV), 0.2 A
COM Port: Clamp, RS 232/422/485 | | | | Standards | H.264 High Profile (ISO/IEC 14496 10)
M JPEG | | Data Rates | 9.6 kb/s to 2 Mb/s per channel | | Resolution (H x V) | PAN/NTSC: 4CIF, 704 x 576/480 | | GOP Structure | I, IP | | Total Delay | 260 ms typical | | Dual Streaming | Best performance and highest supported frame rate on both streams for each video input | | Frame Rate | Stream 1, Stream 2 @ 25/30 fps: 4CIF, 2CIF, CIF | | | | Profile | AAC-LC | | Frequency | 300 Hz to 6.4 kHz
G.711: 300 Hz to 3.4 kHz
L16: 300 Hz to 6.4 kHz | | Data Rate | 48/80 kbps at 16 kHz sampling rate
G.711: 80 kb/s at 8 kHz sampling rate
L16: 640 kb/s at 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | | | Ethernet | 1 x 10/100/1000 Base T, auto sensing, half/full duplex, RJ45 | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Connections | 32 simultaneous unicast/multicast min | | Encryption | TLS 1.0, SSL, DES, 3DES, AES | | | | Software Update | Flash ROM, remote programmable | | Configuration | Configuration manager or Web browser | | Camera Control | Via serial interface
Supported Protocols and Devices:
Bosch: AUTODOME, HSPT, MIC1 300 IP, TC8x00
Canon: VCC1, VC-C4R
CBC: SMD 12P/12PII/20P
JVC: TK-C676
Panasonic: WV-CS850
Pelco: Spectra D/P
Sensomatic: SpeedDome Ultra
Sony: EVI D30/31/D100
Ultrak: KD6
VT: VPT4x Basic functions only, no claim for full functionality valid | | | | Input Voltage | 100 to 240 VAC, 47 to 63 Hz | | Input Current | 0.32 to 0.15 A | | Power Consumption | 23 W | | Connectors | 1 x IEC 320 C14 | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Relative Humidity | 0 to 95%, non-condensing | | Thermal Value | 79 BTU/hour maximum | | | | Region | IEC 60950 | | System | IEC 62676-2
EN 50132-5-2 | | Electromagnetic Compatibility | EU: EN55022 ITE
EN55024 ITE
EN50130-4 alarm systems
EN50121-4
EN61000-3-2
EN61000-3-3
US: FCC 47 CFR, part 15 sub-part B class B
AU: AS/NZS 3548 class B | | Approvals | CE, UL listed | | | | Dimensions (H x W x D) | 1.7 x 19.0 x 6.2" (4.4 x 48.3 x 15.7 cm) | | Weight | Approximately 3.7 lb (1.7 kg) | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 21.8 x 10.5 x 3.2" |
