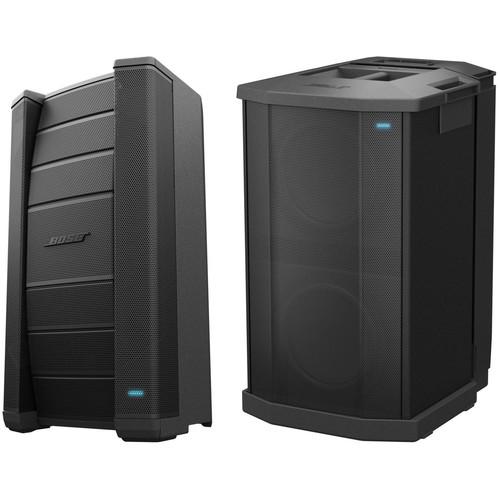

User Manual for Bose F1 Model 812 Powered Flexible Array Speaker with Subwoofer Kit Click to enlarge the picture
Contents of the user manual for the Bose F1 Model 812 Powered Flexible
- Product category: Portable PA Systems Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Portable PA Systems
|
User manual for the Bose F1 Model 812 Powered Flexible contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Bose F1 Model 812 Powered Flexible Array Speaker with Subwoofer Kit from includes an F1 Model 812 1000W flexible array loudspeaker and an F1 1000W powered subwoofer. This portable kit lets you control your vertical coverage pattern to adapt your PA to the room, while adding deep bass, perceived loudness, and clarity to your sound. Compact and easy to carry, it comfortably fits in a car. The integrated bracket makes set up and tear down quick and simple. - Bose F1 Model 812 Powered Flexible Array Loudspeaker
- bose speakers
- Bose F1 Model 812 Powered Flexible Array Loudspeaker
The F1 Model 812 from Bose is a powered flexible array loudspeaker that offers four different vertical coverage patterns, allowing users to optimize their sound to fit the performance environment. So whether you're playing at floor level, on stage facing a dance floor, or facing raked seats or bleachers, you can adapt your PA to the room.
The speaker features eight mid/high frequency drivers that are mounted on a flexible baffle, which allows you to push or pull the array into position to create four vertical coverage patterns: "Straight," "J," "Reverse J," or "C." Once set, the system automatically changes EQ settings to maintain optimum tonal balance for each particular coverage pattern.
The F1 Model 812 also features a high performance 12-inch woofer that provides strong low-frequency output, and an integrated 2-channel mixer. Each of the mixer's inputs feature independent level controls, and can accommodate XLR, 1/4-inch and RCA connections. - Flexible baffle can be configured into four unique shapes, allowing you to choose the best possible coverage pattern for the application
- 8 vertically mounted drivers, each mounted on a custom waveguide, help deliver wide, consistent coverage
- 12" LF high-performance woofer provides strong low-frequency output
- 2-channel integrated mixer with independent level controls on each input
- XLR, 1/4" and RCA input connectors
UPC: 017817675901 - Bose F1 Powered Subwoofer
- bose speakers
- Bose F1 Model 812 Powered Flexible Array Loudspeaker
The F1 Subwoofer from Bose boasts two high-excursion 10-inch woofers to provide deep impactful bass in a compact design that's relatively light and easy to carry. A built-in stand is stored in the rear of the subwoofer making set up fast and easy, and it also has cable channels for neatly hiding wires. The sub's line output can be set to full-range, or high-pass filter, allowing for easy crossover selection when used with a main loudspeaker. - Dual high-excursion 10-inch drivers
- Integrated mounting stand
- Output can be set to THRU (full range) or HPF (high pass filter) allowing for easy crossover selection when used with a main loudspeaker
UPC: 017817675826 In the Box - F1 Model 812 Powered Flexible Array Loudspeaker crfvcsrrqxzcvxqwzswxexzzaawcra
- AC Power Cord
- Limited 1-Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose F1 Model 812 Powered Flexible Array Speaker with Subwoofer Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bose F1 Model 812 Powered Flexible Array Loudspeaker
| Peak Inrush Current | 120 V RMS: 6.3A RMS, 230 V RMS: 4.6A RMS | | AC Power | 100-240 VAC 2.3-1.2 A 50/60Hz | | Dimensions | 26.1 x 13.1 x 14.6" (665 x 334 x 373 mm) | | Weight | 44.5 lb (20.18 kg) | | | | Box Dimensions (LxWxH) | 32.5 x 20.0 x 18.5" | - Bose F1 Powered Subwoofer
| Peak Inrush Current | 120 V RMS: 6.3A RMS, 230 V RMS: 4.6A RMS | | AC Power | 100-240 VAC 2.3-1.2 A 50/60 Hz | | Dimensions | 27.0 x 16.1 x 17.6" (688 x 410 x 449 mm) | | Weight | 55.0 lb (24.95 kg) | | | | Box Dimensions (LxWxH) | 33.0 x 23.8 x 21.8" |
