User Manual for Bose L1 Compact Line Array PA Speaker and Mixer System Click to enlarge the picture
Contents of the user manual for the Bose L1 Compact Line Array PA
- Product category: Portable PA Systems Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Portable PA Systems
 |
User manual for the Bose L1 Compact Line Array PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|

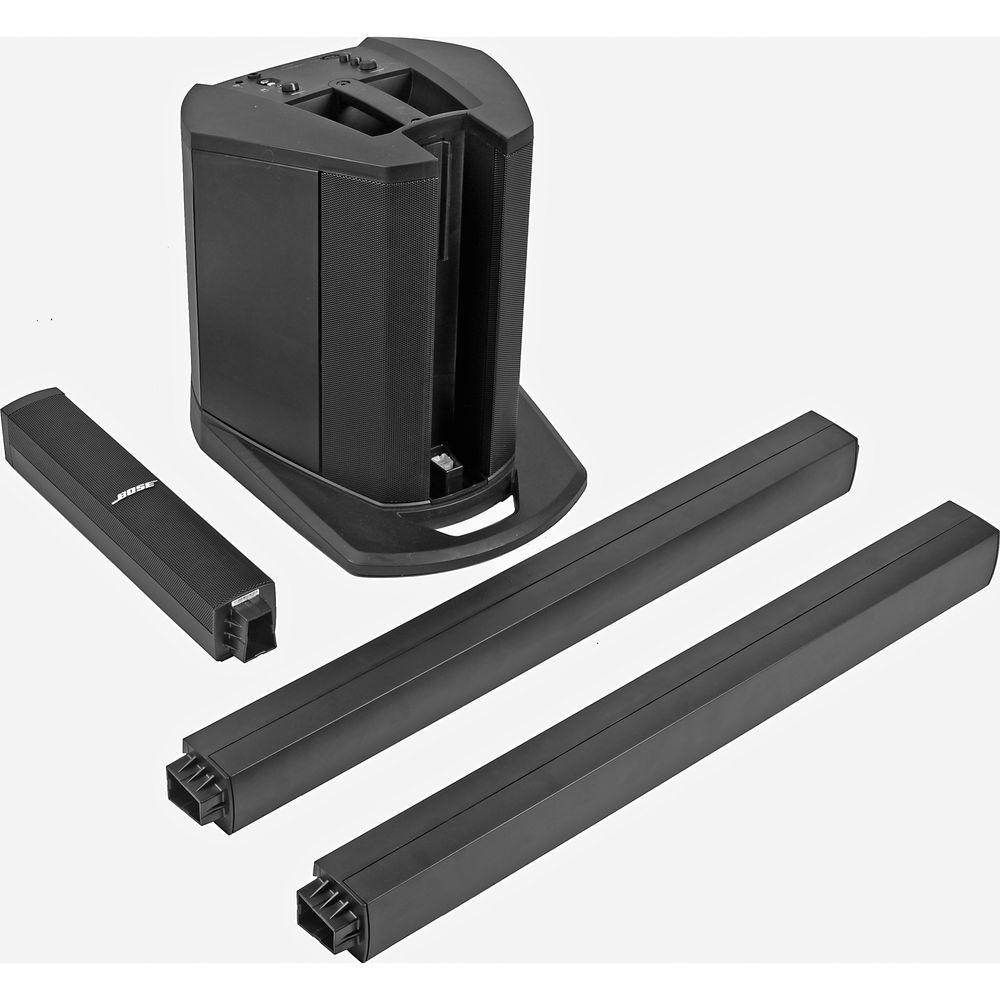

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Bose L1 Compact Audio PA System delivers the audio fidelity expected from Bose in a sleek, lightweight and portable unit that's ideally suited for travelling musicians, presenters, mobile DJs, and for lectures, worship, etc.The L1 features a 2-channel mixer amplifier that also serves as the speaker's base. The mixer features an XLR microphone input, RCA line input, 1/8" mini line input and 1/4" phone input that may be switched to accept line or instrument signals.Six small drivers are carefully positioned into the compact speaker to ensure balanced audio signal at the direct and off-axis (sides) of the L1. Setting up the L1 is quick and easy; simply place the speaker extensions into the amplifier base, and slide the speaker on top of the extensions. Two extensions are included, and allow easy height adjustment. - Spatial Dispersion Loudspeaker Technology
- Six small drivers mounted at precise angles inside a slim, vertical enclosure. This proprietary Bose technology delivers nearly 180 degrees of horizontal sound coverage. Sound remains consistent even at extreme sides of the system.
- Integrated Mixer

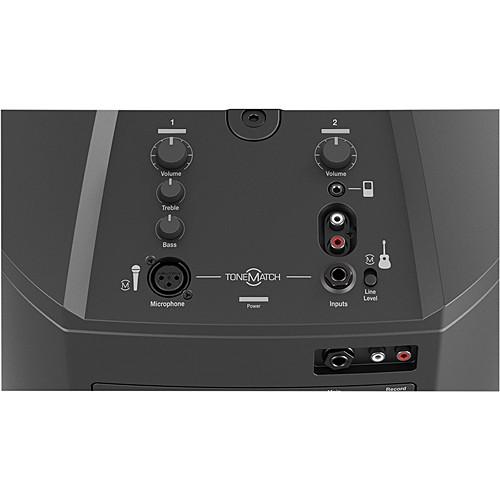

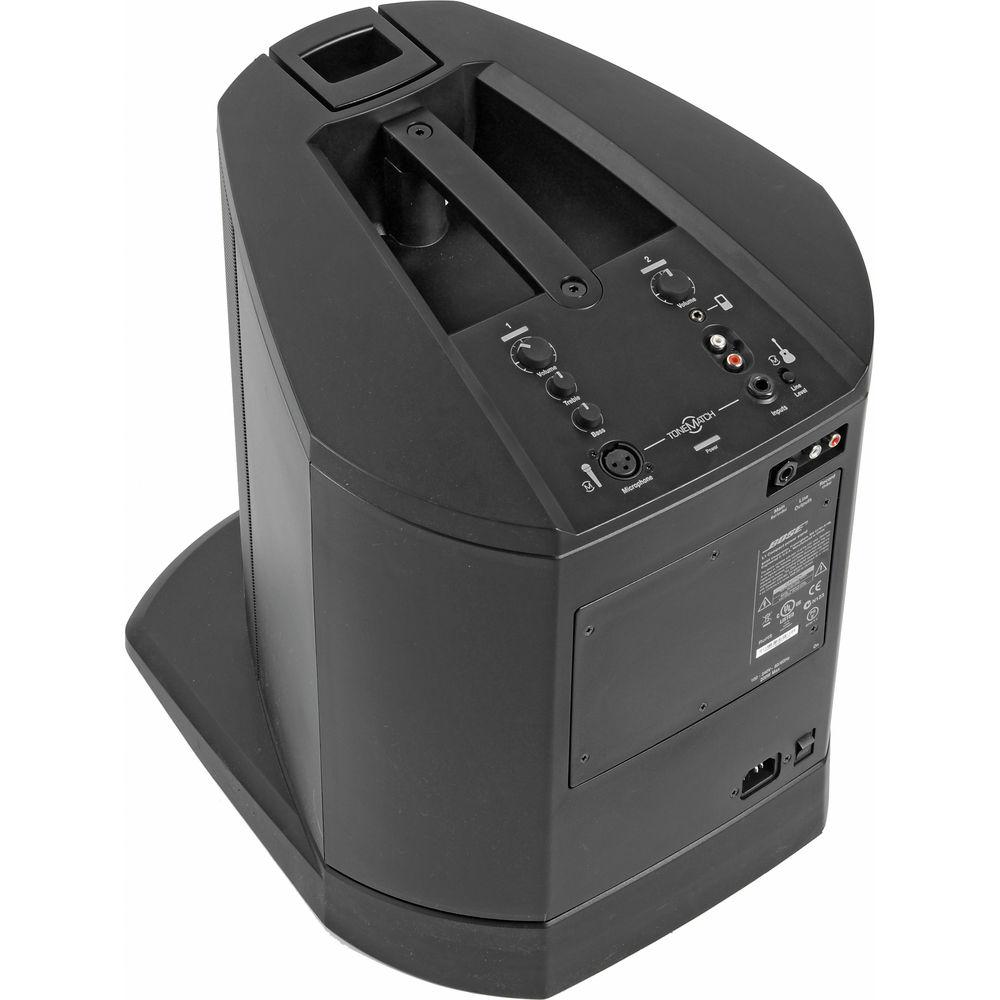

- The power stand / mixer provides one microphone XLR input on channel 1; channel 2 has one instrument input, one RCA stereo input and one 1/8" stereo input. Both channels have two-stage clip lights, volume controls and a customized ToneMatch preset. Rear panel has one 1/4" balanced line output and one RCA stereo output.
- Integrated Power Amplifier
- The power stand / mixer delivers clean, precise amplification for L1 Compact loudspeaker and bass enclosure.
- PA & Monitors are Combined
- Proprietary Bose technology enables the system to be positioned directly behind or to the side of a performer, eliminating the need for separate PA speakers, stage monitors and mixers.
- Proprietary ToneMatch Presets
- ToneMatch presets optimize the L1 Compact system for a dynamic handheld microphone (channel 1) or acoustic guitar (channel 2).
- Two Unique Setup Positions

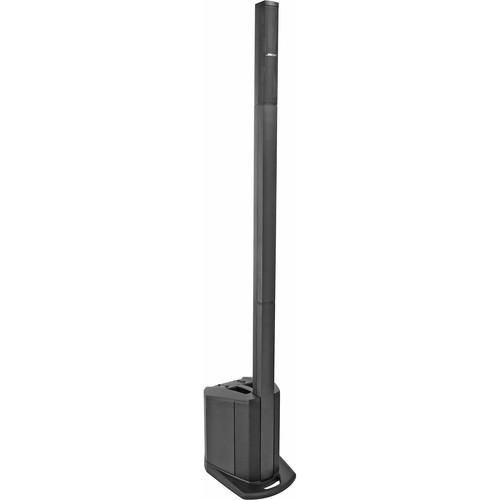

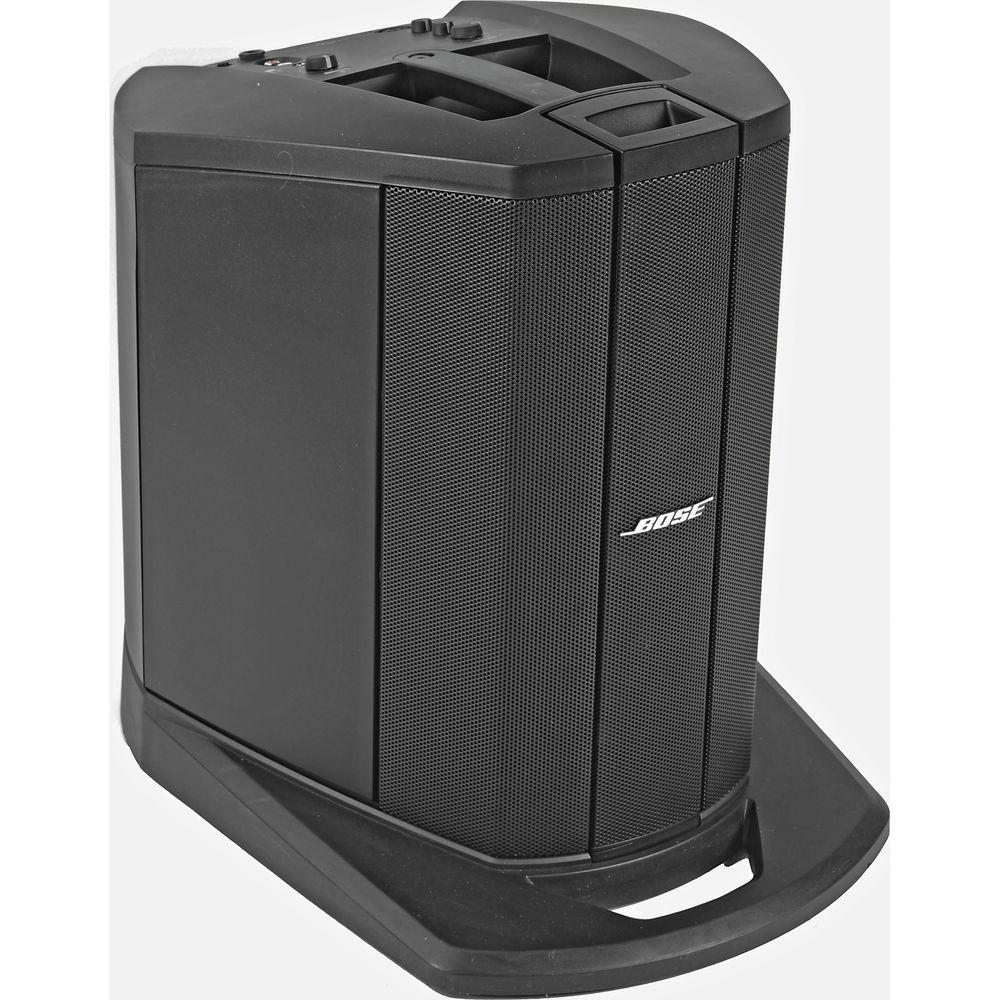

- With extended (78.5") and collapsed (16.5") positioning, you can tailor the system's sound coverage for the room or event. For larger audiences, use the included loudspeaker extensions to elevate the array. For smaller gatherings and meetings, leave the array in its slot on the power stand and place the system on a tabletop.
- Durable, Lightweight, Interlocking Components
- The lightweight interlocking design makes the L1 very easy to transport, set up and break down. The power stand weighs just 25 pounds, and the total system with loudspeaker and extensions weighs 29 pounds. No speaker cables, stands or bass modules required. The entire system can be set up in a minute or less.

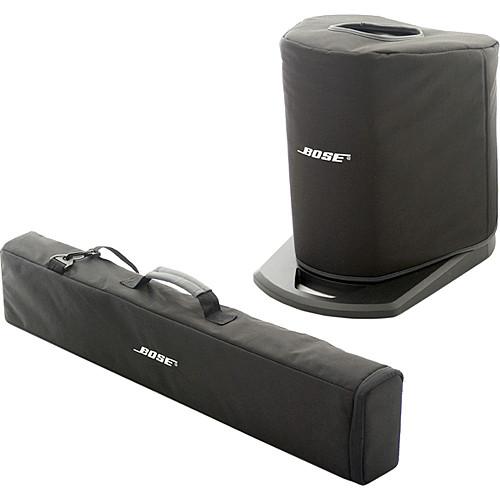

UPC: 017817574129 In the Box Bose L1 Compact Line Array PA Speaker and Mixer System L1 Compact Power Stand / Mixer Loudspeaker Array 2 x L1 Compact Extensions Extensions Carry Bag AC Power Cord Power Stand Slip Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose L1 Compact Line Array PA Speaker and Mixer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose L1 Specs | Power | AC Power Rating: 100-240 V ~ 50/60 Hz 200 W Max
Peak Inrush Current: 230 V: 18.2 Amps / 120 V: 9.7 Amps | | Dimensions | Extended Position (Assembled)
78.50 x 13.25 x 16.75" (199.5 x 33.9 x 42.6 cm) Collapsed Position (Assembled)
16.50 x 13.25 x 16.75" (41.8 x 33.9 x 42.6 cm) | | Weight | Extended Position (Assembled)
29.2 lb (13.3 kg)
Collapsed Position (Assembled)
24.6 lb (11.2 kg) | | | | Package Weight | 35.85 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 20.0" |
