User Manual for Bose L1 Model 1S with B2 Bass Portable Line Array PA Speaker System Click to enlarge the picture
Contents of the user manual for the Bose L1 Model 1S with B2
- Product category: Portable PA Systems Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Portable PA Systems
 |
User manual for the Bose L1 Model 1S with B2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|

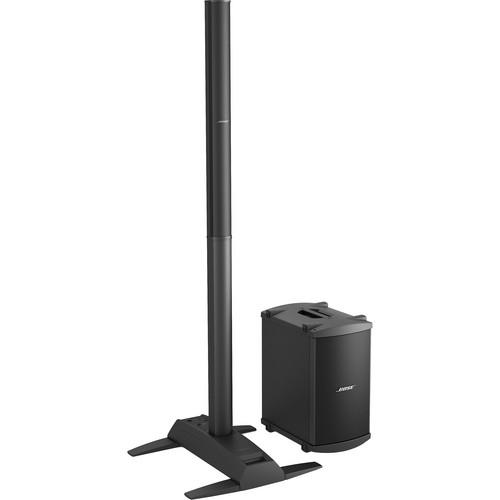

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More dqvbbavbyvvvttbatwfvfswwewwxewrcd The L1 Model 1S with B2 Bass Portable Line Array PA Speaker System from Bose is a portable line array speaker and bass module that is designed to serve as a PA and monitoring system for solo musicians and public speakers for audiences of up to 300 people. Intended to be clean, compact and not cluttered with connections, the L1 Model 1S system is equipped with a single line-level analog input via 1/4" TRS jack. The analog line-level input has a trim control and a signal and clip LED. The input can be used to connect line-level instruments such as keyboards, or other line-level audio sources such as mp3 players for playing music, or mixers for connecting microphones. The optional T1 ToneMatch audio engine can be added if mic inputs are needed, or if more than one line input is needed. The vertical configuration of the system's small, closely spaced drivers allows the L1 Model 1S system to deliver 180-degrees of horizontal sound coverage, yet at the same time only produce a small amount of vertical sound. This reduces unwanted reverberation and produces consistent tonal balance as sound spreads more evenly across the stage and into the audience. Also, the volume level drops off less over distance than with a conventional speaker. The L1 Model 1S upper array, the B2 Bass Module and the power stand are designed to connect quickly and easily and do not require speaker stands. All components fit into the included carry bags for storage and transport. The included B2 bass module is designed to deliver high-performance low-frequency output for applications that call for more powerful bass, such as bass guitar or DJ applications. Designed for flexibility, the module includes three different bass settings. The normal setting is ideal for bass guitar or when miking a kick drum. The high setting is designed for DJ and music playback applications. The low setting works well for acoustic guitar and vocals. The L1 Model 1S system also includes a ToneMatch port for adding the optional T1 ToneMatch audio engine. The T1 ToneMatch adds mic inputs, additional line inputs, plus you can also use the ToneMatch effects engine to fine-tune your sound with Bose's proprietary tone-shaping tools. - 12-Speaker Line Array For 180 Degree Coverage
- The Bose "Spatial Dispersion" and "Articulated Array" speaker technologies have been incorporated into the loudspeaker design in order to produce wide, uniform sound coverage. The 12 small drivers are arranged within the slim, vertical enclosure and are designed to create nearly 180 degrees of horizontal coverage and consistent tonal balance for audiences up to 300

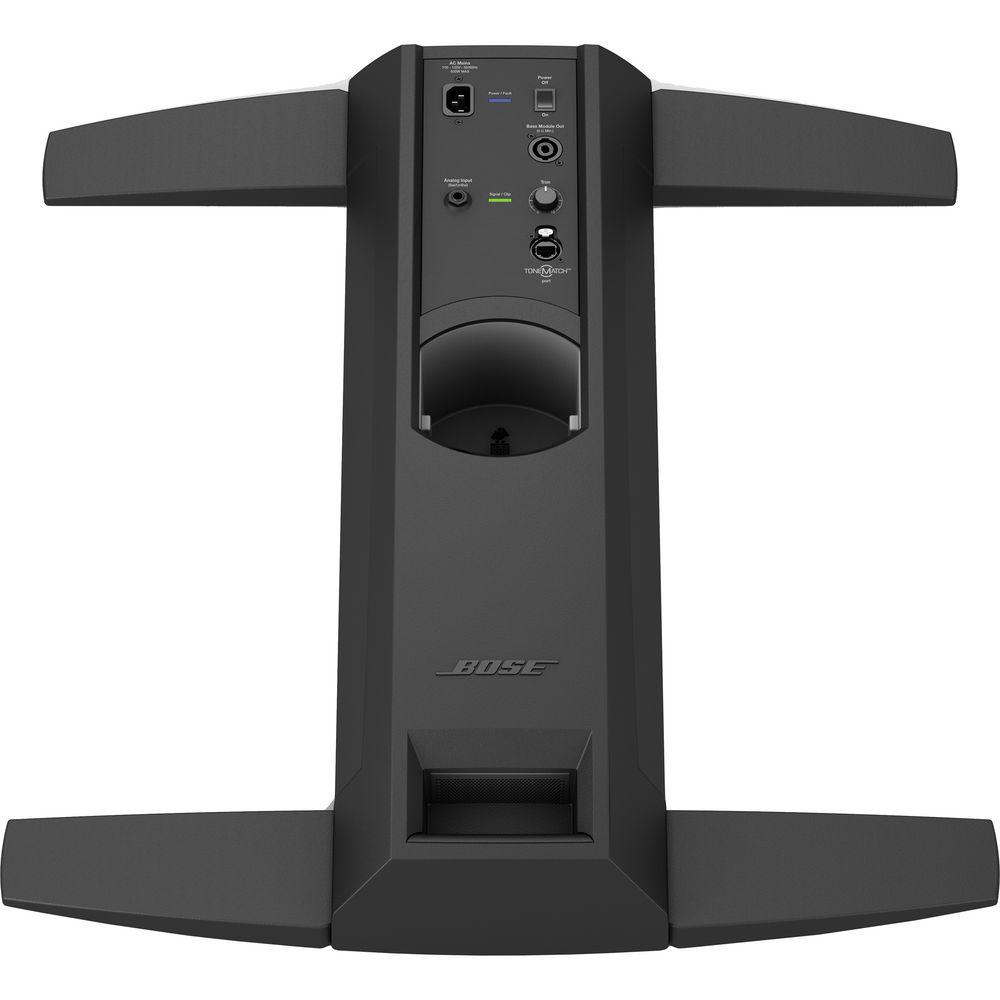

- Integrated Power Amplifiers
- Built in power amplifiers in the power stand provide amplification for the L1 Model 1S system with up to two B1 bass modules or one B2 bass module
- B2 Bass Module
- The B2 bass module design features two 10" (13.3 cm), high-output, high-excursion drivers that are designed to produce deep, strong bass from a small enclosure. Three level settings provide different settings of bass output. When connected to the power stand, active equalization circuitry automatically adjusts bass signal appropriately.
- ToneMatch Port
- Add the optional T1 ToneMatch audio engine for adding mic-level inputs, additional line-level inputs, and digital signal processing to customize your sound
- Interlocking Design, Retractable Legs and Carry Bags
- Lightweight, interlocking components and retractable legs eliminate the need for speaker stands and speaker wires. Carry bags for each component aide portability
UPC: 017817589024 In the Box Bose L1 Model 1S with B2 Bass Portable Line Array PA Speaker System L1 Model 1S Power Stand and Cord B2 Bass Module and Cable Power Stand Carry Bag L1 Model 1S Top Array and Bottom Extension Loudspeaker Carrying Bag B2 Slip Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose L1 Model 1S with B2 Bass Portable Line Array PA Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

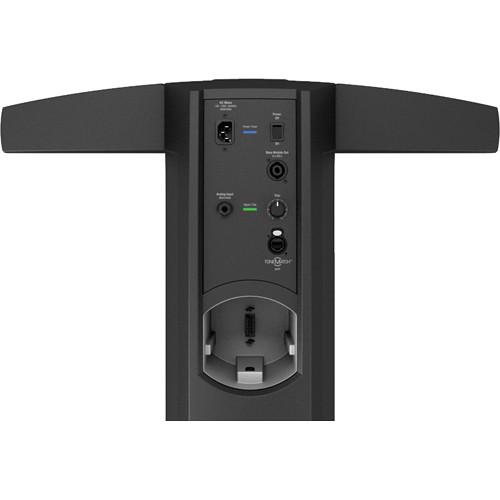

Technical parametersBose L1 Specs | Type | Self-powered, two-way | | Audio I/O | ToneMatch port: DC output/data input Ethercon/RJ45 connector for a T1 ToneMatch audio engine
Analog Input: 1x line-level 1/4" TRS phone plug Bass Module Out: 1x Neutrik NL4 (powers up to 2x B1 Bass module or 1x B2 Bass module) | | Power | AC power rating:
100-120 V, 50/60 Hz, 500 W (USA/Canada); 220-240 V, 50/60 Hz, 500 W (Europe) Peak inrush current:
32 A @ 120 V, 60 Hz (USA/Canada); 61 A @ 230 V 50 Hz (Europe) | | Speaker Impedance | L1 model 1S loudspeaker:
8Ω
B2 bass module:
4Ω | | Dimensions (HxWxD) | L1 Model 1S top array
43.5 x 3.5 x 4" (111 x 9 x 10.5 cm)
L1 Model 1S bottom extension
39.63 x 4.15 x 4.13" (100.6 x 10.6 x 10.5 cm)
L1 Model 1S power stand
5 x 10 x 27" (12.8 x 26.2 x 69.2 cm)
B2 Bass Module:
23.4 x 13.31 x 18.9" (59.4 x 33.8 x 48 cm) | | Weight | L1 Model 1S top array
16.3 lb (7.4 kg)
L1 Model 1S bottom extension
8.5 lb (3.8 kg)
L1 Model 1S power stand
23.7 lb (10.7 kg)
B2 Bass Module:
45 lb (20.41 kg) | | | | Package Weight | 114.5 lb | | Box Dimensions (LxWxH) | 49.0 x 39.0 x 18.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
