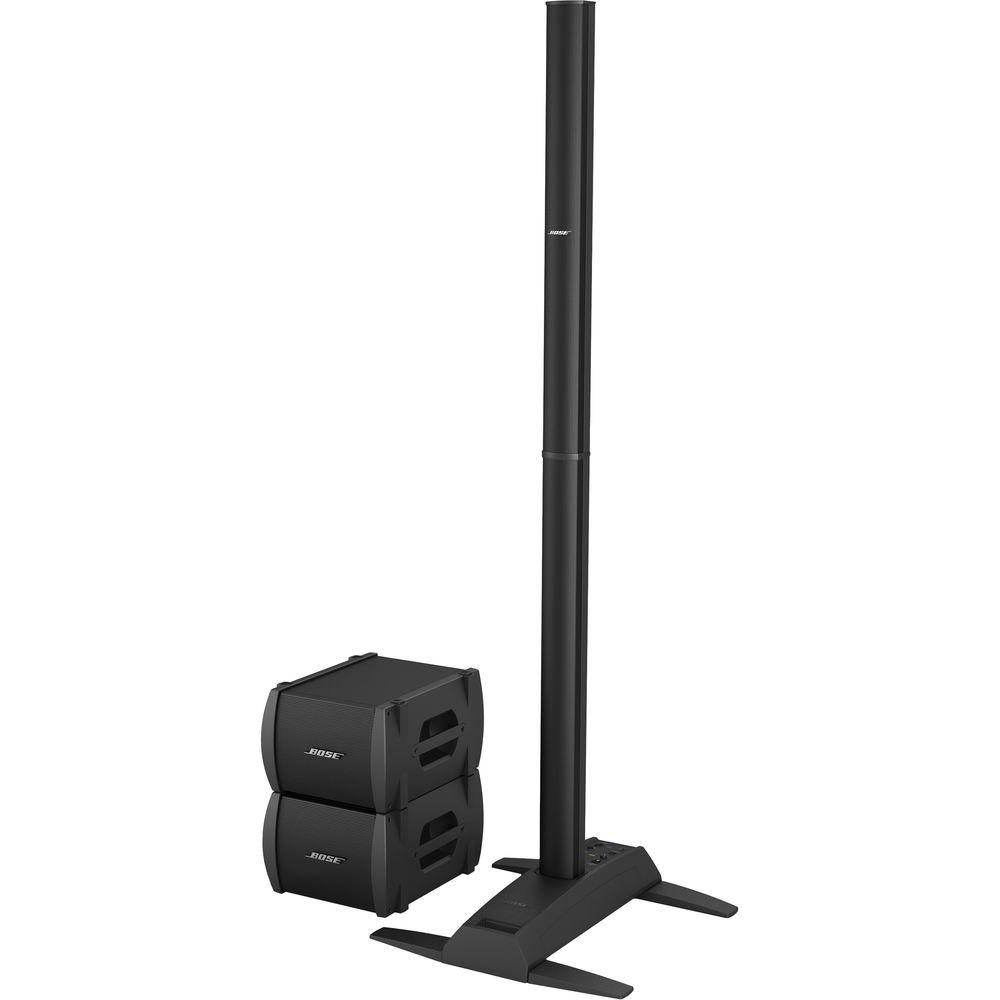

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More abdrswwteswvrvsewrtytureerwzstbtat The Bose L1 Model 1S with Double B1 Bass Package is a portable line array speaker system with two bass modules that is designed to serve as a PA and monitoring system for solo musicians and public speakers for audiences of up to 300 people.Intended to be clean, compact, and not cluttered with connections, the L1 Model 1S system is equipped with a single line-level analog input via a 1/4" TRS jack. The analog line-level input has a trim control and a signal and clip LED. The input can be used to connect line-level instruments such as keyboards, or other line-level audio sources such as MP3 players or mixers for connecting microphones.
The L1 Model 1S system also includes a ToneMatch port for adding the optional T1 ToneMatch audio engine (available separately). The T1 ToneMatch adds mic inputs, additional line inputs, plus you can also use the ToneMatch effects engine to fine-tune your sound with Bose's proprietary tone-shaping tools.The vertical configuration of the system's small, closely spaced drivers allows the L1 Model 1S system to deliver 180-degrees of horizontal sound coverage, yet at the same time only produce a small amount of vertical sound. This reduces unwanted reverberation and produces consistent tonal balance as the sound spreads more evenly across the stage and into the audience. Also, the volume level drops off less over distance than with a conventional speaker.The L1 Model 1S upper array, the B1 Bass Modules, and the power stand are designed to connect quickly and easily and do not require speaker stands. All components fit in to the included carry bags for storage and transport. The included B1 bass modules are equipped with high-output, high-excursion drivers that are designed to produce deep, strong bass from a small enclosure. - 12-Speaker Line Array For 180 Degree Coverage
- The Bose "Spatial Dispersion" and "Articulated Array" speaker technologies have been incorporated into the loudspeaker design in order to produce wide, uniform sound coverage. The 12 small drivers are arranged within the slim, vertical enclosure and are designed to create nearly 180 degrees of horizontal coverage and consistent tonal balance for audiences up to 300 people.
- Integrated Power Amplifiers

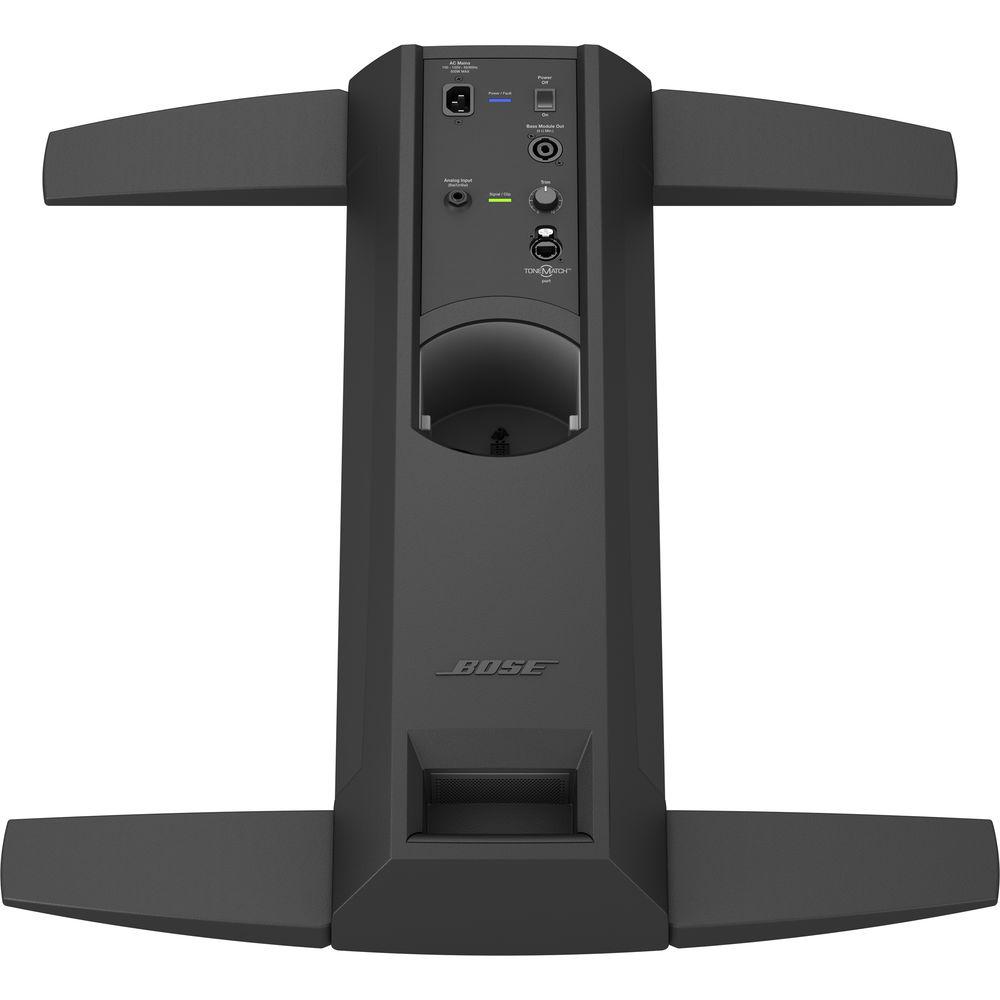

- Built-in power amplifiers in the power stand provide amplification for the L1 Model 1S system with up to two B1 bass modules or one B2 bass module
- B1 Bass Module
- Features two 5.25" (13.3 cm), high-output, high-excursion drivers that are designed to produce deep, strong bass from a small enclosure. When connected to the power stand, active equalization circuitry automatically adjusts bass signal appropriately.
- ToneMatch Port
- Add the optional T1 ToneMatch audio engine for adding mic-level inputs, additional line-level inputs, and digital signal processing to customize your sound.
- Interlocking Design, Retractable Legs and Carry Bags
- Lightweight, interlocking components and retractable legs eliminate the need for speaker stands and speaker wires. Carry bags for each component aide portability.
In the Box Bose L1 Model 1S with Double B1 Bass Package - Portable Line Array PA System L1 Model 1S Power Stand and Cord 2 x B1 Bass Modules with Cables Power Stand Carry Bag L1 Model 1S Top Array and Bottom Extension Loudspeaker Carrying Bag B1 Slip Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose L1 Model 1S with Double B1 Bass Package - Portable Line Array PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

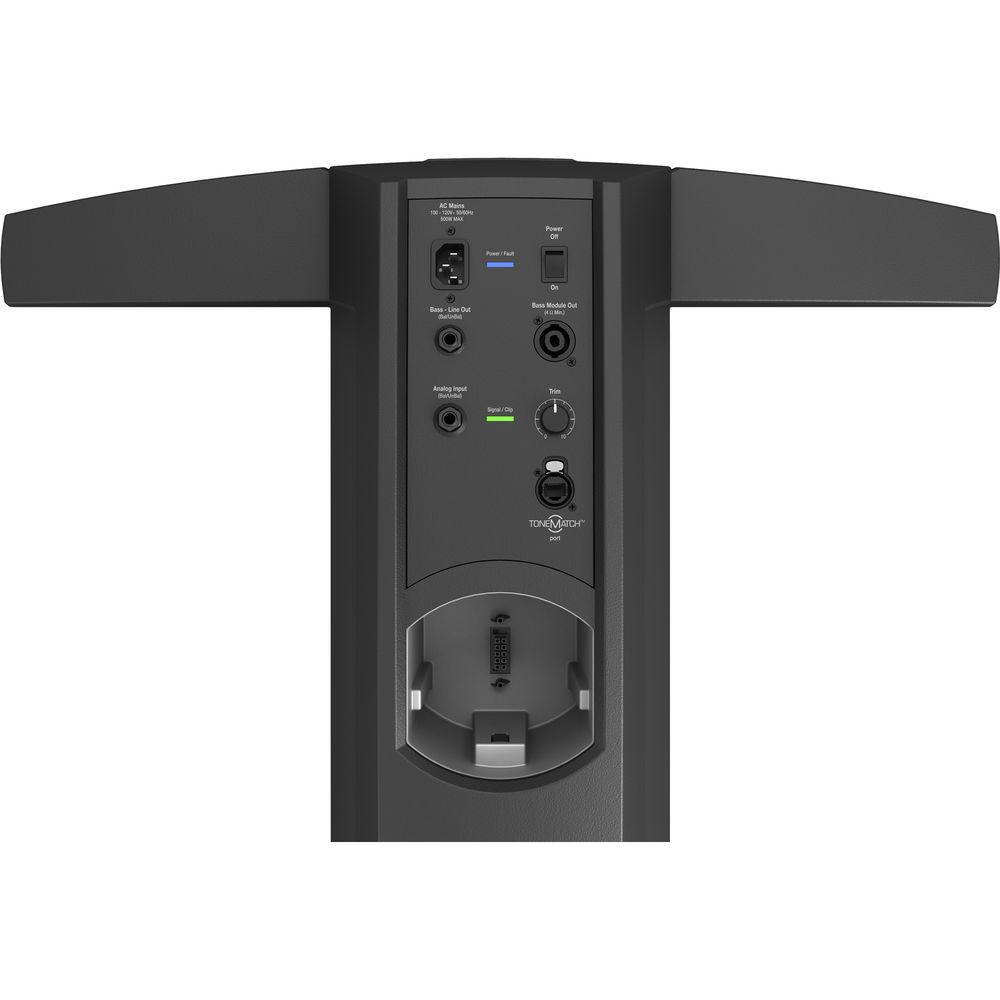

Technical parametersBose DOUBLE B1 Specs | Type | Self-Powered, Two-Way | | Audio I/O | ToneMatch Port: DC Output/Data Input Ethercon/RJ45 Connector for a T1 ToneMatch Audio Engine
Analog Input: 1 x Line-Level 1/4" TRS Phone Plug
Bass Module Out: 1 x Neutrik NL4 (Powers up to 2 x B1 Bass Module or 1 x B2 Bass Module) | | Power | Power Rating: 100 to 120 VAC, 50/60 Hz, 500 W (USA/Canada) Peak Inrush Current: 32 A at 120 V, 60 Hz (USA/Canada); 61 A at 230 V, 50 Hz (Europe) | | Speaker Impedance | L1 Model 1S Loudspeaker: 8 Ohms
B1 Bass Module: 8 Ohms | | Dimensions (HxWxD) | L1 Model 1S Top Array: 43.5 x 3.5 x 4" / 111 x 9 x 10.5 cm
L1 Model 1S Bottom Extension: 39.63 x 4.15 x 4.13" / 100.6 x 10.6 x 10.5 cm
L1 Model 1S Power Stand: 5 x 10 x 27" / 12.8 x 26.2 x 69.2 cm
B1 Bass Module: 15 x 10.25 x 17.75" / 38 x 26 x 45 cm | | Weight | L1 Model 1S Top Array: 16.3 lb / 7.4 kg
L1 Model 1S Bottom Extension: 8.5 lb / 3.8 kg
L1 Model 1S Power Stand: 23.7 lb / 10.7 kg
B1 Bass Module: 25.1 lb / 11.4 kg |
