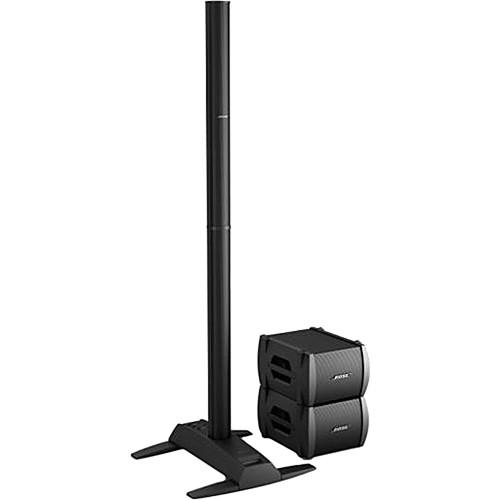

User Manual for Bose L1 Model II Double Bass PA Package Click to enlarge the picture
Contents of the user manual for the Bose L1 Model II Double Bass
- Product category: Portable PA Systems Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Portable PA Systems
|
User manual for the Bose L1 Model II Double Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More afqaffrddyufdybefb The Bose L1 Model II Double Bass Package delivers the audio fidelity expected from Bose in a sleek, lightweight and portable unit. The L1 Model II series is Bose's elite system, ideally suited for pro-level sound reinforcement for musicians DJ rigs and more. The L1 Model II Double Bass Package features an integrated mixer amplifier that also serves as the speaker's base. The power stand provides clean, precise amplification for L1 Model II system with up to two B1 bass modules.Also included are two Bose B1 Bass module for reinforcing low-end frequencies and enhancing the sound of bass guitar, DJ rigs and more. The speaker features 24 small drivers, carefully positioned to ensure balanced audio signal at the direct and off-axis (sides) of the system. Setting up the L1 Model II is quick and easy; simply place the speaker extensions into the amplifier base, and slide the speaker on top of the extensions. Two extensions are included, and allow easy height adjustment. - Recommended for most instruments, vocalists and public speakers
- Spatial Dispersion and Articulated Array speaker technologies
- Single-input power stand with retractable legs
- Two B1 bass module included
- Spatial Dispersion and Articulated Array Speaker Technologies
- The 24 small drivers are arranged using Articulated Array speaker technology in a slim, vertical enclosure-creating nearly 180 degrees of horizontal coverage and consistent tonal balance. The loudspeaker's two-piece, interlocking design makes for quick and easy setup, breakdown and transport.
- Integrated Power Amplifiers
- Clean, precise amplification for L1 Model II system with up to two B1 bass modules.
- Analog Input, Trim Control and Signal/Clip LED
- For line-level analog input signal via ¼" TRS phone cable. Can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems.
- Bass Module Out
- For amplified bass output signal to one or two B1 bass modules. L1 system automatically adjusts equalization appropriately when bass modules are connected.
- Bass Line Out
- Delivers post-DSP bass signal output. Accepts ¼" TRS phone cable. Use to connect powered subwoofer, additional amplification system or Bose PackLite amplifier with up to two additional bass modules.
- Retractable Legs
- Provide stability for streamlined L1 Model II power stand and loudspeaker. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport.
Bass Module - Compact, Lightweight Enclosure
- Is easy to transport, set up and break down. Small footprint takes up considerably less space than traditional bass cabs required for same performance. Interlocking feet let you securely stack up to four modules together on their sides.
- Highly Efficient Speaker Design
- Features two 5.25" (13.3 cm), high-output, high-excursion drivers that produce deep, strong bass from a small enclosure. When connected to power stand, active equalization circuitry automatically adjusts bass signal appropriately.
In the Box Bose L1 Model II Double Bass PA Package L1 Model II Power Stand Carrying Bag for the L1 Model II Power Stand L1 model II Cylindrical Radiator Speaker Top L1 model II Cylindrical Radiator Speaker Bottom 2 x Carrying Bags for The L1 model II Cylindrical Radiator Speakers 2 x B1 Bass Module Carrying Bag for B1 Bass Module B1 Bass Module 4-wire Cable (Blue) AC Cord CD-Rom 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose L1 Model II Double Bass PA Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose L1 Specs | Type | Self-powered, two-way | | Audio I/O | T1 ToneMatchTM port: DC output/data input Ethercon/RJ45 connector for a T1 ToneMatch audio engine
Analog Input: Line-level input channel for ¼" TRS phone plug Bass - Line Out: -4dBu (nominal), +9dBu (max.) (balanced TRS connection) -10dBu (nominal), +3dBu (max.) (unbalanced TS connection)
Bass Module Out: Neutrik NL4 output for one or two B1 bass modules | | Power | AC power rating:
100-120V 50/60Hz 500W (USA/Canada); 220-240V 50/60Hz 500W (Europe) Peak inrush current:
32A @ 120V 60Hz (USA/Canada); 61A @ 230V 50Hz (Europe) | | Dimensions (HxWxD) | Power Stand:
5 x 10 x 27" (12.8 x 26.2 x 69.2cm) L1 Model II Loud Speakers:
43.50 x 3.50 x 4" (11.1 x 90 x 10.5cm) B1 Bass Module:
15 x 10.25 x 17" (38 x 26 x 45cm) | | Weight | Power Stand:
23.7 lb (10.7kg) L1 Model II Loud Speakers:
Top: 16.3 lb (7.4kg), Bottom: 17.4 lb (7.9kg) B1 Bass Module:
25.1 lb (11.4kg) |
