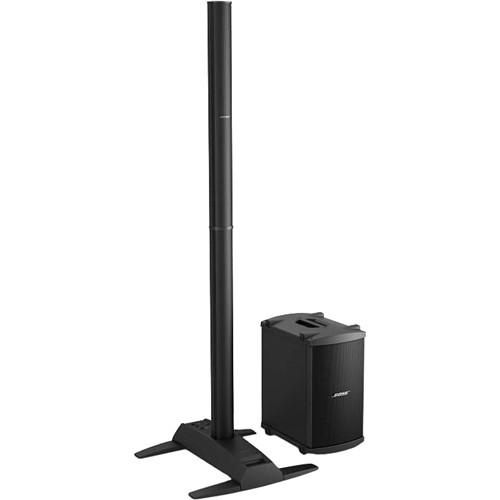

User Manual for Bose L1 Model II System with B2 Bass Click to enlarge the picture
Contents of the user manual for the Bose L1 Model II System with
- Product category: Portable PA Systems Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Portable PA Systems
|
User manual for the Bose L1 Model II System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The L1 Model II System with B2 Bass Package from Bose is a portable amplification system for musicians, DJs and public speakers. It can be used to deliver 180 degrees of horizontal sound coverage and smooth tonal balance for live stage, theater, rehearsals, and more. The Model II sound system is an all-in-one system that replaces conventional monitors, mixers and PA speakers. The loudspeaker's 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. And this professional sound system is packed with proprietary Bose technologies to improve amplified sound. In addition, the included B2 bass module offers greater flexibility and power at the low end. - Full, Flexible Bass
- The high-performance B2 bass module delivers greater low-frequency output when you need more powerful bass for larger audiences. The module includes 3 settings for increased flexibility. The normal setting is suitable for bass guitar or when miking a kick drum. A higher setting is designed for DJ/music playback applications. And the lower setting works well for acoustic guitar and vocals. You can power one B2 bass module on a single L1 power stand. And the PackLite power amplifier (sold separately) lets you add a second B2 bass module for maximum low-end power.
- Easy and Efficient
- The L1 Model II power stand weighs only 24 lb, and its 4 retractable legs make it easy to transport and set up. The power stand also has a simplified control section; the single line-level input can be used with instruments, mics, mixers, laptops, MP3 players or DVD systems. All of the system's components are also built to handle the road. The loudspeaker has a rugged, reinforced grille, and each package includes padded carrying bags for major components.
- Spatial Dispersion and Articulated Array Speaker Technologies
- This produces wide, uniform sound coverage. The 24 small drivers are arranged using Articulated Array speaker technology in a slim, vertical enclosure, creating nearly 180 degrees of horizontal coverage and consistent tonal balance.
- Integrated Power Amplifiers
- These amplifiers in the power stand provide clean, precise amplification for L1 Model II system with up to two B1 bass modules or one B2 bass module.
- Analog Input, Trim Control and Signal/Clip LED
- This is for line-level analog input via ¼" TRS phone cable. It can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems.
- Bass Module Out
- This is for amplified bass output signal to one or two B1 bass modules or one B2 bass module. L1 system automatically adjusts equalization appropriately when bass modules are connected.
- Bass Line Out
- This delivers post-DSP bass signal output. Accepts ¼" TRS phone cable. Use to connect powered subwoofer, additional amplification system or Bose PackLite amplifier with up to two additional bass modules.
- Retractable Legs
- These legs provide stability for streamlined power stands and loudspeakers. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport.
- Convenient Carry Bags
- There are convenient carry bags, each for the loudspeaker, power stand and bass module, making getting to and from your gig that much easier.
- B2 Bass Module with Highly Efficient Speaker Design
- Highly efficient speaker design features two 10.0" (13.3 cm), high-output, high-excursion drivers that produce deep, strong bass from a small enclosure. 3 level settings provide flexibility of output. When connected to power stand, active equalization circuitry automatically adjusts bass signal appropriately.
- Compact Enclosure
- It is easy to transport, set up and break down. Small footprint takes up considerably less space than traditional bass cabs required for same performance. Interlocking end caps let you securely stack two modules together on their sides.
- Additional Features
- Recommended for up to 500 audiences, 24-speaker articulated line array delivers 180° horizontal sound coverage, Produces consistent tonal balance with little volume drop-off over distance, System's interconnecting pieces allow for efficient transport, easy setup and breakdown, one B2 bass module included
UPC: 017817572781 In the Box Bose L1 Model II System with B2 Bass L1 Model II Power Stand Power Cord Power Stand Carrying Bag B2 Bass Module and Cable B2 Slip Cover L1 Model II Cylindrical Radiator Loudspeaker (Top) L1 Model II Cylindrical Radiator Loudspeaker (Bottom) 2 x Loudspeaker Carrying Bags Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose L1 Model II System with B2 Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose L1 Specs | Dimensions (H x W x D) | L1 Model II Cylindrical Radiator Loudspeaker Top: 43.5 x 3.5 x 4.0" (110.5 cm x 9.0 cm x 10.5 cm )
L1 Model II Cylindrical Radiator Loudspeaker Bottom: 43.5 x 3.5 x 4.0" (110.5 x 9.0 x 10.5 cm)
L1 Model II Power Stand: 5.0 x 10.0 x 27.0" (12.8 x 26.2 x 69.2 cm)
B2 Bass Module: 23.4 x 13.3 x 18.9" (59.4 x 33.8 x 48.0 cm) | | Weight | L1 Model II Cylindrical Radiator Loudspeaker Top: 16.3 lb (7.4 kg)
L1 Model II Cylindrical Radiator Loudspeaker Bottom: 17.4 lb (7.9 kg)
L1 Model II Power Stand: 23.7 lb (10.7 kg)
B2 Bass Module: 45.0 lb (20.4 kg) | | | | Package Weight | 126.3 lb | | Box Dimensions (LxWxH) | 48.0 x 46.0 x 18.25" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
