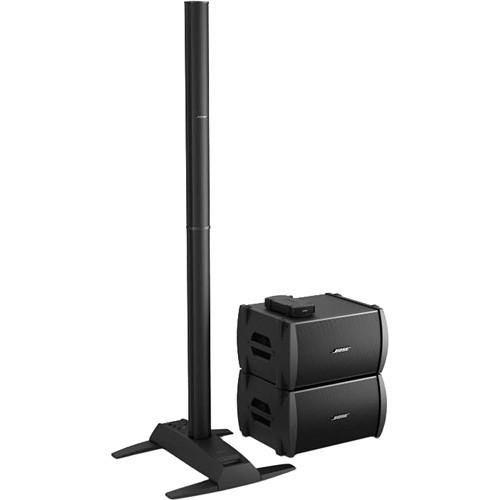

User Manual for Bose L1 Model II System with Double B2 Bass & A1 PackLite Power Amplifier Click to enlarge the picture
Contents of the user manual for the Bose L1 Model II System with
- Product category: Portable PA Systems Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Portable PA Systems
|
User manual for the Bose L1 Model II System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Bose L1 Model II System with B2 Bass & A1 PackLite Power Amplifier is a portable amplification system that is well-suited for musicians, DJs, and public speakers. The system delivers 180° of horizontal sound coverage and smooth tonal balance across the stage and throughout the room. It includes two B2 bass modules for flexibility and power at the low end. The package is an all-in-one innovation that replaces conventional monitors, mixers, and PA speakers. Packed with proprietary Bose technologies, the speaker system has been designed for instruments that require additional headroom and increased output in the low frequency range such as for electric bass and bass drum, as well as provide high output playback of dance music. The amplifier can power up to 2 additional B1 bass modules, or a single additional B2 bass module. The A1 PackLite Power Amplifier can drive other passive loudspeakers including subwoofers, floor monitors, studio monitors, and guitar cabinets. The A1 can also amplify a balanced or unbalanced signal from a line-level device, such as a mixing console and drive any loudspeaker load (4⦠minimum) that is capable of handling 250W. Small, lightweight, powerful, and easy-to-use, the A1 amplifier can be interfaced quickly with the Bose PS1 Power Stand and B1 Bass Module to provide high-bass output for demanding instruments such as bass guitar and drums. The connections are quick and easy: plug in the AC cord, connect the A1 Amplifier to the PS1 Power Stand, and play.No time-consuming adjustments are required when the amplifier is being used with the Cylindrical Radiator loudspeaker. This amplifier automatically adjusts the bass output for more level and headroom, while maintaining a consistent tone, regardless of how many B1 bass modules are being used. Note: Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives. Do not use any sprays near the product or allow liquids to spill into any openings. - Spatial Dispersion™ and Articulated Array® Speaker Technologies
- Uses 24 small drivers arranged in an articulated array within a vertical enclosure to create nearly 180° of horizontal coverage and consistent tonal balance
- Integrated Power Amplifiers
- Provide clean precise amplification for L1 Model II system
- Input Sensing
- Automatically accepts balanced or unbalanced signals
- Passive Speaker Option
- Powers passive subwoofers, tops, and monitors
In the Box Bose L1 Model II System with Double B2 Bass & A1 PackLite Power Amplifier 2 x L1 Model II System with B2 Bass A1 PackLite Powered Amplifier Module Carry Bag for A1 Packlite Amplifier Nylon Carry Pouch AC Power Cord 1/4" TRS (Balanced) Cable (20") Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose L1 Model II System with Double B2 Bass & A1 PackLite Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose L1 II Specs | | | Power | 4 Ω Load: 250 W RMS (1 kHz, 0.1% THD)
8 Ω Load: 125 W RMS (1 kHz, 0.1% THD) | | Load | Minimum Loudspeaker Load: 4 Ω | | Signal to Noise Ratio | 100 dB (20 Hz to 20 kHz) | | Voltage Gain | 30 dB | | Input Sensitivity | 1.15 V (+3.4 dBu) | | Input Impedance | 55 kΩ unbalanced, 110 kΩ balanced | | Clipping Level | Input: 10 V RMS (+22 dBu) | | Frequency Response | 20 Hz to 20 kHz ± 0.5 dB | | Thru | Output Type: Balanced/unbalanced, dependent on input connection type | | Circuitry | Output: Class D | | Protection | Self-resetting thermal, output short circuit, and over-current | | AC Power Requirements | Typical: 1.8 A, 110 VAC; 0.9 A, 230 VAC | | Current | Peak Inrush Current: 28 A (100 to 120 VAC) | | | | Maximum Operating Temperature | 122°F (50°C) | | Dimensions (W x H x D) | 5.6 x 2.3 x 10.3" (140.0 x 56.0 x 258.0 mm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 175.5 lb | | Box Dimensions (LxWxH) | 48.0 x 33.0 x 29.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
