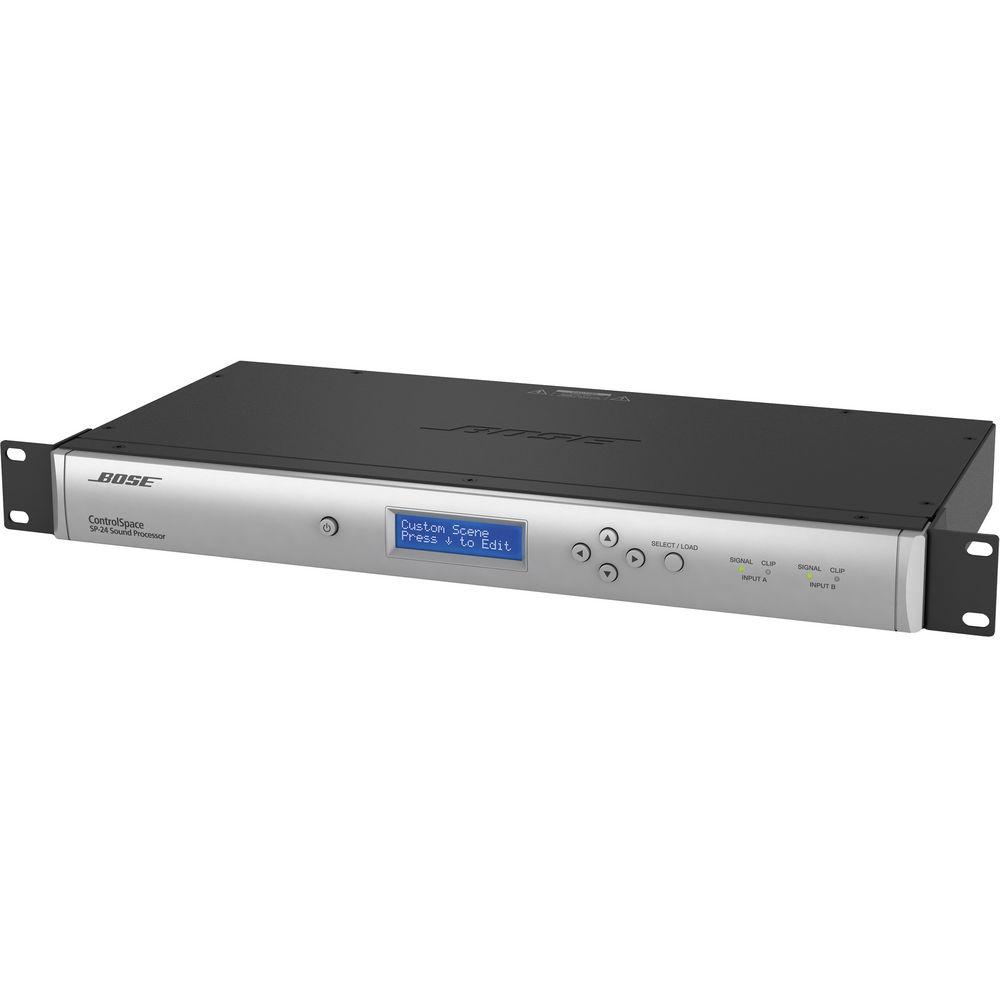

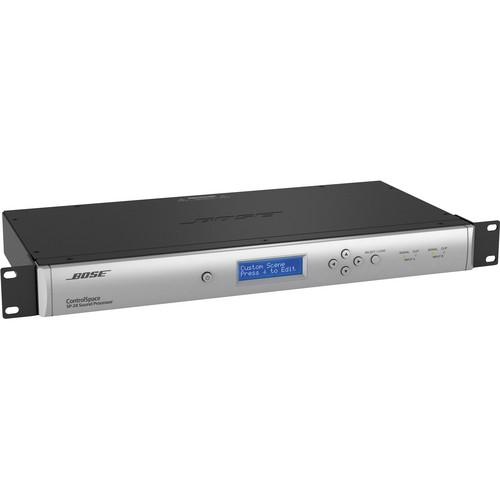

Product description The Bose ControlSpace SP-24 Sound Processor is a loudspeaker controller that makes optimizing 2 x 4 installed and portable sound systems easy. It has a simple front panel interface for basic operations such as preset / scene recall and gain / delay. The intuitive SP-24 Editor software provides full access to all signal processing settings and signal routing, whether connected live or offline. Full access includes custom channel routing, input and output 9-band equalization, band pass filters, delays, peak limiter, and gain and polarity control.Scenes created with the SP-24 Editor software can be saved locally on a PC or can be stored on the SP-24 processor’s hardware using a USB connection. Custom loudspeaker EQ curves can be created or Bose professional loudspeaker EQs can be recalled for quick, optimized setup. The hardware includes standard XLR connectors that allow you to easily connect the processor to balanced pro-level source devices, amplifiers, and powered loudspeakers. - Real-time control and the ability to program and store custom scenes with the easy-to-use SP-24 Editor software

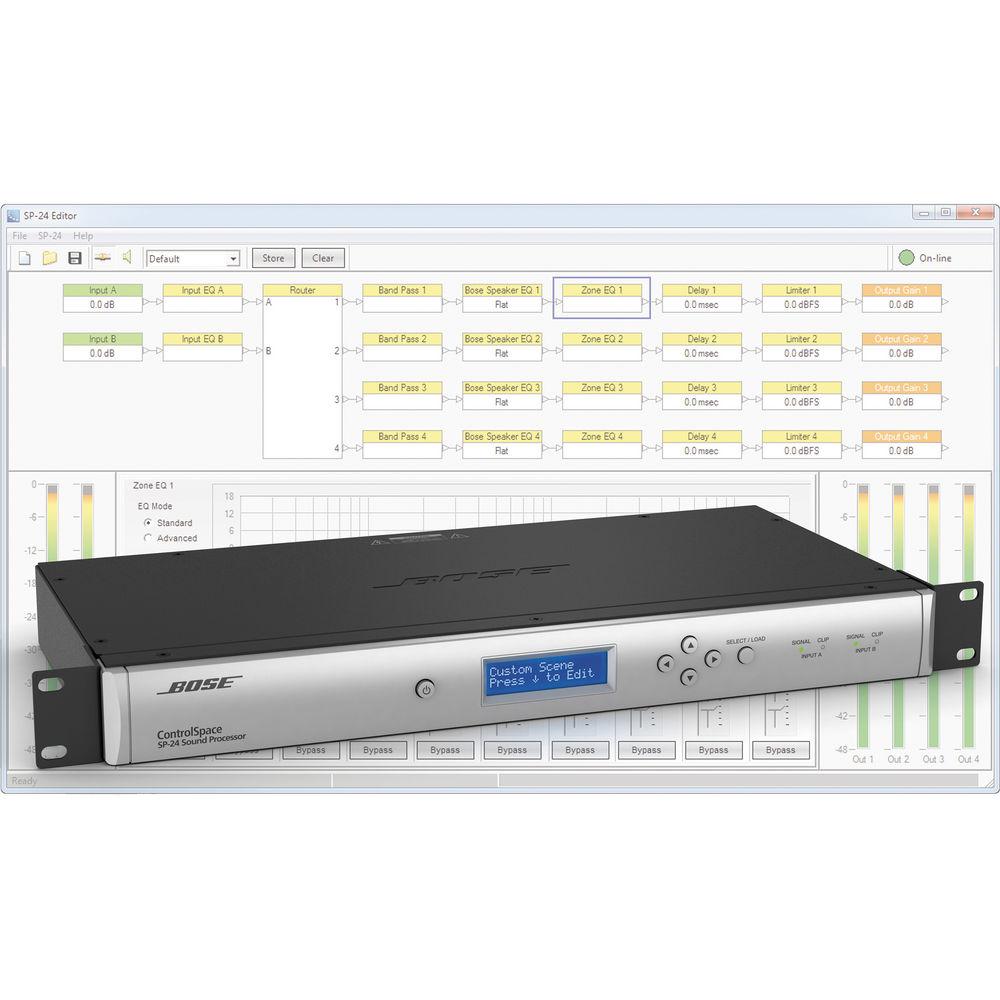

- SP-24 Editor software provides complete access to all signal processing functions including custom channel routing, input and output 9-band dual equalization, band pass filters, delays, peak limiter, and gain and signal polarity for full system control

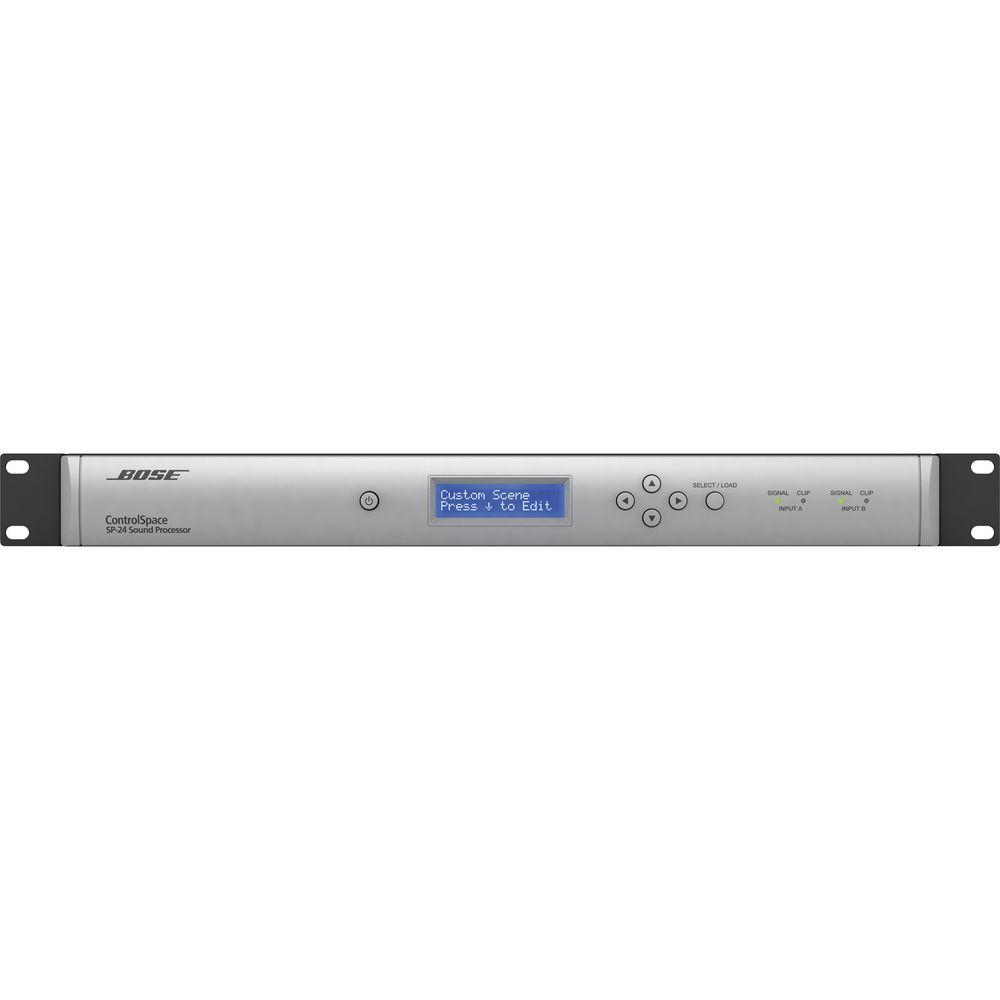

- Simplified front panel LCD menus and controls are purposely designed to make it easier to select pre-programmed scenes, gain and delay parameters, or quickly access Bose loudspeaker presets

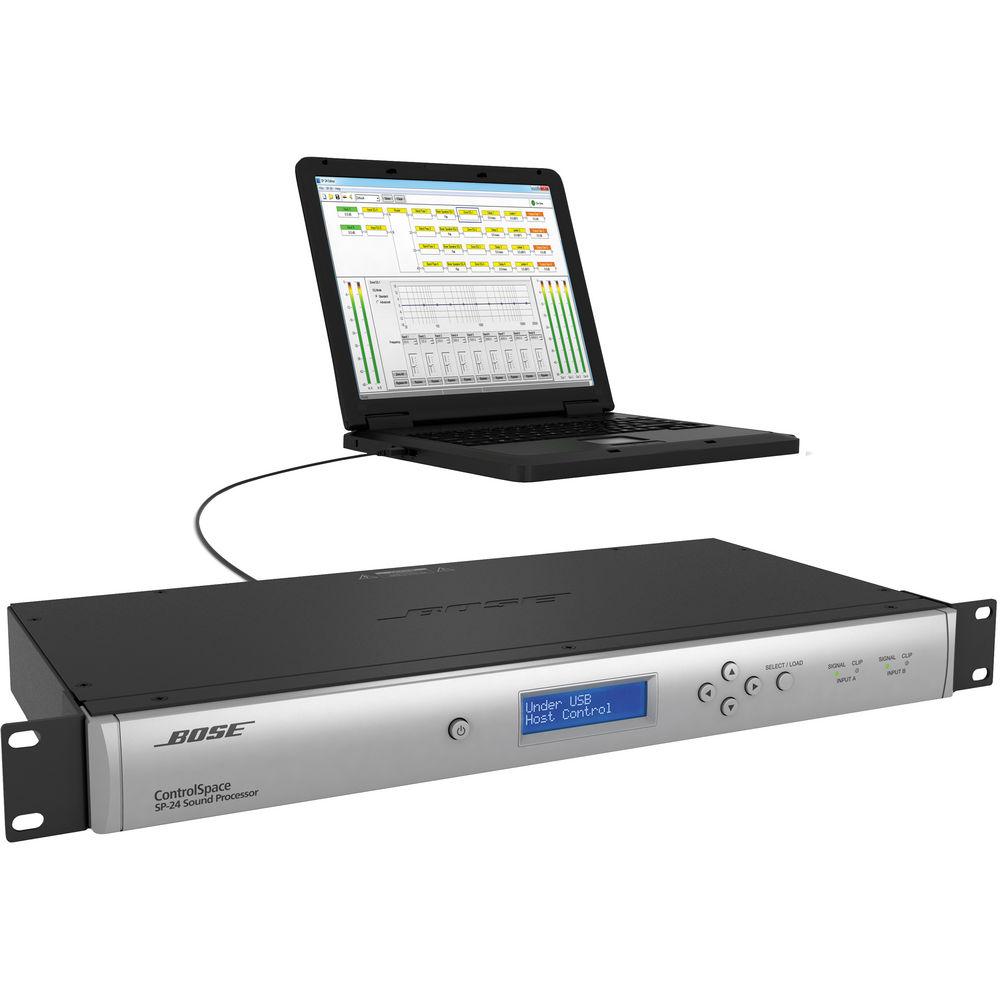

- USB port enables plug-and-play PC access for system configuration, programming, signal level monitoring, and firmware updates using the SP-24 Editor software
- Extensive Bose professional loudspeaker library enables quick access to factory-created equalization curves while the SP-24 Editor software provides intuitive graphical tools for optimizing any passive or powered loudspeaker

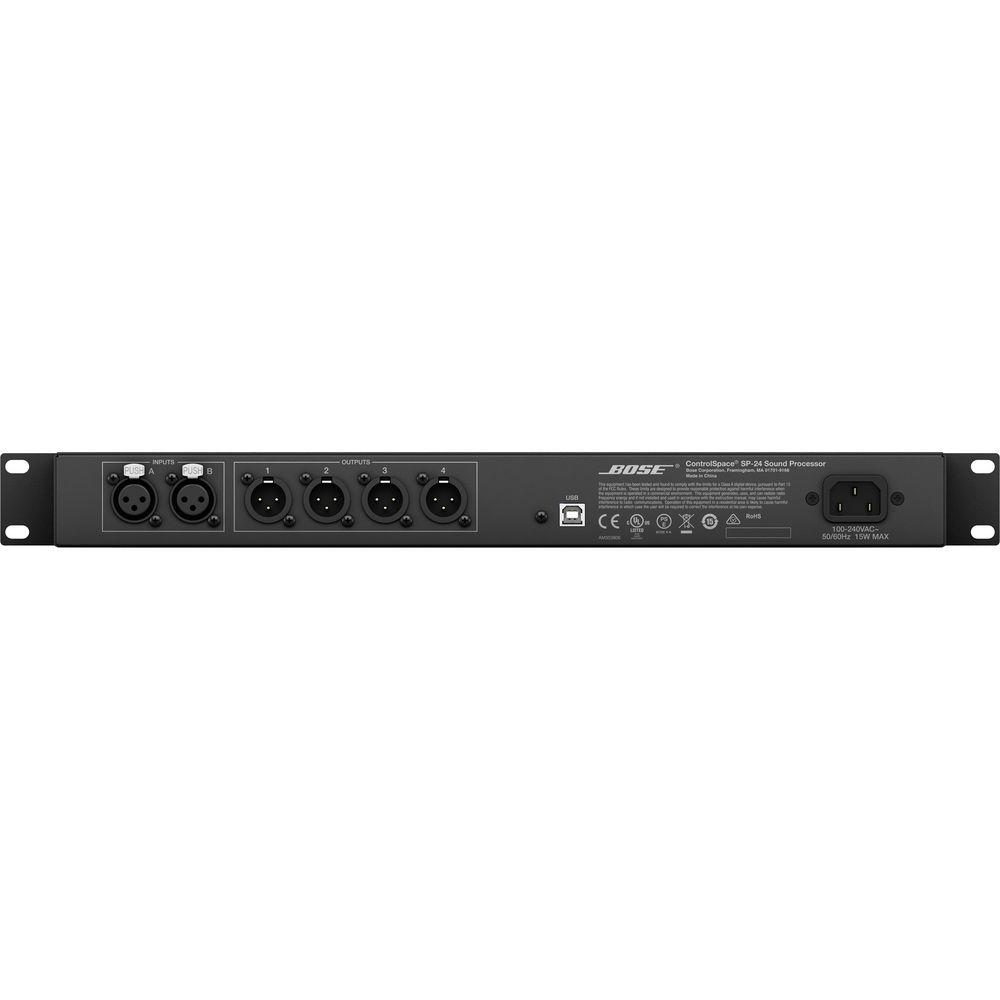

- Two XLR inputs and 4 outputs for balanced connectivity to professional audio gear
- Signal and clip LED indicators show the signal status of the input channels
- Front panel lockout feature prevents unauthorized use
- Designed for a wide range of applications such as auditoriums, houses of worship, live music performances, restaurants and bars, retail stores, and auxiliary zones
- Complies with CE requirements and is cUL listed according to UL60065 (7th edition) and CAN/CSA C22.2 No. 60065-03, CB approved according to IEC60065 (7th edition) including group and national differences, and is PSE compliant
- Complies with FCC Part 15B Class A (2003), EN55103-1 (1997), EN55103-2 (1996), CISPR13 (2003), and Canadian ICES-003 Class A specifications
UPC: 017817575140 In the Box Bose Professional ControlSpace SP-24 Sound Processor Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional ControlSpace SP-24 Sound Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

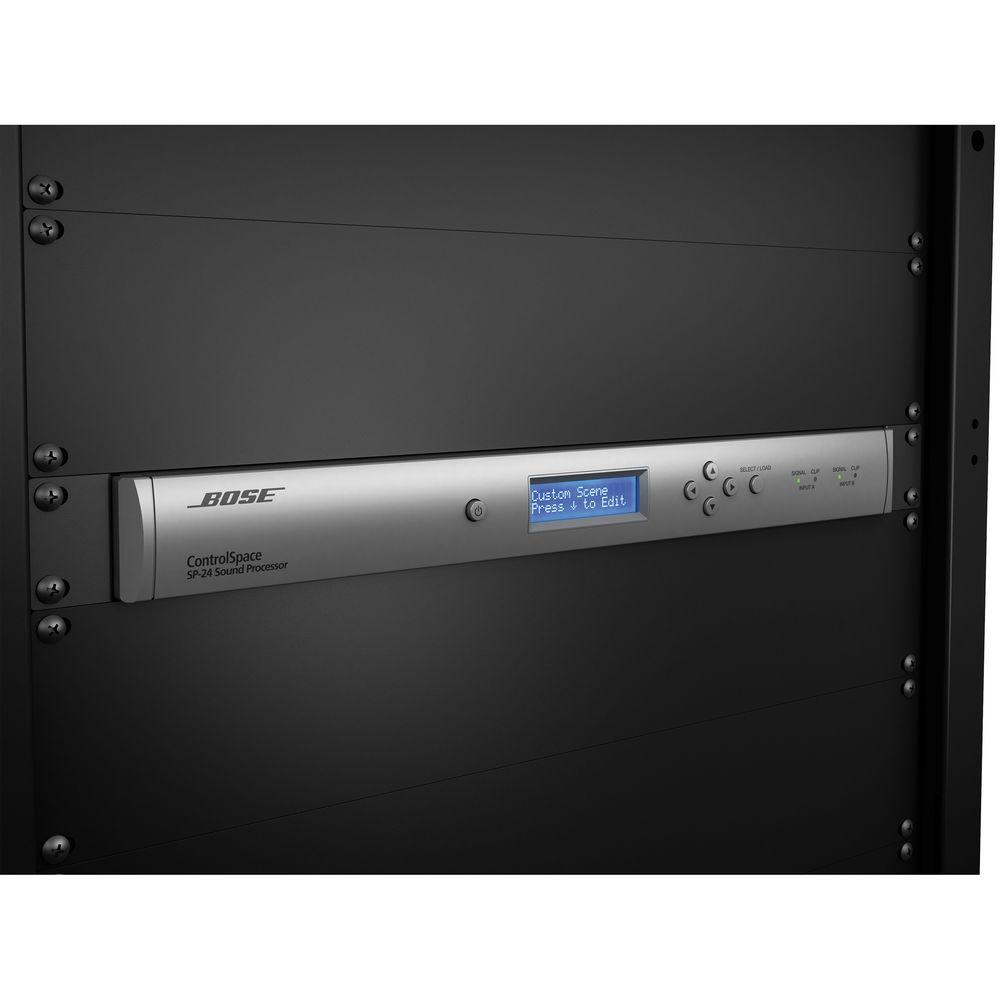

Technical parametersBose Professional SP24 Specs | | | Frequency Response | 20 Hz to 20 kHz (0 / -1 dB) | | THD + N | 0.015 % (Typical) | | Channel Separation | (Crosstalk): 100 dB (Typical) | | Dynamic Range | 107 dB (Typical) | | | | Audio Latency | 1.52 ms | | Converters | A/D and D/A: 24-bit | | Sample Rate | 48 kHz | | Delay | Maximum Output: 170 ms | | | | Input Channels | 2 | | Input | 2 analog, balanced, differential | | Maximum Input Level | 18 dBu | | Input Connectors | XLR | | Input Impedance | Differential 2.2 kΩ at 1 kHz | | Sensitivity | Selectable 0 / 6 / 18 dBu | | | | Channel | Output: 4 | | Output | 4 analog, balanced, differential | | Connectors | XLR | | Output Impedance | Differential 200 Ω | | Maximum Output Level | 18 dBu | | | | Audio | Input signal present (Green LED), input signal clip at 0 dBFS (Red LED) | | | | Voltage | 100 to 240 VAC (±10%, 50/60 Hz) | | AC Power Consumption | 15 W | | Mains | AC: Standard IEC (C14) | | Power Dissipation | 52 BTU (13.1 kcal) | | | | Communication Port | USB Type B (rear panel), PC interface | | | | Rack Space | 1 RU | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -40 to 158°F (-40 to 70 °C) | | Humidity | 95% relative humidity, maximum | | Dimensions (H x W x D) | 1.8 x 19.0 x 8.6" (45.0 x 483.0 x 218.0 mm) | | Weight | 5.9 lb (2.7 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 23.1 x 12.3 x 4.7" |
