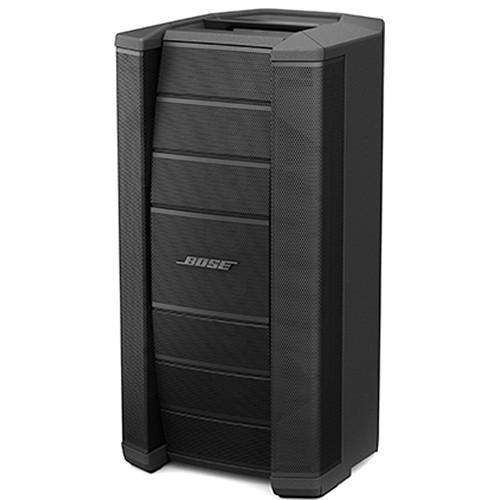

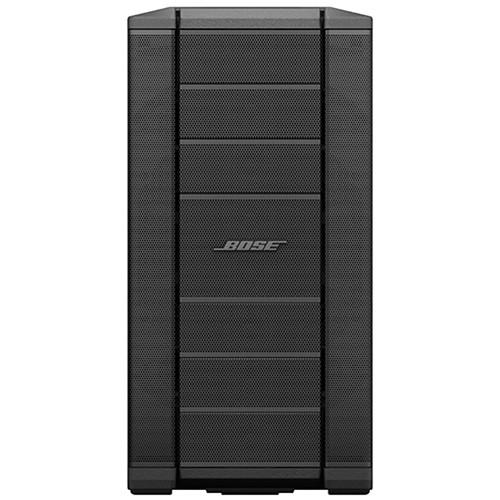

Product description The F1 Model 812 from Bose is a passive flexible array loudspeaker that offers four different vertical coverage patterns, allowing users to optimize their sound to fit the performance environment. Whether you're playing at floor level, on stage facing a dance floor, or facing raked seats or bleachers, you can adapt your PA to the room.
The speaker features eight mid/high frequency drivers and a single 12" woofer that combine to provide a frequency range of 47 Hz to 20 kHz with a peak SPL of 125 dB. The eight mid/high drivers are mounted on a flexible baffle, which allows you to push or pull the array into position to create four vertical coverage patterns: "Straight," "J," "Reverse J," or "C." The F1 Passive requires active equalization to achieve the full frequency response and tonal balance. There are four loudspeaker equalization presets available for each of the four array positions. These can be used in both Bose and 3rd party processors.

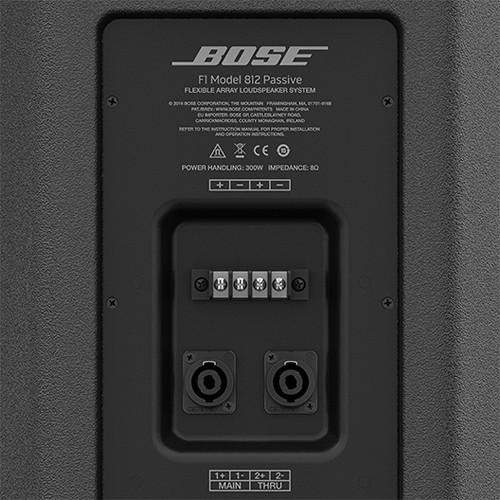

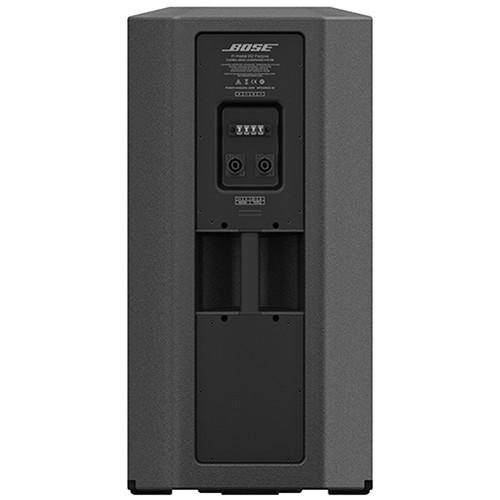

The speaker features an integrated pole mount for use with standard tripod speaker stands. Additionally, the enclosure is fitted with six M8 threaded insert points that can be combined with a full suite of optional mounting accessories. The rear panel offers two parallel-wired Neutrik NL4 connectors and four-terminal barrier strip, which is compatible with speaker cables up to 12 gauge. -
- Flex Array: Bose exclusive flexible baffle can be configured into four unique shapes, allowing you to choose the best possible coverage pattern for the application

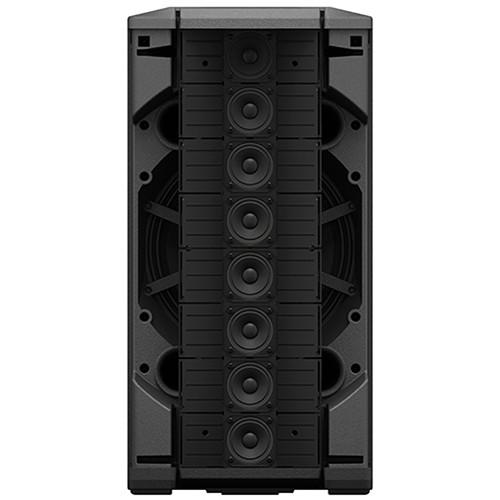

- 8-Driver Mid/High Line Array: Eight vertically mounted drivers, each mounted on a custom waveguide, help deliver wide, consistent coverage
- LF Driver (12"): High-performance woofer provides strong low-frequency output
- SPL Output: 125 dB peak, for sound-reinforcement and foreground music
- Frequency Range: 47 Hz - 20 kHz eliminates need for subwoofers for moderate full-range music levels
- Rugged Enclosure: With six M8 threaded insert points that can be combined with a full suite of optional mounting accessories

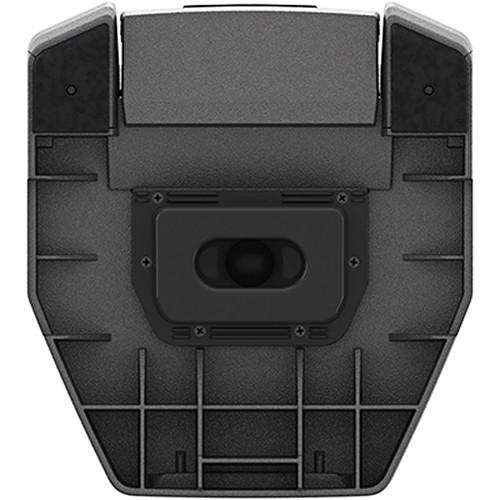

- Integrated Pole Mount: For use with standard tripod speaker stands
- Requires active equalization
UPC: 017817685191 In the Box Bose Professional F1 Model 812 Flexible Array Loudspeaker (Passive) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional F1 Model 812 Flexible Array Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose Professional 374847-0110 Specs | | | Configuration | Passive 2-Way Requires Bose EQ | | Total Power Capacity | 300 W RMS
1200 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | MF Driver | 8 x 2.3" / 57.2 mm | | LF Driver | 1 x 12" / 304.8 mm Woofer | | | | Frequency Range | 47 Hz to 20 kHz -10 dB | | Frequency Response | 56 Hz to 16 kHz ±3 dB | | Maximum SPL | 119 dB SPL
125 dB SPL (Peak) | | Coverage Angle | 100° H x 40° V | | Speaker Sensitivity | 95 dB SPL | | | | Audio I/O | 2 x speakON NL4
Barrier Strip 4-Pin NL4 Inputs parallel. Barrier strip accepts up to 12 AWG speaker wire. | | | | Crossover | 700 Hz (Passive) | | | | Mounting | 6 x M8
1 x 1.4" / 35 mm Pole Socket | | Construction Material | Composite, Metal Grille | | Dimensions | 26.2 x 13.2 x 14.8" / 665.5 x 335.3 x 375.9 mm | | Weight | 47 lb / 21.3 kg |
