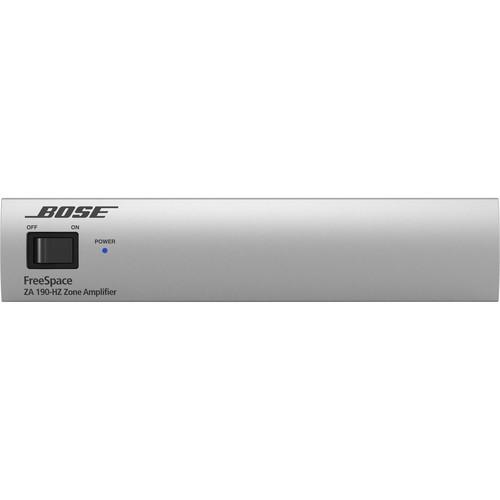

User Manual for Bose Professional FreeSpace ZA 190-HZ Zone Amplifier Expansion Click to enlarge the picture
Contents of the user manual for the Bose Professional FreeSpace ZA 190-HZ Zone
- Product category: Mixer/Amplifiers Bose Professional
- Brand: Bose Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Professional Mixer/Amplifiers
|
User manual for the Bose Professional FreeSpace ZA 190-HZ Zone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose Professional product will considerably shorten its lifespan!
|
Product description The FreeSpace ZA 190-HZ from Bose Professional is designed to provide basic amplification and sound system expansion when using front-end Bose products, such as FreeSpace IZA integrated zone amplifiers and ControlSpace engineered sound processors. Expansion is simplified when this amplifier is used with a FreeSpace IZA integrated zone amplifier, where one cable connection allows the amplifiers to function together as one system-sharing music and paging sources, as well as master volume control. The FreeSpace ZA 190-HZ ships with a Euroblock connector, a stereo RCA cable, and a standard IEC power cord. -
- Premium sound quality from a reliable, high-quality Class-D amplifier designed to expand sound systems for loudspeaker installations
- Expandable amplification allows for easy system expansion when coupled with a FreeSpace IZA 250-LZ or IZA 190-HZ integrated zone amplifier. The two amplifiers will function together as one system
- Compact, lightweight design enables the FreeSpace zone amplifier to be placed out of the way—on a table, desk, counter, shelf or in an equipment rack using the optional Rackmount Kit accessory
UPC: 017817578714 In the Box Bose Professional FreeSpace ZA 190-HZ Zone Amplifier Expansion IEC Power Cord Stereo RCA Cable 4 x Feet with Locking Pins 3-Pin Euroblock Output Connector Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional FreeSpace ZA 190-HZ Zone Amplifier Expansion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose Professional FreeSpace ZA 190-HZ Specs | Amplifier Power | 1 x 90 W @ 70/100 V | | Frequency Response | 60 Hz to 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz) | | THD+N | ≤ 0.1 % (at full rated power) | | Crosstalk | ≤-60 dBV (below rated power, 1 kHz) | | Dynamic Range | 88 dB | | Inputs | Line Inputs: 2 x unbalanced (stereo RCA) | | Input Range | Line Inputs: -10 dBV to +10 dBV | | Input Impedance | Line Inputs: 20 kOhms | | Maximum Input Level | +10 dBV | | Nominal Input Level | Line Inputs: 0 dBV | | Outputs | Amplifier Outputs: 1 (3-pin inverted Euroblock) | | Nominal Output Level | Amplifier Outputs: 1 x 90 W @ 70/100 V | | Indicators & Controls | LED Status Indicators: Power, blue
Controls, Front Panel: Power On/Off
Controls, Rear Panel: Output trim | | Mains Voltage | 100 - 240 VAC (±10%, 50/60 Hz) | | Power Consumption | 15 W (Standby), 200 W (Max) | | Peak Inrush Current | 13.9 A (230 V / 50 Hz)
7.6 A (120 V / 60 Hz) | | Overload Protection | High temperature, short | | Power Connector | Standard IEC (C14) | | Cooling System | Natural convection | | Rack Space | 1 RU high, half-rack wide | | Dimensions (H x W x D) | 1.8 x 8.4 x 11.9" / 45.7 x 213.4 x 302 mm | | Weight | 6.7 lb / 3.0 kg |
