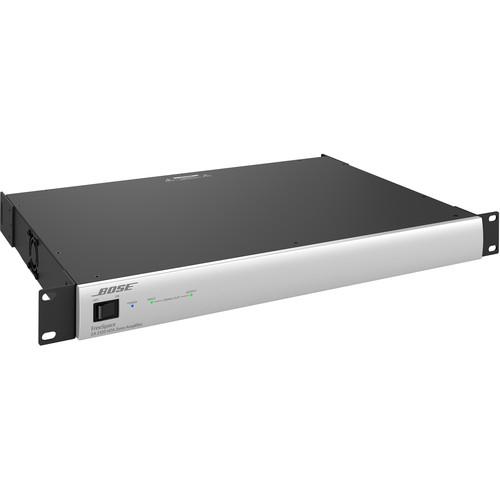

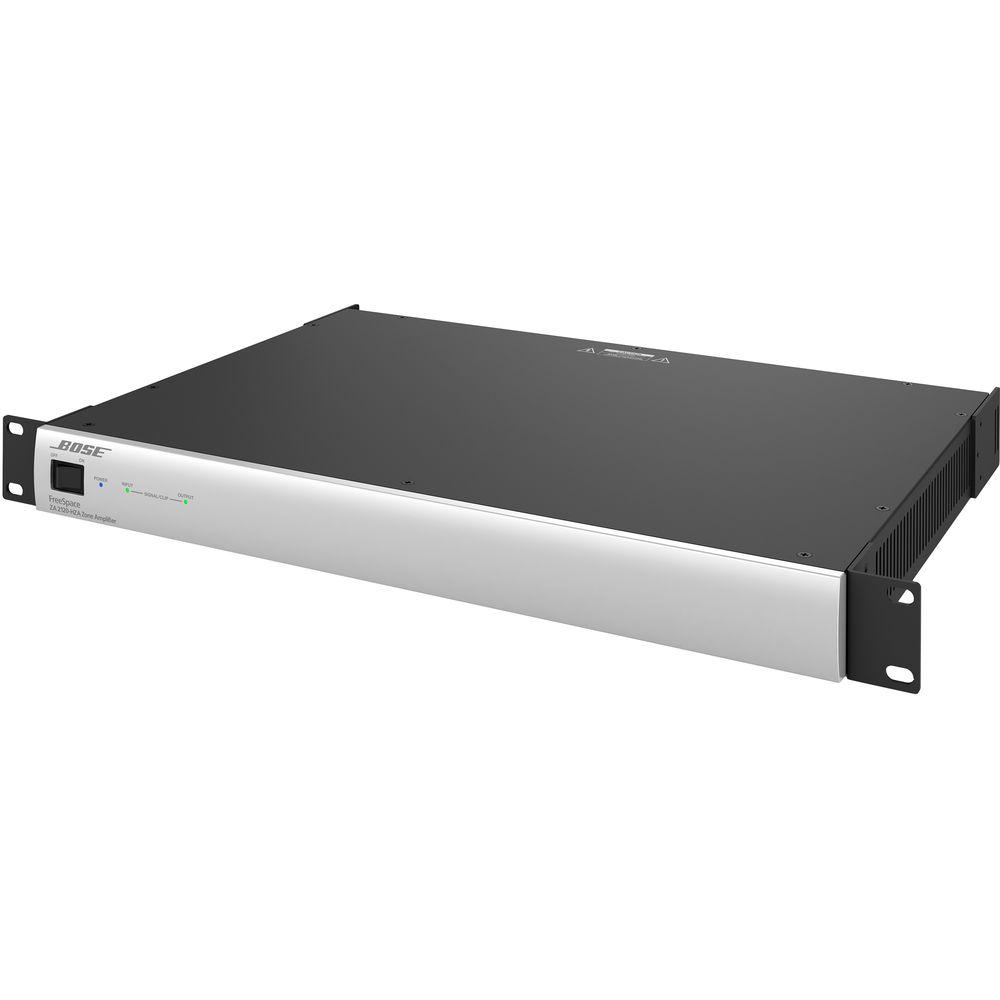

Product description The Bose Professional FreeSpace ZA 2120-HZA is a 70/100V high-impedance zone amplifier for background/foreground music and paging well suited for business music applications including conference spaces, retail stores, hotels, lobbies, bars, and restaurants. The amplifier provides basic amplification and sound system expansion when using optional front-end Bose products such as FreeSpace IZA integrated zone amplifiers and ControlSpace engineered sound processors. With the inclusion of AmpLink, up to 8 digital audio channels can be sent to the amp from a Bose DSP via a shielded Cat 5 cable. The FreeSpace ZA 2120-HZA ships with several Euroblock connectors, a stereo RCA cable, and a standard IEC power cord. -
- Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
- AmpLink transports up to 8 uncompressed, near zero-latency, digital audio channels between Bose DSPs and the ZA 2120-LZA via shielded Cat 5 cable. The amp also supports a thru path for daisy-chaining digital audio to other Bose AmpLink products at up to 10 m between products
- Dual remotes support optional volume adjustment for independent or combined zone control, which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
- Expansion-ready connectivity with FreeSpace IZA amplifiers and ControlSpace engineered sound processors when additional sources and loudspeaker processing are required
- Intuitive feature setup enables the amplifier to be configured without a PC for input, output, and automatic standby options
- Auto-Standby feature allows the amplifier to consume less power when not in use
- Remote muting allows the amplifier to be muted via a centralized control system
In the Box Bose Professional FreeSpace ZA 2120-HZA Zone Amplifier IEC Power Cord Stereo RCA 3 x 2-Pin Euroblock Connectors 5-Pin Terminal Output Connectors 4 x Feet with Locking Pins Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional FreeSpace ZA 2120-HZA Zone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose Professional FREESPACE ZA Specs | Amplifier Power | 2 x 120 W at 70/100 V | | Frequency Response | 55 Hz to 20 kHz (+0/-3 dB, @ 1 W Reference 1 kHz) | | THD+N | ≤ 0.3% (at Rated Power) | | Crosstalk | ≤ -58 dBu (Below Rated Power, 1 kHz) | | Dynamic Range | 88 dB | | Audio Latency | 1 ms (Any Analog Input to Loudspeaker Output)
1.5 ms (AmpLink Input to Loudspeaker Output) | | Audio Inputs | Analog
Input Channels: 1 x Unbalanced, 1 x Balanced

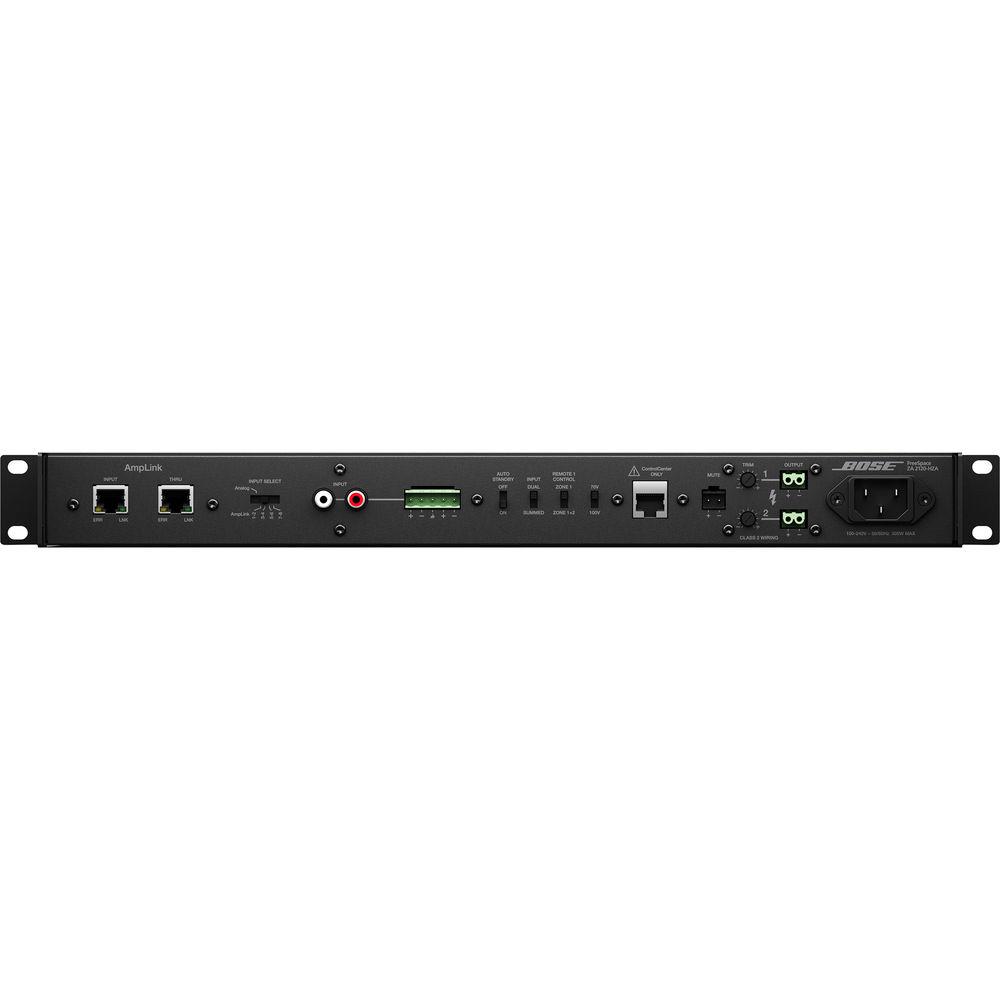

Connectors: Stereo RCA, 5-Pin Euroblock
Input Range: -8 dBu to 22 dBu
Input Impedance: 20 kOhms
Maximum Input Level: 22 dBu
Nominal Input Level: 4 dBu
Amplink
Input Channels: 8 Digital
Connectors: RJ45 (Input) | | Audio Outputs | Analog
Outputs: 2
Connectors: 2-Pin Inverted Euroblock
Nominal Output Level: 2 x 120 W at 70/100V
Amplink
Outputs: 8 Digital

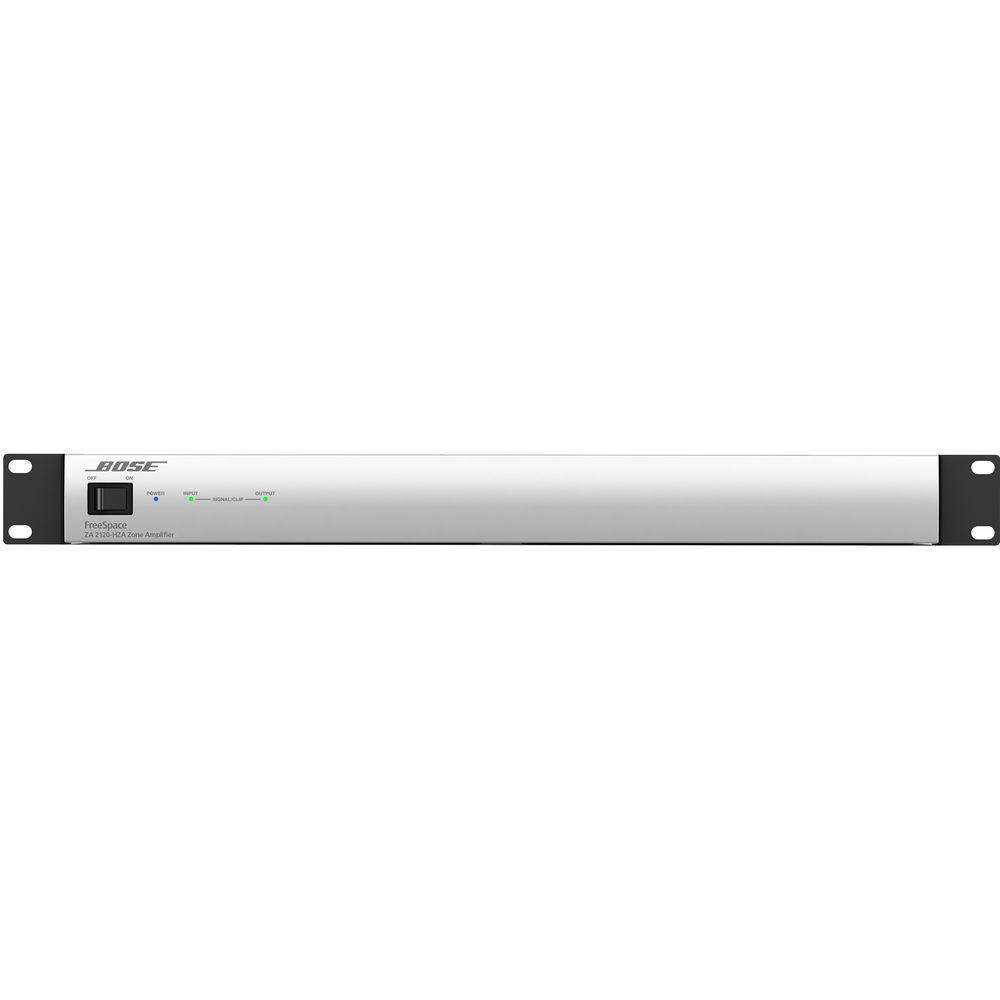

Connectors: RJ45 (Thru) | | Indicators & Controls | Power LED: Solid Blue Indicates Power Is On, Blinking Blue Indicates Standby Mode
Input Signal Clip LED: Green Indicates Input Signal Is within -37 dBu to 11 dBu, Red Indicates Signal Is over 11 dBu
Output Signal Clip LED: Green Indicates Output Signal Is within -46 dBFS to -2 dBFS, Red Indicates Signal Is over -2 dBFS, Approximately 80 W/Channel, for Each Output 120 W Is 0 dBFS
AmpLink ERR LED: Solid Yellow Indicates Muted Audio from the Mute Connector. Blinking Yellow Indicates an Error, which Will Also Mute the Audio
AmpLink LNK LED: Solid Green Indicates Normal Operation
Controls, Front Panel: Power On/Off
Controls, Rear Panel:
Auto Standby: On/Off Switch
Input: Dual/Summed Switch
Remote 1 Control: Zone 1/Zone 1+2 Switch
Output Voltage: 70/100V Switch
Mute
Output Trims
Remote RJ-45 | | Electrical | Mains Voltage: 100 to 240 VAC (±10%, 50/60 Hz)
AC Power Consumption: 13 W (Standby), 300 W (Max)
Mains Connector: Standard IEC (C14)
Maximum Inrush Current: 12.6 Amps (230 VAC / 50 Hz), 7.8 Amps (120 VAC / 60 Hz)
Overload Protection: High Temperature, Output Short, Excessively Low or High AC Line Voltage | | Cooling System | Single Fan Creates Continuous Left-to-Right Air Flow | | Dimensions (H x W x D) | 17.0 x 19.0 x 12.8" / 431.8 x 482.6 x 325.1 mm | | Weight | 9.5 lb / 4.3 kg |
