User Manual for Bose Professional MB12 WR - Weather Resistant Modular Bass Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bose Professional MB12 WR - Weather
- Product category: PA Speakers Bose Professional
- Brand: Bose Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Professional PA Speakers
 |
User manual for the Bose Professional MB12 WR - Weather contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose Professional product will considerably shorten its lifespan!
|

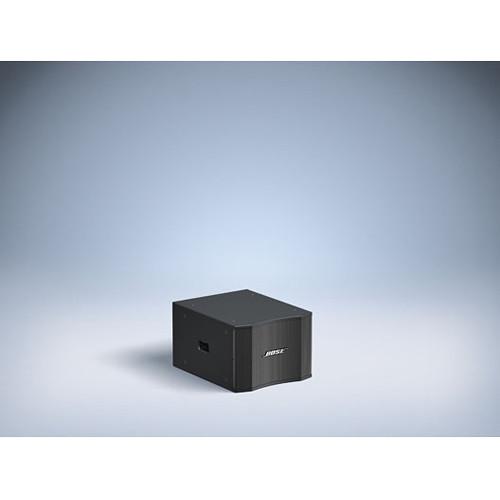

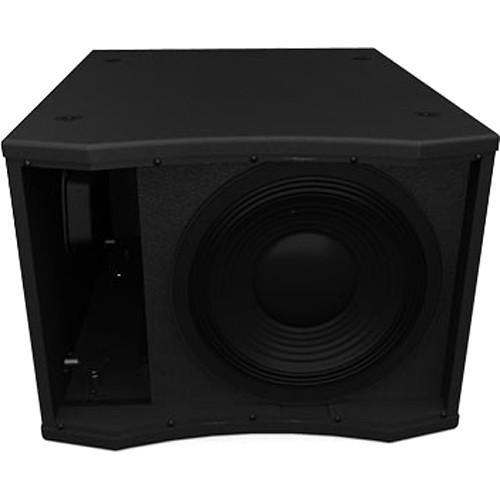

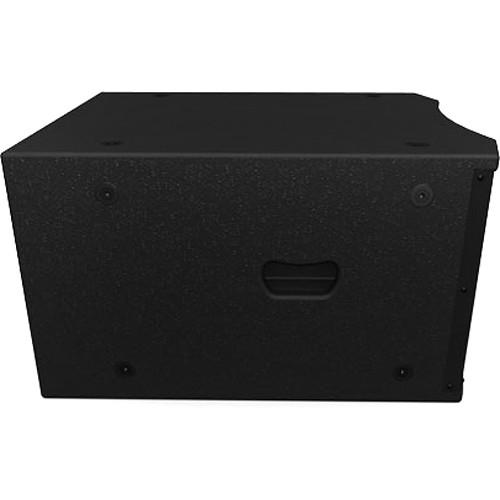

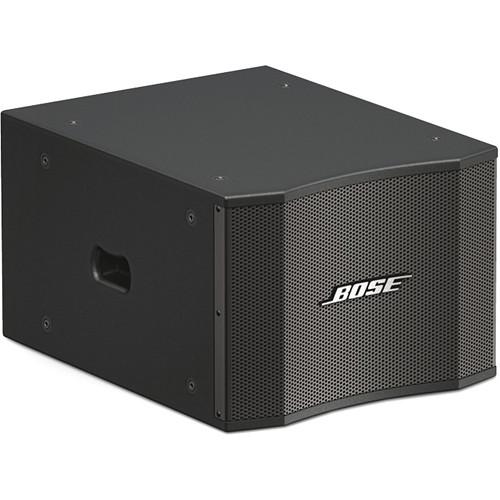

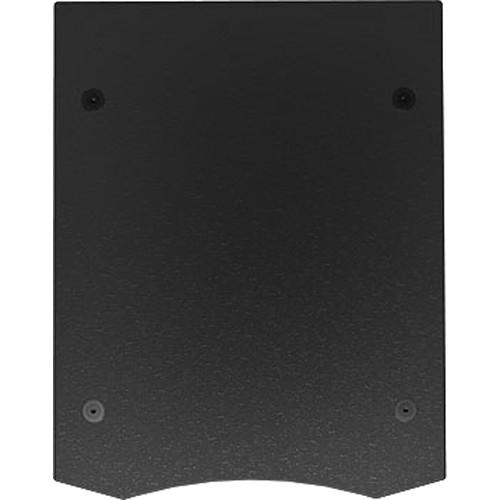

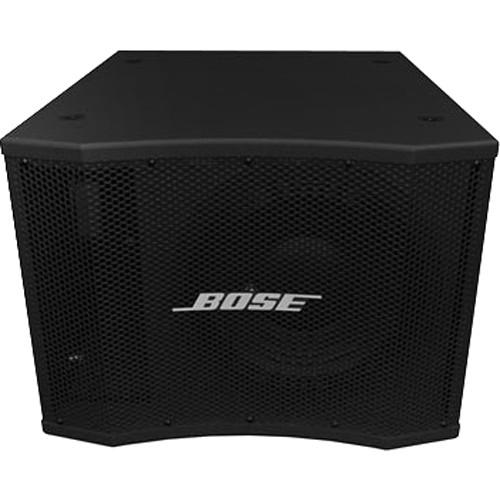

Product description The black, weather resistant MB12 WR from Bose is a modular bass loudspeaker designed to provide bass augmentation for Bose LT arrays and other subwoofer applications. The Baltic birch enclosure features a single 12" high-excursion woofer with a 4" voice-coil and a power handling of 400W RMS (1600W peak). The subwoofer offers a frequency response of 40 to 280 Hz and features a front-loaded transmission line design that provides a peak-free extended low-frequency, reducing port turbulence distortion. -
- Low-frequency reinforcement for Bose LT arrays and other subwoofer applications that require 40 to 280 Hz bass response
- Front-loaded tapered transmission line design provides peak-free extended low-frequency response and reduces port turbulence distortion
- 1 x 12.0" high-excursion woofer with 4.0" voice-coil and 400W long-term power rating provides high SPL with fast transient response
- Compact enclosure optimized for bass-array applications when cardioid or other directional-bass configurations are required for reverberant spaces
UPC: 017817392150 In the Box Bose Professional MB12 WR - Weather Resistant Modular Bass Loudspeaker (Black) Limited 5-Year Warranty on Acoustic Components Limited 2-Year Warranty on Cosmetic Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional MB12 WR - Weather Resistant Modular Bass Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose Professional MB12 Specs | | | Configuration | Subwoofer | | Total Power Capacity | 400 W
1600 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | LF Driver | 1 x 12" / 304.8 mm Woofer | | LF Voice Coil | 4" / 101.6 mm | | | | Frequency Range | 36 Hz to 290 Hz ±10 dB | | Frequency Response | 40 Hz to 280 Hz ±3 dB | | Maximum SPL | 117 dB SPL
123 dB SPL (Peak) | | Speaker Sensitivity | 91 dB SPL | | | | Audio I/O | 2 x speakON NL4 Parallel | | | | Mounting | 4 x 3/8"-16 Female (Top)
4 x 3/8"-16 Female (Bottom)
4 x 3/8"-16 Female (Each Side) | | IP Rating | IPX5 | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 14.7 x 20.0 x 25.4" / 373.4 x 508.0 x 646.0 mm | | Weight | 78 lb / 35.4 kg |
