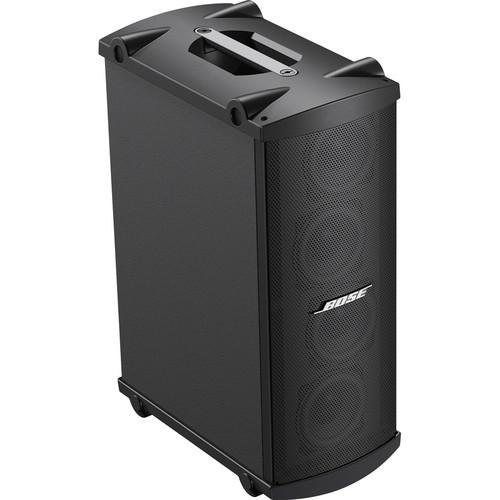

User Manual for Bose Professional PANARAY MB4 Modular Bass Passive Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bose Professional PANARAY MB4 Modular Bass
- Product category: PA Speakers Bose Professional
- Brand: Bose Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Professional PA Speakers
|
User manual for the Bose Professional PANARAY MB4 Modular Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose Professional product will considerably shorten its lifespan!
|
Product description The black PANARAY MB4 Modular Bass Passive Loudspeaker from Bose is a 200W, low-frequency loudspeaker that can be used for permanent installations indoors, or for portable applications. This speaker can be matched with amplifiers such as the Bose 1600 or 1800, as well as others rated for 4 or 8 ohm loads.An advantage to using a Bose 1600 or 1800 amplifier with the MB4, is that an MB4 plug-in EQ card can be installed into the amp to provide active equalization. The MB4 speaker’s output, bandwidth, and size make it useful as a single bass unit, or as a modular building block to match other Bose products in a professional system. MB4 Modular bass loudspeakers are designed to be wall mounted. They can also be configured as bass arrays, using the MB4 Endfire or Broadside spacing in conjunction with the Bose PANARAY system digital controller. No stands are required for portable use. - Wide frequency range from 40 to 300 Hz, which can be easily matched to any Bose professional loudspeaker
- High-impact output for dominant bass material
- Rugged, portable enclosure with metal grille and carrying handles
- Recessed back plate with 2 Speakon NL4 connectors
- Complies with ANSI/EIA 636 standard
- Recommended Loudspeaker Safety Practices and EMC Directive 89/336/EEC and Article 10 (1) of the Directive in compliance with EN50081-1, EN 50082-1, as signified by the CE mark
- Enclosure is constructed of high-density, multi-fiber, multi-layer wood particle panel with high-impact, foamed polypropylene end caps
UPC: 017817392327 In the Box Bose Professional PANARAY MB4 Modular Bass Passive Loudspeaker (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional PANARAY MB4 Modular Bass Passive Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose Professional MB4 Specs | | | Configuration | Passive | | Total Power Capacity | 200 W RMS | | System Impedance | 8 Ohms (Nominal) | | | | LF Driver | 1 x 5.2" / 13.3 cm | | | | Frequency Range | 40 Hz to 300 Hz ±3 dB | | Maximum SPL | 110 dB SPL | | Speaker Sensitivity | 87 dB SPL | | | | Audio I/O | 2 x speakON NL4 Parallel-Wired | | | | Dimensions | 18.1 x 10.2 x 26.7" / 46.0 x 25.9 x 67.8 cm | | Weight | 45 lb / 20 kg | | | | Package Weight | 58.5 lb | | Box Dimensions (LxWxH) | 30.7 x 22.5 x 15.0" |
