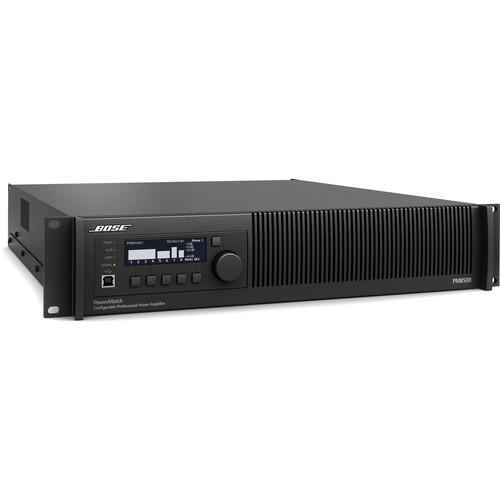

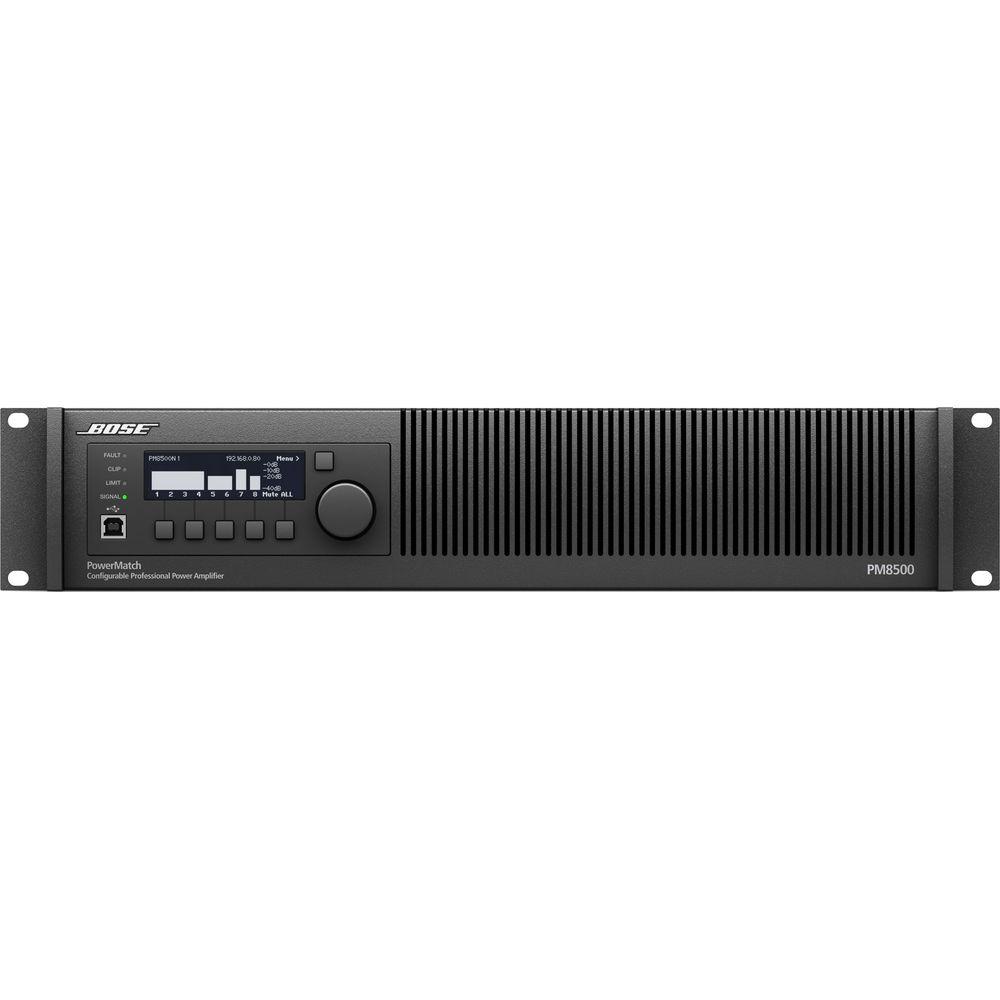

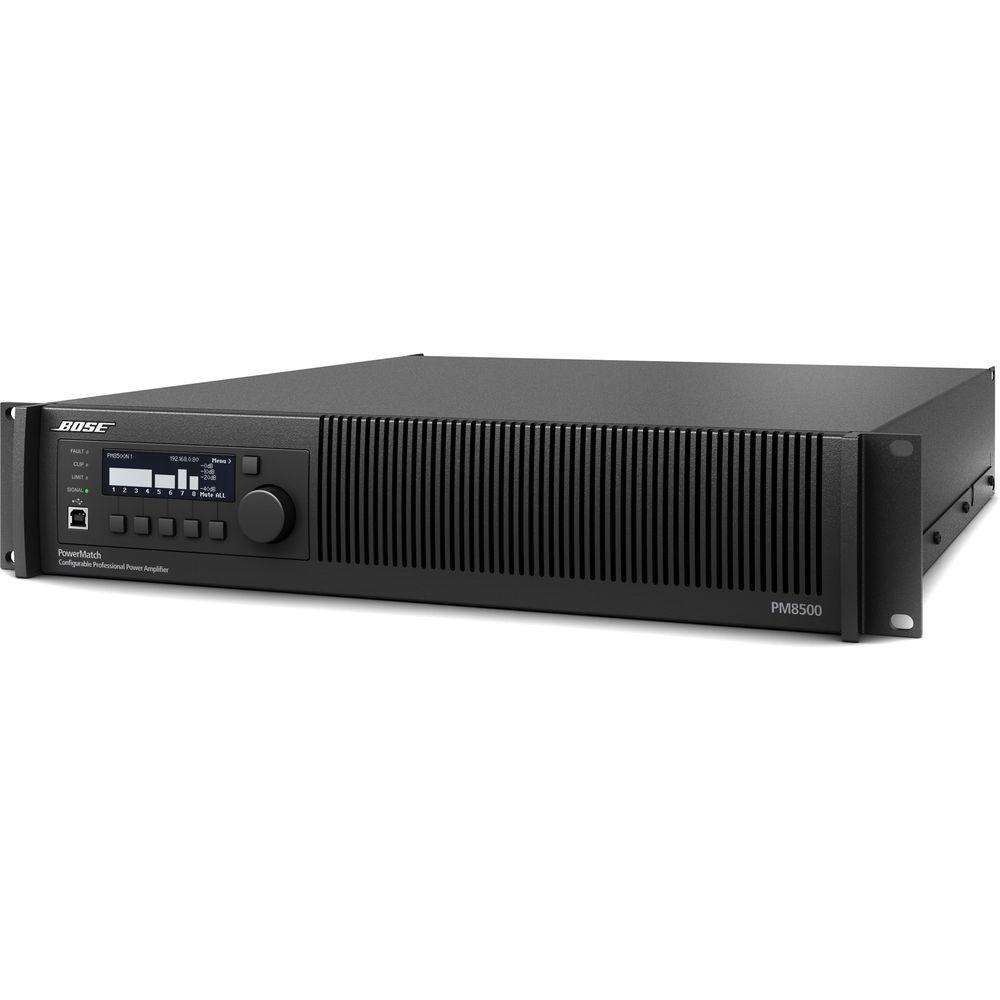

User Manual for Bose Professional PowerMatch PM8500N Power Amplifier with Ethernet Network Control Click to enlarge the picture
Contents of the user manual for the Bose Professional PowerMatch PM8500N Power Amplifier
- Product category: Power Amplifiers Bose Professional
- Brand: Bose Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Professional Power Amplifiers
 |
User manual for the Bose Professional PowerMatch PM8500N Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose Professional product will considerably shorten its lifespan!
|

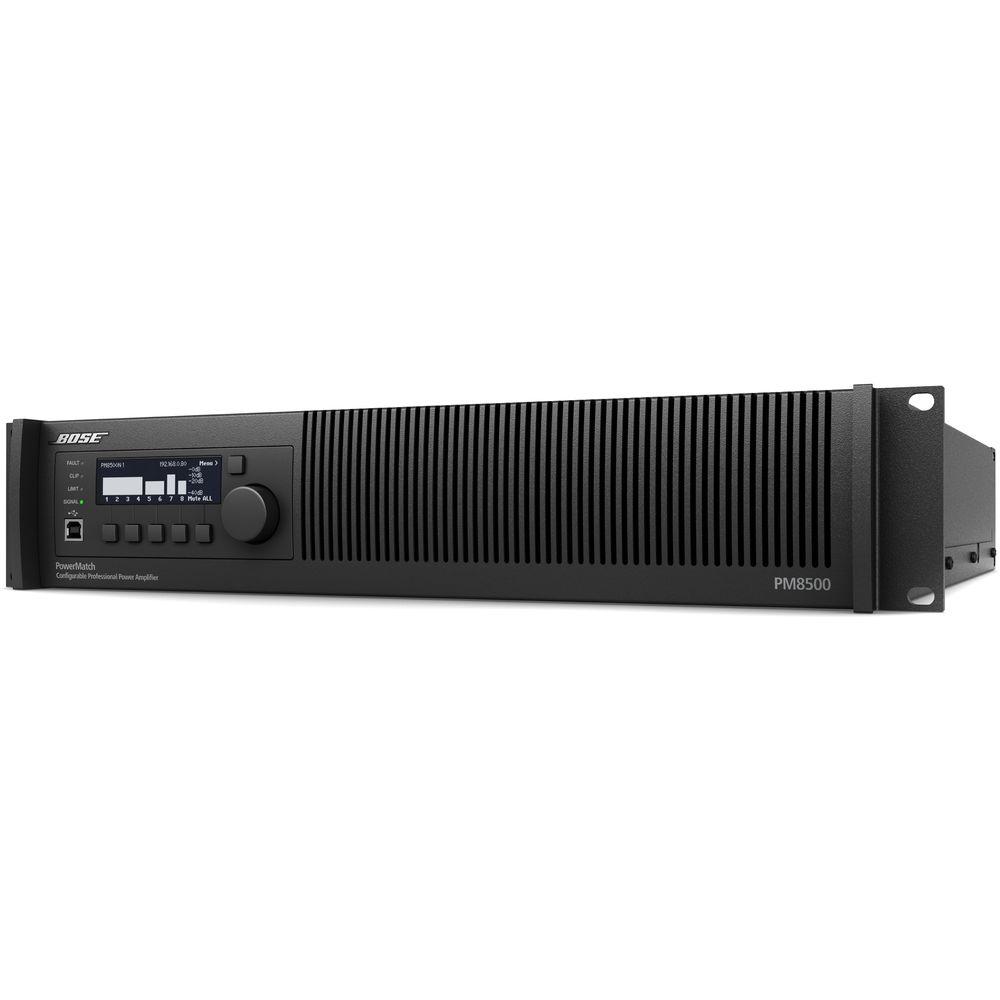

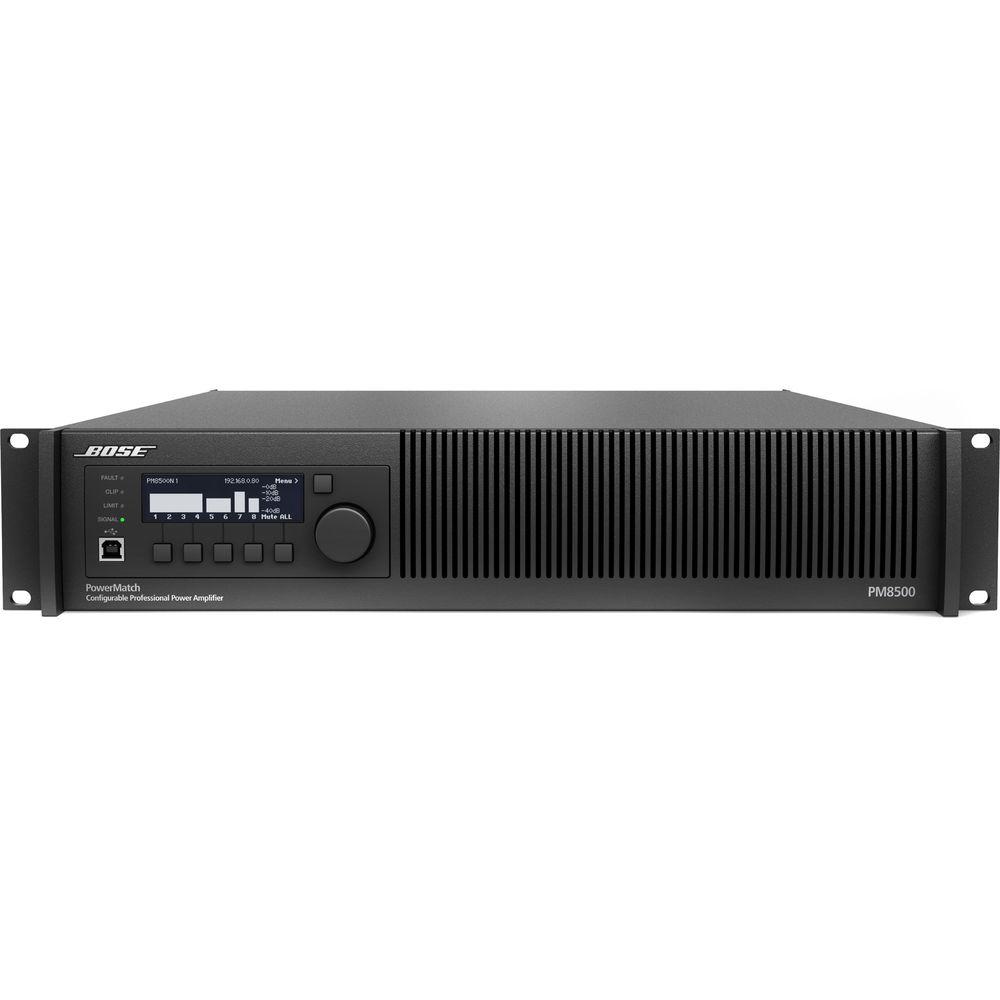

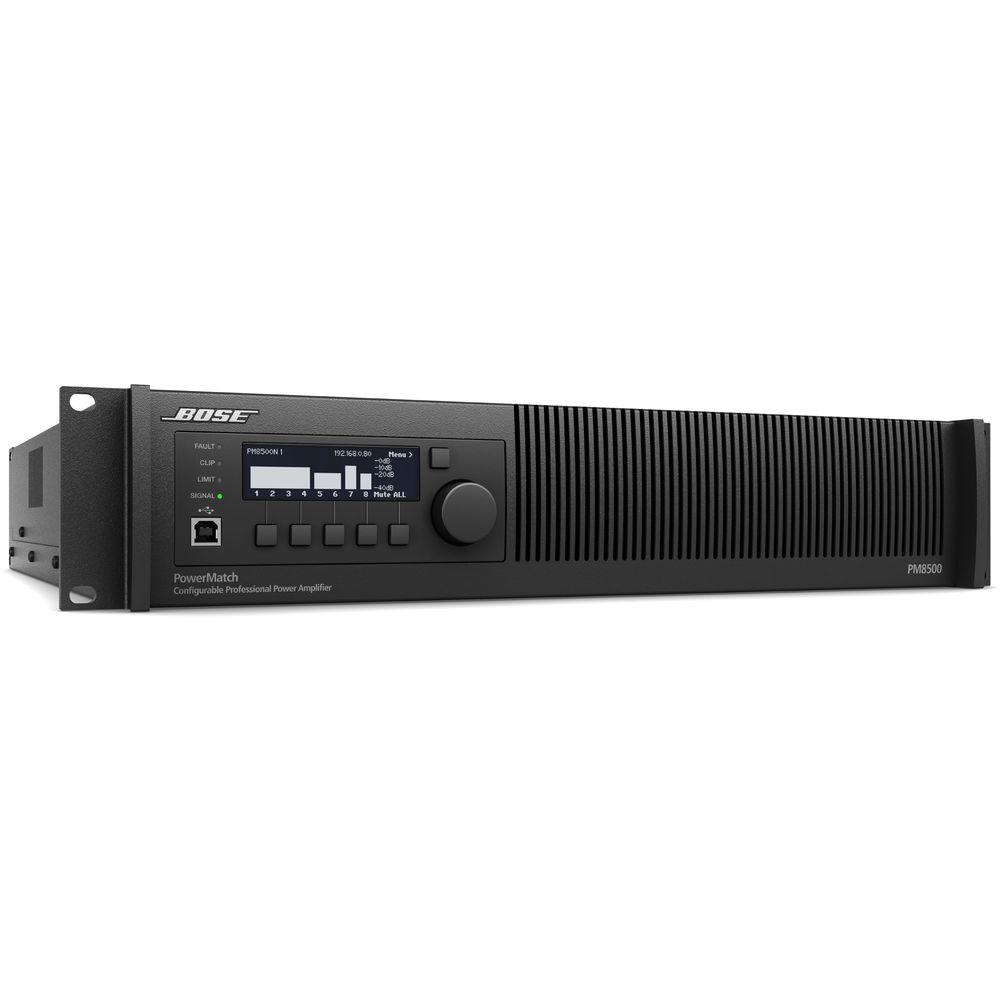

Product description Provided by third party: The Bose PowerMatch PM8500 configurable professional power amplifier provides concert-quality sound with a high level of scalability and configurability for fixed installation sound reinforcement systems. PowerMatch amplifier utilizes numerous Bose technologies to deliver a combination of performance, efficiency and ease of installation - all in a reliable, proprietary design.
- Key Features
-
- QuadBridge technology
- Auto-Standby/Auto-Wake function
- Dual voltage and current feedback loop
- PeakBank power supply
- Fast-tracking power factor correction (PFC)
- QuadBridge technology
- Allows each 4-channel loudspeaker block to be configured as Mono, V-Bridge, I-Share or Quad modes, allowing the total available power of the amplifier block to be allocated to one or more output channels. The amplifier is capable of driving both low impedance and 70/100V loudspeaker loads directly.
- Auto-Standby/Auto-Wake function
- When enabled, this function automatically enters/exits Standby mode, allowing the system to consume less power.
- Dual voltage and current feedback loop
- Proprietary design combines efficiency with a unique current and voltage feedback loop circuit that continuously monitors and controls both the current and voltage delivered to the loudspeaker load. Independent of power level and load impedance, the amplifier consistently delivers the widest possible dynamic range, frequency response and lowest possible distortion.
- PeakBank power supply
- Regenerative 4-quadrant power supply enables higher power density while allowing the re-use of energy from reactive loads that is normally wasted in conventional designs. This highly efficient amplifier design delivers sustainable and repeatable low frequency response.
- Fast-tracking power factor correction (PFC)
- Efficiently manages the current drawn from the AC mains, allowing the amplifier to drive loudspeakers to maximum output longer without power fluctuation. PFC provides superior transient response and functions at peak burst power much longer than conventional amplifier designs to satisfy the requirements of even the most demanding program material.
UPC: 017817598989 Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional PowerMatch PM8500N Power Amplifier with Ethernet Network Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose Professional 343546-1110 Specs | | | Product Type | Power amplifier | | | | Functions | Amplifier | | Audio D/A Converter | 24bit / 48kHz | | Digital Sound Processor (DSP) | Yes | | Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 102 dB - THD - 0.4% | | Output Power / Total | 4000 Watt | | Amplifier Output Details | 450 Watt - 2 Ohm - THD 0.1% - 8 channels
500 Watt - 4 Ohm - THD 0.1% - 8 channels
300 Watt - 8 Ohm - THD 0.1% - 8 channels
1000 Watt - 2 Ohm - THD 0.1% - 4 channels (bridged)
1000 Watt - 4 Ohm - THD 0.1% - 4 channels (bridged)
1000 Watt - 8 Ohm - THD 0.1% - 4 channels (bridged)
800 Watt - THD 1% - 4 channels (70V bridged)
1000 Watt - THD 1% - 4 channels (100V bridged)
1600 Watt - THD 1% - 2 channels (70V quad bridged)

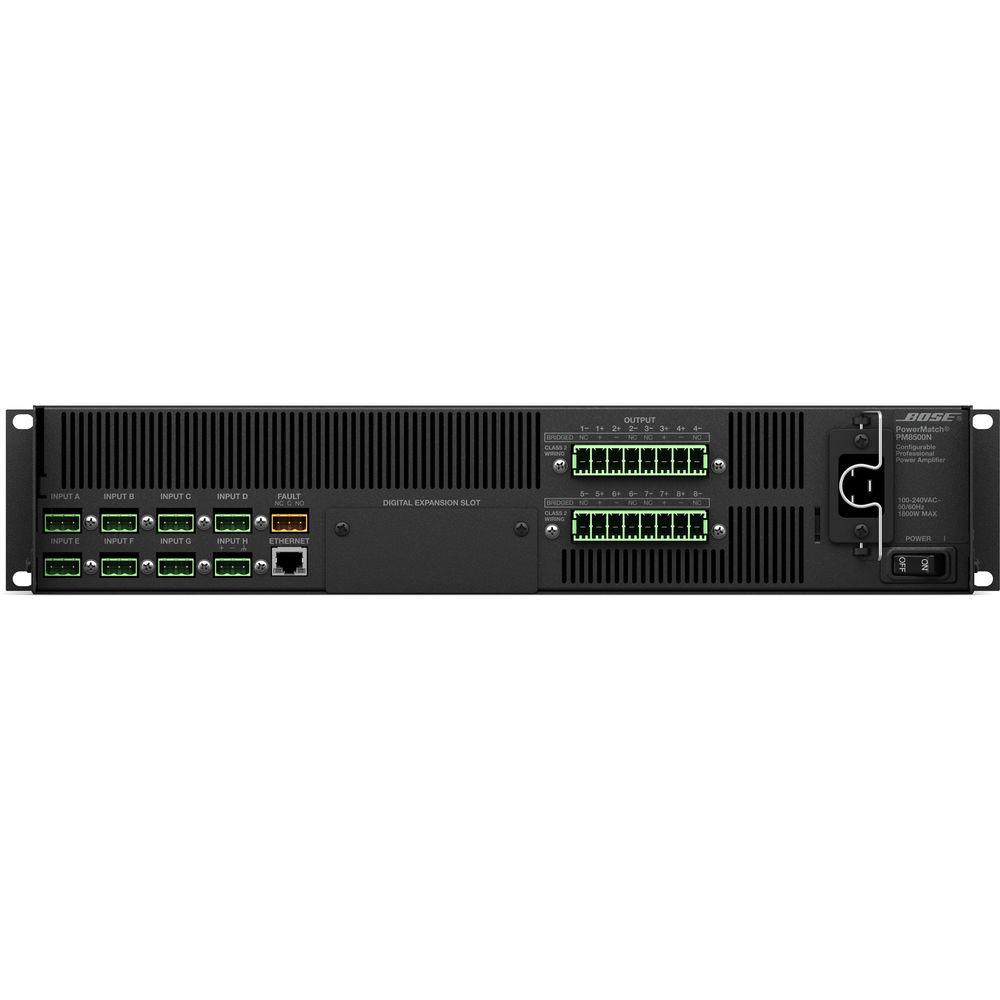

2000 Watt - THD 1% - 2 channels (100V quad bridged) | | Features | Thermal protection, short circuit protection, DC protection, over current protection, over voltage protection, high frequency protection, 70V/100V or 2/4/8 Ohm operation | | | | Display Type | LCD display - monochrome | | | | Connectors | 8 x balanced audio input (3 pin Phoenix) - rear
8 x speakers output - rear
USB (4 pin USB Type B) - front
Network (RJ-45) - rear | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Width | 19 in | | Depth | 20.7 in | | Height | 3.5 in | | Weight | 28.44 lbs | | | | Weight (Shipping) | 34.6 lbs |
