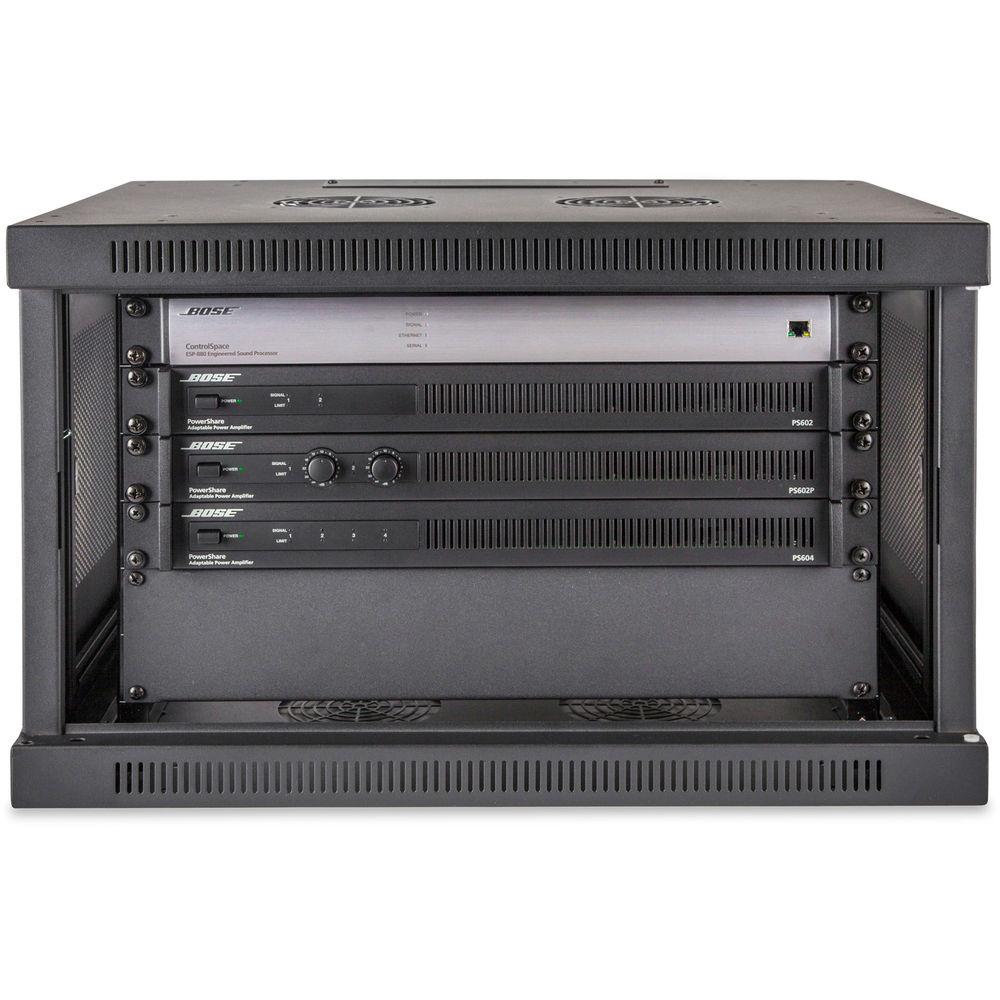

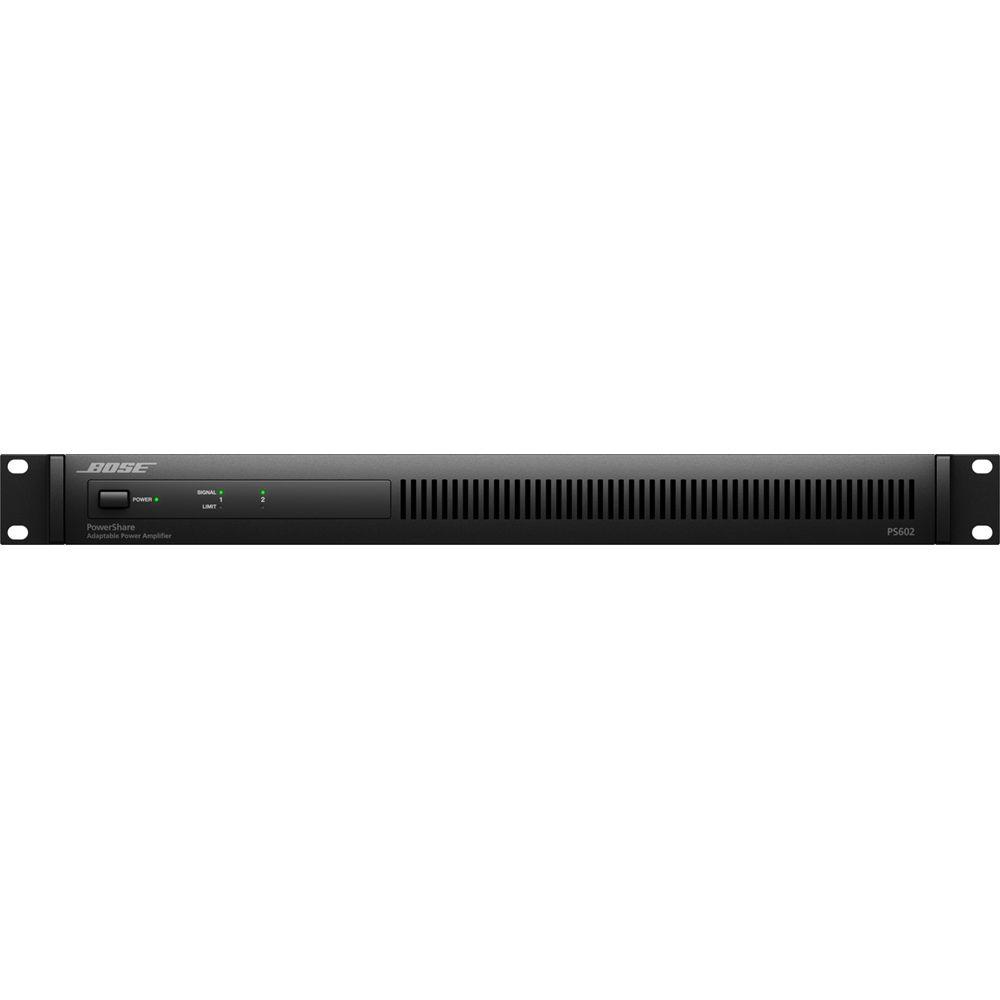

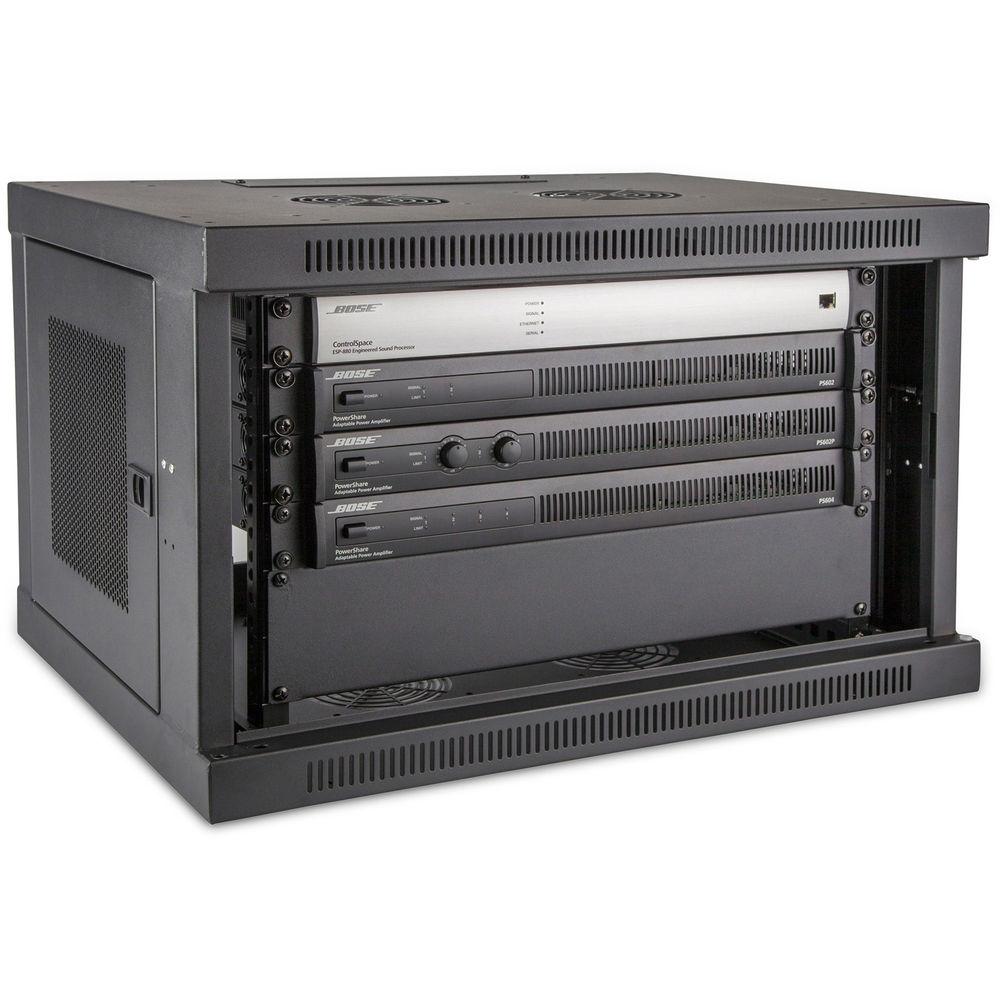

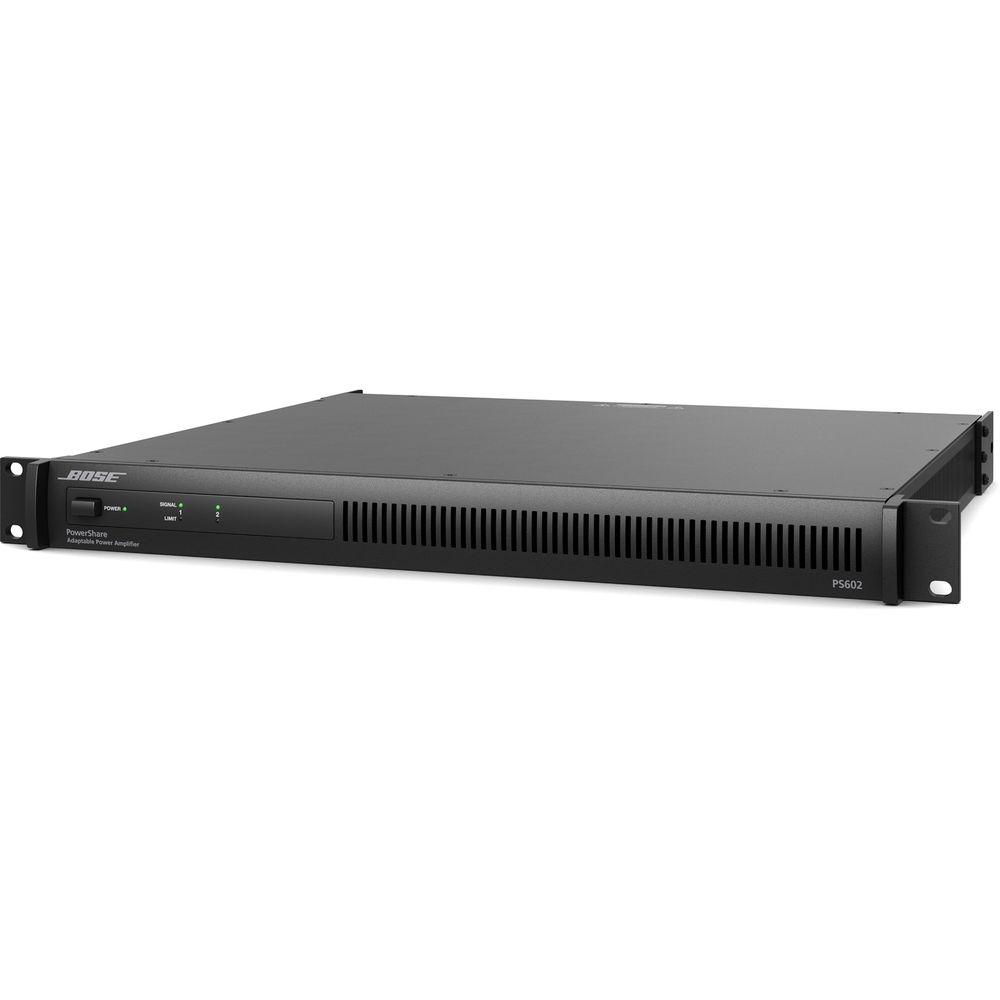

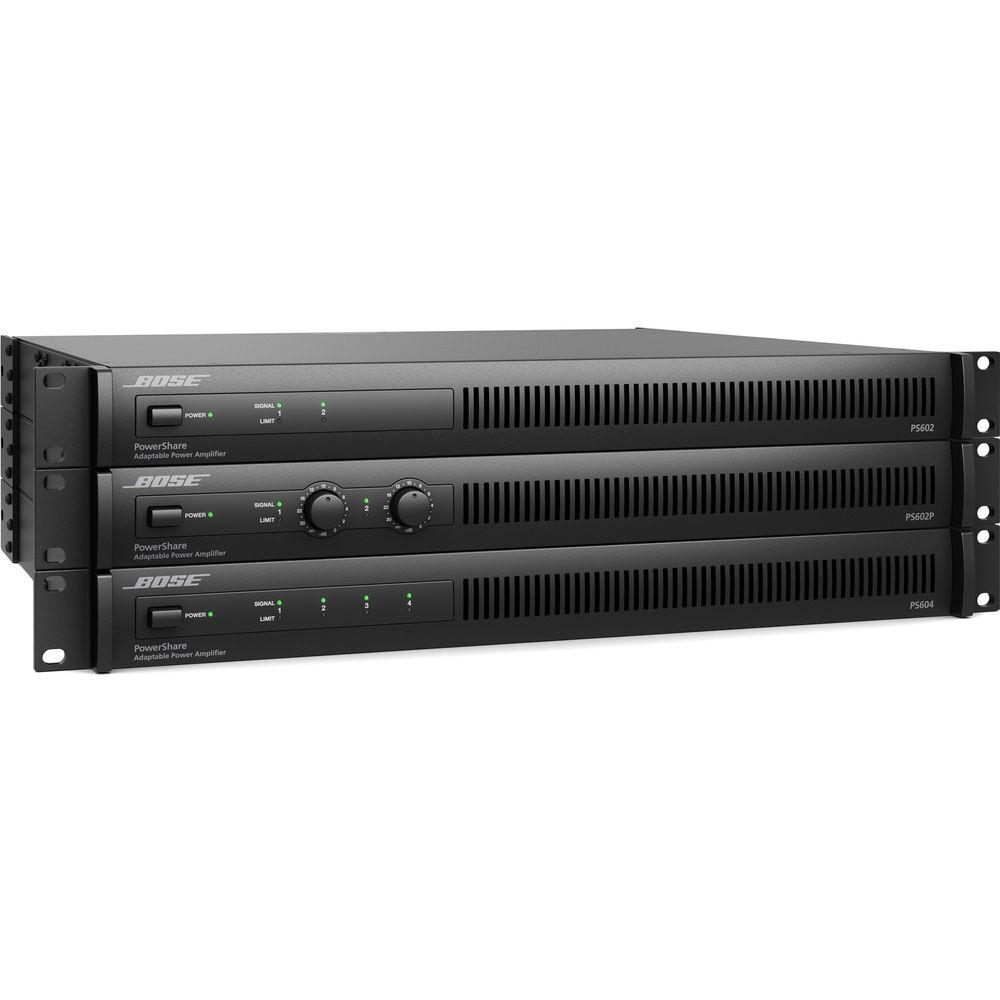

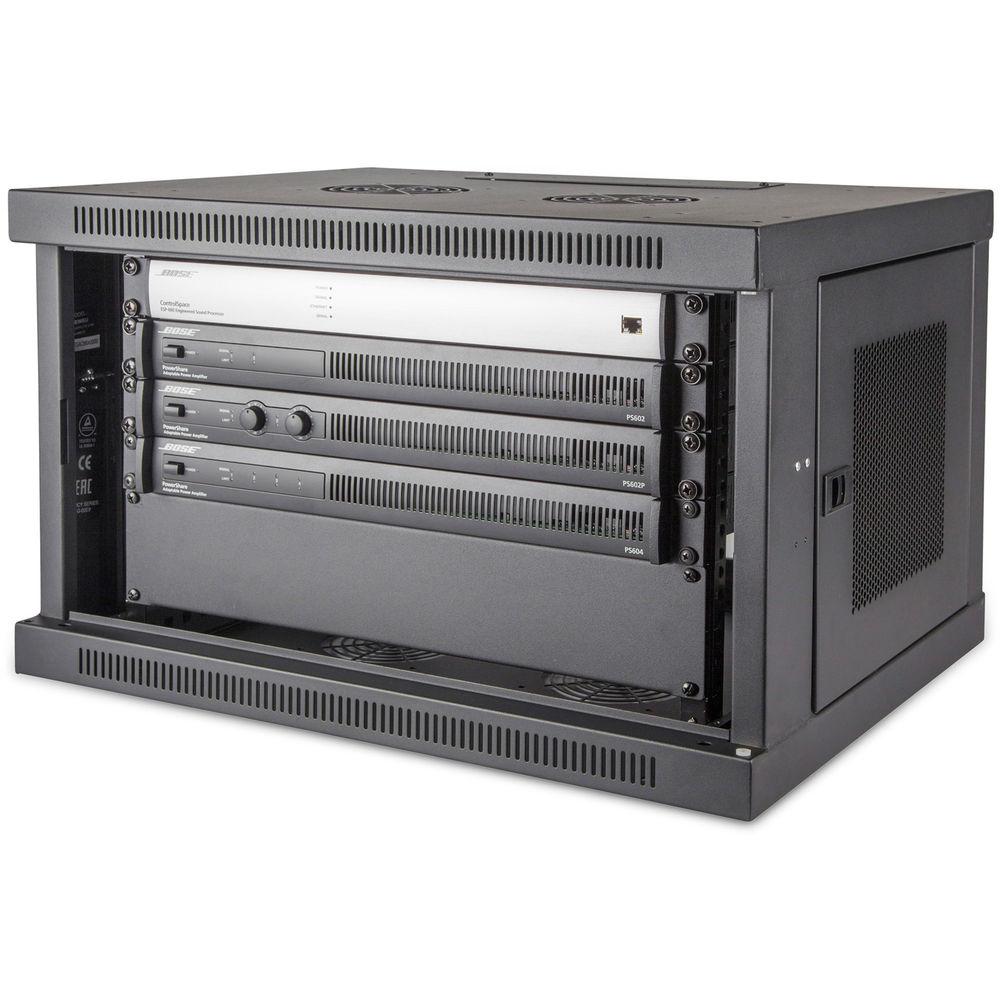

User Manual for Bose Professional PowerShare PS602 2-Channel Adaptable Power Amplifier Click to enlarge the picture
Contents of the user manual for the Bose Professional PowerShare PS602 2-Channel Adaptable
- Product category: Power Amplifiers Bose Professional
- Brand: Bose Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Professional Power Amplifiers
 |
User manual for the Bose Professional PowerShare PS602 2-Channel Adaptable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose Professional product will considerably shorten its lifespan!
|
Product description Provided by third party: The PS602 is a 2-channel installed amplifier, that allows its total 600 Watts to be shared across both outputs. Independently control the output level, EQ, and low-impedance/high-impedance (Low-Z/Hi-Z) settings for each output. Onboard configurable loudspeaker processing and direct access to zone controllers eliminate the need for an additional signal processor in many installations, while outstanding audio performance and reliability are assured with advanced technologies. This unique set of features and technologies makes PowerShare one of the extremely versatile high-performance amplifiers.
- Key Features
-
- PowerShare technology
- Load-independent outputs
- DFL system
- Auto-Standby
- PowerShare technology
- PowerShare technology allows the total 600 Watts of power to be shared asymmetrically across all outputs, as each output is capable of delivering full power. Instead of selecting amplifier power, based on the needs of the large zone, installers now have the freedom to use total amplifier power in the application. This enables more flexibility during the initial design, or later on-site, when making unplanned changes, that take advantage of surplus power.
- Load-independent outputs
- Each channel can be configured for low-impedance or high-impedance applications without bridging, use of jumpers, or software settings.
- DFL system
- The dual feedback loop system, inherited from the field-proven amplifier line, improves performance and reliability through continuous monitoring and control of both the current and voltage, delivered to each output load. This combination provides improved linearity and lower distortion, while protecting loudspeakers.
- Auto-Standby
- Designed to save power consumption when not in use. PowerShare amplifiers can be configured to automatically enter standby mode, when the audio signal falls below a set threshold, then wake when audio returns.
UPC: 017817712538 Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose Professional PowerShare PS602 2-Channel Adaptable Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose Professional 743375-1410 Specs | | | Product Type | Power amplifier | | | | Audio Channels | Stereo | | Functions | Amplifier | | Audio D/A Converter | 24bit / 48kHz | | Digital Sound Processor (DSP) | Yes | | Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 100 dB | | Output Power / Total | 600 Watt | | Peak Output Power / Total | 1200 Watt | | Amplifier Output Details | 300 Watt - 4-8 Ohm - at 1 kHz - THD 0.04% - 2 channels

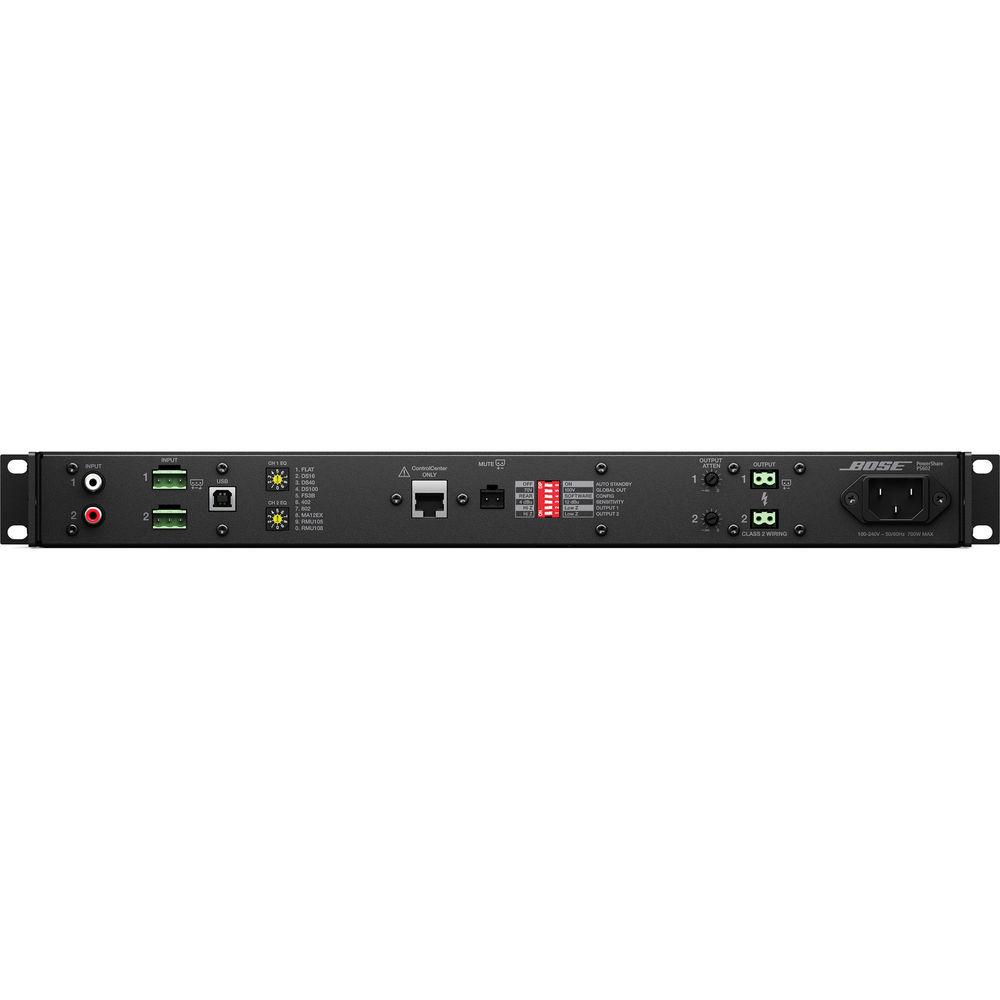

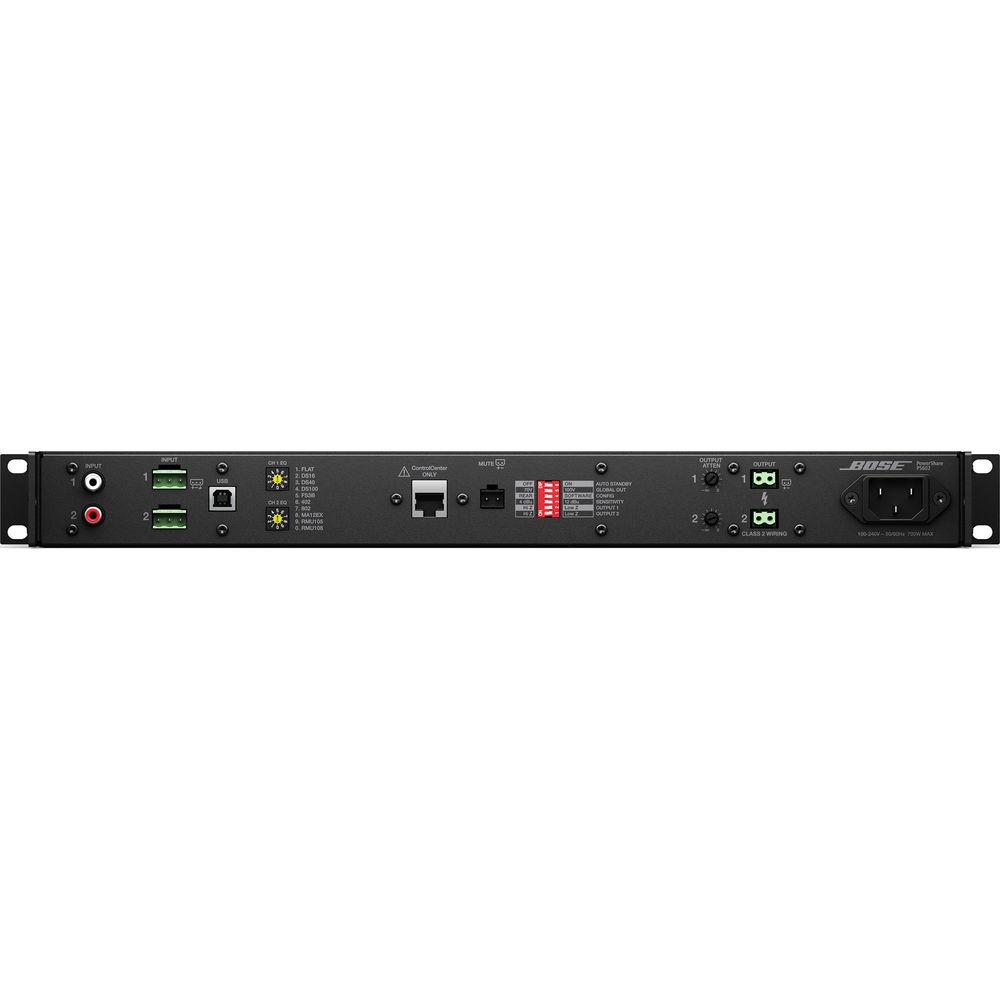

300 Watt - at 1 kHz - THD 0.04% - 2 channels (70/100V) | | Features | Thermal protection, cooling fan, short circuit protection, over voltage protection, clip LED, low voltage protection, 70V/100V or 4/8 Ohm operation | | | | Connectors | Audio line-in (RCA x 2)
2 x balanced audio input (terminal block) - rear
USB (4 pin USB Type B) - rear
Mute control (terminal block) - rear
2 x speakers output (terminal block) - rear | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Width | 19 in | | Depth | 16.3 in | | Height | 1.7 in | | Weight | 12.13 lbs | | | | Weight (Shipping) | 15.2 lbs |
