User Manual for Bose S1 Pro Multi-Position PA System with Battery Pack Click to enlarge the picture
Contents of the user manual for the Bose S1 Pro Multi-Position PA System
- Product category: Portable PA Systems Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Portable PA Systems
 |
User manual for the Bose S1 Pro Multi-Position PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|

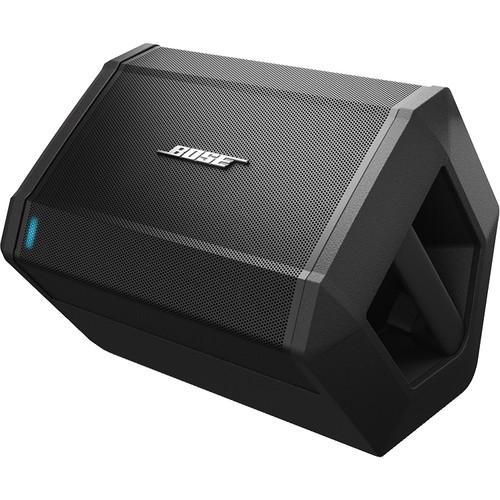

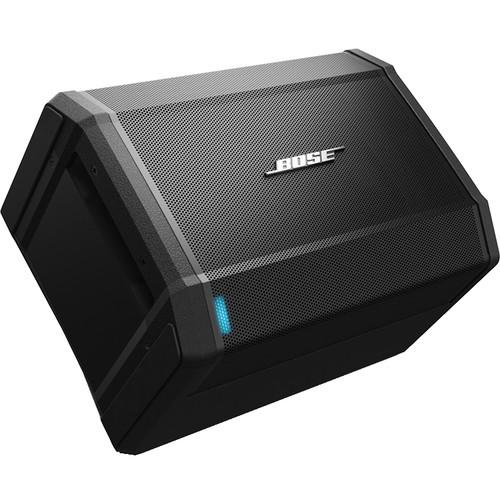

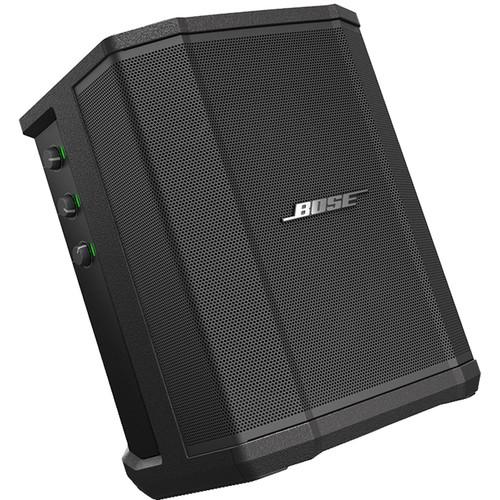

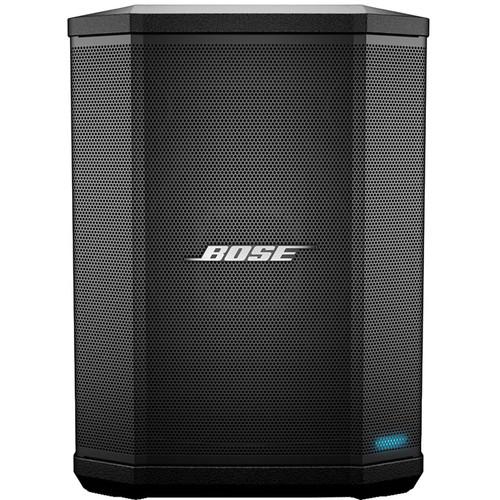

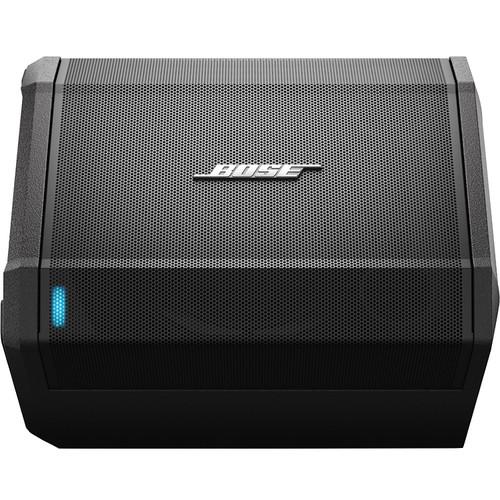

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Bose S1 Pro Multi-Position PA System with Battery Pack is a compact sound reinforcement package designed for musicians, DJs, and anyone looking for accurate sound reproduction. The S1 Pro can be used in a variety of ways including a floor monitor, practice amplifier, Bluetooth speaker, or a full PA setup.
The full-featured, 3-channel mixer with reverb offers two combo XLR-1/4" inputs, an 1/8" stereo input, and Bluetooth for streaming audio from up to 30' away. The on-board ToneMatch processing is designed to enhance vocals and instruments. The S1 Pro has built-in sensors, which detect multiple aiming positions, allowing for optimal sound in nearly any position including on a table, on the floor, or mounted on a standard 35mm speaker stand.
The included battery pack allows you to power-up and play your Bose S1 Pro system for up to 6 hours at high-output levels. This lithium-ion battery installs easily into the dedicated compartment on your S1 Pro for secure and reliable use. The dual charge modes allow the S1 Pro system to quick charge for rapid charging or trickle-charge while in use. - Main Features
-
- High-quality PA: High-output sound from a small, convenient system that is ready to perform whenever and wherever you are
- Made to travel: Lightweight, ultra-portable enclosure designed to transport effortlessly using the convenient carry handle

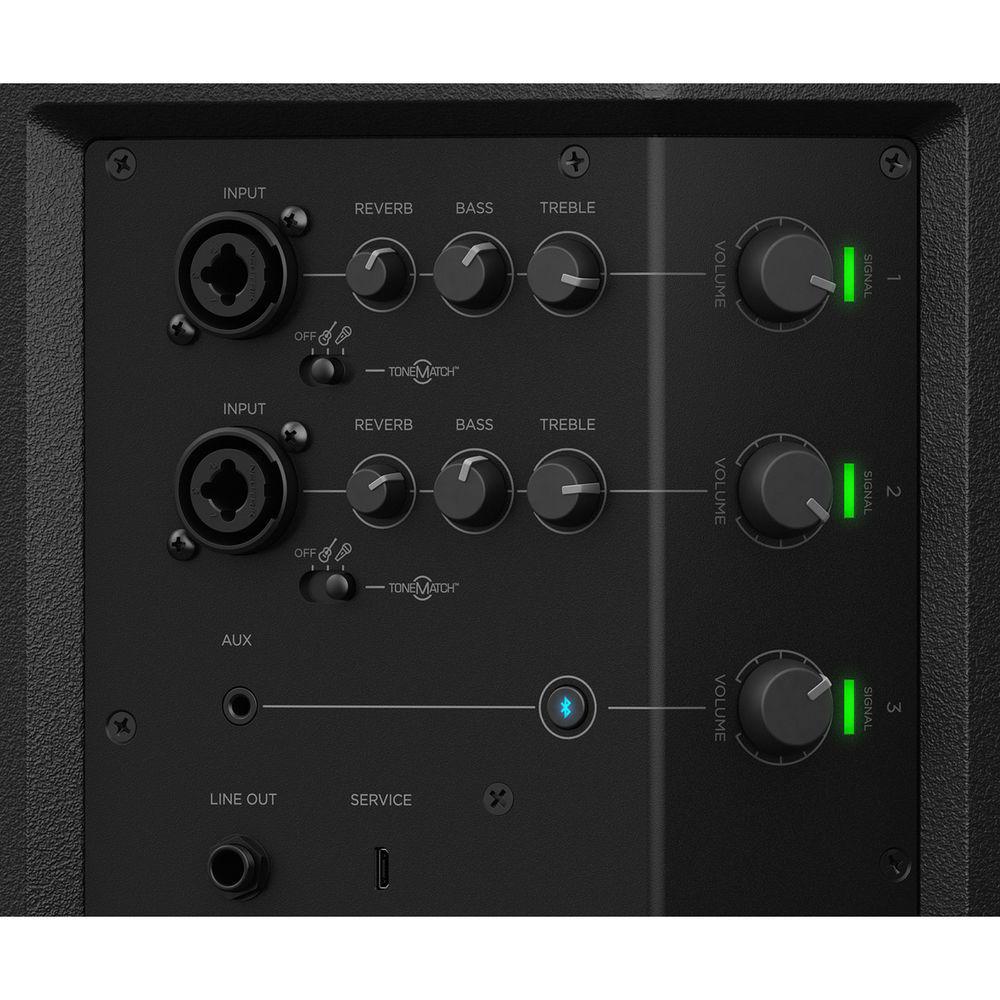

- Professional sound: On-board 3-channel mixer offers independent ToneMatch, reverb and EQ controls on two channels, with a dedicated channel for either wired (1/8") or wireless music sources
- Bluetooth: High-quality, wireless Bluetooth streaming from your mobile device, with one-touch pairing
- Flexible setups: Multiple positions with Auto EQ ensure that you always sound your best, regardless of placement orientation. It’s also speaker-stand compatible with standard 1-3/8" mounting poles
- Optional battery: Optional rechargeable lithium-ion battery allows you to perform anywhere for hours, while the Quick Charge function helps you recharge in a hurry
- Setup Modes
-
- Elevated surface: Position the S1 Pro on a surface. This projects sound clearly and evenly throughout the audience, and ensures that audience members enjoy the full frequency range of the system
- Tilt-back: For performances where your audience is close to you, tilt the S1 Pro onto its back edge. For best results, you should stand or sit to one side of the loudspeaker to avoid blocking sound from the audience
- Monitor mode: To use the S1 Pro as a personal floor monitor, place it on the ground horizontally, in front of and pointing toward the performer. Tilt the loudspeaker onto its side edge. Rotate the Bose logo counterclockwise to match your chosen mode
- Speaker stand: Place one or two S1 Pro systems on speaker stands (sold separately) for general-purpose sound reinforcement
- Battery Pack
-
- Up to 6 hours of operating time when used at high-output levels, for performance use you can count on
- Lithium-ion battery technology provides high-energy density and full-output use of your S1 Pro system without compromising volume levels
- Dual charge modes allow the S1 battery pack to be trickle-charged while the S1 Pro system is in use with AC power, or when not being used for play, the switchable Quick Charge Mode can be used for rapid charging
- Permanently install the battery inside the S1 Pro system for safe and easy charging
UPC: 017817791113 In the Box Bose S1 Pro Multi-Position PA System with Battery Pack Power Cord Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose S1 Pro Multi-Position PA System with Battery Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

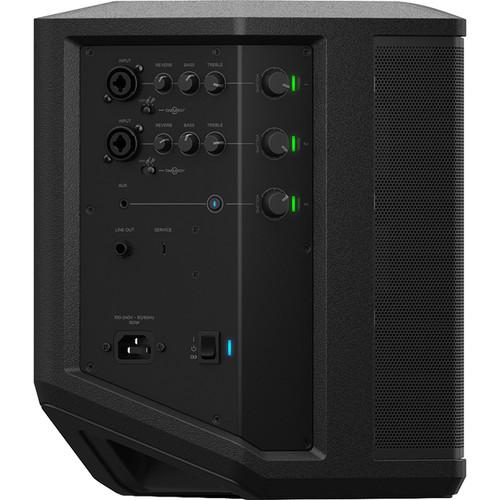

Technical parametersBose S1 Pro Specs | Mixer | 3-channel | | Inputs | 2 x combo XLR-1/4" / 6.35 mm
1 x 1/8" / 3.5 mm | | Outputs | Pass Thru: 1/4" / 6.35 mm | | Bluetooth | Yes | | Wireless Range | Up to 30.0' / 9.1 m | | Enclosure | Enclosure Material: Polypropylene plastic
Finish: Textured plastic
Grille: Steel with black powder coat | | Battery | Battery: Lithium-ion
Battery Life: Up to 11 hours (6 hours at high-output levels)
Charge Circuit: Dual charge modes (trickle and quick) | | Dimensions (H x W x D) | 13.0 x 9.5 x 11.2" / 330.2 x 241.3 x 284.5 mm | | Weight | 15.0 lb / 6.8 kg | | | | Package Weight | 19.35 lb | | Box Dimensions (LxWxH) | 17.0 x 14.0 x 13.0" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Bose S1 Pro Multi-Position PA System with Battery Pack
| Subject: battery | | Date: 13.03.2023 11:00:14 | Name: ΗΛΙΑΣ ΜΑΚΚΑΣ | | when I use the device with power in which position should I have the switch so as not to damage the battery | | Post reply |
| Subject: Bose s1 pro | | Date: 22.05.2021 14:15:13 | Name: Ron Rogers | | How do I charge it. There are 3 positions on power switch. | | Post reply |
