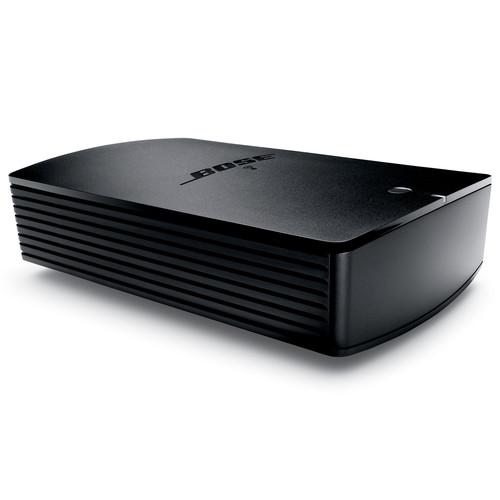

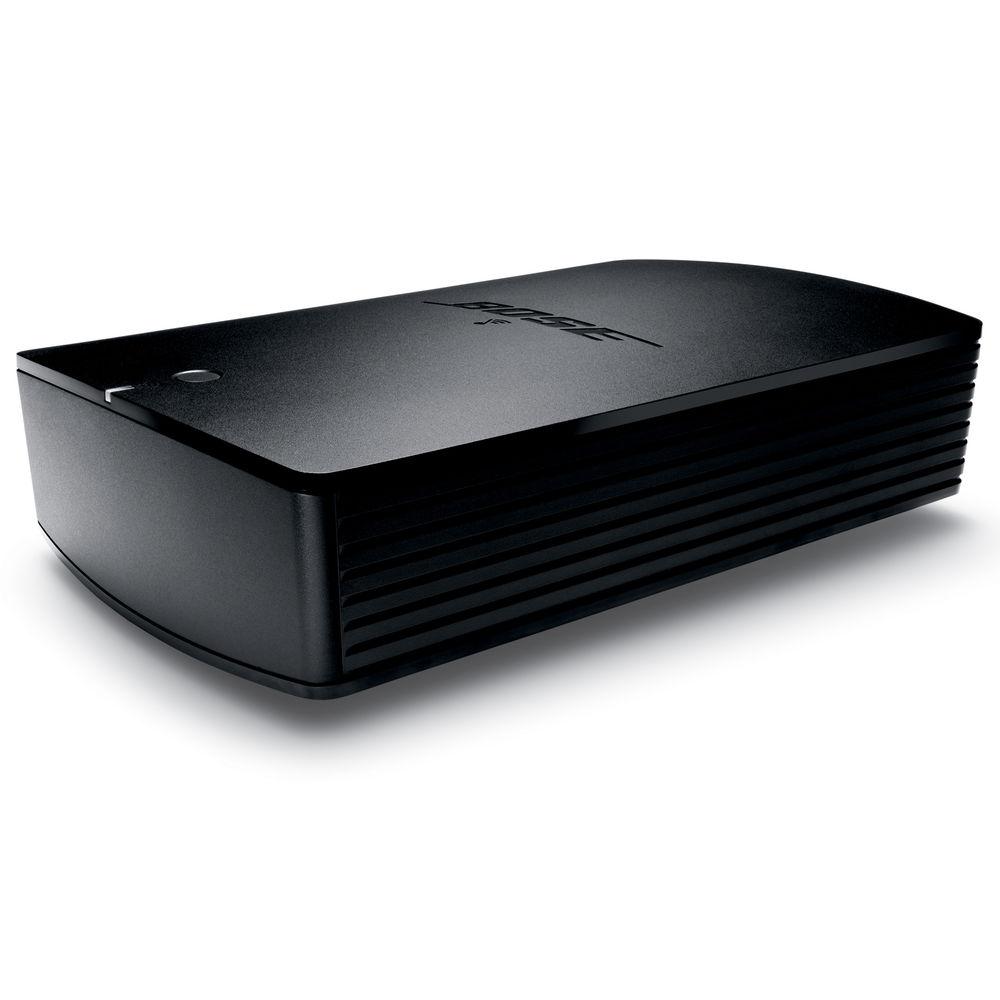

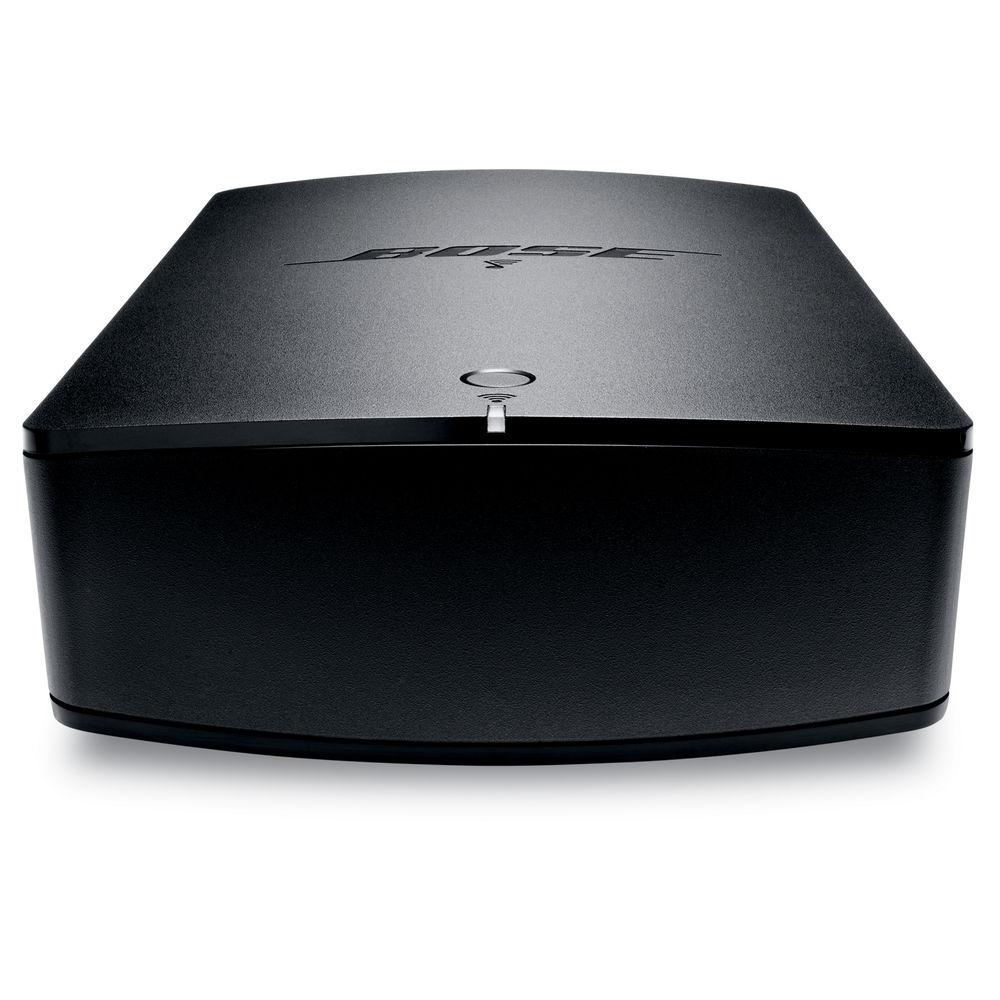

User Manual for Bose SoundTouch SA-5 Amplifier Click to enlarge the picture
Contents of the user manual for the Bose SoundTouch SA-5 Amplifier
- Product category: Amplifiers Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Amplifiers
 |
User manual for the Bose SoundTouch SA-5 Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|
Product description Turn your existing speakers into smart speakers with the SoundTouch SA-5 Amplifier from Bose This amplifier can deliver up to 100W per channel and can accommodate up to 4 speakers. The SoundTouch SA-5 amplifier features Wi-Fi and Ethernet interfaces for high-speed Internet connectivity. Using the free SoundTouch app for Android, iOS, and Kindle Fire devices, you can wirelessly stream locally stored content and Internet radio services such as Pandora, Deezer, iHeartRadio, Spotify, iTunes, and Internet radio. Integrated Bluetooth connectivity allows you to pair and wirelessly stream music from similarly equipped devices. 3.5mm and dual stereo inputs are also on-board for interfacing wired music sources. - Free SoundTouch App
- The free SoundTouch app lets you explore music services like Spotify and Deezer. It also gives you access to thousands of Internet radio stations and your stored music library. The app also transforms your smartphone or tablet into a remote so you can control your music from anywhere in your home.
- Six App Presets
- Press one of six presets in the app and quickly access your favorite stored content.
- Wired Connectivity Options
- The SA-5 amplifier has three aux inputs so you can connect non-streaming sources, such as a CD player. It can also run two pairs of speakers in parallel, so you can wire four speakers to the amp.
- Grow Your System
- Start with one Bose SoundTouch system and add more whenever you want. They all work together to play the same music in every room, or different music in different rooms.
- Additional Features
-
- Connects to your choice of indoor or outdoor speakers for powerful sound anywhere around your home (amplifier must remain inside and dry)
- Bose proprietary signal processing automatically adjusts the tonal balance, enabling full, rich lows at nearly all listening levels
- Set the output of the amplifier to stereo (default) or mono
- Rename the auxiliary inputs to easily identify connected devices
- Adjust the system's bass level in the SoundTouch app

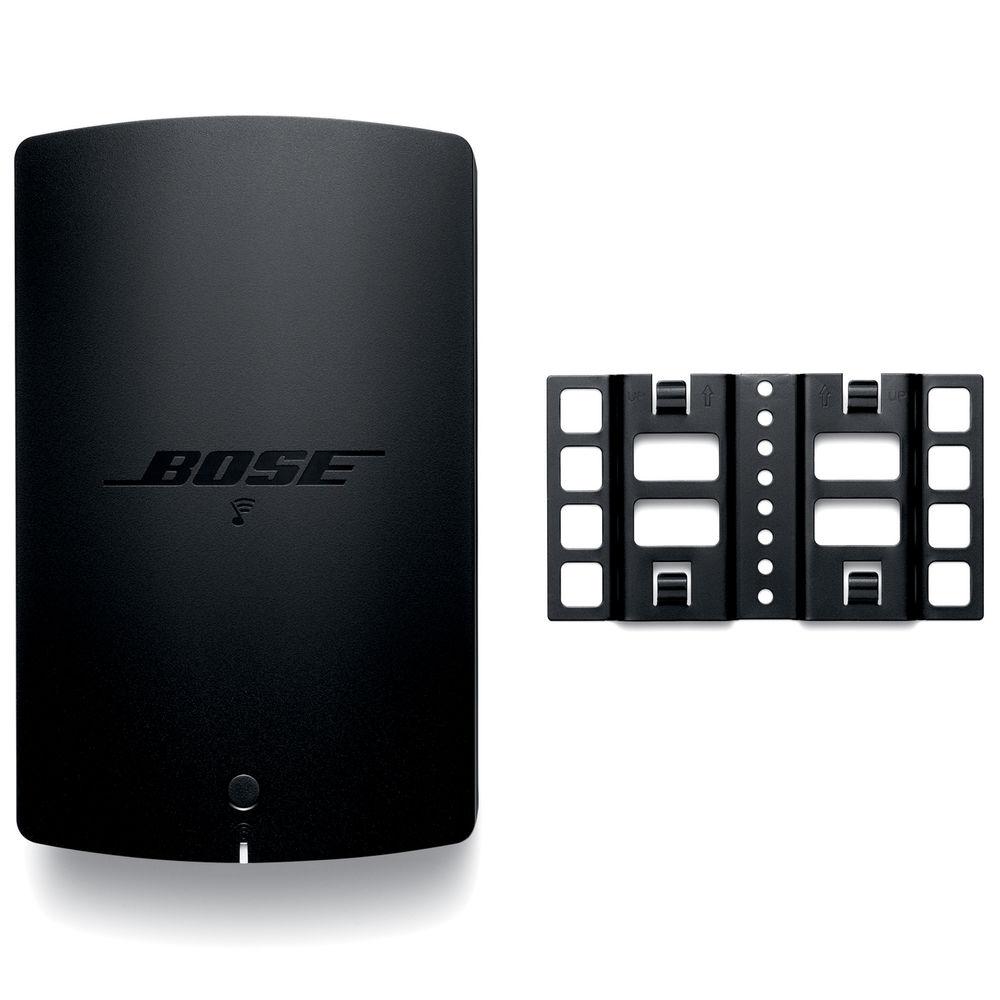

- Wall mountable design with included mounting bracket
UPC: 017817699198 In the Box Bose SoundTouch SA-5 Amplifier Mounting Bracket Mounting Hardware USB Computer Setup Cable AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose SoundTouch SA-5 Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

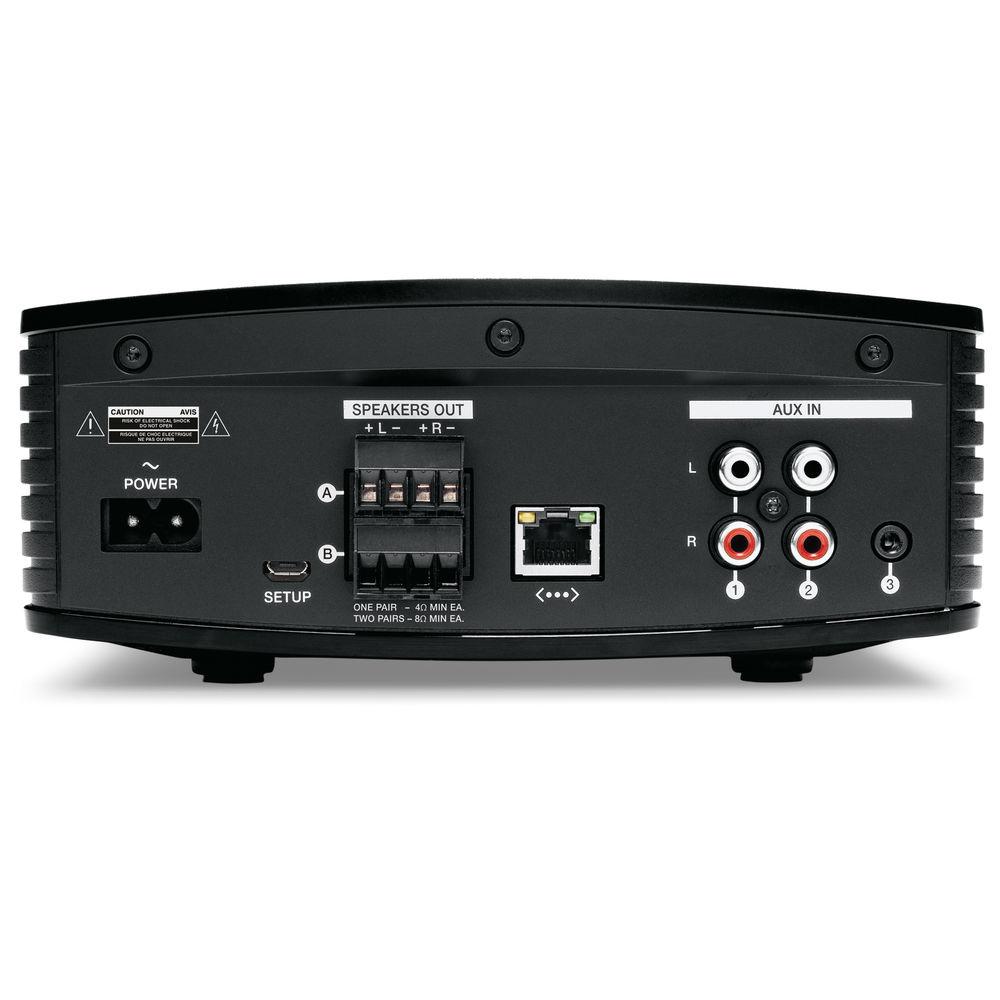

Technical parametersBose SA-5 Specs | | | Channels | 2 | | Power | Up to 100 W per channel at 8 ohms (20 Hz to 20 kHz, 0.5% THD) | | Signal-to-Noise Ratio | >100 dB | | Speaker Impedance | 4 Ohms (supports one speaker pair)
8 Ohms (supports two speaker pairs) | | | | Wi-Fi | Yes | | Bluetooth | Yes | | Inputs | 1 x 1/8" (3.5 mm)
2 x Stereo RCA | | Outputs | 1 x Speaker Left A
1 x Speaker Right A
1 x Speaker Left B
1 x Speaker Right B | | Other Connectors | 1 x Micro-USB (setup only)
1 x Ethernet
1 x Power Cord | | Input Sensitivity | 3.5 mm Input: 1 Vrms
RCA Inputs: 2 Vrms | | | | Temperature Range | 32 to 104°F (0 to 40°C) | | Power Rating | 100 to 240 VAC, 50/60 Hz, 400 W | | Dimensions (WxHxD) | 7.2 x 11.8 x 3.0" (18.4 x 30.0 x 7.7 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 14.5 x 10.0 x 7.0" |
