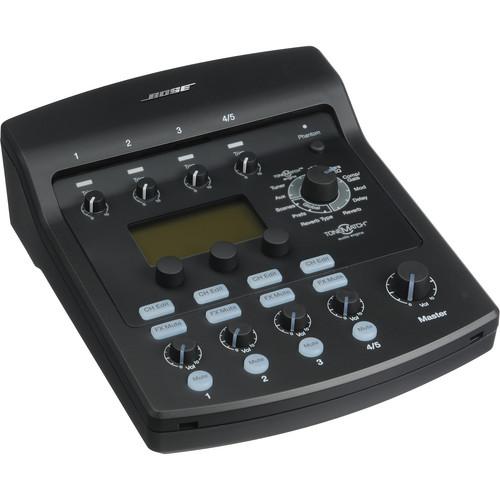

User Manual for Bose T1 ToneMatch Audio Engine and Mixer for the Bose L1 Audio System Click to enlarge the picture
Contents of the user manual for the Bose T1 ToneMatch Audio Engine and
- Product category: Vocal Processors Bose
- Brand: Bose
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bose Vocal Processors
|
User manual for the Bose T1 ToneMatch Audio Engine and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bose product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bose user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bose product will considerably shorten its lifespan!
|
Product description The Bose T1 ToneMatch Audio Engine is a compact digital mixing device for the Bose L1 Portable Line Array Speaker System. The T1 ToneMatch delivers a host of propriety, DSP based algorithms, EQ settings and effects for processing vocals and instruments in order to achieve genuine, authentic tone. Up to 100 proprietary ToneMatch settings allow for effortless results and there is plenty of room for user storage, which provides musicians and vocalists with the ability to store their own scenes. - Integrated ToneMatch Audio Engine and Audio Technologies
- The T1 features four independent channels featuring Bose's largest library of ToneMatch instrument and microphone presets, proprietary zEQ and a complete suite of studio-class effects and sound processors.
- Proprietary ToneMatch Presets
- Optimize the L1 system to match intended natural sound of specific instruments and vocal mics. Over 100 presets are organized into quick-access banks and can be independently assigned to each channel. Free ongoing updates via USB connection between your computer and ToneMatch audio engine.
- Proprietary zEQ
- Proprietary zEQ automatically adjusts the range of tone controls to match your voice or instrument, making it easier to fine tune your sound. Conventional mixers may have fixed EQ ranges that don't accurately affect desired frequencies when adjusted. But zEQ appropriately redefines low, mid and high frequency ranges of specified sources.
- Single-Band ParaEQ
- Single-band ParaEQ centers on frequency you specify for each independent channel. Valuable tool for reshaping problematic frequencies in certain venues.
- Five Reverb Types
- Five reverb types (small, medium, large, plate and cavern) available for global assignment, with individual channel controls for decay time, mix level and brightness.
- Three Delay Types
- Three delay types (analog, digital and tape) can be independently assigned to selected channels, with control over feedback time and mix level for each channel. For example, you can select tape delay for your vocal on channel 1 and analog delay for your guitar on channel 2.
- Ten Modulation Effects
- Ten modulation effects (three chorus types, two flange types, four phaser types and one vintage tremolo effect) can be independently assigned to selected channels, with control over designated parameters for each channel.
- Seven Dynamics Processing Types
- Seven dynamics processing types (three compressors, limiter, de-esser, kick gate and noise gate) can be assigned to independent channels.
- Scenes
- Scenes allow you to store, recall and edit "snapshots" of all key ToneMatch audio engine settings at any given time. This feature helps simplify setup when you're using an L1 system repeatedly in different venues. The engine includes five predefined Bose scenes, five My scenes and five Shared scenes you can give to other L1 owners.
- Chromatic tuner
- Chromatic tuner for convenient tuning of instruments.
- Large Backlit Display
- Large backlit display with intuitive layout and easy-to-read text for modes and settings.
- Rotary Encoder
- Rotary encoder for quick access to modes, effects and parameters, including ToneMatch presets, zEQ, ParaEQ, reverbs, delays, modulators, dynamics processing, scenes and tuner. Features clean, circular layout.
- Aux Mode (Channels 1 - 3)
- Aux mode (channels 1 - 3) sends channels' dry, pre-fader or post-fader audio to aux output for connection to additional L1 systems or recording devices. Independent level controls for optimal signal output.
- Channel Volume, Mute and FX Mute (1 - 4/5)
- Channel volume, mute and FX mute (1 - 4/5) for adjusting individual channel volume, muting individual channels and muting all effects on selected channels.
- Master Volume
- Master volume adjusts overall level of master output.
- Phantom Power
- Phantom power applies +48V power to input channels 1 - 3 to drive specific microphones.
- ToneMatch Cable
- ToneMatch cable transfers audio signals and provides power to ToneMatch audio engine from L1 Model II power stand. Use the optional T1 power supply for connections to L1 Model I and Compact systems.
- Mounting Bar and Carriage
- Mounting bar and carriage for securely attaching ToneMatch audio engine to L1 Model I or Model II loudspeaker.
- Cover and Carrying Case
- Cover and carrying case help protect engine when storing and transporting.
UPC: 017817415484 In the Box Bose T1 ToneMatch Audio Engine and Mixer for the Bose L1 Audio System T1 ToneMatch Audio Engine & Cable Protective Cover and Bag Mounting Bar & Carriage 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bose T1 ToneMatch Audio Engine and Mixer for the Bose L1 Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBose T1 Specs | Connections | Mic/line inputs (1 - 3)
Line inputs (4/5, L/R) Trim controls and signal/clip LEDs (1 - 4/5)
Preamp outputs (1 - 3) Aux output
1/4" TRS Master analog output ToneMatch port
USB port | | Dimensions | 2.67 x 6.5 x 8.25" (6.76 x 16.6 x 20.9cm) | | Weight | 2.1 lbs (1 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 5.0" |
