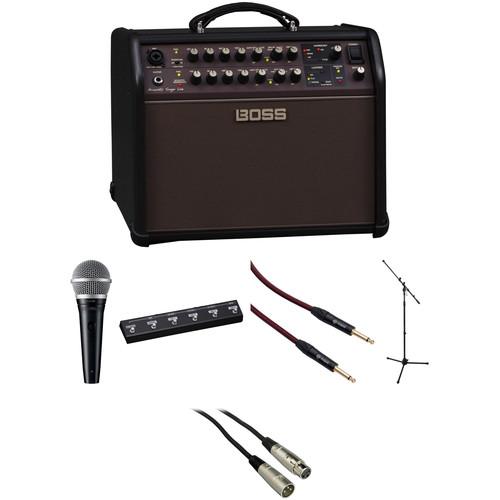

User Manual for BOSS ACS Live 60W Combo Amp Kit with Shure Microphone and More

• Product category: Guitar Amplifiers BOSS
• Brand: BOSS
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for BOSS Guitar Amplifiers

Product description

• BOSS ACS Live 60W Combo Amplifier for Acoustic Guitar and Vocals The ACS Live from BOSS is a 60W combo amplifier particularly suitable for acoustic guitar players and singer/songwriters. It offers two independent channels, each with a discrete analog input stage, and each boasting its own three-band EQ section. One channel provides a 1/4" guitar input and a chorus effect. The other channel gives you a combination XLR/1/4" jack useful in connecting a vocal or instrument mic, or another instrument (such as a second guitar), all while providing a delay/echo effect to further enhance the sound. Both channels have resonance filters to help fight against feedback on stage.

  The rear of the amplifier provides two separate XLR DI outputs—one for each channel, with mode selector switches for outputting the channels mixed together or sending them separately with or without any onboard effects included in the signal. Also offered are a 1/4" stereo headphone output that doubles for recording purposes, as well as a 3.5mm stereo auxiliary input with its own rear-mounted level control. This unit offers not one, but three separate footswitch inputs, all controllable via optional units, and each one controlling different aspects of the ACS Live, including the looper and harmonizer control. Also included is a USB output that will allow you to record digitally to your DAW directly from the amplifier.
  Automatic Vocal Harmonies
  • The ACS Live includes a vocal harmony function that creates real-time polyphony as you sing and play guitar. These harmonies are generated automatically, as the amplifier analyzes your chord progressions, resulting in harmonies tuned to the key of your song. Two different harmony types are available, plus a unison setting that doubles your voice. Instantiation of this effect is achievable with an optional footswitch.
  Built-In Looper
  • The amp's built-in looper allows you to build live backing tracks with guitar, vocals, effects, and more. Activation of the looper is achievable with an optional footswitch.
  Additional Features at a Glance
  • • 60W bi-amp design with 6.5" woofer and 1" dome tweeter
    • Dual channels with discrete analog inputs and individual three-band EQs
    • Dedicated guitar channel with Acoustic Resonance to restore natural tone to stage guitars with piezo pickups
    • Mic channel with phantom power and XLR/1/4" combo input for connecting a vocal/guitar microphone or second instrument source
    • Chorus effect on guitar channel, delay/echo effect on mic channel, and independent reverb on both channels
    • Harmony function automatically creates smooth and accurate vocal harmonies via real-time key/chord analysis of the guitar input
    • Built-in looper for practicing, developing ideas, and enhancing live performances
    • Independent anti-feedback controls on each channel
    • Dual XLR DI jacks assignable to outputting individual channels (direct or post-effects) or both channels mixed together
    • USB output for direct recording to a computer
    • Control looper, harmony, and effects with optional footswitches
    <
  UPC: 761294509616
• Shure PGA48 Dynamic Vocal Microphone (XLR Cable) The PGA48 Cardioid Dynamic Vocal Microphone from Shure features a durable, rugged design geared towards spoken word and karaoke use, and includes an XLR cable. It is tuned specifically for clarity in the standard speech frequency range, and has an On/Off switch, allowing the user to quickly quiet the microphone when needed. A microphone clip, stand adapter, and zippered carrying pouch are also included.
  • Tailored microphone cartridge design specifically for clarity in the standard frequency range of speech
  • Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
  • Industrial design with black metallic finish and classic silver ball grille
  • On/Off switch for discrete control of microphone operation
  • Stand adapter for mounting to a microphone stand
  • Zipper pouch included for additional protection during storage or transport
  UPC: 042406396325
• Roland GA-FC GA Foot Controller The compact, lightweight (2.5 lb) Roland GA-FC GA Foot Controller puts the controls of your GA-112/212 guitar amplifier at your feet allowing you to keep your hands on your instrument and focus on your performance. Switch between four channels, two boost settings, reverb and two EFX loops plus plug in up to two expression pedal inputs for volume and drive.
  • Switch between four channels, two boost settings, reverb and two EFX loops
  • Simultaneously connect up to two expression pedals for real-time volume and drive control
  • Simultaneously control stacked amps via Link In/Out port
  UPC: 761294503096
• Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (15') The 15' Premium Performance Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket from Kopul is designed for connecting guitars to amplifiers or any other application where a 1/4" instrument or unbalanced line-level connection is required. It can be used in applications for live stage, theater, rehearsals, recordings, and more. Kopul's 3000B Series instrument cables are engineered for protection against electromagnetic interference (EMI), radio frequency interference (RFI), and the significant reduction of static noise. This cable features gold-plated 1/4" connectors that have a metal shell and chuck-style strain relief. A braided fabric jacket prevents unwanted tangling and adds durability to the cable. The 24-gauge annealed-copper conductors with dense spiral copper shielding, as well as a conductive PVC, and PE insulation make the Premium Performance 3000B Series instrument cable with braided fabric jacket, a flexible, quiet cable that ensures excellent transfer of the audio signal.
  Protection Against Interference
  • Dense spiral copper shielding with 95% coverage provides protection against electromagnetic and radio frequency interference as well as static noise
  24-AWG Copper Conductor
  • The 24-gauge annealed copper provides excellent signal conductivity
  PVC Shield and PE Insulation
  • The conductive PVC shield and PE insulation deliver additional protection against EM and RF interference and ensure that noise does not compromise your signal
  Gold-Plated Connectors
  • Gold-plated 1/4ʺ male connectors ensure reliable signal transfer
  Flexible
  • A PVC jacket offers protection for the cable while maintaining its flexibility
  Chuck-Style Strain Relief
  • Chuck-style strain relief offers a secure connection between the connector and the cable
  Braided Fabric Jacket
  • The tough braided fabric jacket prevents unwanted tangling and adds durability to the cable
  UPC: 847628590953
• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
• Pearstone SM Series XLR M to XLR F Microphone Cable - 20' (6.1 m) The Pearstone SM Series XLR M to XLR F Microphone Cable (20') features 24-gauge oxygen-free copper conductors, spiral shielding to protect against EMI and RFI noise, and quality molded-boot chrome connectors. The twin conductive PVC shield reduces electrostatic noise, and distinguishes the SM series from the rest of its class.
  • Twin conductive PVC shield reduces electrostatic noise
  • 24-gauge oxygen-free copper conductors
  • Spiral shielding to protect against EMI and RFI noise
  • Quality molded-boot chrome connectors
  UPC: 847628557918

• ACS Live 60W Combo Amplifier for Acoustic Guitar and Vocals xxervxyussurbeyfzq
• Power Cord
• Limited 1-Year Warranty on Parts
• Limited 90-Day Warranty on Labor

• Shure - PGA48 Dynamic Vocal Microphone (XLR Cable)

• Roland - GA-FC GA Foot Controller

• Kopul - Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (15')

• Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom

• Pearstone - SM Series XLR M to XLR F Microphone Cable - 20' (6.1 m)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• BOSS ACS Live 60W Combo Amplifier for Acoustic Guitar and Vocals

  Amplifier Type	Solid-State
  Output Power	60 W RMS
  Channels	2
  Effects Loop	No
  Built-In Effects	Chorus, Delay, Digital Reverb, Echo, Harmonizer, Looper
  Master Volume	Yes
  Inputs	2 x 1/4" Mono Instrument 1 x XLR Mono Mic Level 1 x 1/8" Stereo Aux 3 x 1/4" Stereo Footswitch
  Outputs	2 x XLR Mono DI 1 x 1/4" Stereo Headphone 1 x USB Stereo Interface
  Tone Section	Channel 1: Bass, Channel Volume, Mid, Resonance, Treble Channel 2: Bass, Channel Volume, Mid, Resonance, Treble

  Configuration	1 x 6.5" Speaker(s) 1 x 1" Speaker(s)
  Cabinet Type	Straight Closed Mono
  Power Rating	60 W RMS

  Dimensions (WxHxD)	14.4 x 12.4 x 10.8" / 367.0 x 314.0 x 274.0 mm Combo
  Weight	23.15 lb / 10.5 kg Combo

  Box Dimensions (LxWxH)	17.7 x 15.4 x 12.5"

• Shure PGA48 Dynamic Vocal Microphone (XLR Cable)

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	70 Hz to 15 kHz
  Impedance	600 Ohms
  Sensitivity	-53.5 dBV/Pa

  Output Connectors	1 x 3-Pin XLR
  Operating Temperature	-20 to 165°F / -28.89 to 73.89°C
  Operating Humidity	0 to 95%
  Weight	10.58 oz / 300 g

  Box Dimensions (LxWxH)	10.0 x 4.9 x 3.4"

• Roland GA-FC GA Foot Controller

  Controls	Function switch Manual switch Ch. 1 to Ch. 4 switches
  Indicators	Function manual Ch. 1 to Ch. 4
  Connectors	1 x 1/4" TRS drive expression pedal input 1 x 1/4" TRS volume expression pedal input 1 x 1/4" TRS GA foot control jack
  Dimensions (WxDxH)	15.43 x 3.18 x 1.92" (39.2 x 8.1 x 4.9 cm)
  Weight	2.2 lb (1 kg)

  Box Dimensions (LxWxH)	17.3 x 5.0 x 3.9"

• Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (15')

  Connector 1	1 x 1/4" TS Male Straight
  Connector 2	1 x 1/4" TS Male Straight
  Cable Length	15' / 4.57 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG

  Box Dimensions (LxWxH)	8.88 x 8.0 x 1.3"

• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	4.6 lb / 2.1 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Pearstone SM Series XLR M to XLR F Microphone Cable - 20' (6.1 m)

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	Copper Spiral
  Wire Gauge	24 AWG

  Box Dimensions (LxWxH)	7.6 x 6.6 x 0.7"
