User Manual for BOSS ACS Live 60W Combo Amplifier for Acoustic Guitar and Vocals Click to enlarge the picture
Contents of the user manual for the BOSS ACS Live 60W Combo Amplifier
- Product category: Guitar Amplifiers BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Guitar Amplifiers
 |
User manual for the BOSS ACS Live 60W Combo Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

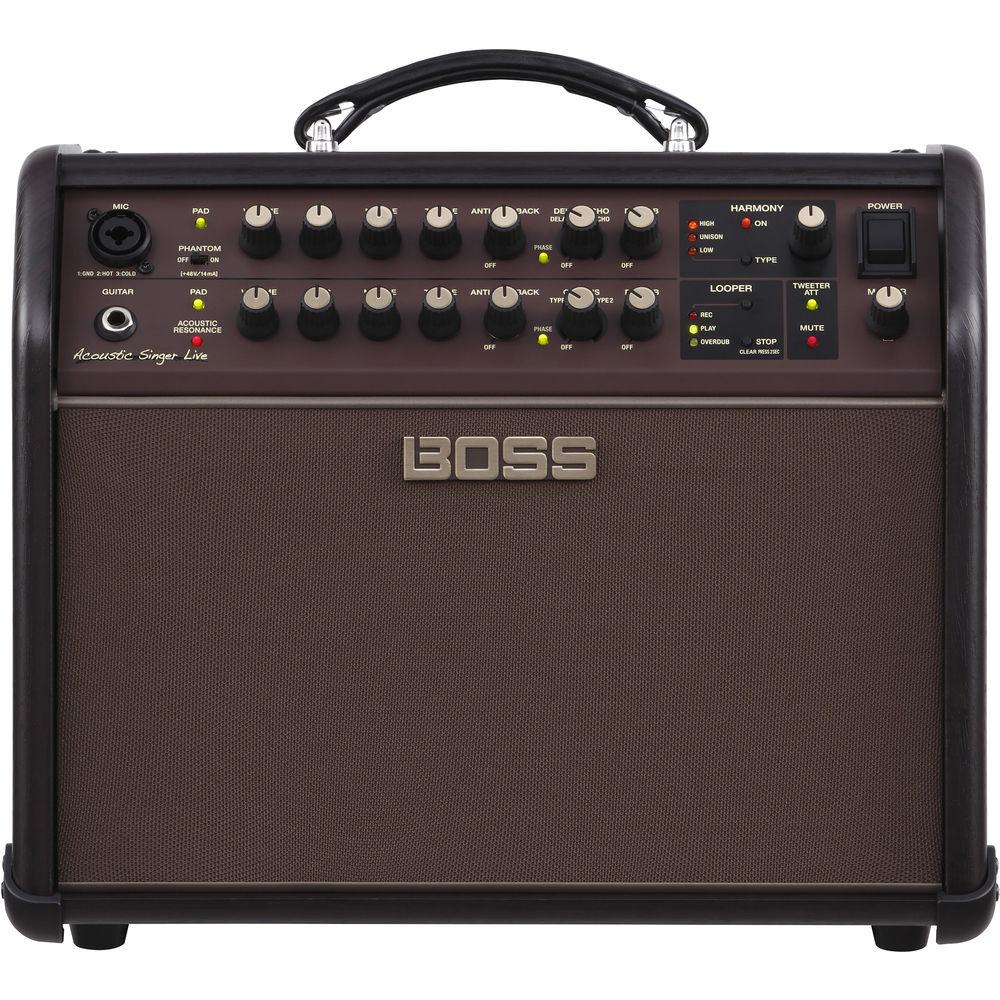

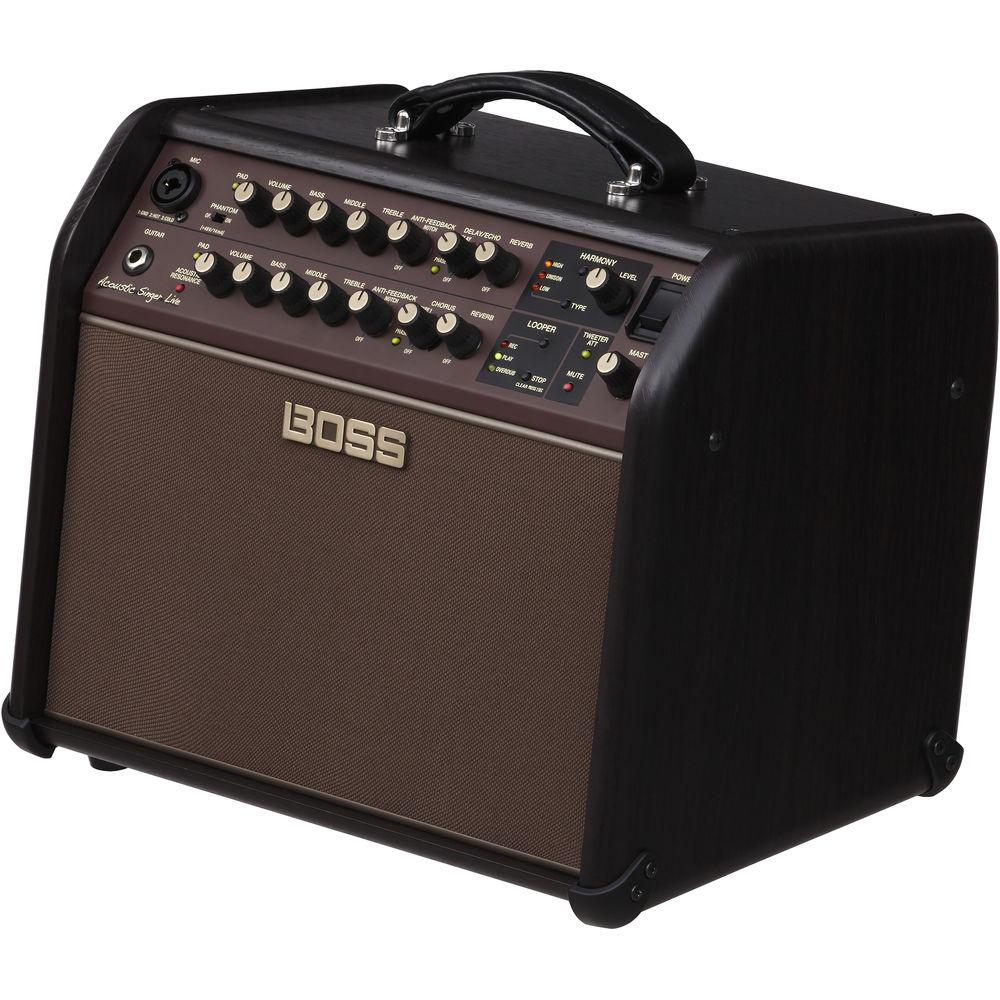

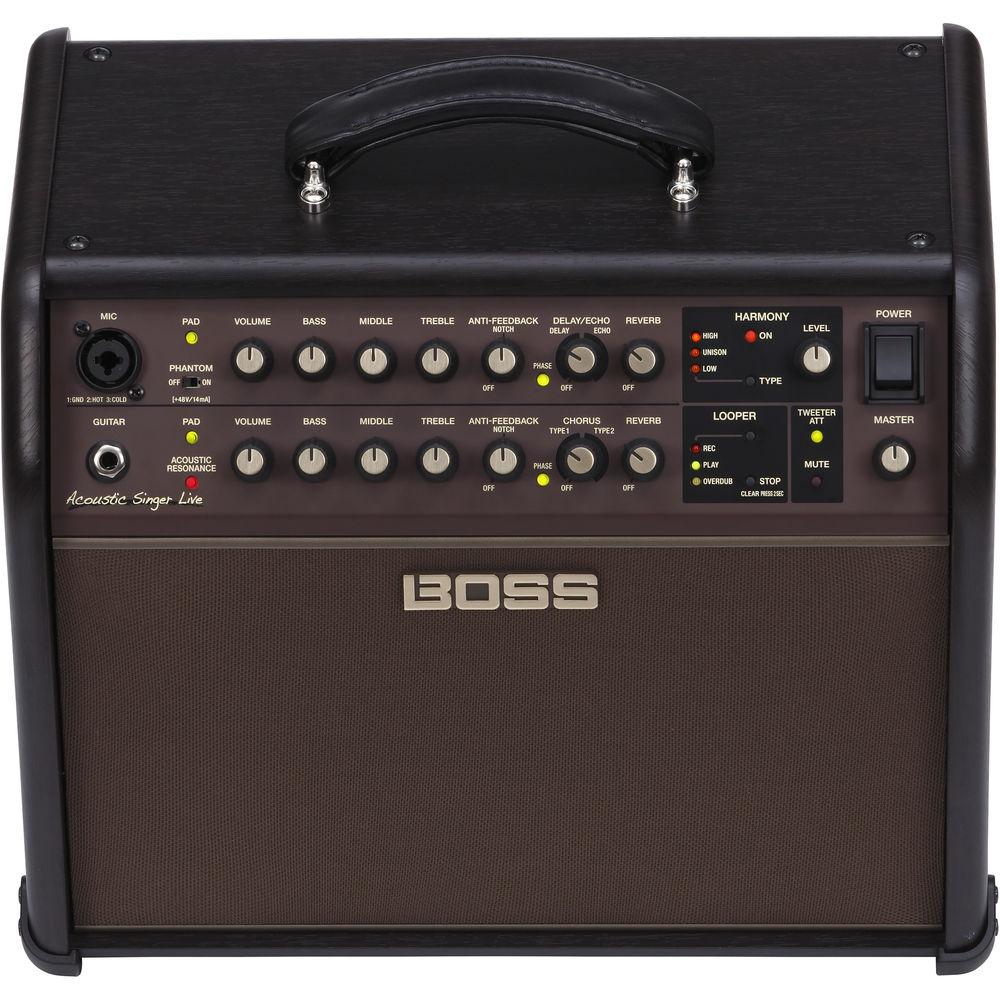

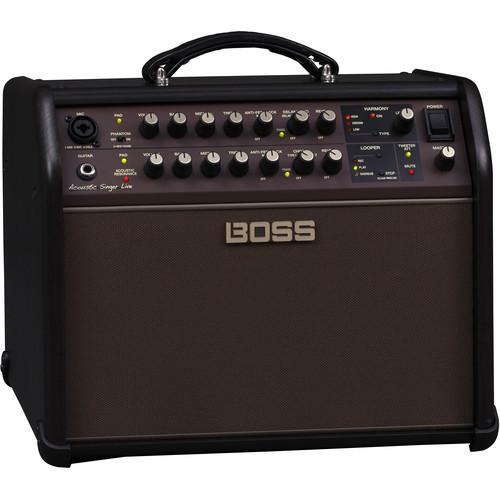

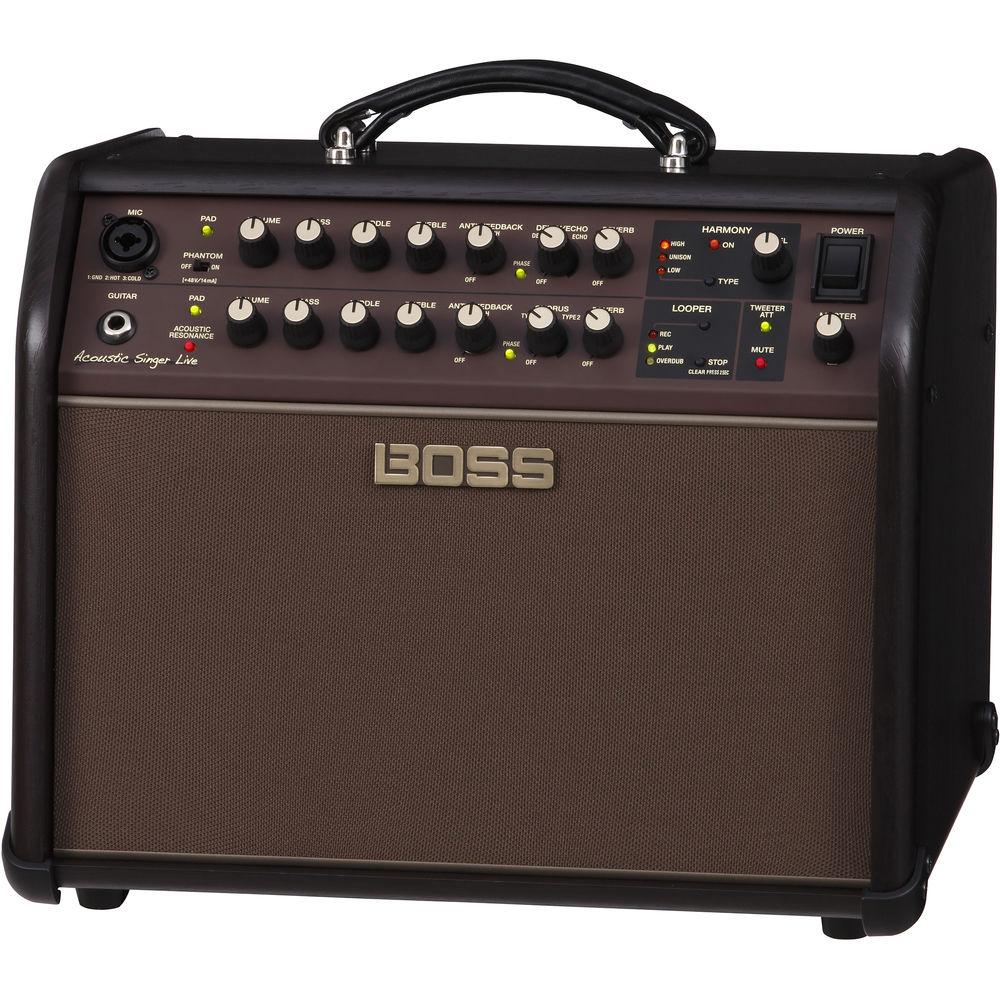

Product description The ACS Live from BOSS is a 60W combo amplifier particularly suitable for acoustic guitar players and singer/songwriters. It offers two independent channels, each with a discrete analog input stage, and each boasting its own three-band EQ section. One channel provides a 1/4" guitar input and a chorus effect. The other channel gives you a combination XLR/1/4" jack useful in connecting a vocal or instrument mic, or another instrument (such as a second guitar), all while providing a delay/echo effect to further enhance the sound. Both channels have resonance filters to help fight against feedback on stage.

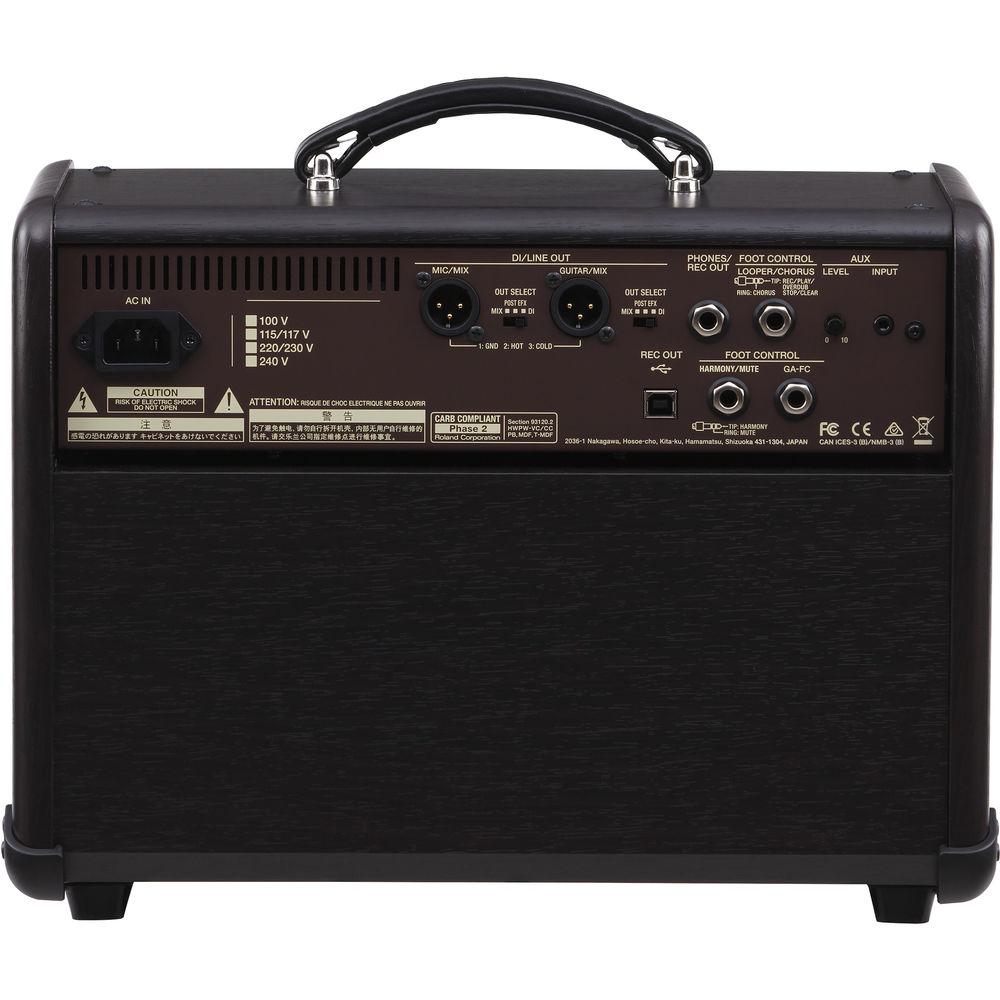

The rear of the amplifier provides two separate XLR DI outputs—one for each channel, with mode selector switches for outputting the channels mixed together or sending them separately with or without any onboard effects included in the signal. Also offered are a 1/4" stereo headphone output that doubles for recording purposes, as well as a 3.5mm stereo auxiliary input with its own rear-mounted level control. This unit offers not one, but three separate footswitch inputs, all controllable via optional units, and each one controlling different aspects of the ACS Live, including the looper and harmonizer control. Also included is a USB output that will allow you to record digitally to your DAW directly from the amplifier. - Automatic Vocal Harmonies
- The ACS Live includes a vocal harmony function that creates real-time polyphony as you sing and play guitar. These harmonies are generated automatically, as the amplifier analyzes your chord progressions, resulting in harmonies tuned to the key of your song. Two different harmony types are available, plus a unison setting that doubles your voice. Instantiation of this effect is achievable with an optional footswitch.
- Built-In Looper
- The amp's built-in looper allows you to build live backing tracks with guitar, vocals, effects, and more. Activation of the looper is achievable with an optional footswitch.
- Additional Features at a Glance
-
- 60W bi-amp design with 6.5" woofer and 1" dome tweeter
- Dual channels with discrete analog inputs and individual three-band EQs
- Dedicated guitar channel with Acoustic Resonance to restore natural tone to stage guitars with piezo pickups
- Mic channel with phantom power and XLR/1/4" combo input for connecting a vocal/guitar microphone or second instrument source
- Chorus effect on guitar channel, delay/echo effect on mic channel, and independent reverb on both channels
- Harmony function automatically creates smooth and accurate vocal harmonies via real-time key/chord analysis of the guitar input
- Built-in looper for practicing, developing ideas, and enhancing live performances
- Independent anti-feedback controls on each channel
- Dual XLR DI jacks assignable to outputting individual channels (direct or post-effects) or both channels mixed together
- USB output for direct recording to a computer
- Control looper, harmony, and effects with optional footswitches
< UPC: 761294509616 In the Box BOSS ACS Live 60W Combo Amplifier for Acoustic Guitar and Vocals Power Cord Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS ACS Live 60W Combo Amplifier for Acoustic Guitar and Vocals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS ACS-LIVE Specs | | | Amplifier Type | Solid-State | | Output Power | 60 W RMS | | Channels | 2 | | Effects Loop | No | | Built-In Effects | Chorus, Delay, Digital Reverb, Echo, Harmonizer, Looper | | Master Volume | Yes | | Inputs | 2 x 1/4" Mono Instrument
1 x XLR Mono Mic Level
1 x 1/8" Stereo Aux
3 x 1/4" Stereo Footswitch | | Outputs | 2 x XLR Mono DI
1 x 1/4" Stereo Headphone
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Resonance, Treble
Channel 2: Bass, Channel Volume, Mid, Resonance, Treble | | | | Configuration | 1 x 6.5" Speaker(s)
1 x 1" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 60 W RMS | | | | Dimensions (WxHxD) | 14.4 x 12.4 x 10.8" / 367.0 x 314.0 x 274.0 mm Combo | | Weight | 23.15 lb / 10.5 kg Combo | | | | Package Weight | 27.45 lb | | Box Dimensions (LxWxH) | 17.7 x 15.4 x 12.5" |
