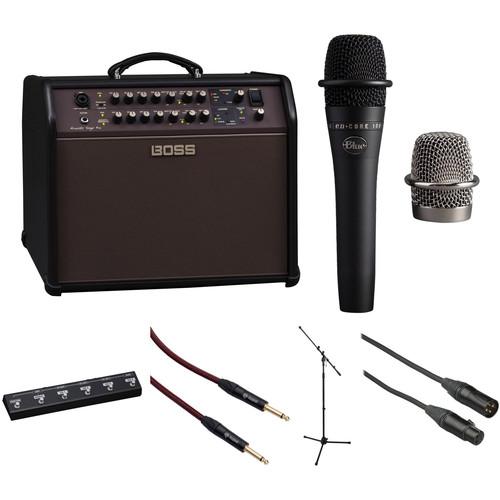

User Manual for BOSS ACS Pro 120W Combo Amp Kit with Blue Microphone and More Click to enlarge the picture
Contents of the user manual for the BOSS ACS Pro 120W Combo Amp
- Product category: Guitar Amplifiers BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Guitar Amplifiers
|
User manual for the BOSS ACS Pro 120W Combo Amp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description Bundled by B&H for your convenience, the BOSS ACS Pro 120W Combo Amp Kit gives useful tools to acoustic guitarists who sing and for performers on stage. First, you get the BOSS ACS Live 120W, a combo amplifier with two channels for acoustic guitars and vocals, three-band EQ, reverb, chorus, delay, onboard looper, a real-time harmony generator, and more.For your voice, the Blue enCORE microphone is included, which is a heavy-duty dynamic microphone sporting a cardioid polar pattern. A Roland GA-FC foot controller is on hand—or underfoot—as is a mic stand, an instrument cable, and a microphone cable. - BOSS ACS Pro 120W Combo Amplifier for Acoustic Guitar and Vocals The ACS Pro from BOSS is a 120W combo amplifier particularly suitable for acoustic guitar players and singer/songwriters. It offers two independent channels, each with a discrete analog input stage, and each boasting its own three-band EQ section. One channel provides a 1/4" guitar input and a chorus effect. The other channel gives you a combination XLR/1/4" jack useful in connecting a vocal or instrument mic, or another instrument (such as a second guitar), all while providing a delay/echo effect to further enhance the sound. Both channels have resonance filters to help fight against feedback on stage.
The rear of the amplifier provides two separate XLR DI outputs—one for each channel, with mode selector switches for outputting the channels mixed together or sending them separately with or without any onboard effects included in the signal. Also offered are a 1/4" stereo headphone output that doubles for recording purposes, as well as a 3.5mm stereo auxiliary input with its own rear-mounted level control. This unit offers not one, but three separate footswitch inputs, all controllable via optional units, and each one controlling different aspects of the ACS Pro, including the looper and harmonizer control. Also included is a USB output that will allow you to record digitally to your DAW directly from the amplifier. - Automatic Vocal Harmonies
- The ACS Pro includes a vocal harmony function that creates real-time polyphony as you sing and play guitar. These harmonies are generated automatically, as the amplifier analyzes your chord progressions, resulting in harmonies tuned to the key of your song. Two different harmony types are available, plus a unison setting that doubles your voice. Instantiation of this effect is achievable with an optional footswitch.
- Built-In Looper
- The amp's built-in looper allows you to build live backing tracks with guitar, vocals, effects, and more. Activation of the looper is achievable with an optional footswitch.
- Additional Features at a Glance
-
- 120W bi-amp design with 8" woofer and 1" dome tweeter
- Dual channels with discrete analog inputs and individual three-band EQs
- Dedicated guitar channel with Acoustic Resonance to restore natural tone to stage guitars with piezo pickups
- Mic channel with phantom power and XLR/1/4" combo input for connecting a vocal/guitar microphone or second instrument source
- Chorus effect on guitar channel, delay/echo effect on mic channel, and independent reverb on both channels
- Harmony function automatically creates smooth and accurate vocal harmonies via real-time key/chord analysis of the guitar input
- Built-in looper for practicing, developing ideas, and enhancing live performances
- Independent anti-feedback controls on each channel
- Dual XLR DI jacks assignable to outputting individual channels (direct or post-effects) or both channels mixed together
- USB output for direct recording to a computer
- Control looper, harmony, and effects with optional footswitches
< UPC: 761294509609 - Blue enCORE 100 Dynamic Handheld Vocal Microphone (Black) The black enCORE 100 Dynamic Handheld Vocal Microphone from Blue is a studio-grade, 3-pin XLR cardioid microphone that reproduces your voice exactly as you hear it. With its hand-tuned capsule, it can be used for capturing audio in live stage, vocal, studio tracking, and TV broadcast applications, and more. Featuring exceptional detail and clarity, the microphone has internal copper windings, which are wound for optimal frequency response and pulls the blanket off your sound. This lets the audience hear your voice in clear, natural quality. In addition, for public speaking the enCORE 100 maximizes speech intelligibility. Simply put, this microphone makes sure your message is heard with power and clarity. It even minimizes handling noise and feedback. It includes a microphone clip, a storage pouch, and an additional chrome microphone grille.
- Exceptional All-Around Performance
- enCORE 100 brings Blue studio sound to any project—from lead and backing vocals, to guitars and drums, voice over, and broadcast. And its true-to-life sound reproduction and versatility make enCORE 100 ideal for any venue-from the House of Blues to house of worship
- Withstand the Rigors of the Road
- The enCORE 100 is built with the strictest quality standards. It features stage-ready construction, including a heavy-gauge barrel, reinforced grill with integrated guard ring, and hardened metal-plated finish that ensures your mic will be left standing after ferocious live sets and brutal tour schedules
- Blue's Studio Legacy on Center Stage
- Blue is known for creating some of the finest studio mics. The enCORE series brings that legacy of industry-leading innovation and quality to the live arena. With custom Blue components and hand-selected capsules, enCORE guarantees that your music will be heard with clarity and Blue's legendary studio-quality sound
UPC: 836213005118 - Roland GA-FC GA Foot Controller The compact, lightweight (2.5 lb) Roland GA-FC GA Foot Controller puts the controls of your GA-112/212 guitar amplifier at your feet allowing you to keep your hands on your instrument and focus on your performance. Switch between four channels, two boost settings, reverb and two EFX loops plus plug in up to two expression pedal inputs for volume and drive.
- Switch between four channels, two boost settings, reverb and two EFX loops
- Simultaneously connect up to two expression pedals for real-time volume and drive control
- Simultaneously control stacked amps via Link In/Out port
UPC: 761294503096 - Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (15') The 15' Premium Performance Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket from Kopul is designed for connecting guitars to amplifiers or any other application where a 1/4" instrument or unbalanced line-level connection is required. It can be used in applications for live stage, theater, rehearsals, recordings, and more. Kopul's 3000B Series instrument cables are engineered for protection against electromagnetic interference (EMI), radio frequency interference (RFI), and the significant reduction of static noise. This cable features gold-plated 1/4" connectors that have a metal shell and chuck-style strain relief. A braided fabric jacket prevents unwanted tangling and adds durability to the cable. The 24-gauge annealed-copper conductors with dense spiral copper shielding, as well as a conductive PVC, and PE insulation make the Premium Performance 3000B Series instrument cable with braided fabric jacket, a flexible, quiet cable that ensures excellent transfer of the audio signal.
- Protection Against Interference
- Dense spiral copper shielding with 95% coverage provides protection against electromagnetic and radio frequency interference as well as static noise
- 24-AWG Copper Conductor
- The 24-gauge annealed copper provides excellent signal conductivity
- PVC Shield and PE Insulation
- The conductive PVC shield and PE insulation deliver additional protection against EM and RF interference and ensure that noise does not compromise your signal
- Gold-Plated Connectors
- Gold-plated 1/4ʺ male connectors ensure reliable signal transfer
- Flexible
- A PVC jacket offers protection for the cable while maintaining its flexibility
- Chuck-Style Strain Relief
- Chuck-style strain relief offers a secure connection between the connector and the cable
- Braided Fabric Jacket
- The tough braided fabric jacket prevents unwanted tangling and adds durability to the cable
UPC: 847628590953 - Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
- Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable (20') is a studio-quality cable for connecting mics to mixers, preamps, audio interfaces and recorders; or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations.
Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable resistant to EMI and RFI noise. The Neutrix XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 98% braided shield offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Cast zinc shell and chuck style strain relief.
UPC: 847628551190 In the Box - ACS Pro 120W Combo Amplifier for Acoustic Guitar and Vocals vtqfewrwvbefawqdrrcfztfderawdsu
- Power Cord
- Limited 1-Year Warranty on Parts
- Limited 90-Day Warranty on Labor
- Blue - enCORE 100 Dynamic Handheld Vocal Microphone (Black)
- Roland - GA-FC GA Foot Controller
- Kopul - Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (15')
- Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom
- Kopul - Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black vtqfewrwvbefawqdrrcfztfderawdsu
Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS ACS Pro 120W Combo Amp Kit with Blue Microphone and More in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BOSS ACS Pro 120W Combo Amplifier for Acoustic Guitar and Vocals
| | | Amplifier Type | Solid-State | | Output Power | 120 W RMS | | Channels | 2 | | Effects Loop | No | | Built-In Effects | Chorus, Delay, Digital Reverb, Echo, Harmonizer, Looper | | Master Volume | Yes | | Inputs | 2 x 1/4" Mono Instrument
1 x XLR Mono Mic Level
1 x 1/8" Stereo Aux
3 x 1/4" Stereo Footswitch | | Outputs | 2 x XLR Mono DI
1 x 1/4" Stereo Headphone
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Resonance, Treble
Channel 2: Bass, Channel Volume, Mid, Resonance, Treble | | | | Configuration | 1 x 8" Speaker(s)
1 x 1" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 120 W RMS | | | | Dimensions (WxHxD) | 16.4 x 14.1 x 13.0" / 417.0 x 358.0 x 330.0 mm Combo | | Weight | 31.97 lb / 14.5 kg Combo | | | | Box Dimensions (LxWxH) | 19.6 x 17.3 x 14.8" | - Blue enCORE 100 Dynamic Handheld Vocal Microphone (Black)
| Transducer Type | Dynamic moving coil | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 15 kHz | | Sensitivity | 1.55 mV/PA | | Output Impedance | 250 Ohms | | Maximum SPL | 147 dB | | Dimensions | Length: 7.3 (185 mm)
Diameter: 1.10 (28 mm) minimum to 1.97" (50 mm) maximum | | Weight | 0.88 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 12.95 x 6.7 x 4.15" | - Roland GA-FC GA Foot Controller
| Controls | Function switch
Manual switch
Ch. 1 to Ch. 4 switches | | Indicators | Function manual Ch. 1 to Ch. 4 | | Connectors | 1 x 1/4" TRS drive expression pedal input
1 x 1/4" TRS volume expression pedal input
1 x 1/4" TRS GA foot control jack | | Dimensions (WxDxH) | 15.43 x 3.18 x 1.92" (39.2 x 8.1 x 4.9 cm) | | Weight | 2.2 lb (1 kg) | | | | Box Dimensions (LxWxH) | 17.3 x 5.0 x 3.9" | - Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (15')
| Connector 1 | 1 x 1/4" TS Male Straight | | Connector 2 | 1 x 1/4" TS Male Straight | | Cable Length | 15' / 4.57 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | | | Box Dimensions (LxWxH) | 8.88 x 8.0 x 1.3" | - Auray MS-5230T Tripod Microphone Stand with Telescoping Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Length | 19.3 to 33.9" / 49 to 86 cm | | | | Material | Steel | | Weight | 4.6 lb / 2.1 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" | - Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 98% Braid | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 10.7 x 8.0 x 1.5" |
