User Manual for BOSS AD-2 Acoustic Preamp Pedal Click to enlarge the picture
Contents of the user manual for the BOSS AD-2 Acoustic Preamp Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS AD-2 Acoustic Preamp Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

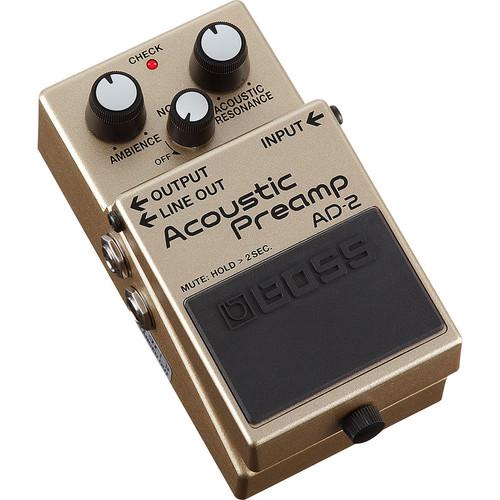

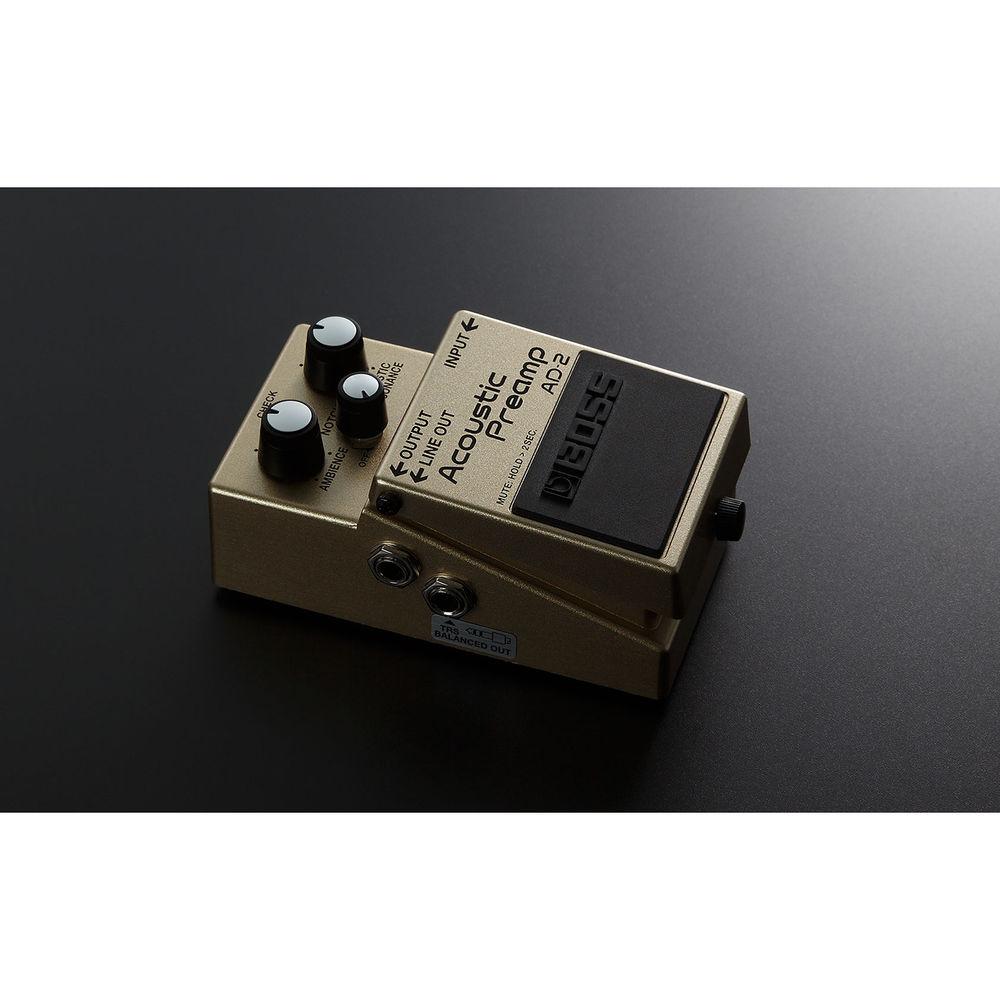

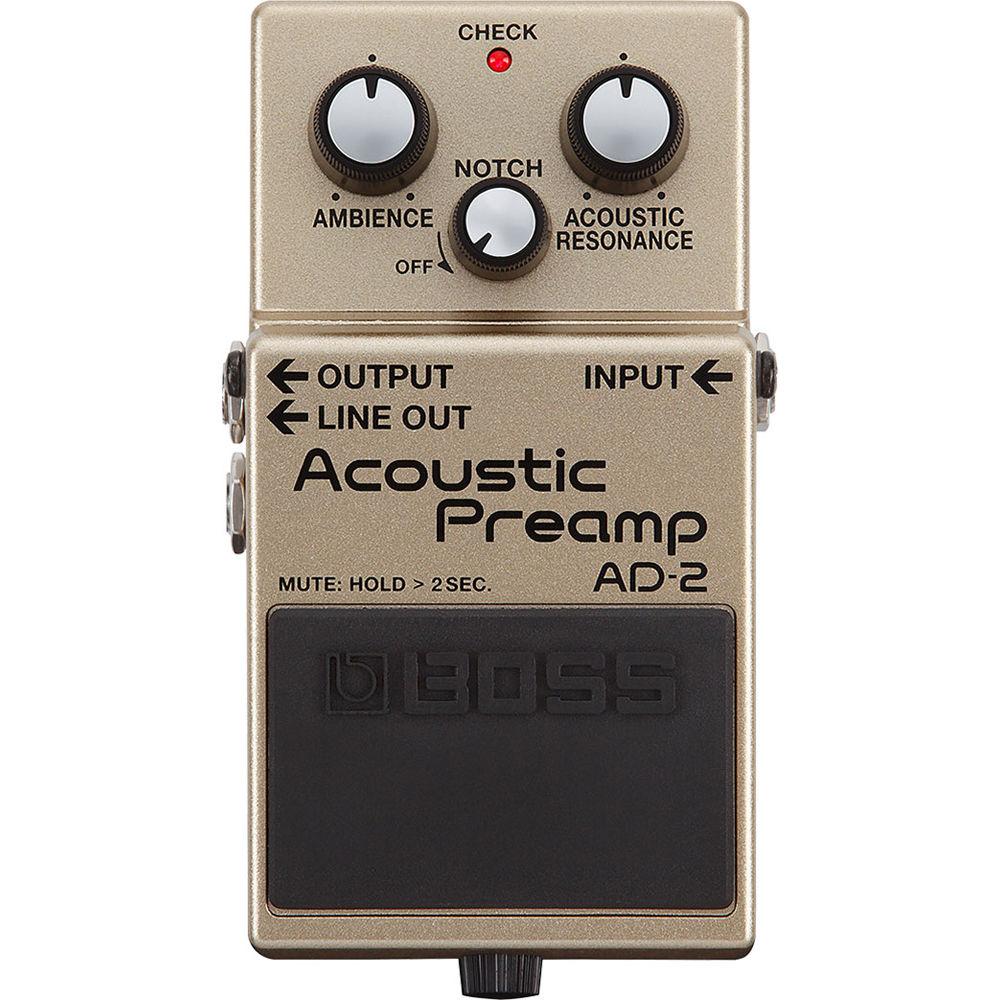

Product description The BOSS AD-2 Acoustic Preamp is a stompbox for acoustic/electric guitars that's designed to make up for the often-lackluster quality of undersaddle, piezo pickups. The AD-2's Acoustic Resonance feature analyzes the input signal as you're playing and applies processing to recreate the woodier sound of your acoustic instrument. Twisting the knob associated with this effect adjusts multiple interlocking controls within the pedal itself, allowing you to tailor the resulting song for specific timbres or purposes—i.e., for fingerpicking or strumming—quickly and effectively.
Also on hand—or rather, under foot—is an ambiance effect which adds some reverb to the signal. This reverb is EQ'd and processed to work with your acoustic guitar in a more complementary way when compared to other, comparable reverbs. As with the ambiance control, one-knob adjustment of this reverb will affect many interlocking parameters.

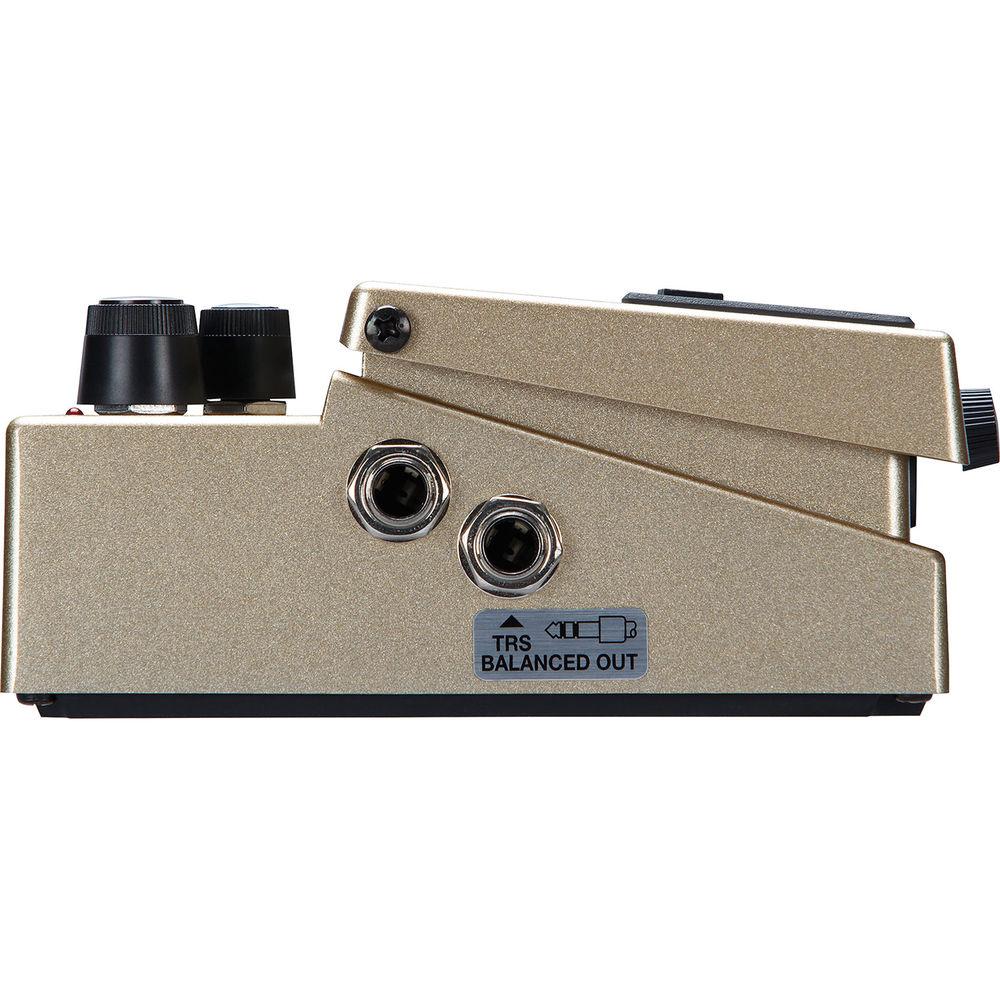

The AD-2 offers one input for your acoustic guitar, though you do have your choice of two outputs. A standard output jack can feed an acoustic guitar amp or a monitor, while the DI jack’s TRS connection sends a balanced signal to a PA mixer. If you choose, you can turn off the ambiance effect on the DI'd channel, thus giving your FOH mixer the ability to apply reverb in accordance with their own predilections.
Should you encounter any feedback, a one-knob notch filter will help you mitigate it immediately. This pedal has a buffered bypass path, which helps bolster tone over longer cable runs. If you'd like to mute your signal while changing guitars or tuning with an external tuner, simply press and hold the footswitch for two seconds. - Key Features at a Glance
-
- Acoustic/electric guitar preamp
- Under-the-hood processing with multiple interlocked parameters, accessible via simple stompbox controls
- Acoustic Resonance reproduces the complex resonance characteristics of an unplugged acoustic guitar
- Ambiance knob provides wide-ranging, studio-quality reverb designed for acoustic guitar
- Notch filter for feedback reduction
- Normal output for an acoustic guitar amp and balanced DI output for direct PA connection
- Sound mute function for switching guitars and tuning on stage
UPC: 761294509821 In the Box BOSS AD-2 Acoustic Preamp Pedal 9V Alkaline Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS AD-2 Acoustic Preamp Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS AD-2 Specs | Nominal Input Level | -20 dBu | | Nominal Output Level | -20 dBu (both jacks) | | Input Impedance | 10 MOhms | | Output Impedance | Output: 1 kOhm
Line Output: 600 Ohms | | Bypass | Buffered | | Controls | Acoustic Resonance Knob
Ambiance Knob
Notch Knob
Pedal Switch | | LED Indicator | Check indicator (Serves also as battery check indicator) | | Connectors | 1 x 1/4" input, phone type
1 x 1/4" output, phone type
1 x 1/4" line output, TRS phone type
1 x DC input | | Power Supply | 9 V Battery (alkaline or carbon-zinc)
AC Adapter (available separately) | | Current Draw | 55 mA | | Battery Life (approx.) | 6 hours of continuous use | | Dimensions (W x D x H) | 2.9 x 5.1 x 2.3" / 73.0 x 129.0 x 59.0 mm | | Weight | 15.9 oz / 450.0 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.0 x 3.7 x 2.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
