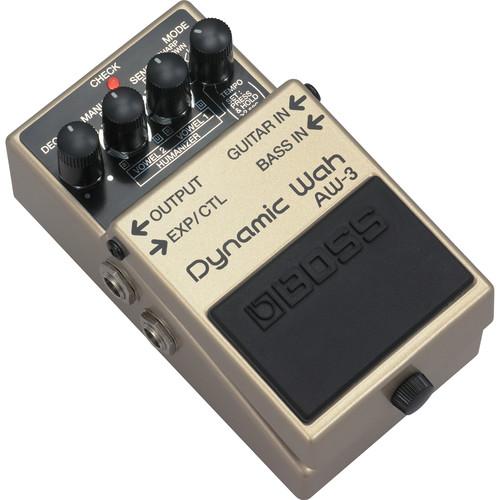

User Manual for BOSS AW-3 Dynamic Wah Pedal Click to enlarge the picture
Contents of the user manual for the BOSS AW-3 Dynamic Wah Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
|
User manual for the BOSS AW-3 Dynamic Wah Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description Bring on the funk with the AW-3 Dynamic Wah Pedal from BOSS. By itself as a stompbox, the AW-3 functions like an auto-wah. Set the rate and let the funk begin. For easy tempo changes, the tap-tempo mode allows you to use the footswitch to tap out the desired tempo, and the AW-3 will follow. The AW-3 also functions dynamically, like an envelope filter, using the level of your guitar's signal to modulate the "position" of the wah. Funk and fusion players like guitarists Guthrie Govan and bassist Bootsy Collins have used this type of sound to great rhythmic effect. It was also an integral part of Jerry Garcia's signature guitar sound. Some players like the filtered sound of a cocked wah on their guitar tone. The dynamic wah can be set to a specific position along the wah's travel and will remain there when switched off. This precludes the trouble of selecting the correct position with a standard wah treadle every time you turn it on. Aside from the classic wah tones, the AW-3 also has a "Humanizer" mode which adds a simulated vocal "vowel" sound to your guitar's tone. The vowel changes as you pick. Also on the AW-3 is a separate input optimized for the frequencies produced by bass guitars. - Five Modes
- Five modes - Up, Down, Sharp, Humanizer, and Tempo - allow you to use the wah sound in a variety of ways. Up mode provides a wah effect in which the filter shifts to higher frequencies. Down mode provides a wah effect in which the filter shifts to lower frequencies. Sharp mode provides a stronger wah effect with shifting of the filter to higher frequencies. Humanizer mode transforms the guitar's sound into the sound of a human voice, with vowel sounds that change as you pick. Tempo mode is used to set the auto-wah's tempo, in a range from 200 ms to 4 seconds.
- EXP/CTL Input
- An extra input can accept a separately available expression pedal like the Roland EV-5 or non-latching footswitch like the BOSS FS-5U. A non-latching footswitch can control the tap tempo of the pedal without having to enter the tap-tempo mode. An expression pedal can control the wah sounds and Humanizer effects of the AW-3 in the traditional "treadle" manner.
- Classic BOSS Design
- The AW-3 can run off of a single 9V battery or an optional external 9 VDC power supply. The electronics are encased in BOSS's iconic durable metal housing with a non-slip rubber base. The battery compartment can be easily accessed by unscrewing the thumbscrew at the front of the pedal. This pedal utilizes a buffered bypass for silent switching and driving long cable runs even while the pedal is disengaged.
UPC: 761294053041 In the Box BOSS AW-3 Dynamic Wah Pedal 9V Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS AW-3 Dynamic Wah Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS AW-3 Specs | Inputs | 1 x unbalanced 1/4" guitar TS
1 x unbalanced 1/4" bass TS
1 x EXP/CTL 1/4" optional expression pedal/footswitch control | | Nominal Input Level | -20 dBu | | Input Impedance | 1 MOhm | | Output | 1 x unbalanced 1/4" instrument TS | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Residual Noise | Level: -92 dBu (IHF-A, Typ.) | | Power Supply | 9 VDC:
Dry battery, 9 V type (6F22/9 V))
Optional AC Adapter (PSA-Series, available separately) | | Current Draw | 50 mA @ 9 VDC | | Dimensions | 2.9 x 5.1 x 2.4" / 73 x 129 x 59 mm | | Weight | 15 oz / 420 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.906 x 3.701 x 2.598" |
