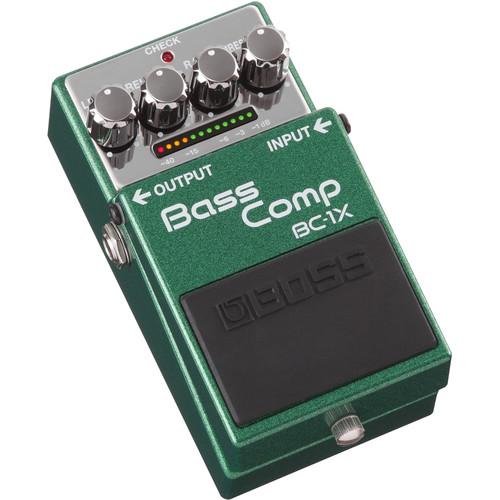

User Manual for BOSS BC-1X Bass Compressor Pedal Click to enlarge the picture
Contents of the user manual for the BOSS BC-1X Bass Compressor Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
|
User manual for the BOSS BC-1X Bass Compressor Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description Unveiled: New BOSS Pedals and Switcher, 2016 Read More Leveraging powerful DSP, BOSS applies their MDP (Multi-Dimensional Processing) technology to the BC-1X Bass Compressor Pedal for advanced multi-band compression in a standard stompbox. On the outside, the BC-1X features the standard BOSS chassis with an added reflective accenting and a real-time LED gain reduction readout on the control panel. While the adjustment options on this pedal are simple on the surface, with standard Threshold, Ratio, Release, and Level knobs, each control makes many adjustments under the hood. - MDP (Multi-Dimensional Processing)
- MDP analyzes playing dynamics and frequency information in real time to provide the best tone for each note played. Many standard compressors provide equal gain reduction for any given frequency, reducing dynamics, and compromising the feel and overall tone of your bass. The BC-1X's MDP provides multi-band compression which dynamically adjusts the amount of gain reduction applied based on frequency and the dynamics of your playing, allowing your tone and feel to be accurately reflected. This also means you can play in any register, and still retain natural tone and expression. Because of the digital processing, there is no residual noise affecting the circuit, and each control adjusts multiple internal compression parameters in order to keep your sound lively and musical. In order to provide the necessary headroom, this pedal runs at 18V internally, although it still accepts 9V batteries and the standard BOSS DC power supply.
- Classic Boss Design
- The BC-1X can run off of a single 9V battery or an optional external 9V DC power supply (the internal electronics perform a conversion to 18V for greater headroom). The electronics are encased in BOSS's iconic durable metal housing with a non-slip rubber base and the battery compartment can be easily accessed by unscrewing the thumbscrew at the front of the pedal. This pedal utilizes a buffered bypass for silent switching and driving long cable runs even while the pedal is disengaged.
UPC: 761294508671 In the Box BOSS BC-1X Bass Compressor Pedal 9V Alkaline Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS BC-1X Bass Compressor Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS BC-1X Specs | Inputs | 1 x unbalanced 1/4" instrument TS
Nominal Input Level: -20 dBu
Input Impedance: 1 MOhm | | Outputs | 1 x unbalanced 1/4" instrument TS
Nominal Output Level: -20 dBu
Output Impedance: 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Power Supply | 18 VDC:
Dry battery, 9 V type (alkaline 6LR61, carbon zinc 6F22)
Optional AC Adapter (PSA series) | | Current Draw | 90 mA @ 18 VDC | | Dimensions | 2.9 x 5.1 x 2.4" / 73 x 129 x 59 mm | | Weight | 1 lb / 450 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 8.0 x 4.1 x 2.7" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
