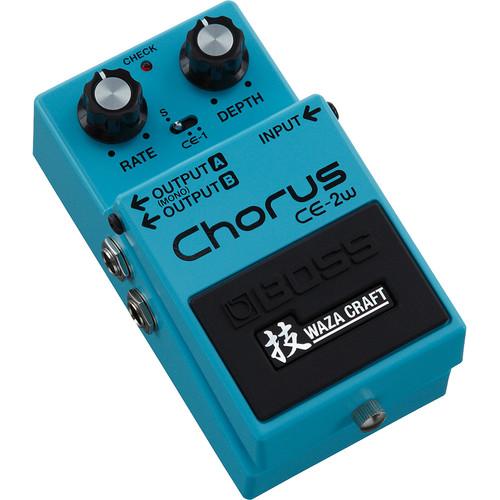

User Manual for BOSS CE-2W Waza Craft Special Edition Chorus Pedal Click to enlarge the picture
Contents of the user manual for the BOSS CE-2W Waza Craft Special Edition
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS CE-2W Waza Craft Special Edition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

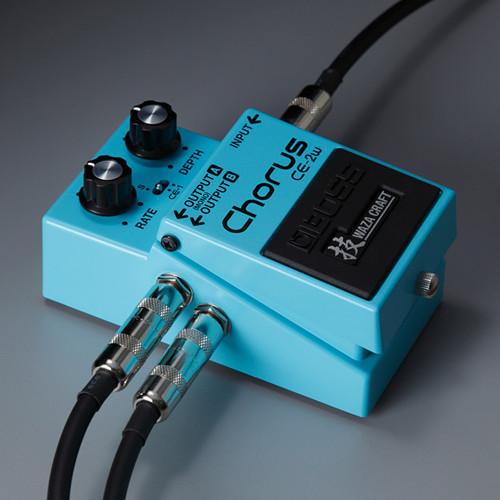

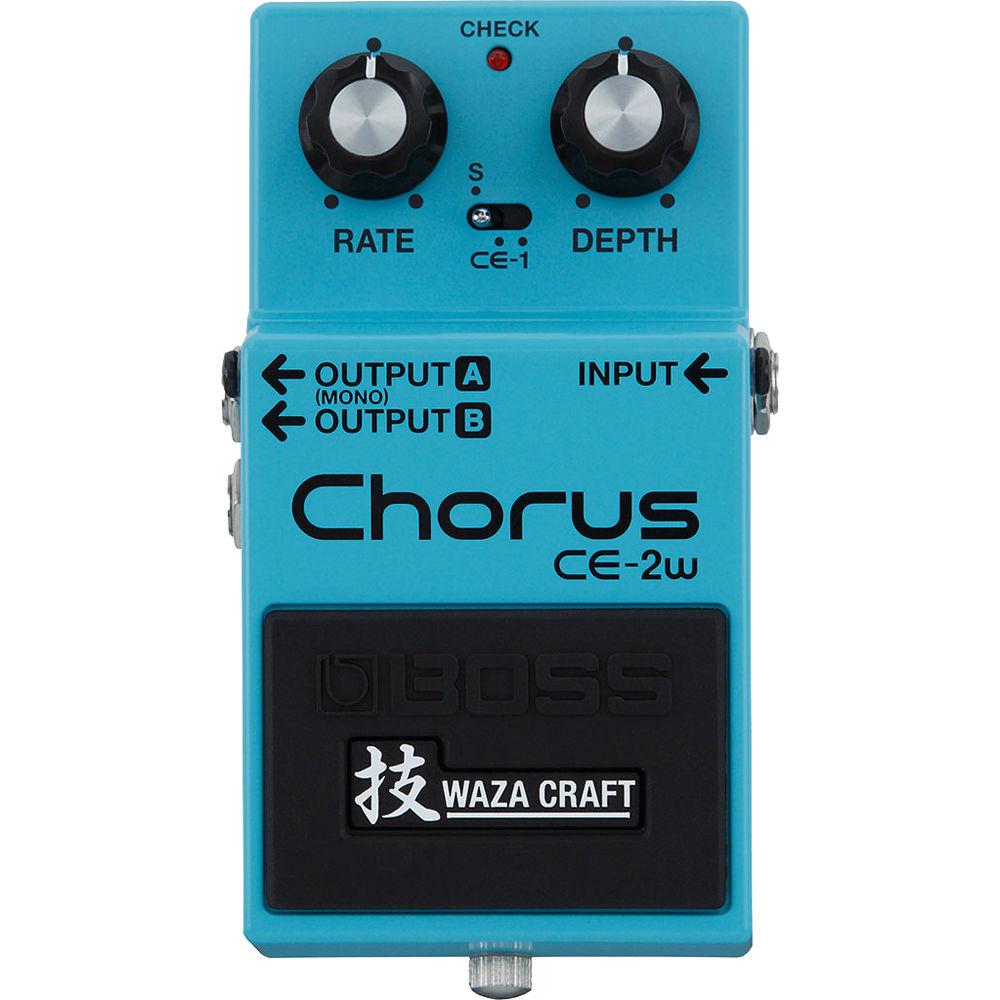

Product description Tweak your Timbre: BOSS CE-2W Waza Craft Special Edition Chorus Pedal Read More fqyfdbxwcyxfxbytwrxfsu A recreation of two classic chorus pedals, the CE-2W from BOSS is intended for use with electric guitars. It provides two modes of chorus and one mode of vibrato in a single stompbox enclosure. The pedal's Standard mode faithfully reproduces the sound of the original mono CE-2. The dual CE-1 modes, on the other hand, provide the tone and timbre of a vintage CE-1—its stereo chorus and vibrato are both represented here. Furthermore, a couple of additions bring the pedal increased functionality over the original CE-1 and CE-2. Such additions include variable chorus depth control in CE-1 mode, as well as two output jacks for an expanded stereo sound in CE-2 mode, which enables you to route your signal to dual amplifiers, if stereo chorus is your preference. Purchase of this pedal includes a 9V battery. - Notable Features
-
- Faithful recreation of CE-2 and CE-1 in one pedal
- CE-2 augmented by stereo outputs
- CE-1 augmented by variable depth control
- Rate and depth knobs provide fine-controlled adjustments
- All-analog circuitry with bucket-brigade delay line
UPC: 761294509807 In the Box BOSS CE-2W Waza Craft Special Edition Chorus Pedal 9V Alkaline Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS CE-2W Waza Craft Special Edition Chorus Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS CE-2W Specs | Modes | Standard
CE-1 Chorus
CE-1 Vibrato | | Nominal Level | Input: 20 dBu
Output: 20 dBu | | Impedance | Input: 1 MOhm
Output: 1 kOhm | | Bypass | Buffered bypass | | Controls | Pedal Footswitch
Mode Switch
Rate knob
Depth knob | | Indicators | Check indicator (also serves as battery check indicator) | | Connectors | Input jack: 1/4" phone type
Output A (mono) jack: 1/4" phone type
Output B jack: 1/4" phone type
DC input jack | | Power Supply | 9 V Alkaline battery (6LR61) or 9 V Carbon-zinc battery (6F22)
AC adapter, PSA Series (available separately) | | Current Draw | 25 mA | | Expected Battery Life | Under continuous use (dependent on actual use):
Alkaline: Approximately 32 hours
Carbon: Approximately 18 hours | | Dimensions (W x D x H) | 2.9 x 5.1 x 2.3" / 7.3 x 12.9 x 5.9 cm | | Weight | 15.9 oz / 450.0 g | | | | Package Weight | 1.225 lb | | Box Dimensions (LxWxH) | 6.0 x 3.7 x 2.65" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
