User Manual for BOSS CP-1X Compressor Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the BOSS CP-1X Compressor Pedal for Electric
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS CP-1X Compressor Pedal for Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

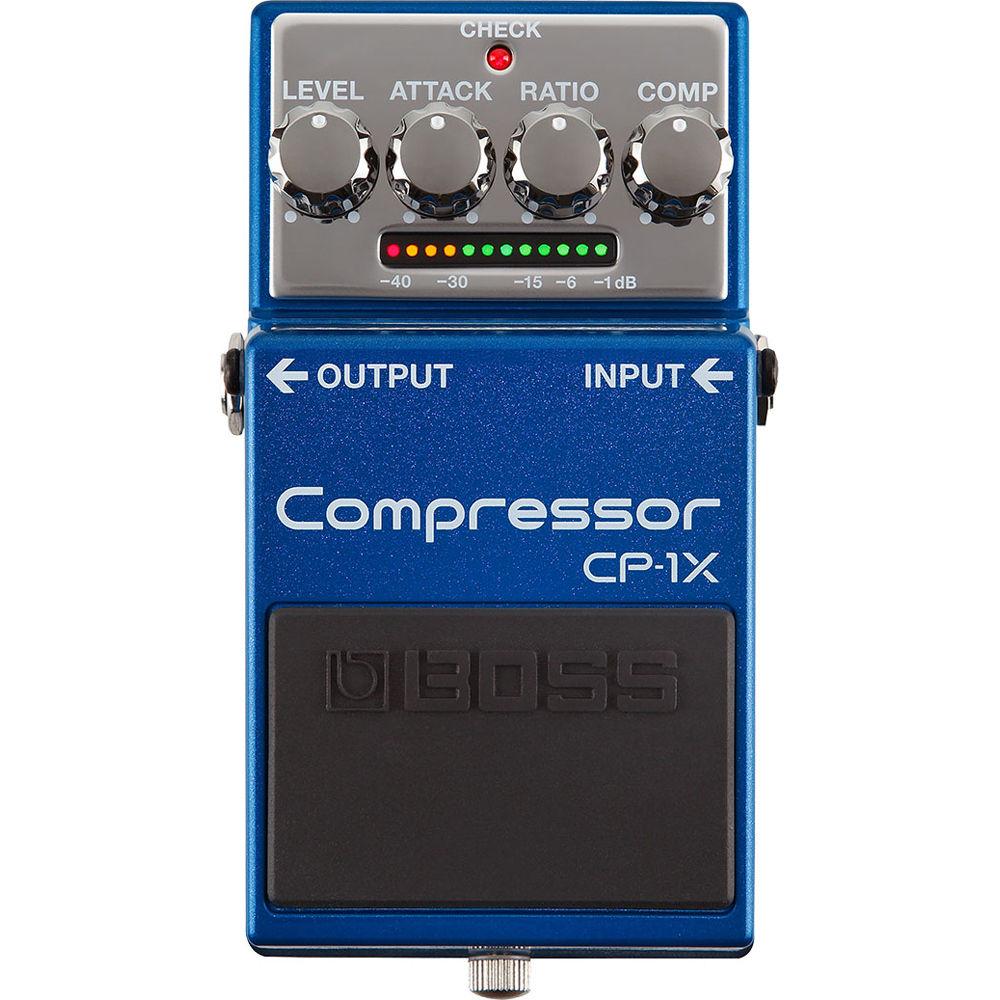

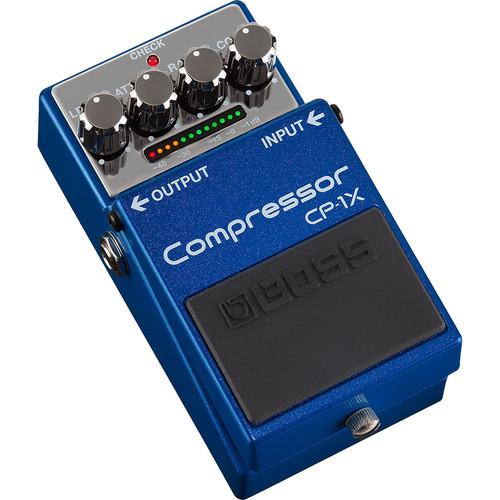

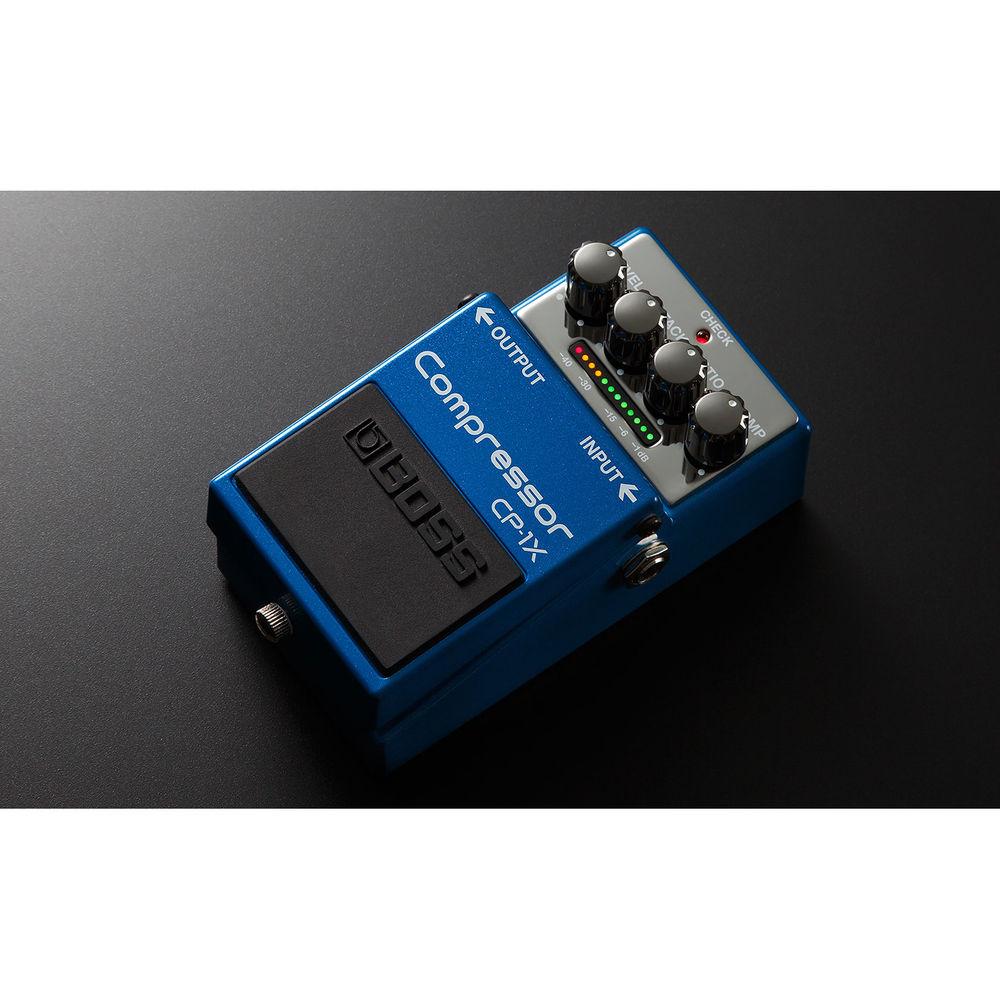

Product description The BOSS CP-1X is a compression pedal intended for use with electric guitars. At first glance, the pedal looks like a familiar BOSS compressor stompbox with familiar BOSS controls: Level, Attack, Ratio, and Comp are on hand to help you dial in your sound. However, BOSS has employed proprietary MDP technology, which ensures that these controls will interact with each other in a sophisticated manner, giving you multiband compression that is musical, transparent, and effective.Indeed, the pedal is designed to preserve the expressive actions of your playing while facilitating the dynamic evenness necessary to make compressor stompboxes successful in their operation. Thus, arpeggios, fast solos, heavy riffs, and chicken pickin’ licks can be heard in all their glory, with each note individuated, yet controlled. This kind of multiband approach also serves seven- and eight-string guitars, as it can control the upper register without sacrificing the punch of the low end. With a separate level control, the pedal also can be used to achieve an overall volume boost.The CP-1X offers buffered-bypass circuitry to preserve your signal’s tone over long cable runs and complicated pedalboard setups. It will operate on a single 9V battery for up to three hours of continuous use, though you can also use the pedal with an AC adapter (available separately). - MDP Technology
- Typical stompbox compressors color and restrict your sound, and are hard to dial in for various playing styles. The powerful MDP engine analyzes your guitar’s many different tonal elements in real time, providing natural compression that intelligently follows and adapts to your playing. With this approach, your true tone and technique always comes through, even when using aggressive settings for squashing the sound.BOSS’s proprietary Multi-Dimensional Processing (MDP) technology analyzes the various elements that make up the sound, including frequency, overtones, dynamics, pickup response, and more. Various playing characteristics are analyzed as well, such as note register, single notes vs. chords, bends, vibrato amount, and others. Each individual element is then processed to give you transparency, as well as evenness of tone.
- Interactive Controls
- The CP-1X's controls interact with each other at a detailed level. Thus, when you turn a knob, numerous interlocked parameters are adjusted under the hood at once. This gives you a rather sophisticated slate of controls for a pedal when it comes to compressing and tone-shaping. Still, you don't need to be a sound engineer to use the CP-1X. Its MDP processing has been fine-tuned to facilitate polished tones quickly.
- Quality Wiring and Metering
- The CP-1X utilizes 18V input circuitry that provides ample headroom for the hottest guitar pickups, ensuring clarity for any instrument. A 16-segment gain reduction indicator clearly displays the compression amount, making it easy to see what the pedal's doing.
UPC: 761294510049 In the Box BOSS CP-1X Compressor Pedal for Electric Guitar Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS CP-1X Compressor Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS CP-1X Specs | I/O | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | COMP knob
RATIO knob
ATTACK knob
LEVEL knob
Pedal switch | | Nominal Input Level | -20 dBu | | Input Impedance | 1 MOhm | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Bypass | Buffered | | Indicators | CHECK indicator (Serves also as battery check indicator)
GAIN REDUCTION indicator | | Power Supply | Alkaline battery (9V, 6LR61)
AC adapter (available separately) | | Working Voltage | 18 V | | Current Draw | 90 mA | | Battery Life (approx.) | 3 hours | | Dimensions (W x D x H) | 2.9 x 5.1 x 2.3" / 73.0 x 129.0 x 59.0 mm | | Weight | 15.9 oz / 450.0 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.1 x 3.7 x 2.6" |
