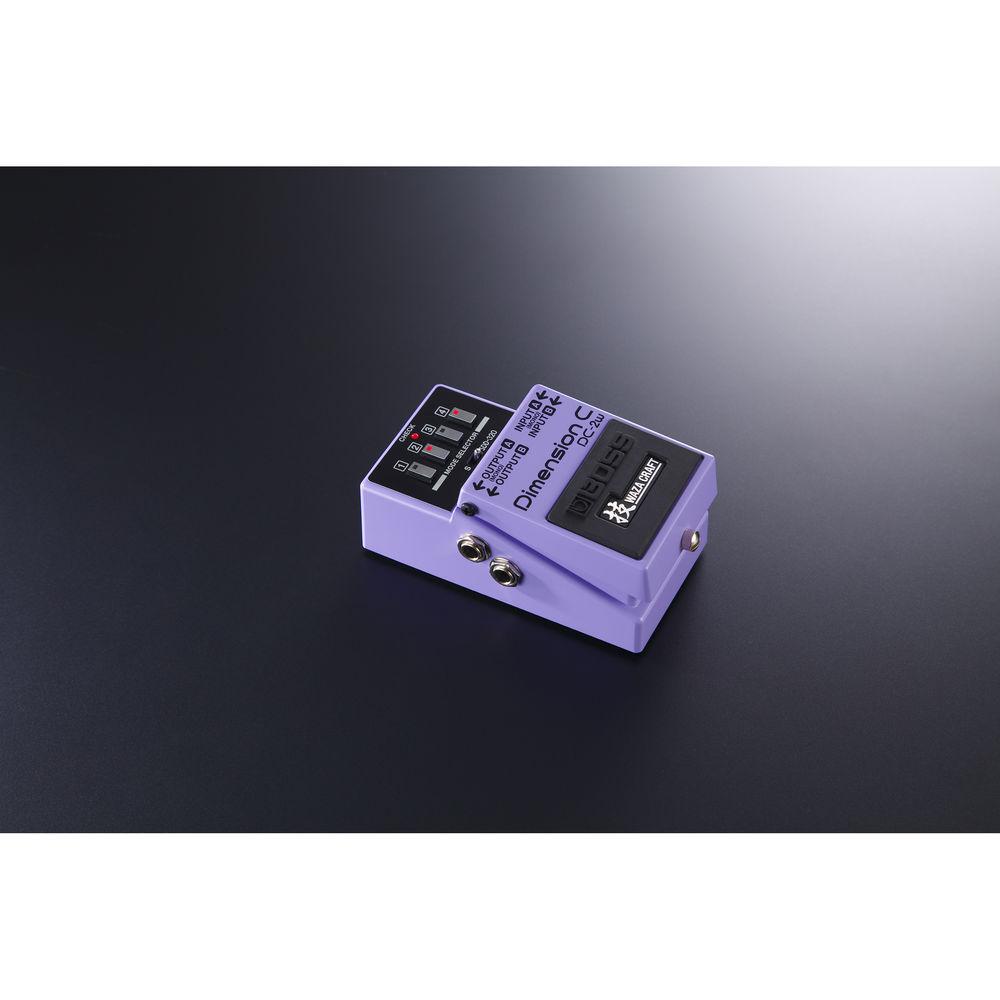

User Manual for BOSS DC-2W Dimension C Effects Pedal for Electric Guitarists Click to enlarge the picture
Contents of the user manual for the BOSS DC-2W Dimension C Effects Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS DC-2W Dimension C Effects Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

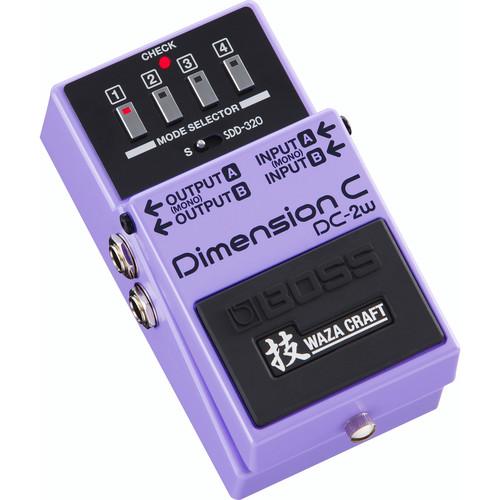

Product description A part of their Waza Craft series, the BOSS DC-2W combines two classic Roland Dimension effects in a single pedal, one suitably sized for your pedalboard. Similar to a chorus effect, the DC-2W provides time-based manipulation that adds dimension to your sound, subtly enhancing both width and depth.
The pedal offers two modes: Standard, which gives you the sound of the original DC-2 Dimension C pedal, and SDD-320 mode, which authentically reproduces the sound of a vintage Roland unit heard on many hit records. The interface is rather simple and intuitive: four different selectors switch among presets. Press two selectors at once to unlock even more presets. Between the two modes, you can get 20 different sounds out of the pedal.
Although the tone is authentically vintage, some welcome concessions to modernity have been made, including an internal bypass circuit that's buffered to bolster tone throughout long cable runs. You'll also note the clear indicators for each mode, which provide visibility on dark stages.
This pedal is primarily designed for electric guitarists, but can also be used by bass players, keyboardists, or studio engineers as part of an outboard gear setup. Stereo 1/4" I/O makes this latter use particularly attractive. - Key Features at a Glance
-
- All-analog audio circuitry
- Standard mode provides the sound of the original DC-2 Dimension C pedal
- SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a studio rack effect heard on many hit records

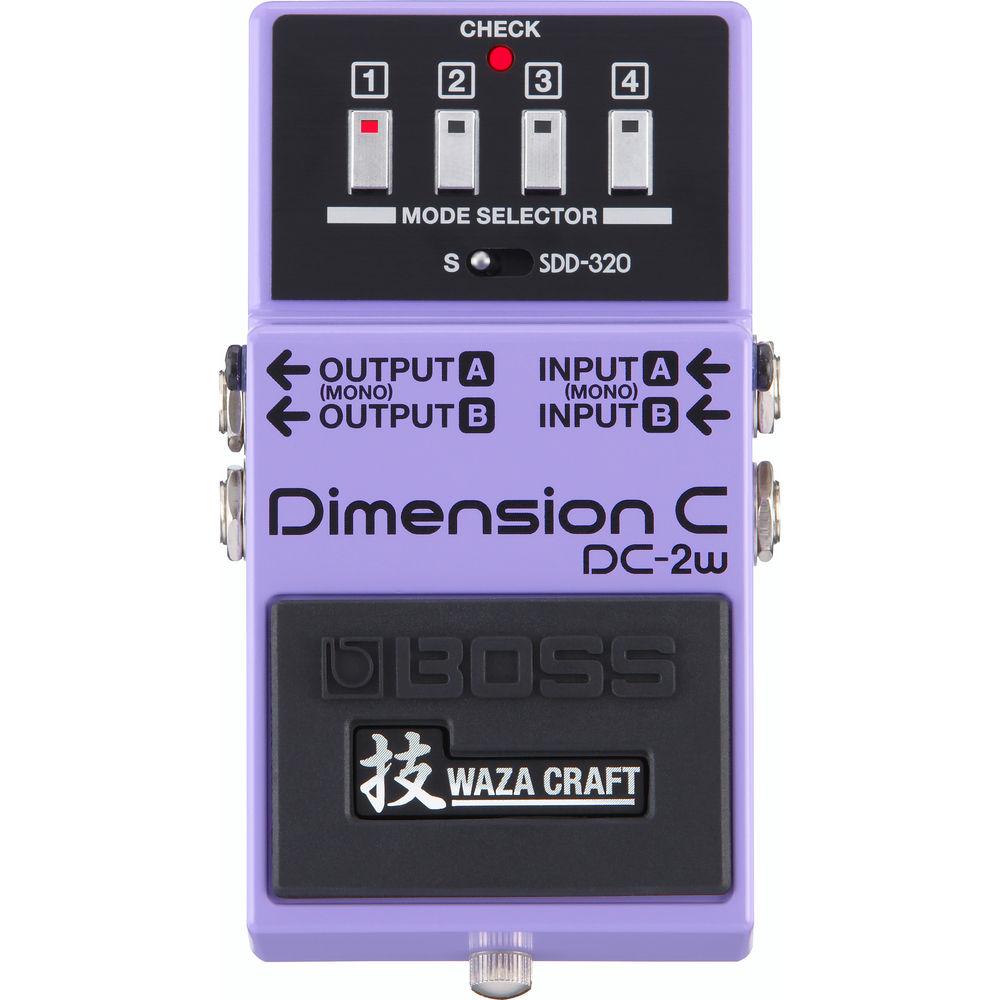

- 4-button preset interface with electronic switches and LED status indicators
- 4 main sounds in each mode plus six variations accessed by pressing two buttons together (20 total sounds available)
- Buffer bypass circuitry
- Mono or stereo I/O for integrating with mono or stereo applications, from guitar and bass pedalboards to keyboards and studio mixing
- Made in Japan
UPC: 761294513521 In the Box BOSS DC-2W Dimension C Effects Pedal for Electric Guitarists 9V Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS DC-2W Dimension C Effects Pedal for Electric Guitarists in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS DC-2W Dimension C Specs | Modes | Standard, SDD-320 | | Nominal Input Level | -20 dBu | | Input Impedance | 2.2 MOhms | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Bypass | Buffered | | Controls | Pedal switch
Standard / SDD-320 switch
Mode selector buttons (x4) | | Indicators | Check indicator (also serves as battery check indicator)
Mode selector indicators (x4) | | Connectors | 2 x 1/4" instrument inputs, phone type

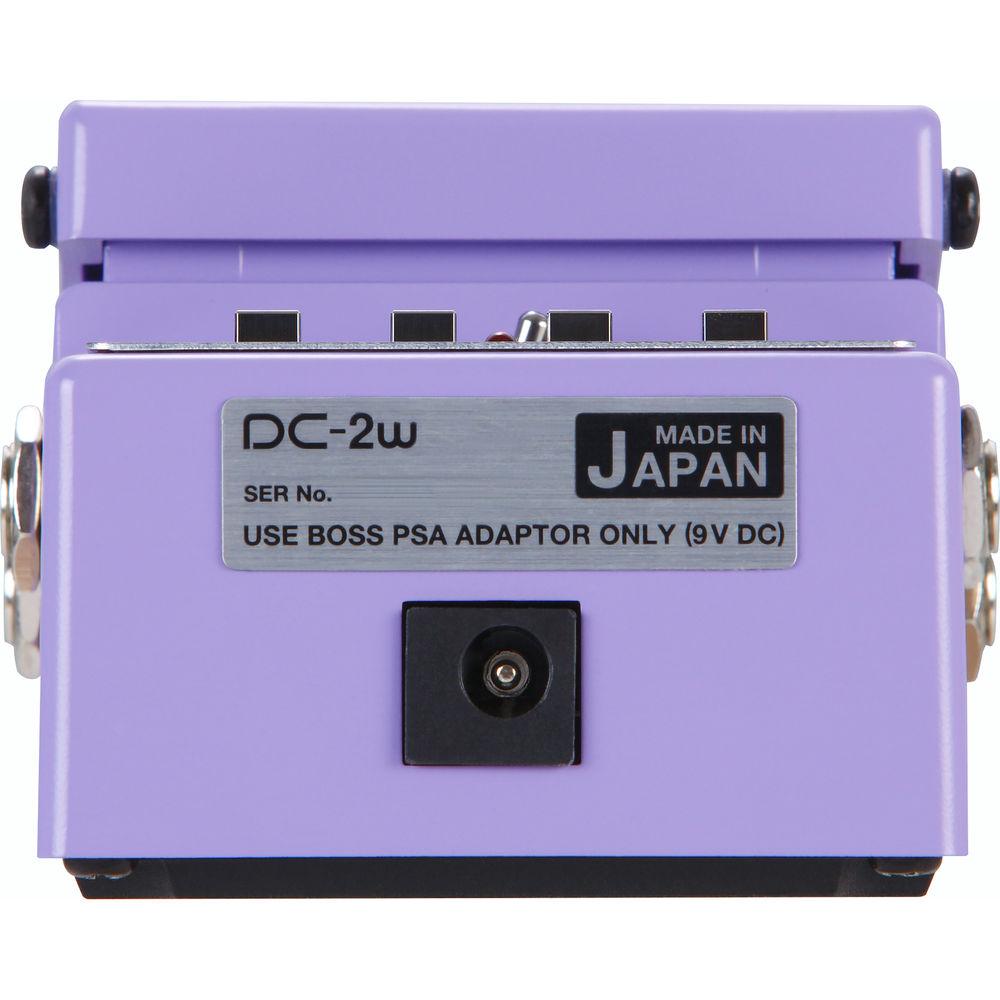

2 x 1/4" instrument outputs, phone type | | Power Supply | Alkaline battery (9 V, 6LR61)
PSA-series AC adapter (available separately) | | Current Draw | 65 mA | | Expected Battery Life | Alkaline: Approximately 6 hours under continuous use | | Dimensions (W x D x H) | 2.9 x 5.1 x 2.3" / 73.0 x 129.0 x 59.0 mm | | Weight | 15.9 oz / 450.0 g | | | | Package Weight | 1.27 lb | | Box Dimensions (LxWxH) | 6.0 x 3.6 x 2.7" |
