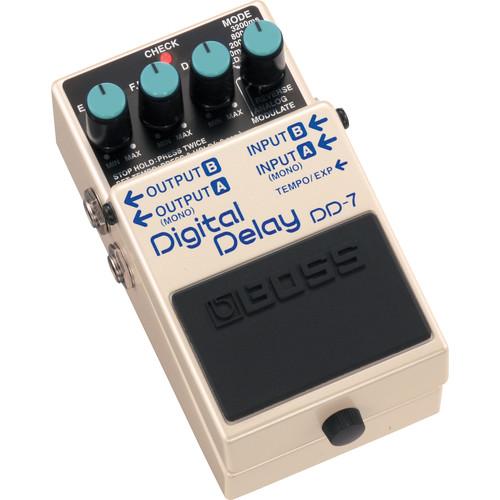

User Manual for BOSS DD-7 Digital Delay Pedal Click to enlarge the picture
Contents of the user manual for the BOSS DD-7 Digital Delay Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS DD-7 Digital Delay Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

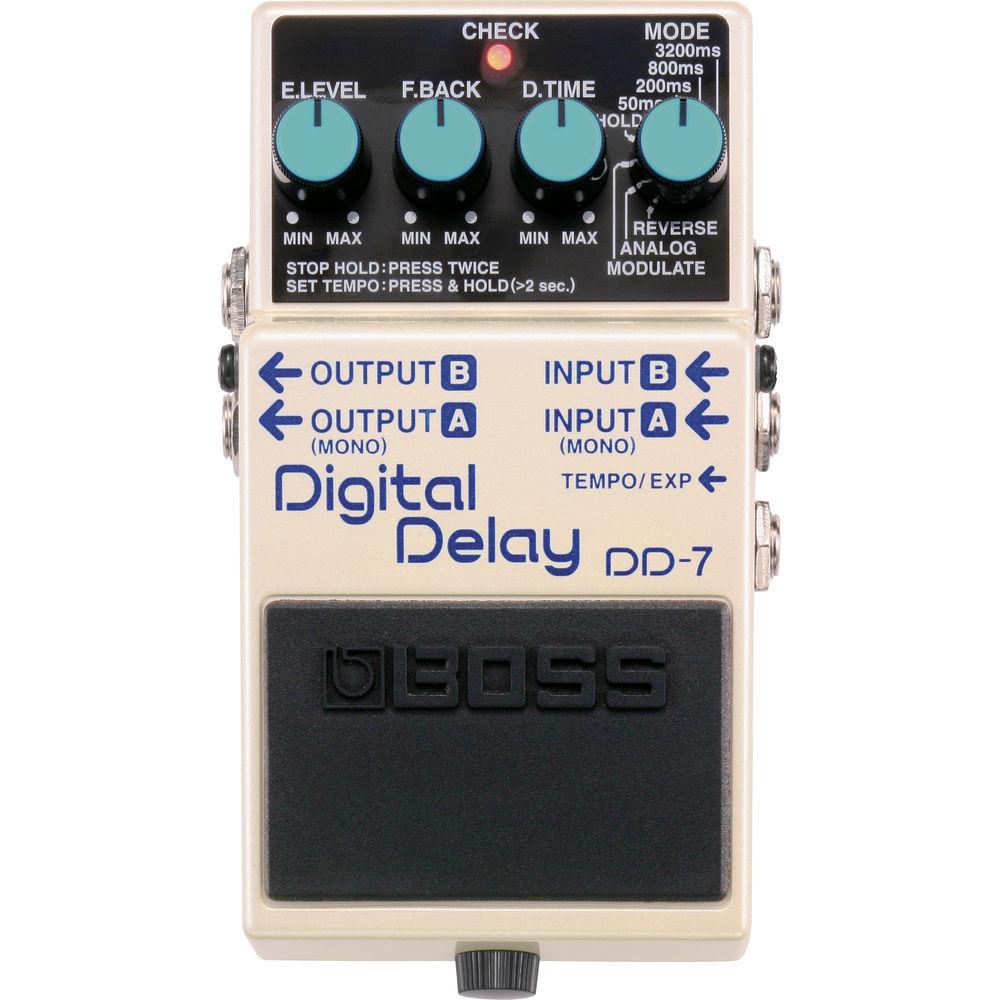

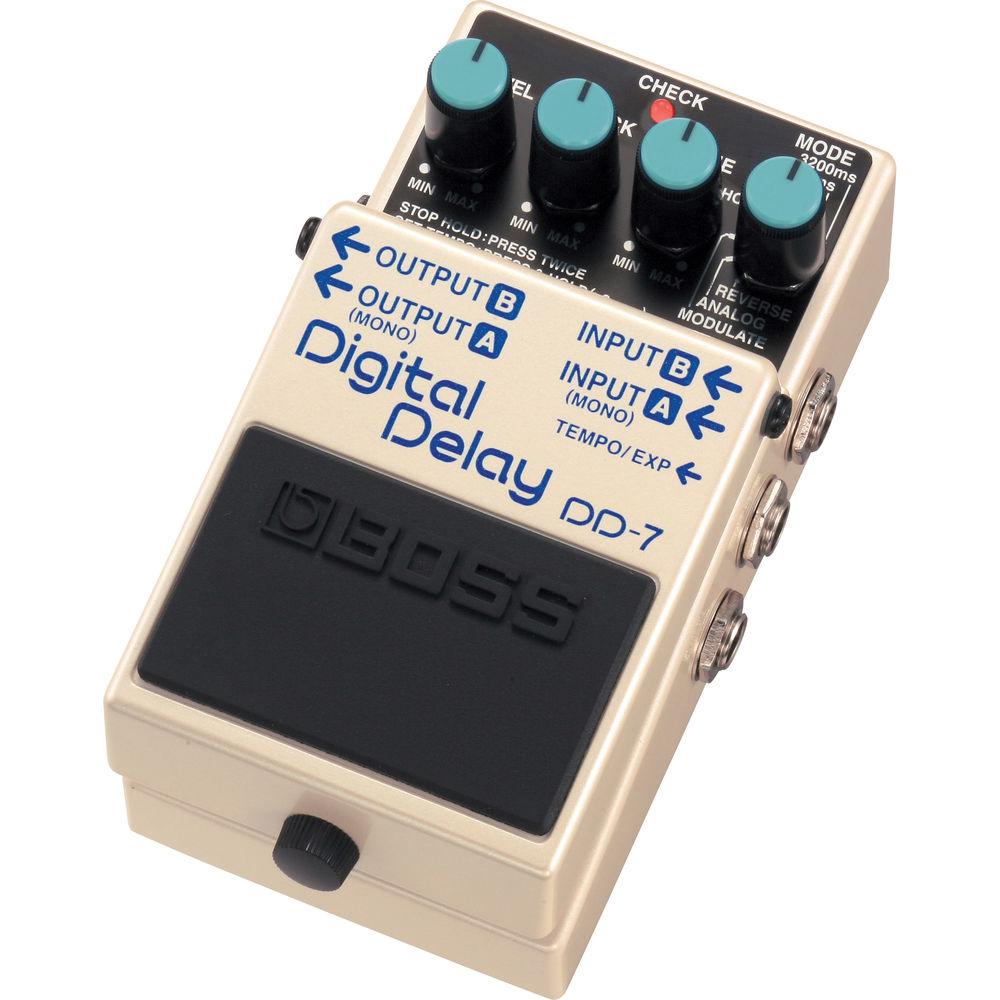

Product description With an expanded delay time of up to 6.4 seconds and new delay sounds, the BOSS DD-7 Digital Delay Pedal can find a way onto your pedalboard, and be applied to nearly any playing style. The DD-7 is a pristine digital delay with high-fidelity repeats, but it also offers a Modulation Delay mode for an added chorusing effect to the delay trails and an Analog Delay mode which models the warm delay trails of the highly sought after vintage BOSS DM-2 delay pedal. Despite its size, the DD-7 offers lots of functionality by way of dual input and output jacks for mono or stereo operation. Different stereo modes can be selected, including traditional 2-in/2-out true stereo mode, panning mode for wide spatial delays, and effect + direct mode for complete control over mixing your signal. Traditional simple adjustments are made via the Effect Level, Feedback, and Delay Time knobs. An external Tempo/Exp input is also available for expanded external control. By default, holding the pedal down for two seconds engages the tap-tempo mode, this mode is for matching a song's tempo by stepping on the pedal to the beat of the song, precluding the need for manually adjusting your pedal in the middle of a set. With the addition of a standard non-latching footswitch (like the optional BOSS FS-5U), tap-tempo can be controlled at any time while the pedal is active (except when the Hold function is engaged). This configuration effectively allows you to remain in tap-tempo mode while being able to engage and disengage the pedal by simply stomping on it. If you plug in a separately available expression pedal like the BOSS EV-5, you can program a parameter you wish for the expression pedal to control. Parameters include anything normally assigned to the Effect Level, Feedback, and Delay Time knobs. If you step on the pedal twice (while not in tap-tempo mode) the Hold function will be engaged. In the Hold mode, you can record and overdub multiple parts up to 40 seconds (20 seconds in stereo operation) to create lush soundscapes or creative cacophonies. The DD-7 can run off of a single 9V battery or an optional external 9 VDC power supply. The electronics are encased in BOSS's iconic durable metal housing with a non-slip rubber base. The battery compartment can be easily accessed by unscrewing the thumbscrew at the front of the pedal. Included with the pedal are two reference stickers that you can use to easily see what each knob controls in a specific mode. This pedal utilizes a buffered bypass for driving long cable runs while the pedal is disengaged. - Expanded Delay Time
- Up to 6.4 seconds of delay time is available with the DD-7, a marked increase from its predecessor. In addition, Hold mode allows up to 40 seconds of input to be recorded for creating "sound on sound" performances
- New Delay Modes
- The DD-7 is equipped with two new delay modes. Modulation Delay provides chorus-flavored sounds. Analog Delay offers a modeled simulation of the classic BOSS DM-2, beloved for its characteristic warmth
- External Control
- For hands-free control of the DD-7, an external, separately available, footswitch or expression pedal can be used. Tap tempo can be controlled from an external non-latching footswitch, while delay time, feedback, and effect level can be changed on the fly via an expression pedal
- Stereo Output
- Create amazing effects with the DD-7's stereo output, such as spatial audio sweeps via true stereo panning. You can also use the stereo outputs to create separate dry and wet signal paths - handy for recording and live-performance control
UPC: 761294407127 In the Box BOSS DD-7 Digital Delay Pedal Setting Sticker Set 9V Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS DD-7 Digital Delay Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS DD-7 Specs | Inputs | 2 x unbalanced 1/4" instrument TS
Nominal Input Level: -20 dBu
Input Impedance: 1 MOhm
1 x 1/4" tempo/expression pedal | | Outputs | 2 x unbalanced 1/4" instrument TS
Nominal Output Level: -20 dBu
Output Impedance: 1 kOhm | | Recommended Load Impedance | 10 ohms or greater | | Delay Time | Delay Mode: 1 to 6400 ms (Values may vary according to the mode and connections)
Max Recording Time: 40 sec (in hold mode) | | Power Supply | 9 VDC:
Dry battery, 9 V type (6F22/carbon, 6LR61/alkaline)
Optional AC Adapter (PSA series) | | Battery Life | Carbon: 1.5 hours (approximate)
Alkaline: 6 hours (approximate)
(These figures will vary depending on the actual conditions of use) | | Current Draw | 55 mA @ 9 VDC | | Dimensions | 2.9 x 5.1 x 2.4" / 73 x 129 x 59 mm | | Weight | 1 lb / 440 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.906 x 3.701 x 2.441" |
