User Manual for BOSS DI-1 - Active Direct Box Click to enlarge the picture
Contents of the user manual for the BOSS DI-1 - Active Direct Box
- Product category: Direct Boxes BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Direct Boxes
|
User manual for the BOSS DI-1 - Active Direct Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

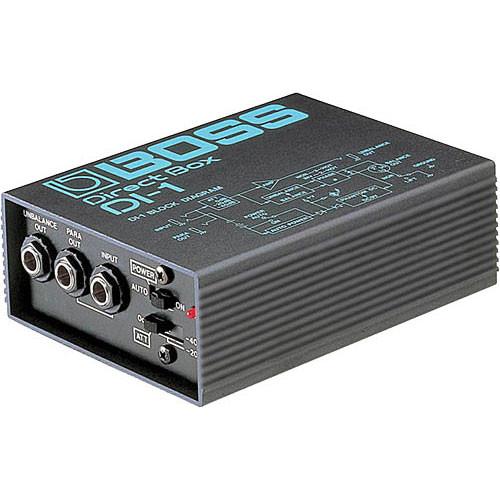

Product description The DI-1 from BOSS/Roland is a high-quality, active direct box for transforming high-impedance, unbalanced instrument outputs to low-impedance, balanced inputs. The unit features ground-lift and phase-reverse switches and input attenuation. Rugged housing makes the DI-1 suitable for live applications as well as studio use. - Active direct box with superior frequency response
- Operates on a 9-volt battery or phantom power from a mixer
- Phase reversal and ground lift switches
- Three input-level switches
UPC: 761294003787 In the Box BOSS DI-1 - Active Direct Box One (1) Year Parts, Ninety (90) Days Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS DI-1 - Active Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS DI-1 Specs | Type | Active | | Input Connections | 1 x 1/4" TRS phone | | Output Connectors | 1 x XLR
2 x 1/4" TS phone | | Input Level | +45 dBu @ 1kHz, 390Vp-p | | Output Level | +8dBu - balanced 600Ω load, unbalanced: 50kΩ | | Controls | Ground lift
Phase reverse
Three position attenuation switch | | Frequency Response | 20Hz to 40kHz, +0.5/-1.0dB | | Noise | Not specified by manufacturer | | Power | 9V battery or +48VDC phantom power | | Dimensions (WxDxH) | 3-13/16 x 4-15/16 x 1-13/16" (97 x 125 x 46 mm) | | Weight | 1.06 lbs (0.5 kg) | | Specialties | -20/0/+20dBu selectable input level | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 2.5" |
