BOSS DR-01S Rhythm Partner Organic Groove

Search your instruction manual in PDF to download

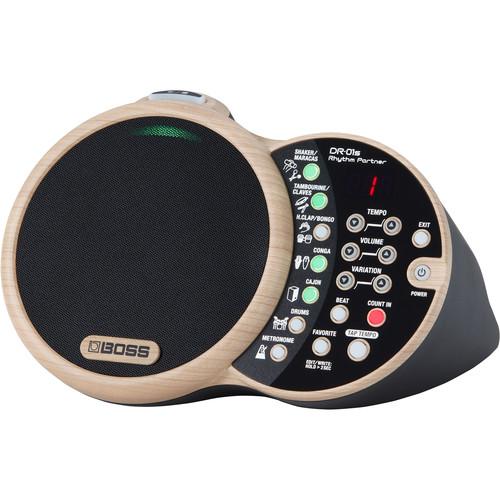

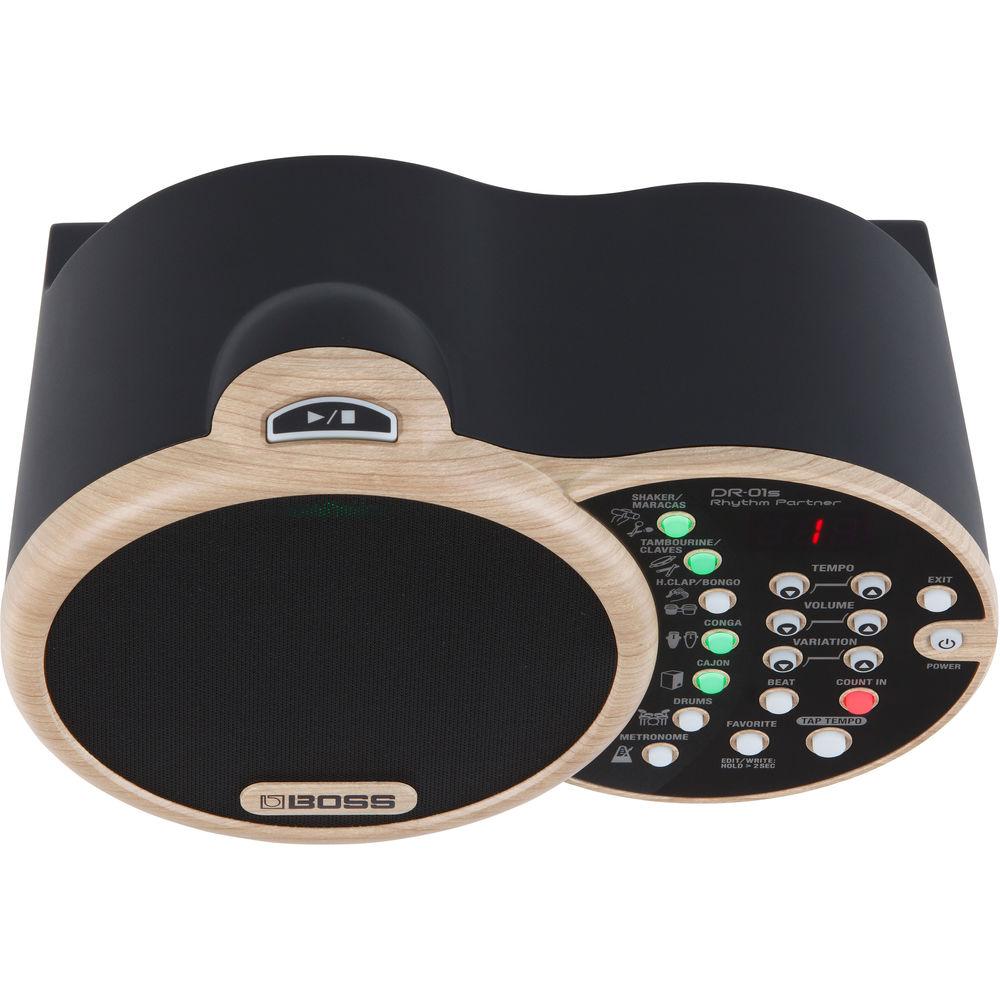

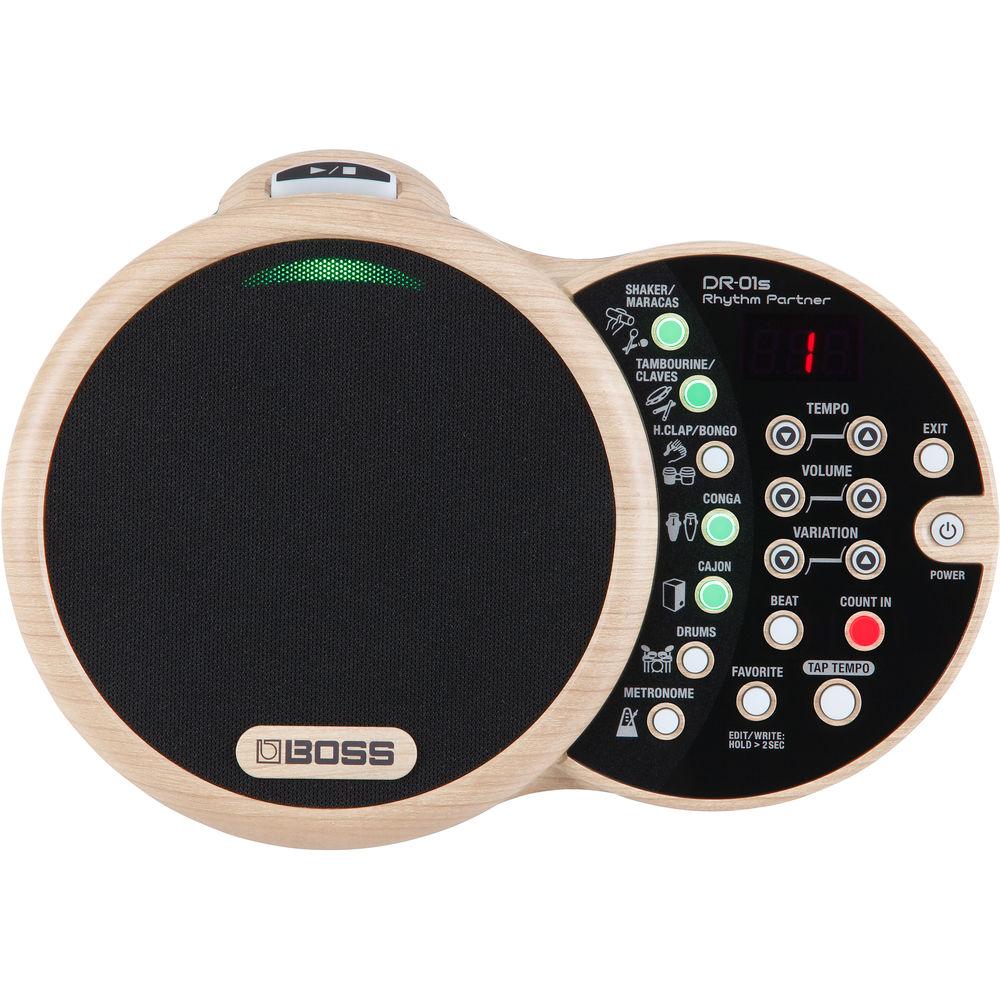

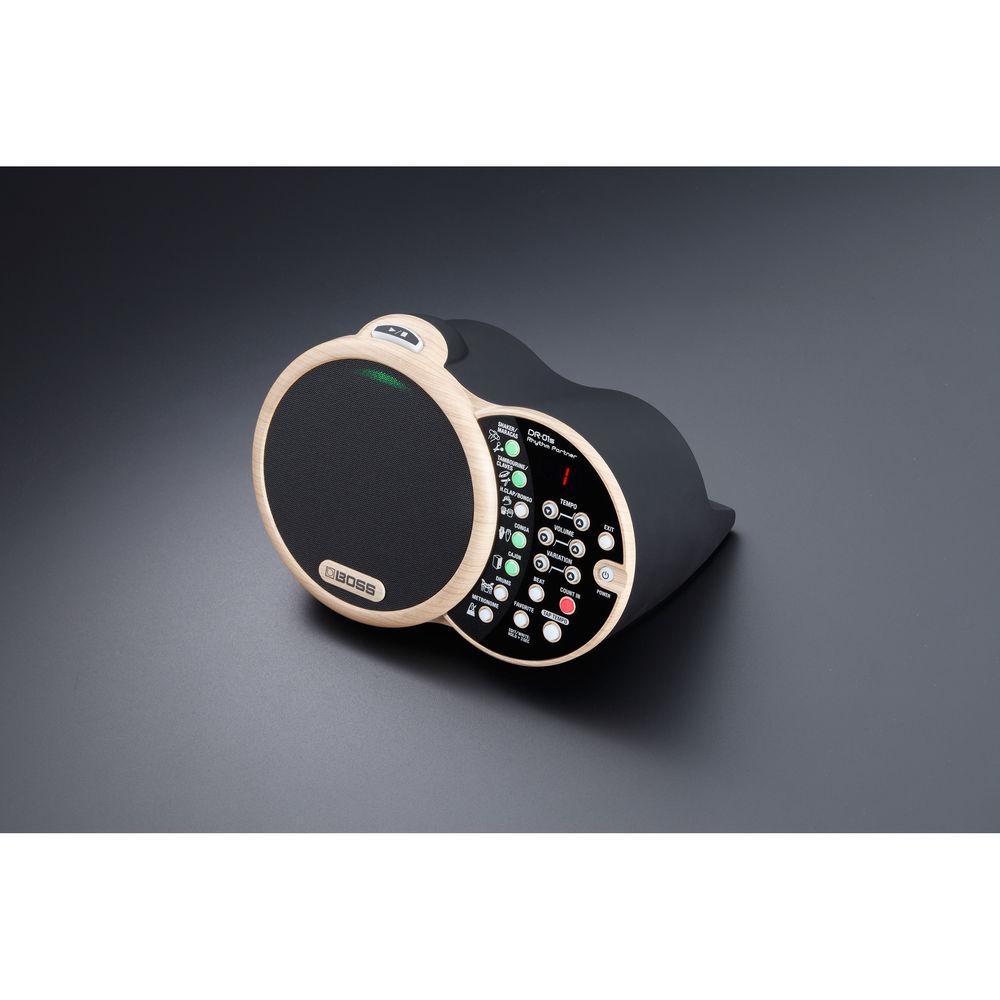

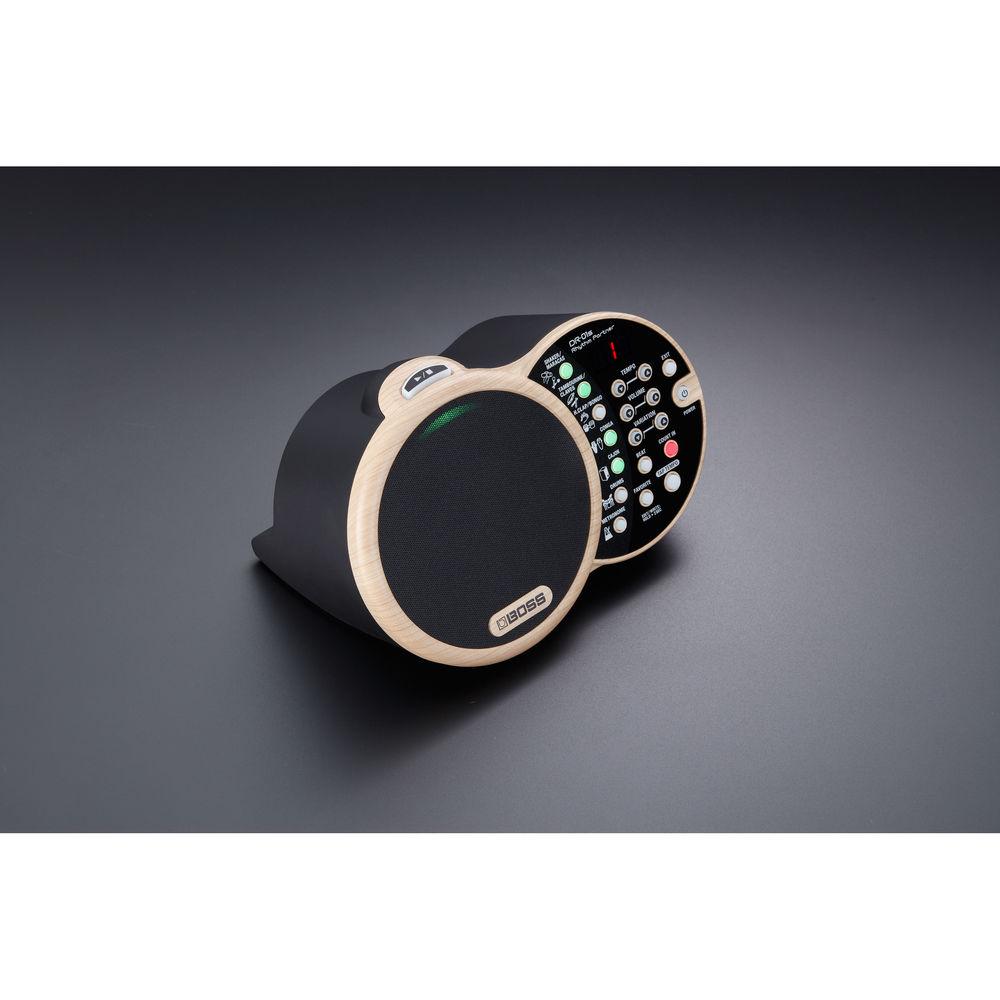

User Manual for BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker

Click to enlarge the picture
BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker Contents of the user manual for the BOSS DR-01S Rhythm Partner Organic Groove
  • Product category: Electronic Drums BOSS
  • Brand: BOSS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BOSS Electronic Drums

BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker
User manual for the BOSS DR-01S Rhythm Partner Organic Groove contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BOSS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!



Product description

Designed for acoustic musicians on the go or just jamming out at home, the DR-01S Rhythm Partner from BOSS is an electronic percussion engine which provides organic-sounding, simple grooves in a variety of rhythms, styles, and instrument combinations. Use the DR-01S to bolster your performance as you busk in the park, or simply replace your staid, rigid metronome with a pattern sporting a little more groove and bounce. In either scenario, an on-board speaker plays back rhythmic samples in 24-bit digital conversion to ensure high sound quality.A simple-to-use panel allows you to select beats and genre variations, giving you the ability to layer up to seven different instruments to play your own custom beat. Prefer the pattern you’ve programmed? Store it in one of 50 favorite slots to recall at a later date. Volume, time-signature, and tempo are also easily adjustable. Instruments include shakers, tambourines, cajon, bells, full drum kits, and more. Each instrument category houses grooves composed by real-world percussionists for a natural, organic backdrop during your performance.You’ll also note the connective possibilities, which allow for routing sound from the DR-01S to external amplifiers, or playing audio from your smartphone or compatible device through the auxiliary input jack. Should you want to control the unit with separately available footswitches, a dedicated 1/4" TRS jack makes this possible. The Rhythm Partner can be powered for up to 10 hours by means of six AA batteries, or you can make use of the included AC adapter.
    Key Features at a Glance
    • Easy-to-use rhythm box designed for acoustic musicians
    • Loaded with simple grooves to support or enhance unplugged music styles
    • Convenient all-in-one design with integrated sound system

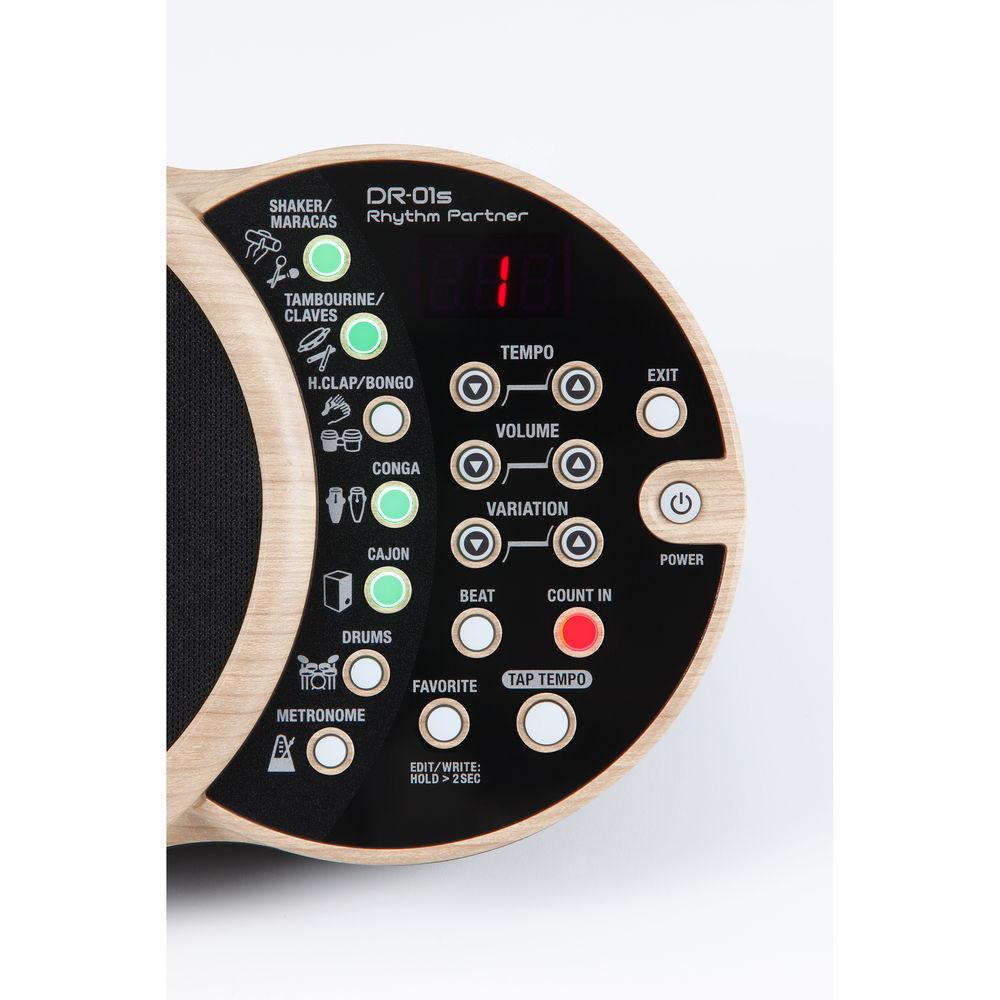

    • User-friendly interface for selecting instrument types and grooves, adjusting volume and tempo, and more
    • 7 simultaneous instrument categories including tambourines, shakers, congas, full drum set, sound effects, standard metronome, and many other sounds
    • Dedicated patterns in each instrument category, with the ability to layer patterns from all categories together in real time
    • Save 50 favorite rhythm combinations for quick recall
    • Control various functions and trigger sounds hands-free with footswitches, available separately
    • Line-output jack for connecting to an acoustic-guitar amp or a larger sound system
    • Auxiliary input enables use as a speaker for a smartphone or other audio players
    • Powered by six AA-size batteries or the included AC adapter
UPC: 761294511565 In the Box BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker
  • AC Adapter
  • Limited 1-Year Warranty on Parts
  • Limited 90-Day Warranty on Labor
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the BOSS DR-01S Rhythm Partner Organic Groove Machine and Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BOSS DR-01S Specs

    Power Output 7 W
    Speaker 4" / 10 cm
    Display 7 segments, 3 characters (LED)
    DA Conversion 24-bit
    Nominal Level Auxiliary Input: -20 dBu
    Line Output: -10 dBu
    Impedance Auxiliary-Input Impedance: 22 kOhms
    Line-Output Impedance: 1 kOhm
    Recommended Load Impedance: 10 kOhms or greater

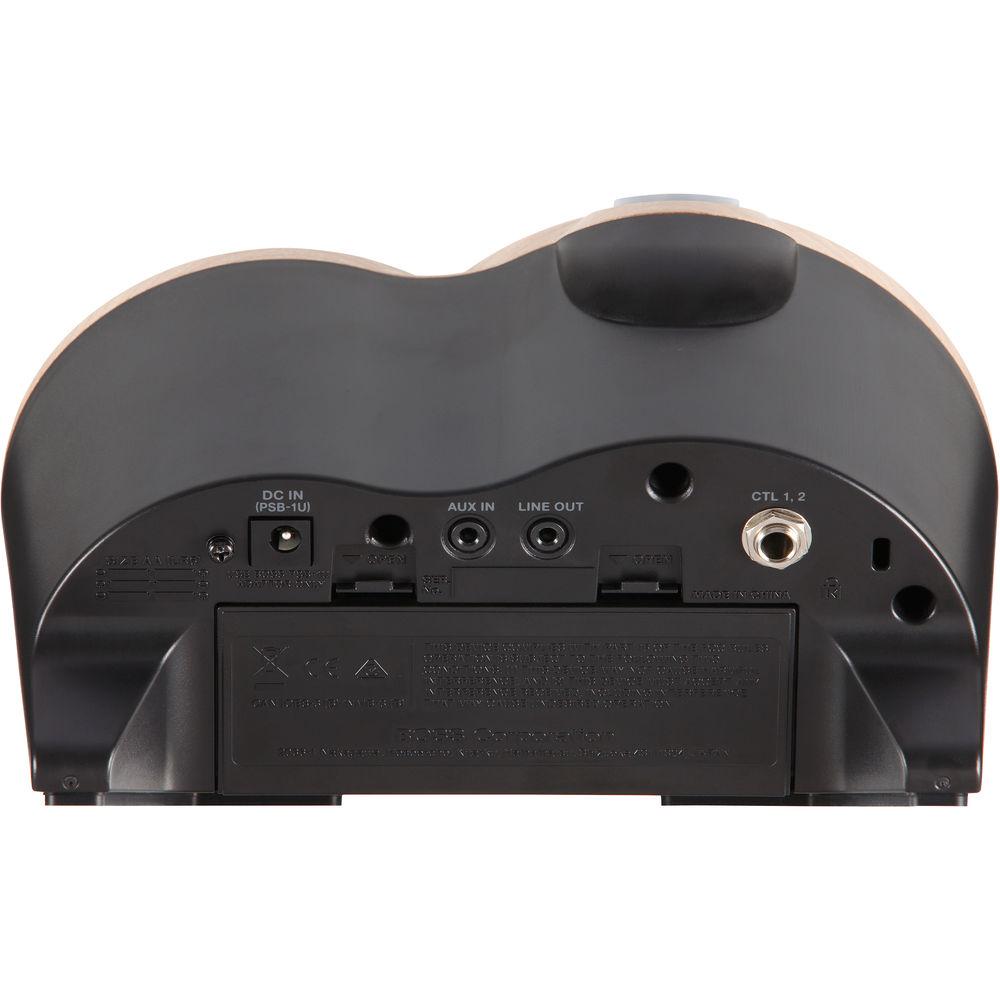

    I/O 1 x 3.5 mm Aux input, stereo
    1 x 3.5 mm Line output, stereo
    CTL 1, 2 Jack: 1/4" TRS input, phone type
    Maximum Polyphony 24 voices
    Tempo Quarter note = 40 to 300 bpm
    Time Signatures 3/4, 4/4, 6/8
    Tones Shaker, maracas, bell, whistle, tambourine, pandeiro, claves, cowbell, triangle, guiro, bongo, hand clap, paila, conga, cajon, drums, metronome, sound effects
    Favorite Number: 50x
    Power Supply 6 x AA batteries (alkaline, available separately), AC adapter (included)
    Current Draw 330 mA
    Expected Battery Life Approximately 10 hours under continuous use
    Dimensions (W x D x H) 8.3 x 5.6 x 5.0" / 21.0 x 14.3 x 12.7 cm
    Weight 2 lb / 900.0 g
    Package Weight 3.95 lb
    Box Dimensions (LxWxH) 12.2 x 7.9 x 6.7"
