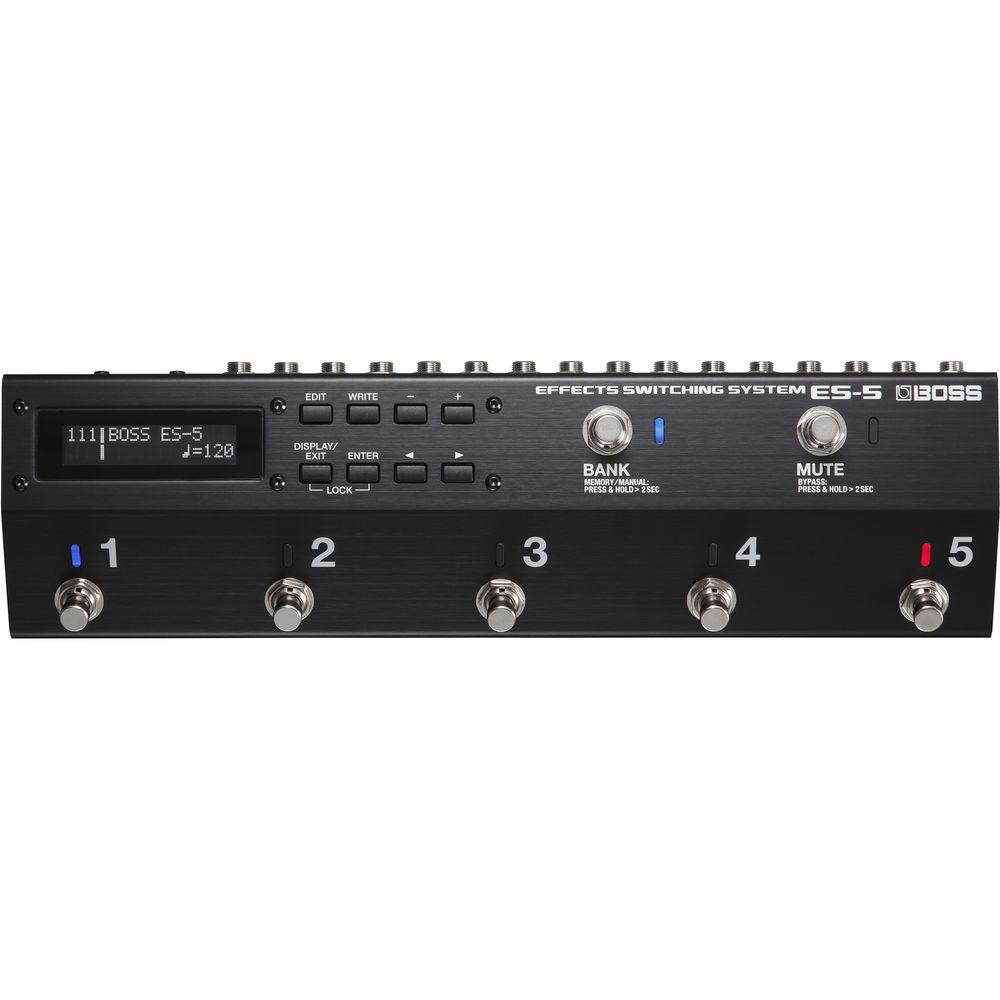

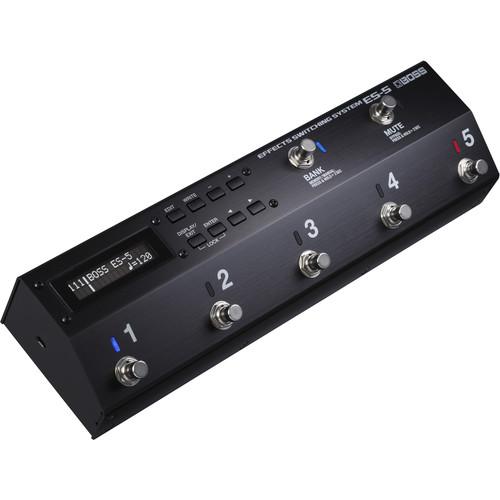

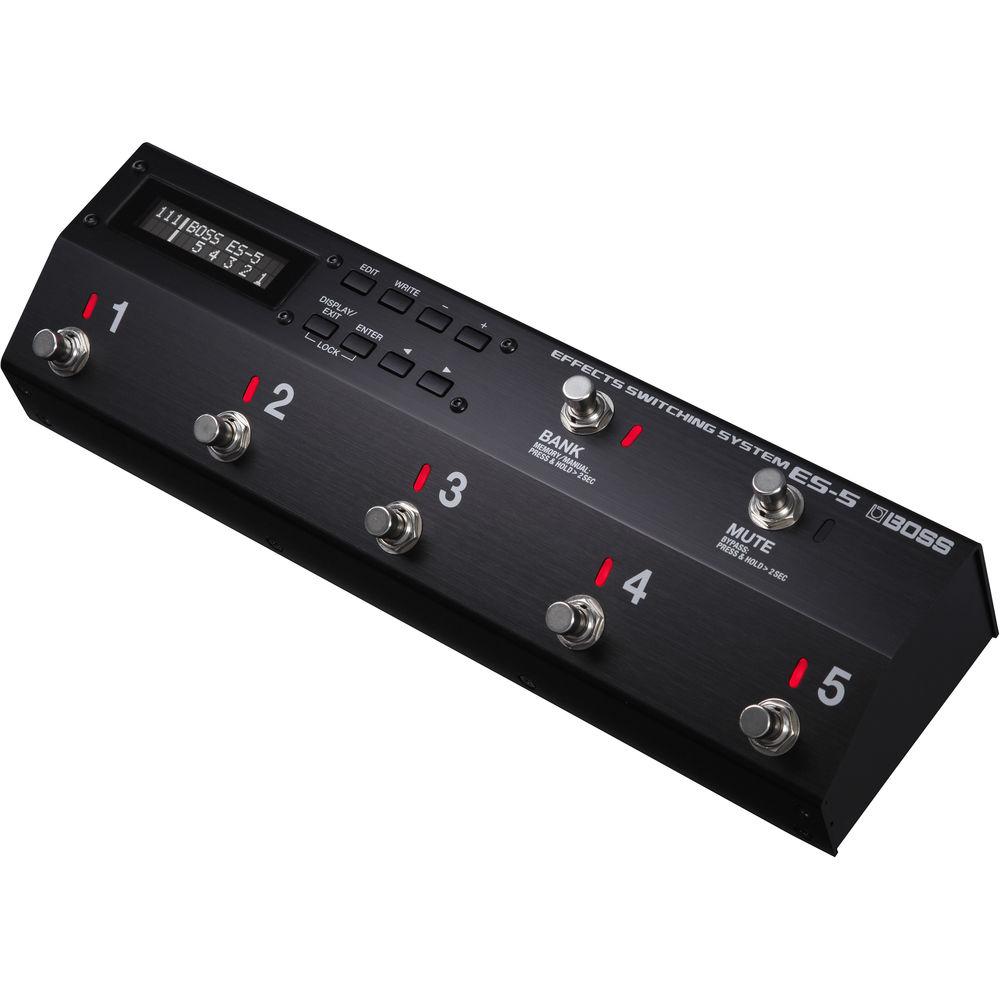

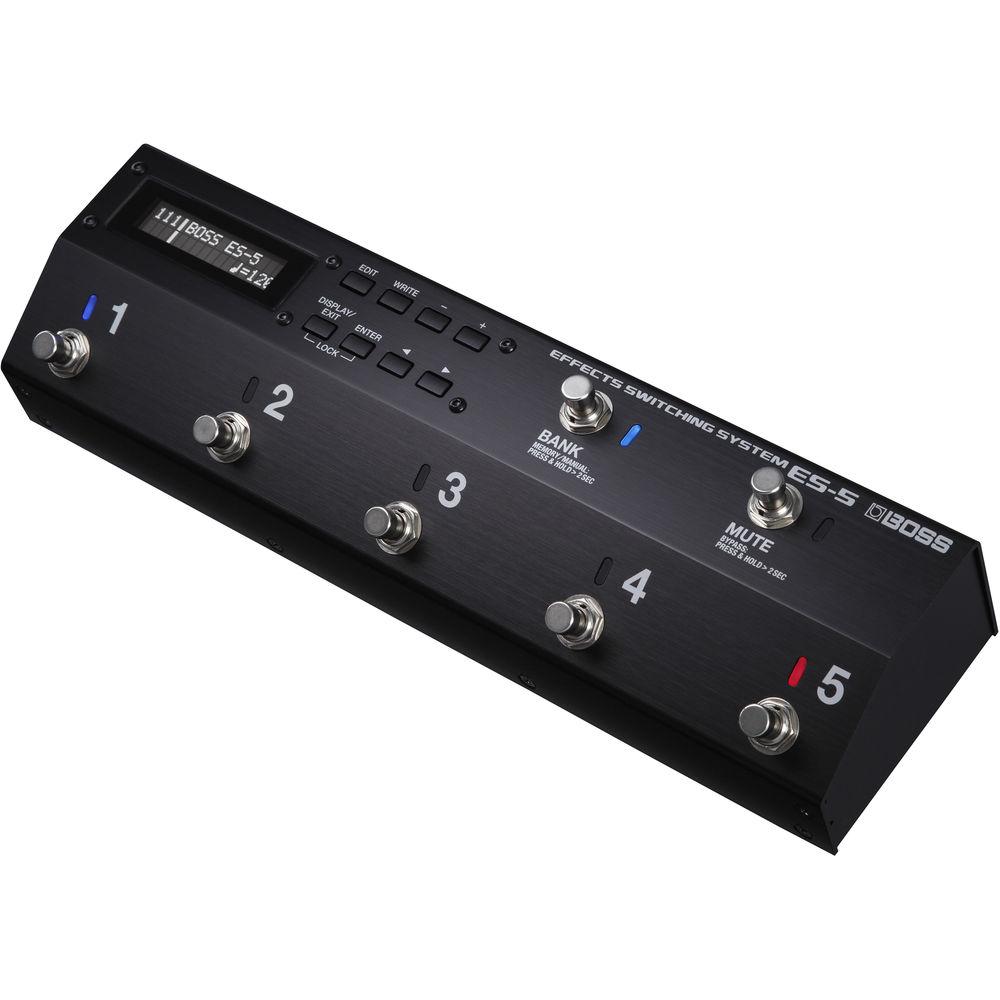

User Manual for BOSS ES-5 Guitar Effects Switching System Click to enlarge the picture
Contents of the user manual for the BOSS ES-5 Guitar Effects Switching System
- Product category: Effects Pedal Accessories BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedal Accessories
 |
User manual for the BOSS ES-5 Guitar Effects Switching System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

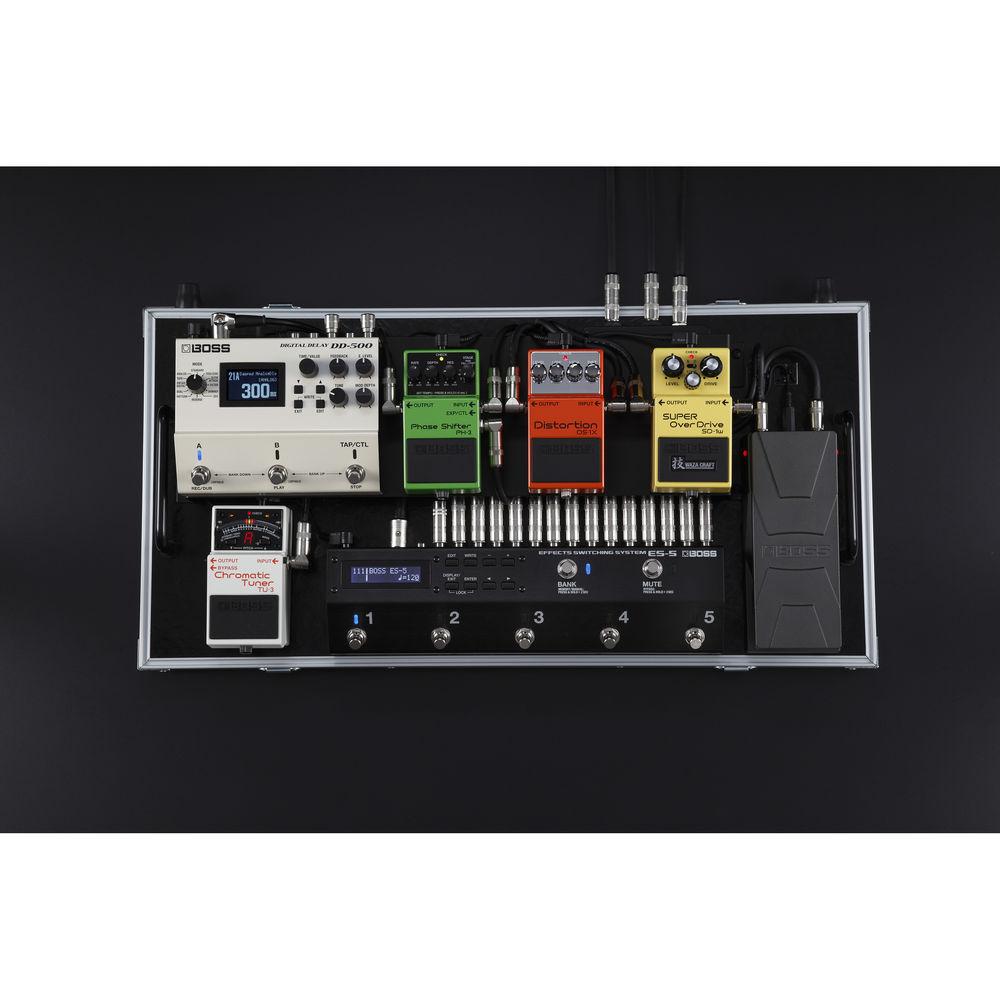

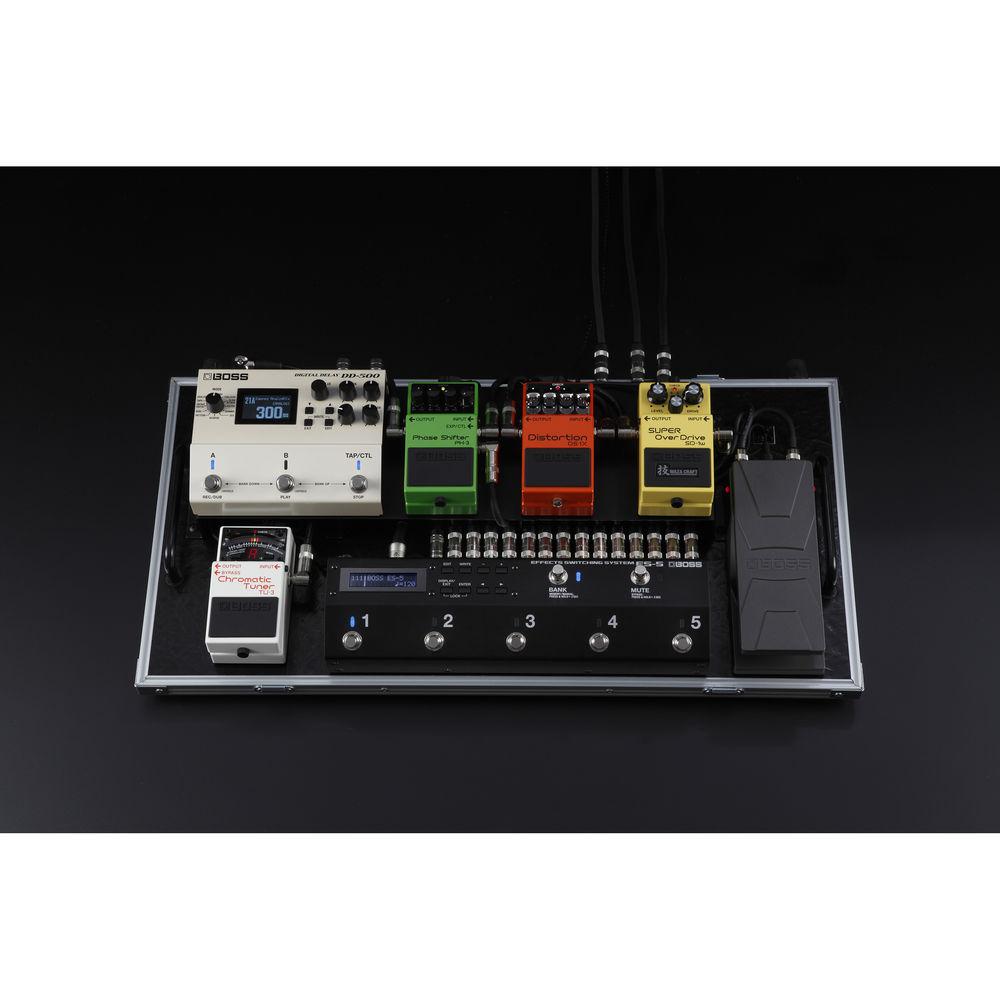

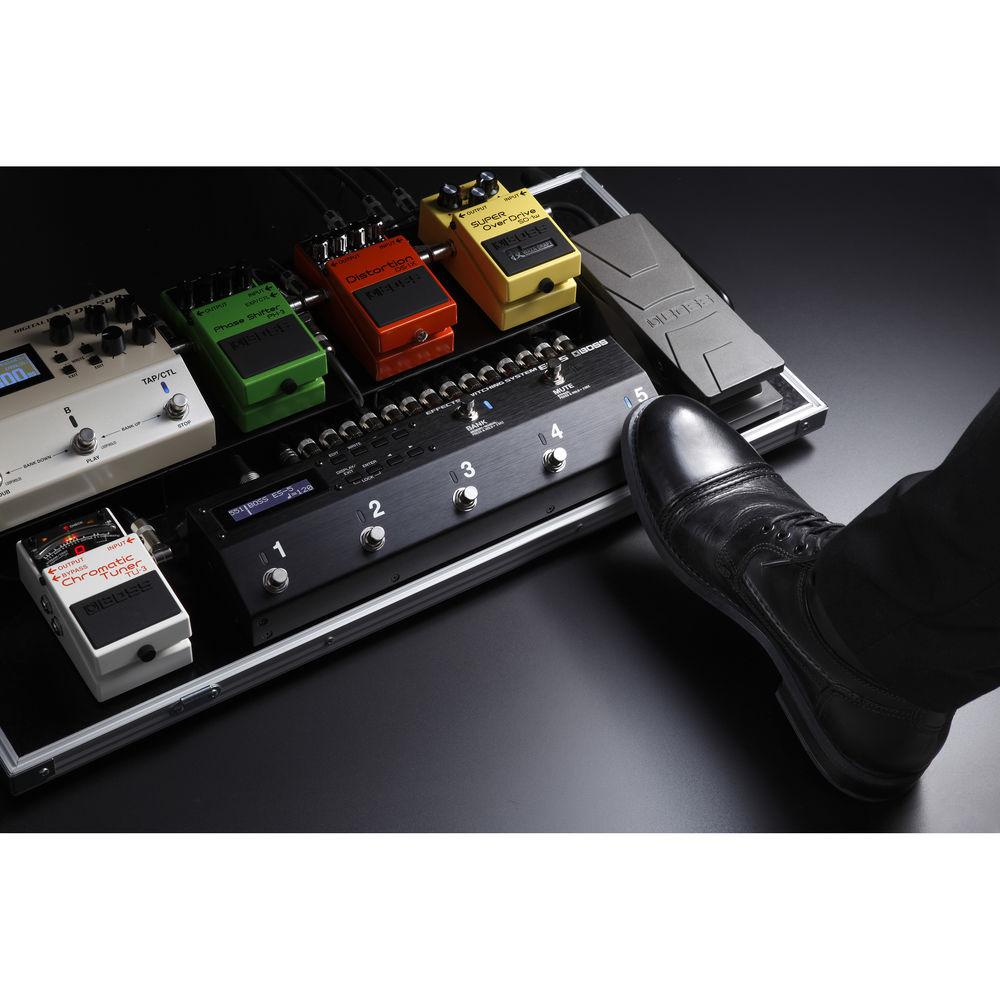

Product description Featuring five independent loops, the BOSS ES-5 is an advanced effects switching system that can fit on smaller pedalboards. Each of the five loops can be switched on or off with the silent vacuum-style footswitches, and/or reordered for exacting tone-crafting with your existing pedals. While the ES-5 is digitally controlled in order to facilitate advanced switching and bank storage, the signal relays are all analog to preserve your tone. For true-bypass switching, the buffers offered on the loops can be turned off for each individual loop, perfect for vintage effects that work better with high-impedance signals. All of the loop settings can be stored in the ES-5's 200 banks for instant recall. The ES-5 also offers advanced control options using the four controller outputs, expression pedal control inputs, and MIDI in/out/thru. This connectivity opens up real-time control over your effects through the ES-5. Like the loop settings, control parameters can also be appended to banks for instant recall. A mute switch cuts the signal to the output and routes it instead to the tuning output for silent tuning between songs. - Features
-
- Programmable switching system with five loops
- Analog circuit design to protect your pure tone
- Versatile routing flexibility with the ability to change the routing order and create a parallel effect chain
- External control parameters such as delay time can be saved for each patch
- Buffers can be turned on/off individually for the input and output, and stored in each patch; level variability for output buffer
- Highly reliable footswitches with switch-noise mute capability
- Backlit LCD display shows detailed information at a glance
- 200 patch memories provide unmatched capability for actively gigging musicians
- Completely customizable pedal function assignments
- Pro-level practicality and creativity in a compact body
UPC: 761294508640 In the Box BOSS ES-5 Guitar Effects Switching System AC Adapter 4 x Rubber Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS ES-5 Guitar Effects Switching System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

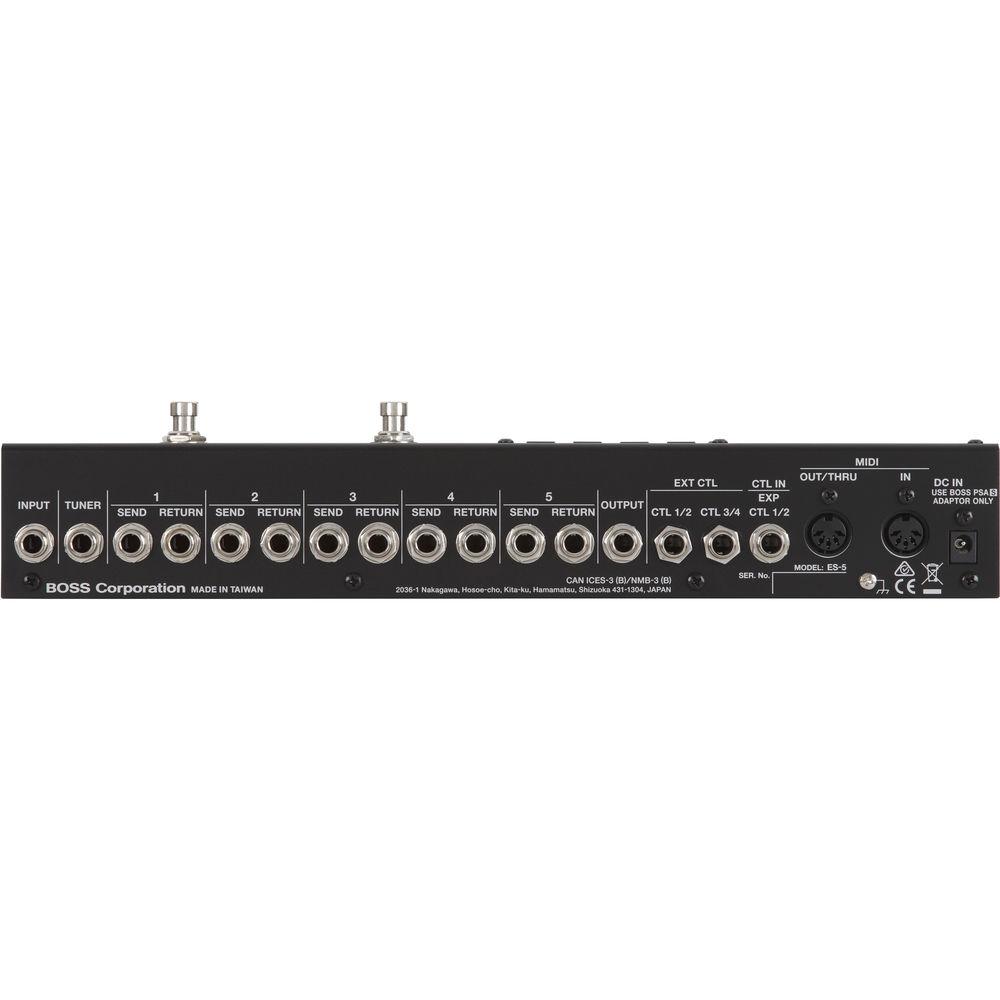

Technical parametersBOSS ES-5 Specs | Inputs | 6 x 1/4" instrument TS (1x input, 5x loop returns)
Nominal Input Level: -10 dBu
Maximum Input Level: +13 dBu
Input Impedance: 1 MOhm (with buffer engaged)
1 x 1/4" EXP Control TRS
1 x MIDI | | Outputs | 7 x 1/4" instrument TS (1x output, 1x tuner, 5x loop sends)
Nominal Output Level: -10 dBu
Maximum Output Level: +13 dBu
Output Impedance (output/tuner): 1 kOhm (with mixer on)
2 x 1/4" Control TRS
1 x MIDI (out/thru) | | Recommended Load Impedance | 10 kOhms or greater | | Loops | 5 x mono TS send/return loops | | Patch Memory | 200 patches | | Power Supply | PSA-Series | | Current Draw | 125 mA | | Dimensions | 13.3 x 3.8 x 2.7" / 337 x 97 x 68 mm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 17.0 x 8.0 x 5.6" |
