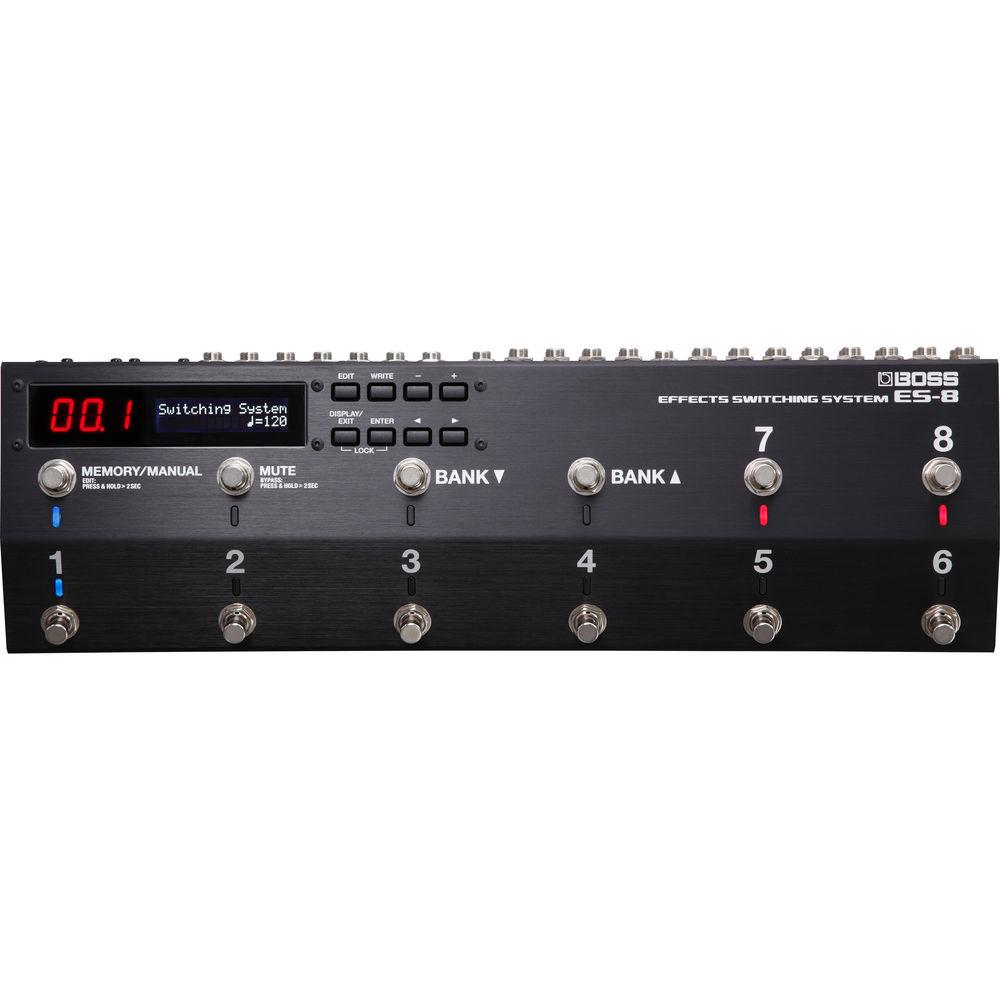

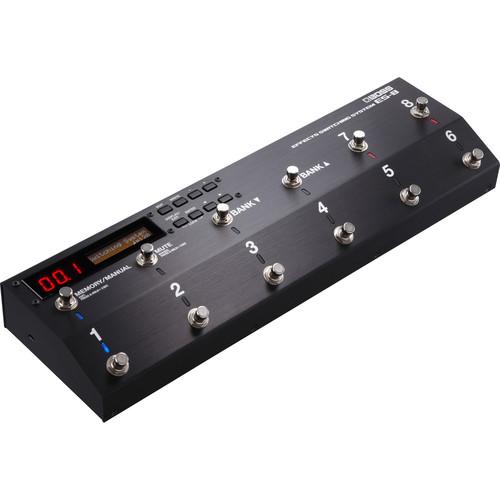

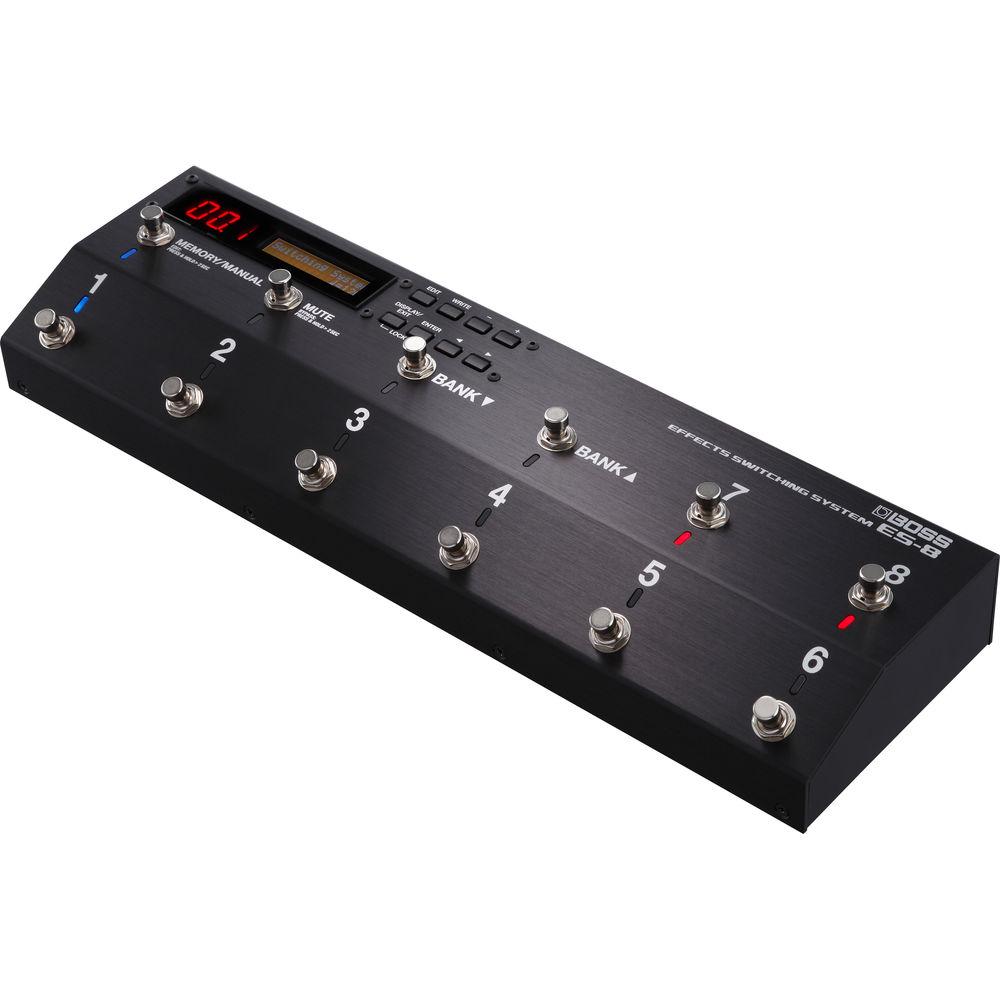

User Manual for BOSS ES-8 Guitar Effects Switching System Click to enlarge the picture
Contents of the user manual for the BOSS ES-8 Guitar Effects Switching System
- Product category: Effects Pedal Accessories BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedal Accessories
 |
User manual for the BOSS ES-8 Guitar Effects Switching System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description Designed for the real-world needs of professional performing musicians, the ES-8 from BOSS is a highly programmable guitar effects switching system offering an unprecedented amount of routing flexibility. The ES-8 features eight effects loops with the ability to change the routing order and create parallel effects chains. The loops are controlled by an analog switch array that provides fast, flexible, and transparent switching. When a loop is not active, your guitar completely bypasses it for clear and pure signal transfer. Separate input and output buffers are available, and these can be switched on/off individually as needed.
The ES-8 features inputs for two guitars and outputs for two amplifiers, as well as send and return for six mono effects and 2 stereo effects. Additionally, there are several external control inputs for foot controls and expression pedals, as well as full MIDI compatibility. The bright display offers an easy-to-read layout well suited for dark stages. The 800 presets offer ample room for storing patches for the ultimate flexibility while touring and performing. The ES-8 ships with an AC power adapter, two pedal board mounting screws, and five rubber feet for standalone use. -
- Programmable switching system with eight loops (plus an additional loop)
- Analog circuit design to protect your pure tone
- Unprecedented routing flexibility with the ability to change the routing order and create parallel effect chains
- Onboard memory for storing external control parameters such as delay time for each patch
- Buffers can be turned on/off individually each for input and output and stored in each patch; level variability for output buffer
- Highly-reliable footswitches with switch-noise mute capability
- Large, easily viewable display with bright, seven-segment LED readout and 16-letter capacity over two lines
- LED indicators change color depending on mode and operation, allowing for easy identification of various modes while performing on stage
- 800 patch memories provide unmatched capability for touring musicians
- Completely customizable pedal function assignments
- Recessed panel buttons (with lock function) to prevent accidental operation and breakage
- Flat bottom for easy pedal board installation (rubber feet also included for standalone use)
UPC: 761294507193 In the Box BOSS ES-8 Guitar Effects Switching System AC Adapter 5 x Rubber Feet 2 x Screw Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS ES-8 Guitar Effects Switching System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

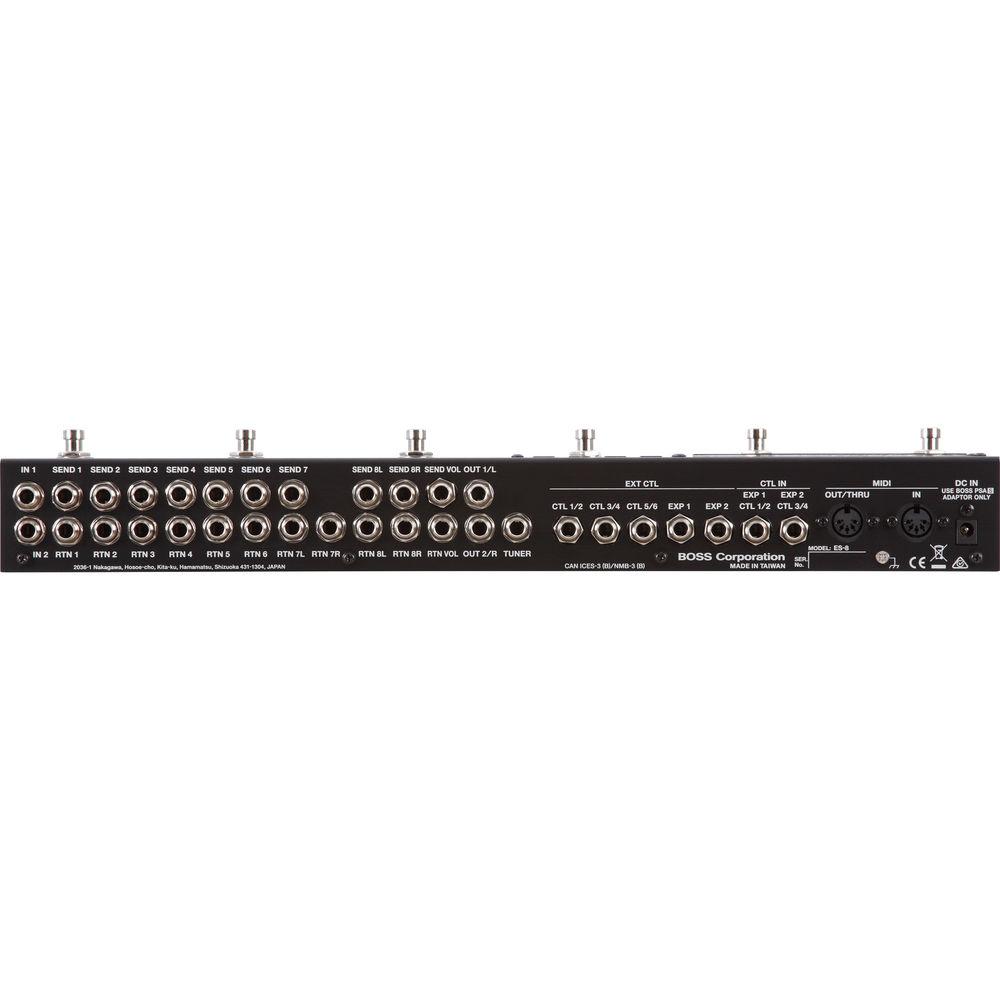

Technical parametersBOSS ES-8 Specs | Connections | In 1&2 Jacks: 1/4" / 6.35 mm
Send 1--7, Send 8L, Send 8R, Send Volume Jacks: 1/4" / 6.35 mm
Return 1--6, Return 7L, Return 7R, Return 8L, Return 8R, Return Volume Jacks: 1/4" / 6.35 mm
Out 1/L, Out 2/R Jacks: 1/4" / 6.35 mm
Tuner Jack: 1/4" / 6.35 mm
External Control - CTL 1/2, CTL 3/4, CTL 5/6 Jacks: 1/4" / 6.35 mm TRS
External Control - EXP 1, EXP 2 Jacks: 1/4" TRS
Control In - EXP 1 CTL 1/2, EXP 2 CTL 3/4 Jacks: 1/4: / 6.35 mm TRS
MIDI Connectors: In, Out/Thru
DC IN jack | | Loops | 8 (Effect loop)
1 (Volume loop) | | Patch Memory | 800 | | Pedals | 8x Number switch
2x Bank switch
Memory/Manual switch
Mute switch | | Nominal Input Level | -10 dBu | | Input Impedance | Input 1 & 2: 1 Mohms | | Nominal Output Level | -10 dBu | | Output Impedance | Out 1/L, Out 2/R, Tuner: 1 kOhms or greater | | Recommended Load Impedance | 10 kOhms or greater | | Display | 7 segments, 3 characters (LED) | | Power Supply | AC adapter | | Current Draw | 400 mA | | Dimensions (W x D x H) | 17.3 x 5.4 x 2.6" / 439.0 x 137.0 x 65.0 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 21.3 x 9.2 x 6.6" |
