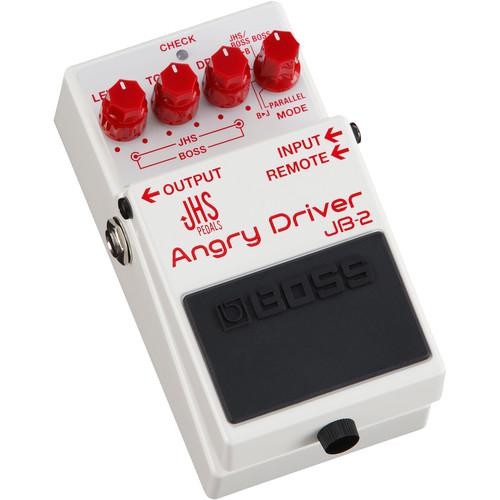

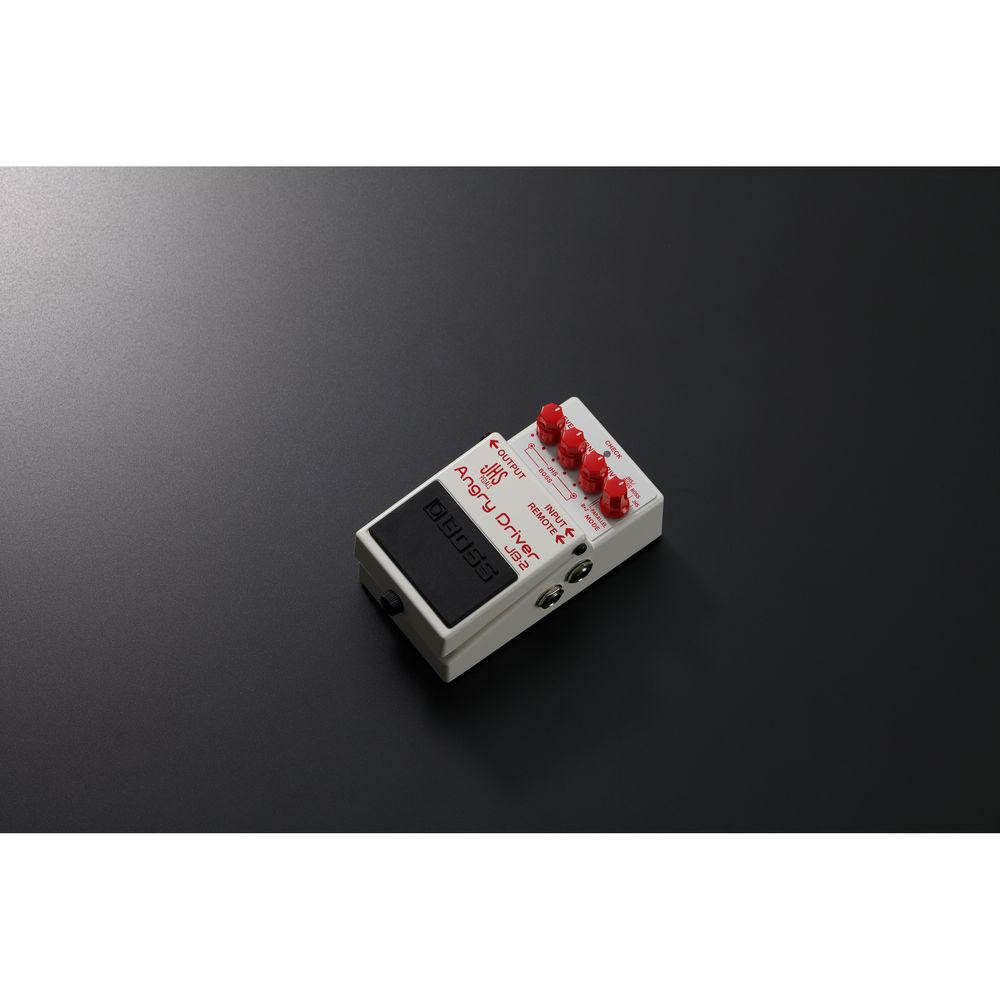

User Manual for BOSS JHS JB-2 Angry Driver Over Drive Pedal for Electric Guitar Click to enlarge the picture
Contents of the user manual for the BOSS JHS JB-2 Angry Driver Over
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS JHS JB-2 Angry Driver Over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

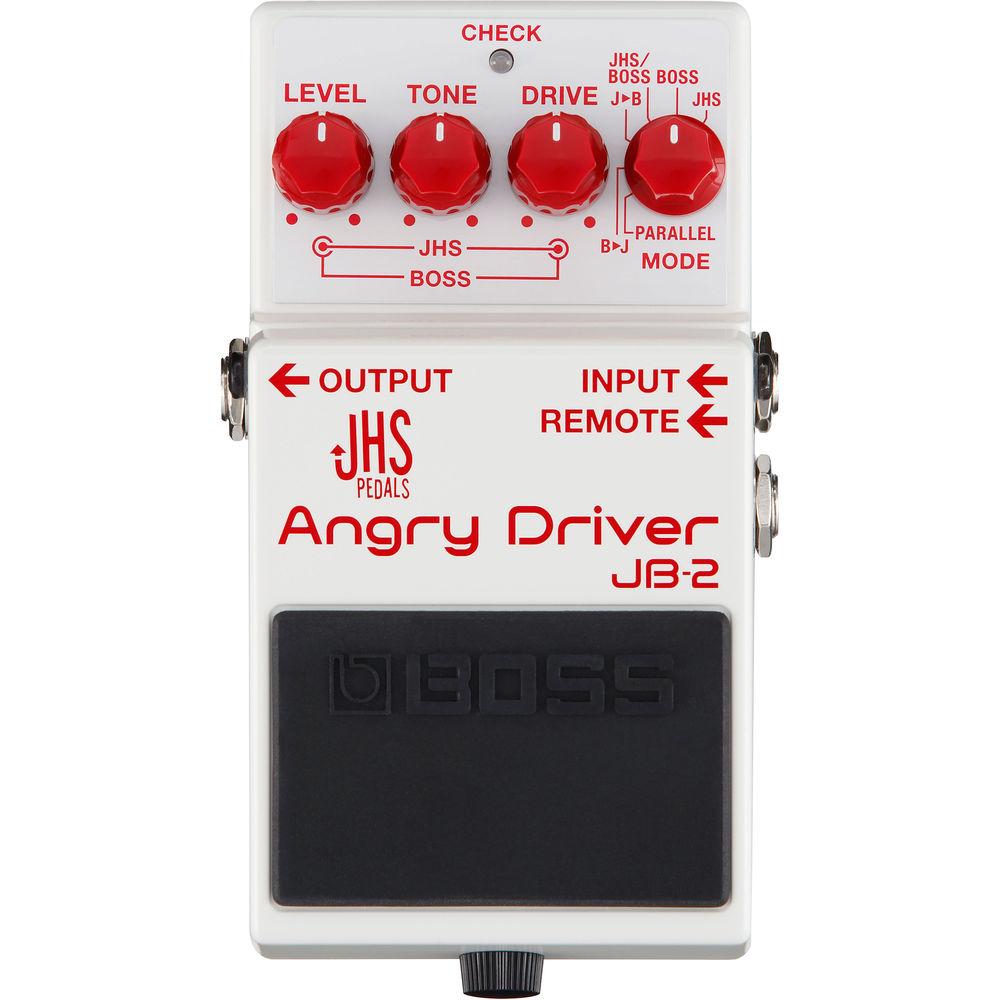

Product description A partnership between two well-known pedal manufacturers, the BOSS JHS JB-2 Angry Driver packs the respective tones and characters of the BOSS BD-2 Blues Driver and the JHS Angry Charlie into one pedal. Usable in parallel, serial, or individually selectable modes, guitarists can now access—and combine—the sonic signatures of the Blues Driver and the aggressive, rocky tones of the Angry Charlie. The pedal has been issued in the recognizable BOSS compact-housing design.Three dual-concentric knobs are provided, giving you independent control over Drive, Tone, and Level for each of the pedal’s individual distortions. Simply dial in the settings you’d prefer for the Blues Driver section with the outside knobs; the inside controls, on the other hand, are for the JHS circuit.To the left of these controls, you find a Mode knob which selects the order of overdrive. Here you can choose individual circuits, removing the other stompbox signature from the path entirely. Conversely, you can route the order of the overdrive types in two different series modes, or choose to run the pedal in parallel. You'll also find a setting that allows you to switch between individual overdrive types with the footswitch.1/4" jacks are offered for your input and your output, while a remote-switch jack gives you the ability to control pedal modes from separately-available footswitches or effects-switching systems. An LED indicator displays different colors for various modes, showing blue for BOSS, red for JHS, and purple for any combination of the two. The pedal both includes and runs on a 9V battery, though you can also power the JB-2 from a purchasable AC adapter. UPC: 761294512333 In the Box BOSS JHS JB-2 Angry Driver Over Drive Pedal for Electric Guitar 9V Battery Limited 5-Year Warranty on Parts Limited 2-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS JHS JB-2 Angry Driver Over Drive Pedal for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS JB-2 Specs | Nominal Input Level | -20 dBu | | Input Impedance | 1 MOhm | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Controls | MODE knob
DRIVE knob
TONE knob
LEVEL knob
Pedal switch | | Indicators | CHECK indicator (Serves also as battery check indicator) | | Connectors | 1 x 1/4" INPUT jack
1 x 1/4" OUTPUT jack
1 x 1/4" REMOTE jack
1 x AC adapter jack (9 VDC) | | Power Supply | 9 V battery (alkaline or carbon-zinc), AC adapter (available separately) | | Current Draw | 50 mA | | Expected Battery Life | Alkaline, continuous use: approximately 9.5 hours
Carbon-zinc, continuous use: approximately 2.5 hours | | Dimensions (W x D x H) | 2.9 x 5.1 x 2.3" / 7.3 x 12.9 x 5.9 cm | | Weight | 15.5 oz / 440.0 g (including battery) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 5.9 x 3.7 x 2.8" |
