User Manual for BOSS Katana-100-212 - 100W 2x12 Combo Amplifier for Electric Guitar Click to enlarge the picture
Contents of the user manual for the BOSS Katana-100-212 - 100W 2x12 Combo
- Product category: Guitar Amplifiers BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Guitar Amplifiers
 |
User manual for the BOSS Katana-100-212 - 100W 2x12 Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

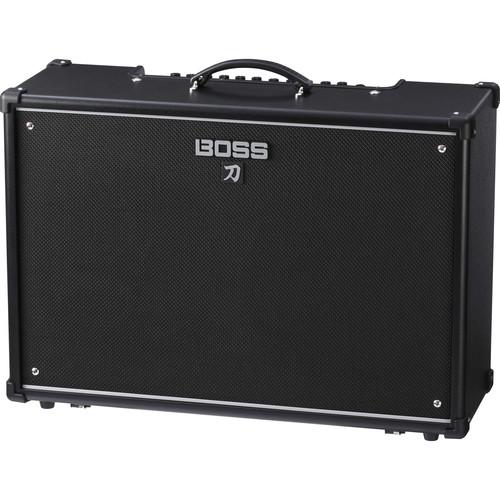

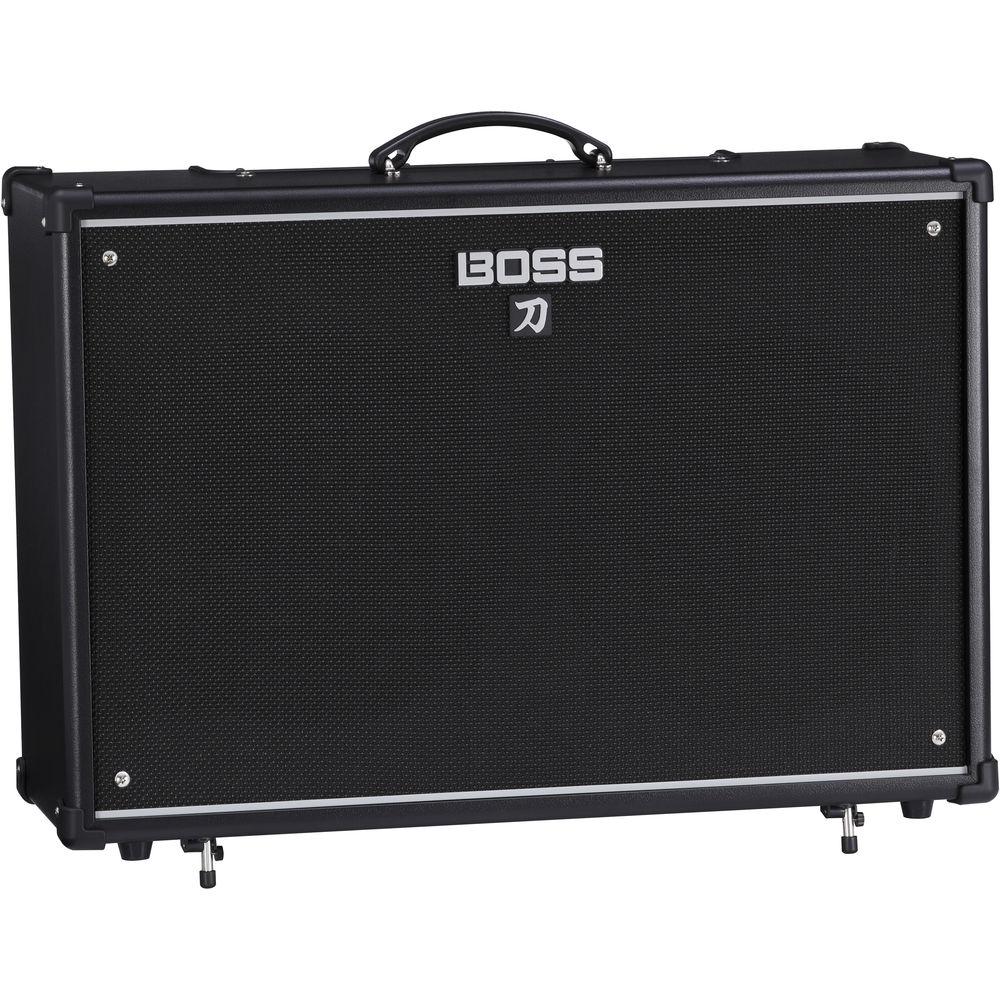

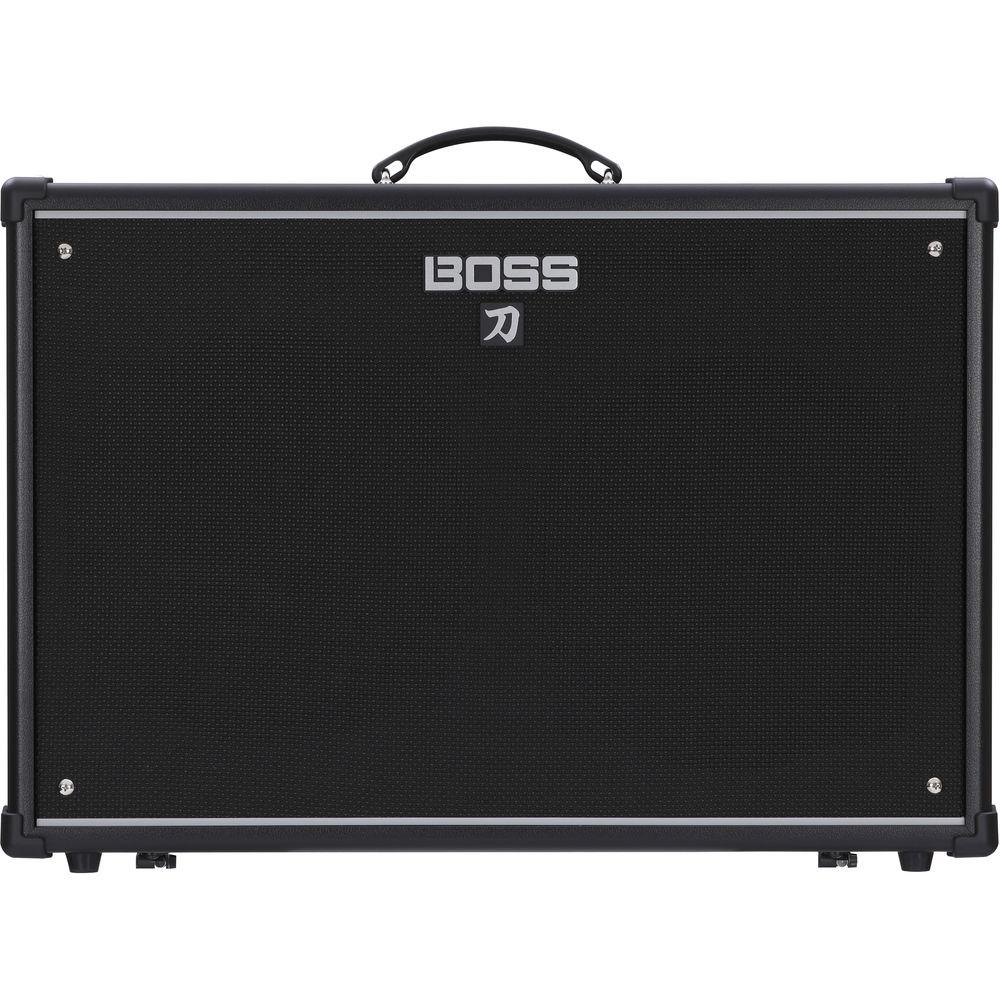

Product description Providing gig-ready rock tones while minimizing your reliance on a pedalboard, the Katana-100-212 Combo Amplifier from BOSS provides 100W of power and features two custom-designed 12" speakers, making it quite suitable for large venues. The amp gives you access to 61 BOSS effects via BOSS's Tone Central. Using a USB connection, you can port any 15 effects into the amplifier at any one time, with three separate effects available for simultaneous usage. Once you select among these effects—as well as among five different onboard amp characteristics and EQ/presence controls—you can store your tone into one of four recallable Tone Setting memories. In this manner, you can easily change your tonal array onstage without a complicated tap dance routine.

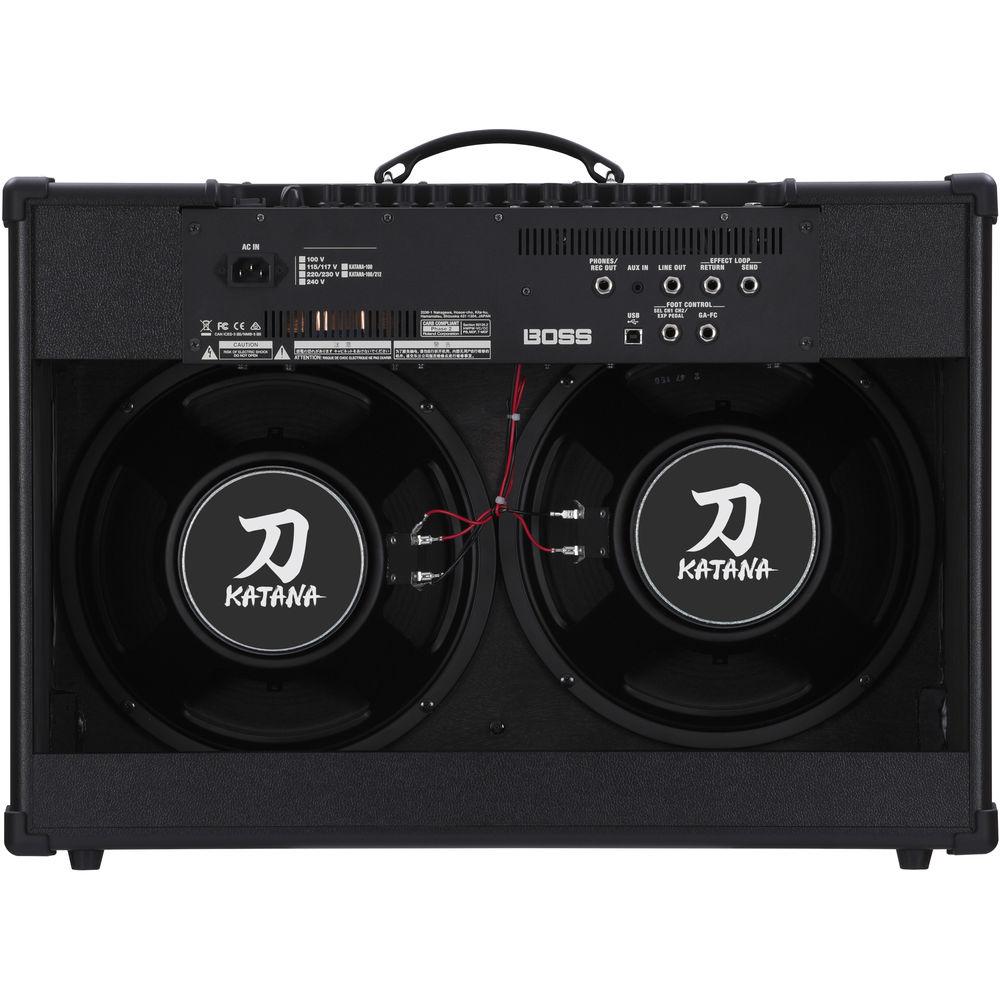

Turn your attention to the rear of the amplifier head and you'll notice quite a few connective possibilities, such as a headphones/recording output that provides the ability to direct your sound to headphones and recording devices with a minimal amount of maneuvering. Additionally, a line out jack allows you to route line-level signal to mixers and PAs. An effects loop affords you the opportunity to use outboard gear, and an auxiliary input jack lets you play audio from compatible players through the amplifier. But wait, there's more! For external control, there are two different footswitch inputs, one for channel selection/expression pedals, and one specifically tailored to the all-encompassing GA-FC foot controller. - Five Distinct Amp Characters
- The Katana offers five amp characters with tones ranging from organic vintage to modern high gain; Clean is natural and transparent, Crunch offers a small amount of grit, Lead has a wide gain range to suit many styles, Brown delivers a refined high-gain tone, and the Acoustic character provides a tonality geared toward acoustic/electric guitars
- Pedalboard Sounds without the Pedalboard

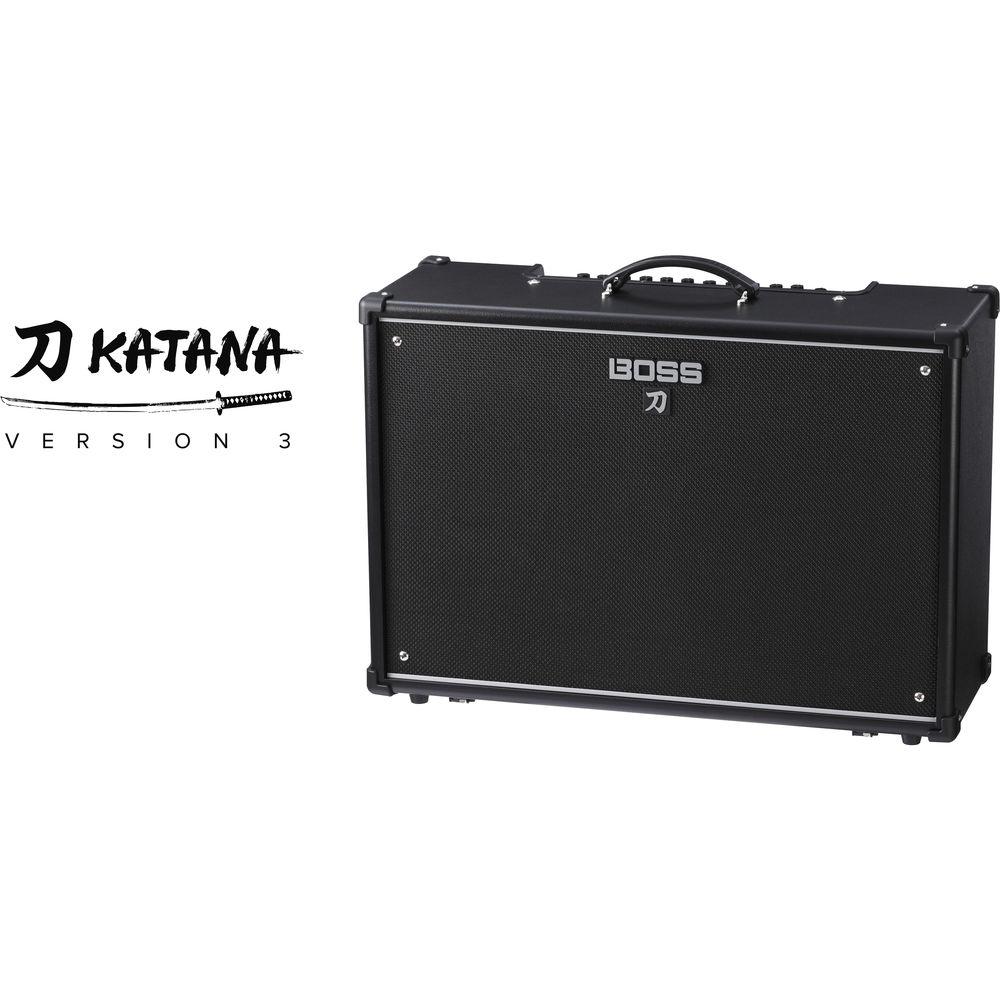

- Via BOSS's Tone Central, you can choose from 61 effects—the Katana Version 3 update brings the Roland DC-30 Analog Chorus-Echo, the BOSS GE-10 Graphic Equalizer, and the 95E pedal wah—to load 15 different modules into the amp at any one time, using three of them simultaneously; eight Tone Settings let you store custom amp and effects setups for instant recall, and you can always jump to the current panel settings at the touch of a button
- Extensive Footswitching Possibilities
- External control of specific parameters is possible with an input for optional footswitches and expression pedals, as well as a dedicated input for the GA-FC foot controller
- Intuitive Operation

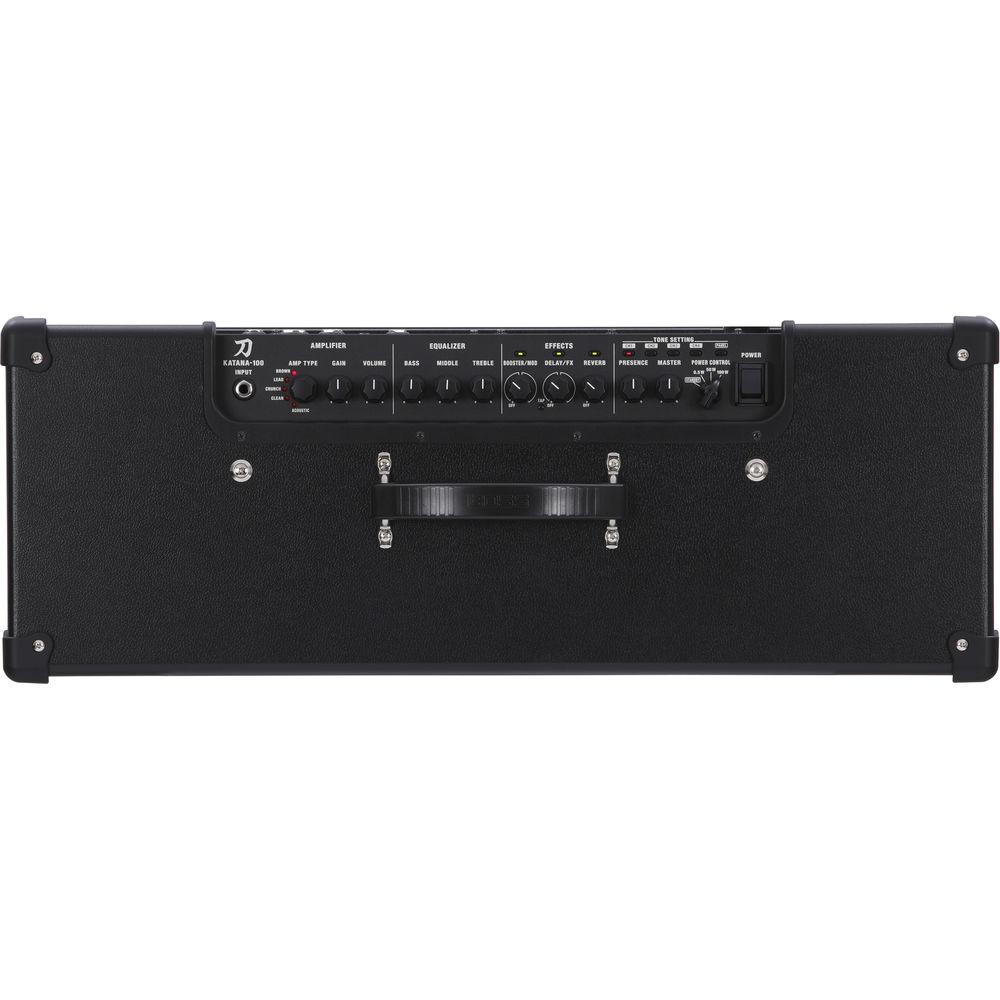

- Dedicated knobs for multiple gain stages, the three-band EQ, and presence control allow you to dial in tones by ear, just as you would with a standard tube amp; essential effects parameters are adjusted with a simple knob twist, and Tone Setting memories can be stored with a brief button hold
- Power Control
- A Power Control selector lets you reduce wattage, allowing you to lower the volume for small stages and home-playing without sacrificing tone
- Connection Options
- You can send a simultaneous direct feed to PAs, mixers, and recording interfaces via the headphone/recording output, while the line out provides the mic'd up tone of the Katana-100-212 in all of its power, fullness, and dynamics; a dedicated effects loop can also be utilized to loop in outboard gear
- Computer Connectivity
- You can send mix-ready, true stereo sound with Katana's effects to your DAW via the USB port, recording directly to your computer without having to take an analog DI
- Tone Central & Tone Studio
- The Katana-100-212 gives you access to Tone Central and Tone Studio; Tone Central provides a plethora of free amp and effect setups created by seasoned professionals and downloadable by you, while Tone Studio gives you a convenient way to organize your Katana presets for different gigs, recordings, and practice sessions
- Notable Features
-
- 100W combo amplifier
- Two custom-designed 12" speakers
- Five distinct amp characters: Clean, Crunch, Lead, Brown (derived from the Waza amp), and Acoustic (for acoustic/electric guitars)
- Choose from 61 customizable effects with BOSS Tone Studio editor software
- Full-time channel and global parametric EQs for refined tone shaping
- Store 15 different effects on board, with three effects available at once
- Dedicated gain, EQ, presence, and effects controls for adjusting sounds quickly
- Assign parameters to the front-panel effects knobs
- Three Cabinet Resonance types adjust the interaction between the amp’s output section and speaker, enabling you to fine-tune the feel and tone of the amp
- Cabinet simulation on the line, USB, and phones/recording outputs enhanced with three Air Feel settings for adding depth and dimension to direct tones
- Reverb section supports delay and delay-plus-reverb in addition to reverb only
- Eight Tone Setting memories for storing and recalling all amp and effect settings
- Expanded send/return routing options for inserting external processing in the effects loop
- Power Control for achieving cranked-up tones at low volumes
- Line Out and USB jacks provide mix-ready tones
- Preset effects available at the BOSS Tone Central website
UPC: 761294509319 In the Box BOSS Katana-100-212 - 100W 2x12 Combo Amplifier for Electric Guitar Power Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS Katana-100-212 - 100W 2x12 Combo Amplifier for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS Katana-100 Specs | | | Amplifier Type | Modeling | | Output Power | 100 W RMS | | Channels | 4 | | Effects Loop | Yes, Series | | Built-In Effects | Delay, Digital Reverb, Distortion/Overdrive | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/8" Stereo Aux
2 x 1/4" Stereo Footswitch | | Outputs | 1 x 1/4" Mono Effects Send
1 x 1/4" Stereo Headphone
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 3: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 4: Bass, Channel Volume, Gain, Mid, Presence, Treble | | | | Configuration | 2 x 12" Speaker(s) | | Cabinet Type | Straight Open Mono | | Power Rating | 100 W RMS | | | | Dimensions (WxHxD) | 26.4 x 19.1 x 9.8" / 670.0 x 484.0 x 248.0 mm Combo | | Weight | 43.65 lb / 19.8 kg Amplifier | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 30.0 x 22.0 x 13.8" |
