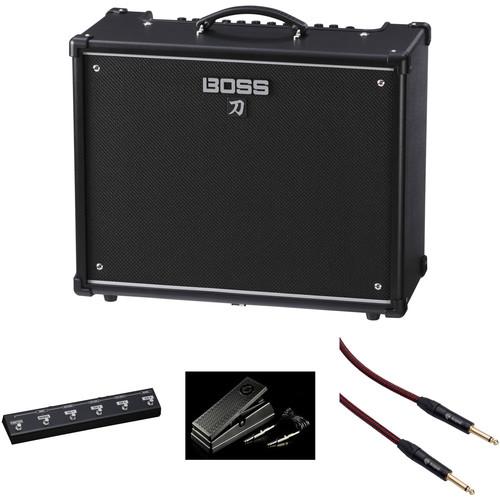

User Manual for BOSS Katana-100 Guitar Amplifier, Foot Controller, and Expression Pedal Kit Click to enlarge the picture
Contents of the user manual for the BOSS Katana-100 Guitar Amplifier, Foot Controller,
- Product category: Guitar Amplifiers BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Guitar Amplifiers
|
User manual for the BOSS Katana-100 Guitar Amplifier, Foot Controller, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description The B&H Katana-100 Guitar Amplifier, Foot Controller, and Expression Pedal Kit is a solid-state combo amp, six-button foot controller, and universal expression pedal bundle designed to provide expressive and versatile tones with creativity-enhancing foot controls for guitarists on stage, at rehearsal, and in the studio. It includes the Katana-100 12" 100W guitar amp, a Roland GA-FC GA foot controller, a Moog EP-3 expression pedal, and a 1/4" instrument cable.
The amp boasts 61 customizable BOSS effects, five custom-tuned amp characters, and eight Tone Setting memories, which allow instant recall of channel and effects configurations. Utilize the aux input, effects loop, line output, and headphone output to incorporate external gear. Switch channels, boost, reverb, and more with the included foot controller. Swell volume or control an effect such as wah via the smooth expression pedal. - BOSS Katana-100 - 100W 1x12 Combo Amplifier for Electric Guitar Providing gig-ready rock tones while minimizing your reliance on a pedalboard, the Katana-100 Combo Amplifier from BOSS provides 100W of power and features one custom-designed 12" speaker, making it quite suitable for large venues. The amp gives you access to 61 BOSS effects via BOSS's Tone Central. Using a USB connection, you can port any 15 effects into the amplifier at any one time, with three separate effects available for simultaneous usage. Once you select among these effects—as well as among five different onboard amp characteristics and EQ/presence controls—you can store your tone into one of four recallable Tone Setting memories. In this manner, you can easily change your tonal array onstage without a complicated tap dance routine.
Turn your attention to the rear of the amplifier head and you'll notice quite a few connective possibilities, such as a headphones/recording output that provides the ability to direct your sound to headphones and recording devices with a minimal amount of maneuvering. Additionally, a line out jack allows you to route line-level signal to mixers and PAs. An effects loop affords you the opportunity to use outboard gear, and an auxiliary input jack lets you play audio from compatible players through the amplifier. But wait, there's more! For external control, there are two different footswitch inputs, one for channel selection/expression pedals, and one specifically tailored to the all-encompassing GA-FC foot controller. - Five Distinct Amp Characters
- The Katana offers five amp characters with tones ranging from organic vintage to modern high gain; Clean is natural and transparent, Crunch offers a small amount of grit, Lead has a wide gain range to suit many styles, Brown delivers a refined high-gain tone, and the Acoustic character provides a tonality geared toward acoustic/electric guitars
- Pedalboard Sounds without the Pedalboard
- Via BOSS's Tone Central, you can choose from 61 effects—the Katana Version 3 update brings the Roland DC-30 Analog Chorus-Echo, the BOSS GE-10 Graphic Equalizer, and the 95E pedal wah—to load 15 different modules into the amp at any one time, using three of them simultaneously; eight Tone Settings let you store custom amp and effects setups for instant recall, and you can always jump to the current panel settings at the touch of a button
- Extensive Footswitching Possibilities
- External control of specific parameters is possible with an input for optional footswitches and expression pedals, as well as a dedicated input for the GA-FC foot controller
- Intuitive Operation
- Dedicated knobs for multiple gain stages, the three-band EQ, and presence control allow you to dial in tones by ear, just as you would with a standard tube amp; essential effects parameters are adjusted with a simple knob twist, and Tone Setting memories can be stored with a brief button hold
- Power Control
- A Power Control selector lets you reduce wattage, allowing you to lower the volume for small stages and home-playing without sacrificing tone
- Connection Options
- You can send a simultaneous direct feed to PAs, mixers, and recording interfaces via the headphone/recording output, while the line out provides the mic'd up tone of the Katana-100 in all of its power, fullness, and dynamics; a dedicated effects loop can also be utilized to loop in outboard gear
- Computer Connectivity
- You can send mix-ready, true stereo sound with Katana's effects to your DAW via the USB port, recording directly to your computer without having to take an analog DI
- Tone Central & Tone Studio
- The Katana-100 gives you access to Tone Central and Tone Studio; Tone Central provides a plethora of free amp and effect setups created by seasoned professionals and downloadable by you, while Tone Studio gives you a convenient way to organize your Katana presets for different gigs, recordings, and practice sessions
- Notable Features
-
- 100W combo amplifier
- One custom-designed 12" speaker
- Five distinct amp characters: Clean, Crunch, Lead, Brown (derived from the Waza amp), and Acoustic (for acoustic/electric guitars)
- Choose from 61 customizable effects with BOSS Tone Studio editor software
- Full-time channel and global parametric EQs for refined tone shaping
- Store 15 different effects on board, with three effects available at once
- Dedicated gain, EQ, presence, and effects controls for adjusting sounds quickly
- Assign parameters to the front-panel effects knobs
- Three Cabinet Resonance types adjust the interaction between the amp’s output section and speaker, enabling you to fine-tune the feel and tone of the amp
- Cabinet simulation on the line, USB, and phones/recording outputs enhanced with three Air Feel settings for adding depth and dimension to direct tones
- Reverb section supports delay and delay-plus-reverb in addition to reverb only
- Eight Tone Setting memories for storing and recalling all amp and effect settings
- Expanded send/return routing options for inserting external processing in the effects loop
- Power Control for achieving cranked-up tones at low volumes
- Line Out and USB jacks provide mix-ready tones
- Preset effects available at the BOSS Tone Central website
UPC: 761294509302 - Roland GA-FC GA Foot Controller The compact, lightweight (2.5 lb) Roland GA-FC GA Foot Controller puts the controls of your GA-112/212 guitar amplifier at your feet allowing you to keep your hands on your instrument and focus on your performance. Switch between four channels, two boost settings, reverb and two EFX loops plus plug in up to two expression pedal inputs for volume and drive.
- Switch between four channels, two boost settings, reverb and two EFX loops
- Simultaneously connect up to two expression pedals for real-time volume and drive control
- Simultaneously control stacked amps via Link In/Out port
UPC: 761294503096 - Moog EP-3 Expression Pedal The EP-3 Expression Pedal from Moog is a universal expression pedal for keyboards, synths, and pedals that have either an expression or CV input. It has a polarity switch for compatibility with non-Moog products and a scalable output knob for different musical ranges. The pedal itself is designed for smooth operation while being rugged enough for daily use and touring. A 6.5' 1/4" TRS cable is included. UPC: 094922445940
- Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (20') The 20' Premium Performance Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket from Kopul is designed for connecting guitars to amplifiers or any other application where a 1/4" instrument or unbalanced line-level connection is required. It can be used in applications for live stage, theater, rehearsals, recordings, and more. Kopul's 3000B Series instrument cables are engineered for protection against electromagnetic interference (EMI), radio frequency interference (RFI), and the significant reduction of static noise. This cable features gold-plated 1/4" connectors that have a metal shell and chuck-style strain relief. A braided fabric jacket prevents unwanted tangling and adds durability to the cable. The 24-gauge annealed-copper conductors with dense spiral copper shielding, as well as a conductive PVC, and PE insulation make the Premium Performance 3000B Series instrument cable with braided fabric jacket, a flexible, quiet cable that ensures excellent transfer of the audio signal.
- Protection Against Interference
- Dense spiral copper shielding with 95% coverage provides protection against electromagnetic and radio frequency interference as well as static noise
- 24-AWG Copper Conductor
- The 24-gauge annealed copper provides excellent signal conductivity
- PVC Shield and PE Insulation
- The conductive PVC shield and PE insulation deliver additional protection against EM and RF interference and ensure that noise does not compromise your signal
- Gold-Plated Connectors
- Gold-plated 1/4ʺ male connectors ensure reliable signal transfer
- Flexible
- A PVC jacket offers protection for the cable while maintaining its flexibility
- Chuck-Style Strain Relief
- Chuck-style strain relief offers a secure connection between the connector and the cable
- Braided Fabric Jacket
- The tough braided fabric jacket prevents unwanted tangling and adds durability to the cable
UPC: 847628590960 In the Box - Katana-100 - 100W 1x12 Combo Amplifier for Electric Guitar xberexddswbadcrszqezasbwyabzxfatceb
- Power Cable
- Limited 1-Year Warranty on Parts
- Limited 90-Day Warranty on Labor
- Roland - GA-FC GA Foot Controller
- Moog - EP-3 Expression Pedal
- Kopul - Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (20')
Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS Katana-100 Guitar Amplifier, Foot Controller, and Expression Pedal Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BOSS Katana-100 - 100W 1x12 Combo Amplifier for Electric Guitar
| | | Amplifier Type | Modeling | | Output Power | 100 W RMS | | Channels | 4 | | Effects Loop | Yes, Series | | Built-In Effects | Delay, Digital Reverb, Distortion/Overdrive | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/8" Stereo Aux
2 x 1/4" Stereo Footswitch | | Outputs | 1 x 1/4" Mono Effects Send
1 x 1/4" Stereo Headphone
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 3: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 4: Bass, Channel Volume, Gain, Mid, Presence, Treble | | | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Open Mono | | Power Rating | 100 W RMS | | | | Dimensions (WxHxD) | 20.9 x 19.1 x 9.8" / 530.0 x 484.0 x 248.0 mm Combo | | Weight | 32.63 lb / 14.8 kg Amplifier | | | | Box Dimensions (LxWxH) | 24.0 x 20.0 x 13.0" | - Roland GA-FC GA Foot Controller
| Controls | Function switch
Manual switch
Ch. 1 to Ch. 4 switches | | Indicators | Function manual Ch. 1 to Ch. 4 | | Connectors | 1 x 1/4" TRS drive expression pedal input
1 x 1/4" TRS volume expression pedal input
1 x 1/4" TRS GA foot control jack | | Dimensions (WxDxH) | 15.43 x 3.18 x 1.92" (39.2 x 8.1 x 4.9 cm) | | Weight | 2.2 lb (1 kg) | | | | Box Dimensions (LxWxH) | 17.3 x 5.0 x 3.9" | - Moog EP-3 Expression Pedal
| Polarity | Selectable | | Weight | 2.6 lb (1.2 kg) | | | | Box Dimensions (LxWxH) | 12.6 x 4.1 x 4.05" | - Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (20')
| Connector 1 | 1 x 1/4" TS Male Straight | | Connector 2 | 1 x 1/4" TS Male Straight | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | | | Box Dimensions (LxWxH) | 7.1 x 4.3 x 4.3" |
