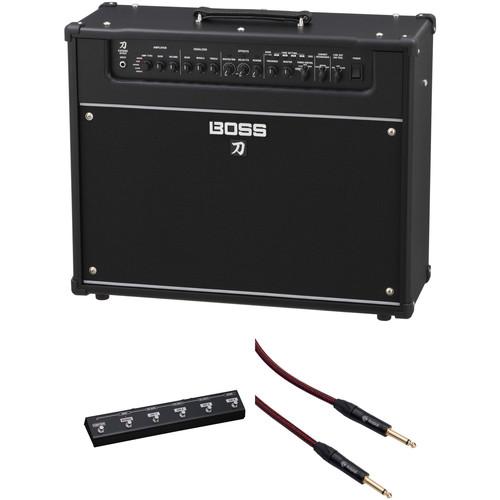

User Manual for BOSS Katana-Artist Guitar Amplifier and Foot Controller Kit Click to enlarge the picture
Contents of the user manual for the BOSS Katana-Artist Guitar Amplifier and Foot
- Product category: Guitar Amplifiers BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Guitar Amplifiers
|
User manual for the BOSS Katana-Artist Guitar Amplifier and Foot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description The B&H Katana-Artist Guitar Amplifier and Foot Controller Kit is a solid-state combo amp and six-button foot controller designed to provide expressive and versatile tones with easy foot controls for guitarists on stage, at rehearsal, and in the studio. It includes the Katana-Artist 12" 100W guitar amp, a Roland GA-FC GA foot controller, and a 1/4" instrument cable.
The amp boasts 61 customizable BOSS effects, five custom-tuned amp characters, and eight Tone Setting memories, which allow instant recall of channel and effects configurations. Utilize the aux input, effects loop, line output, and headphone output to incorporate external gear. Switch channels, boost, reverb, and more with the included foot controller, or control the Katana-Artist via MIDI. - BOSS KATANA-Artist Amplifier Designed for discerning guitar players, the BOSS Katana Artist is a 100W combo amp with a custom-built 12” semi-closed cabinet. It’s suitable for rock, jazz, country, and more. The amp’s onboard controls are relatively straightforward, with a three-knob tone stack and simple one-knob controls over a variety of effects. These effects can be loaded into your amplifier through a corresponding app for iOS and Android devices; this app, which gives you full control over the amplifier—as well as access to a bevy of choruses, delays, reverbs, pitch shifters, ring mods and more—can also organize your favorite amp setups and load them into the amplifier’s eight effects slots.Once you’ve set up a chain, you can experience your tone through the Katana Artist's analog class-AB power amp and premium Waza speaker. Furthermore, a Cabinet Resonance controls gives you the means to achieve a high-octane sound at lower levels.Turn your attention to the rear of the amplifier and you'll notice a bevy of connections, including a phones/recording output, a line output, an effects-loop section, and an auxiliary input. Two footswitch inputs are on hand, as are two extension speaker outputs rated at 16 Ohms. MIDI control is made available by means of a 5-pin DIN jack, and a USB facilitates the transfer of setups from a corresponding iOS/Android app straight to the amplifier.
- Key Features at a Glance
-
- 100W combo amp
- Tube Logic design
- Robust analog class-AB power-amp section delivers highly musical response
- Custom Waza 12” speaker
- Semi-closed cabinet back for tight, focused tone with rich low end
- 5 amp characters, custom-tuned for optimum performance with the Katana-Artist’s cabinet and Waza speaker
- Choose from 61 customizable BOSS effects and many effect-routing configurations with BOSS Tone Studio editor software
- 8 Tone Setting memories for storing and recalling all amp/effect settings
- Assign parameters to the front-panel effects knobs
- Power Control for achieving cranked-amp tone and dynamic response at low volumes
- Dedicated panel controls for Cabinet Resonance and Line Out Air Feel functions
- Effects loop with position, gain, and series/parallel operation configurable via BOSS Tone Studio
- USB jack provides mix-ready tones with effects intact
- Support for external control with optional footswitches (GA-FC, FS series) and MIDI
- Stage-ready patches for all music styles available at BOSS Tone Central
- Five Original Amp Characters, Fine-Tuned for the Katana-Artist
- Five amp characters provide a wide range of tones, from sparkling clean to a custom, high-gain brown sound evocative of a Marshall stack. There's even an Acoustic character optimized for playing acoustic/electric guitar.
- Leave Your Pedalboard at Home
- With its built-in BOSS effects, the Katana-Artist lets you perform anywhere with just a guitar and amp. Connecting to the BOSS Tone Studio via USB provides access to 61 effects—the Katana Version 3 update brings the Roland DC-30 Analog Chorus-Echo, the BOSS GE-10 Graphic Equalizer, and the 95E pedal wah, and you can load your favorites into the amp's various effects sections. Going beyond standard distortion, delay, and reverb, the selection includes powerful tone shapers like pitch shifting, ring mod, channel and global EQs, and more. You'll also note the effects loop on hand for patching in to external gear you can't live without. With BOSS's Tone Studio, you're able to move the loop's position, adjust input/output gain, and select series/parallel operation as needed.
- One-Touch Recall of Custom Amp and Effects Setups
- The Katana-Artist can store your favorite amp channel and effects setups in its Tone Setting memories for instant recall. After you've dialed in a sound with the panel controls, simply save it to the desired memory with a quick button hold. Eight Tone Settings (two banks of four) are available on the amp, selectable from the front panel. It's also possible to use a separately available external footswitch for hands-free control of specific parameters on the gig.
- Intuitive Operation
- Familiar controls for gain, presence, and the three-band tone stack let you dial in sounds quickly, while essential effects parameters are adjusted with a simple twist of the knob. With an onboard Power Control, you can roll back the overall volume while retaining the expressive tone and feel of a cranked-up amp. The Katana-Artist also features line, USB, and phones/recording outputs with cabinet simulation, allowing you to feed PA systems, computer DAWs, or headphones with sound that mimics a miked cab. Using the panel's Air Feel knob, the spatial character of the cab simulation can be instantly adjusted to suit different songs or styles.
- Free Patches and Editor Software
- Through BOSS's Tone Central website, you'll find free amp and effects setups for the Katana series, created by pro guitarists, and designed to provide ready-to-play sounds for various music styles. You can load them into the memories of a Katana amp via the BOSS Tone Studio editor software, which is also available at the site. BOSS Tone Studio also gives you a convenient way to organize all your Katana setups for different gigs, recordings, and practice sessions.
UPC: 761294512630 - Roland GA-FC GA Foot Controller The compact, lightweight (2.5 lb) Roland GA-FC GA Foot Controller puts the controls of your GA-112/212 guitar amplifier at your feet allowing you to keep your hands on your instrument and focus on your performance. Switch between four channels, two boost settings, reverb and two EFX loops plus plug in up to two expression pedal inputs for volume and drive.
- Switch between four channels, two boost settings, reverb and two EFX loops
- Simultaneously connect up to two expression pedals for real-time volume and drive control
- Simultaneously control stacked amps via Link In/Out port
UPC: 761294503096 - Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (20') The 20' Premium Performance Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket from Kopul is designed for connecting guitars to amplifiers or any other application where a 1/4" instrument or unbalanced line-level connection is required. It can be used in applications for live stage, theater, rehearsals, recordings, and more. Kopul's 3000B Series instrument cables are engineered for protection against electromagnetic interference (EMI), radio frequency interference (RFI), and the significant reduction of static noise. This cable features gold-plated 1/4" connectors that have a metal shell and chuck-style strain relief. A braided fabric jacket prevents unwanted tangling and adds durability to the cable. The 24-gauge annealed-copper conductors with dense spiral copper shielding, as well as a conductive PVC, and PE insulation make the Premium Performance 3000B Series instrument cable with braided fabric jacket, a flexible, quiet cable that ensures excellent transfer of the audio signal.
- Protection Against Interference
- Dense spiral copper shielding with 95% coverage provides protection against electromagnetic and radio frequency interference as well as static noise
- 24-AWG Copper Conductor
- The 24-gauge annealed copper provides excellent signal conductivity
- PVC Shield and PE Insulation
- The conductive PVC shield and PE insulation deliver additional protection against EM and RF interference and ensure that noise does not compromise your signal
- Gold-Plated Connectors
- Gold-plated 1/4ʺ male connectors ensure reliable signal transfer
- Flexible
- A PVC jacket offers protection for the cable while maintaining its flexibility
- Chuck-Style Strain Relief
- Chuck-style strain relief offers a secure connection between the connector and the cable
- Braided Fabric Jacket
- The tough braided fabric jacket prevents unwanted tangling and adds durability to the cable
UPC: 847628590960 In the Box - KATANA-Artist Amplifier rrquvcxcfc
- Power Cable
- Limited 1-Year Warranty on Parts
- Limited 90-Day Warranty on Labor
- Roland - GA-FC GA Foot Controller rrquvcxcfc
- Kopul - Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (20')
Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS Katana-Artist Guitar Amplifier and Foot Controller Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BOSS KATANA-Artist Amplifier
| | | Amplifier Type | Modeling | | Output Power | 100 W RMS | | Channels | 1 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | Yes, Series Switchable between series and parallel with app | | Built-In Effects | Chorus, Compression, Delay, Digital Reverb, Distortion/Overdrive, Envelope Filter, Flanger, Gate, Harmonizer, Octave, Phaser, Tremolo, Vibrato | | Presets & Storage | User Presets: 8 | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
2 x 1/4" Mono Footswitch
1 x 1/8" Stereo Aux
1 x 5-Pin DIN Series MIDI
1 x USB Series Digital | | Outputs | 3 x 1/4" Mono External Speaker
1 x 1/4" Mono Line Level
1 x 1/4" Mono Effects Send
1 x 1/4" Stereo Headphone
1 x USB Stereo Interface | | Tone Section | Bass, Channel Volume, Gain, Mid, Treble | | | | Speaker Inputs | None | | Speaker Through/Output | 3 x 1/4" | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Half-Open Mono | | Power Rating | 100 W RMS | | Input Impedance | 8 ohms Mono | | | | Dimensions (WxHxD) | 24.8 x 20.3 x 9.8" / 630.0 x 515.0 x 248.0 mm Combo | | Weight | 41.89 lb / 19 kg Combo | | | | Box Dimensions (LxWxH) | 28.0 x 23.9 x 14.1" | - Roland GA-FC GA Foot Controller
| Controls | Function switch
Manual switch
Ch. 1 to Ch. 4 switches | | Indicators | Function manual Ch. 1 to Ch. 4 | | Connectors | 1 x 1/4" TRS drive expression pedal input
1 x 1/4" TRS volume expression pedal input
1 x 1/4" TRS GA foot control jack | | Dimensions (WxDxH) | 15.43 x 3.18 x 1.92" (39.2 x 8.1 x 4.9 cm) | | Weight | 2.2 lb (1 kg) | | | | Box Dimensions (LxWxH) | 17.3 x 5.0 x 3.9" | - Kopul Premium Instrument Cable 1/4" Male to 1/4" Male with Braided Fabric Jacket (20')
| Connector 1 | 1 x 1/4" TS Male Straight | | Connector 2 | 1 x 1/4" TS Male Straight | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | | | Box Dimensions (LxWxH) | 7.1 x 4.3 x 4.3" |
