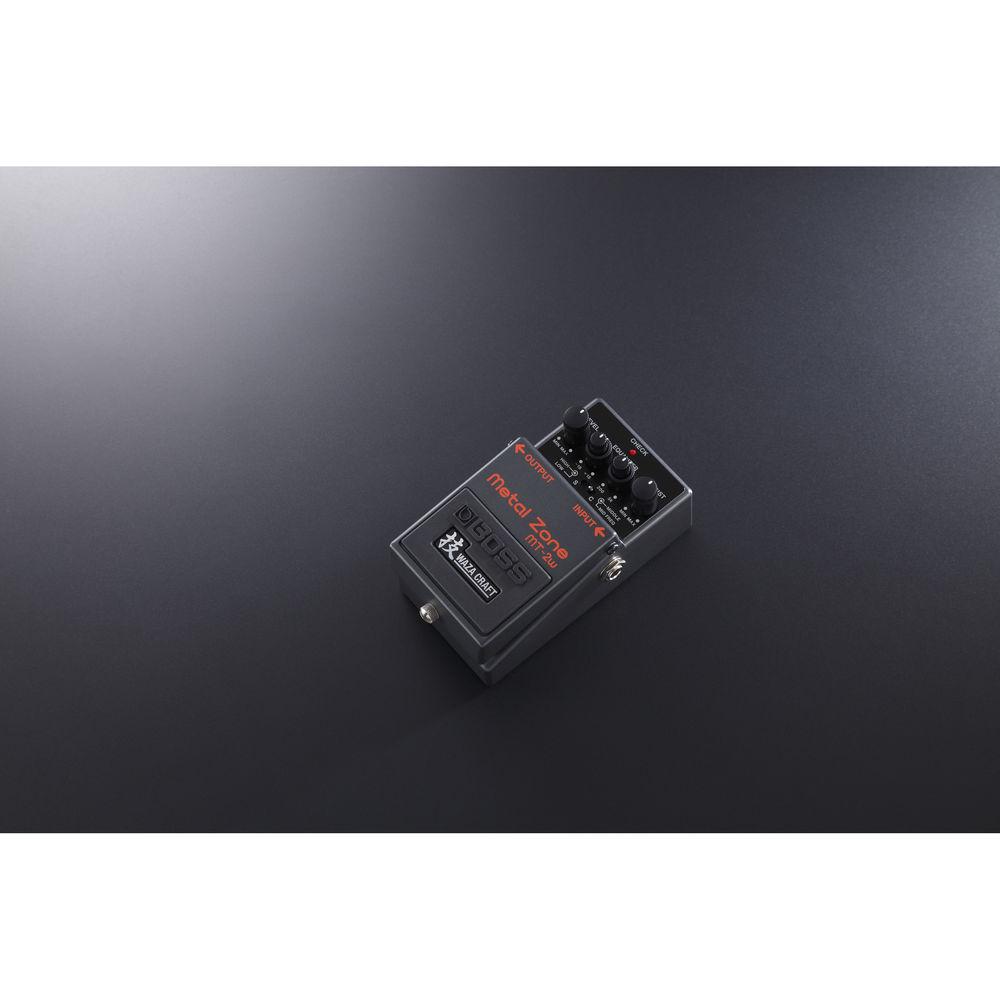

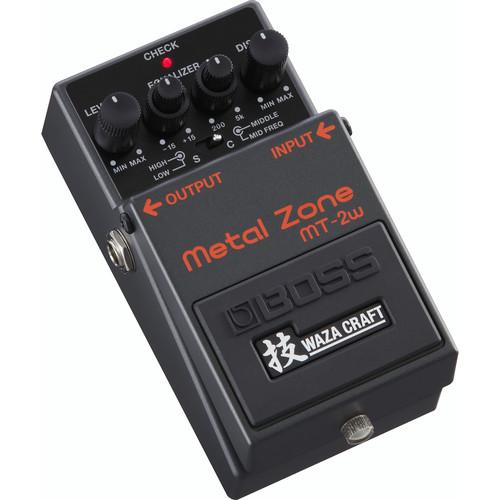

User Manual for BOSS MT-2W Metal Zone Waza Craft Distortion Pedal for Electric Guitars Click to enlarge the picture
Contents of the user manual for the BOSS MT-2W Metal Zone Waza Craft
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS MT-2W Metal Zone Waza Craft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description A part of their Waza Craft series, the BOSS MT-2W offers two different distortion tones in one stompbox. The first is the sound of the standard MT-2—a hefty, thick distortion with midrange character and heavy tones. This distortion comes with a three-band EQ with parametric midrange for much in the way of tonal shaping. This equalizer features concentric knobs in the EQ section to keep the footprint of the pedal as compact as possible. You'll notice that this pedal's Standard mode has a more responsive and more clearly defined sound compared to the MT-2, with lower noise for improved performance at the highest gain settings.
The second mode, Custom, provides a more natural, open tone, with more dynamics and a rounder feeling to the low-midrange. This distortion also cleans up nicely when rolling off your guitar's volume, which increases its functionality. This pedal is very much in line with the metal tones being achieved today.
As with all Waza Craft pedals, the MT-2W preserves the original design while enhancing aspects for increased reliability and versatility. A dual-stage gain path utilizes discrete circuitry to give you a bolstered tonal clarity. EQ has been refined too, offering bandwidth values tuned specifically for both of the pedal's operating modes.
The pedal provides 1/4" mono I/O. It can be powered from the included 9V battery or by means of a separately available power supply. - Key Features at a Glance
-
- Waza Craft pedal with all-analog circuitry
- Dual-stage gain circuit built with discrete analog components
- Standard mode updates the MT-2 Metal Zone sound with improved clarity and lower noise
- Custom mode delivers full-throttle gain tones with wider range, increased dynamics, and tighter low end
- 3-band EQ provides intense sound customization with high, low, and sweepable midrange with up to 15 dB of boost/cut on each band
- Buffer for clean and clear tone when bypassed
- Made in Japan
In the Box BOSS MT-2W Metal Zone Waza Craft Distortion Pedal for Electric Guitars 9V Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS MT-2W Metal Zone Waza Craft Distortion Pedal for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS MT-2W Metal Zone Specs | Input Impedance | 1 MOhm | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Nominal Level | Input: -20 dBu
Output: -20 dBu | | Connectors | 1 x 1/4" instrument input, phone type

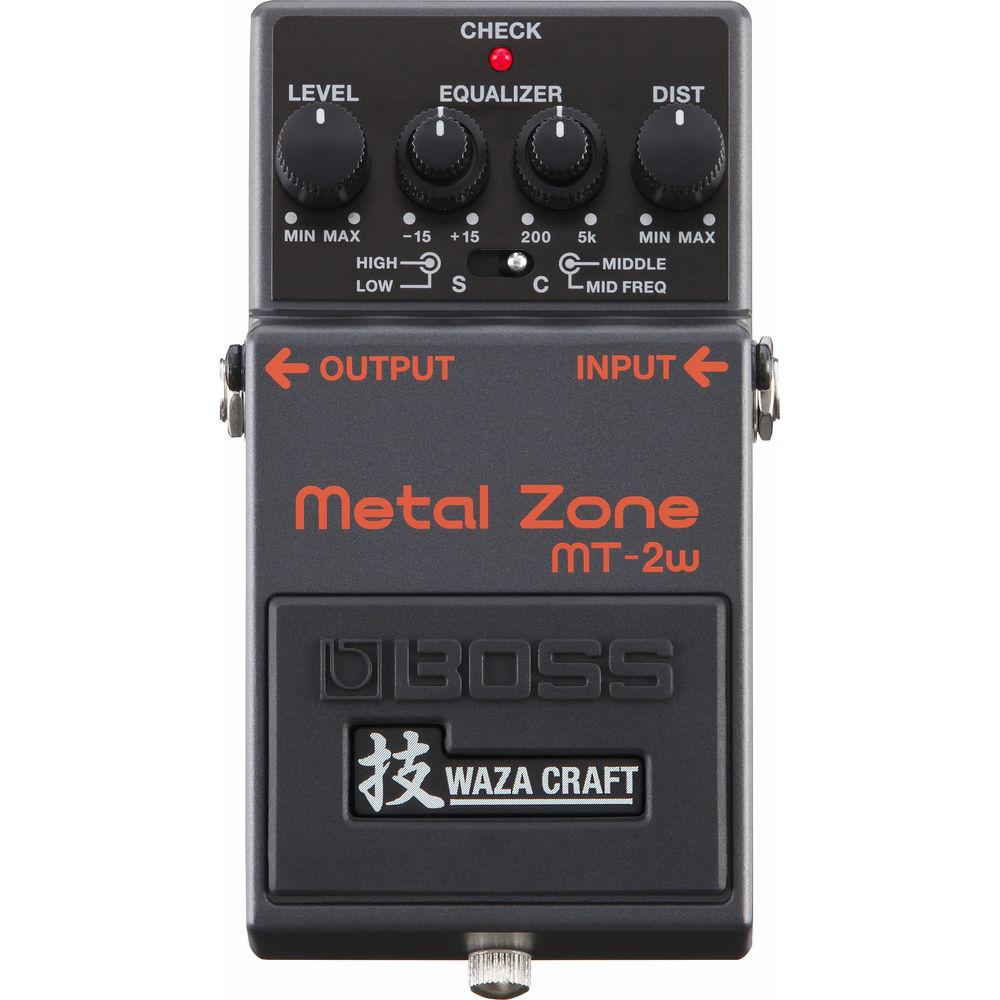

1 x 1/4" instrument output, phone type | | Controls | DIST knob
EQUALIZER MIDDLE/MID FREQ knob
EQUALIZER HIGH/LOW knob
LEVEL knob
Mode switch
Pedal footswitch | | Bypass | Buffered bypass | | Indicator | CHECK Indicator: Used for indication of when to check the battery | | Power Supply | 9 VDC: 9 V battery, alkaline, or carbon-zinc
AC Adapter: PSA-Series, available separately | | Battery Life (approx.) | Alkaline: Approximately 18 hours
Carbon: Approximately 7 hours | | Current Draw | 35 mA | | Dimensions | 2.9 x 5.13 x 2.4" / 73 x 129 x 59 mm | | Weight | 15.5 oz / 440.0 g |
