User Manual for BOSS NEXTONE Stage 40W Combo Amplifier for Electric Guitars Click to enlarge the picture
Contents of the user manual for the BOSS NEXTONE Stage 40W Combo Amplifier
- Product category: Guitar Amplifiers BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Guitar Amplifiers
 |
User manual for the BOSS NEXTONE Stage 40W Combo Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

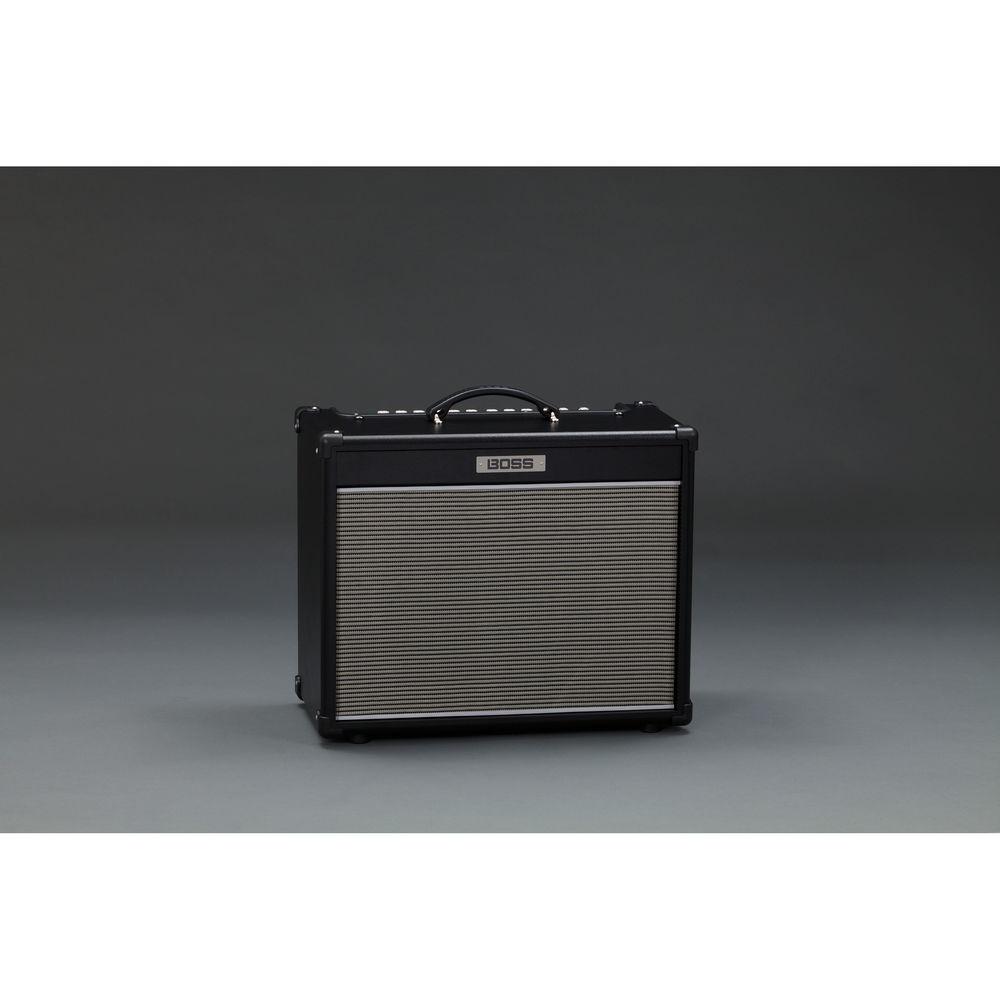

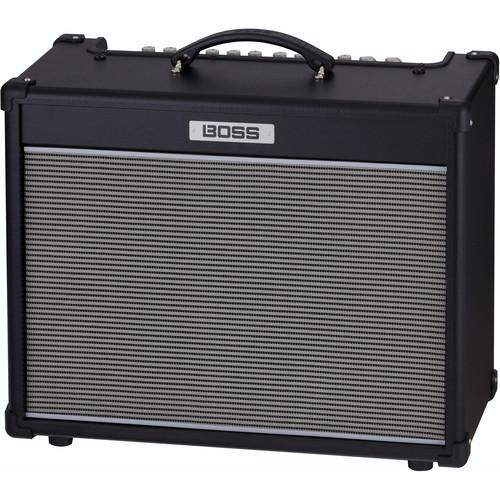

Product description Designed for electric guitar players, the BOSS NEXTONE Stage is a guitar amplifier intended to give you the feel of tubes without the weight or fussiness that come along with valve technology. Four tube-based Class AB power amp sections have been modeled for this amp. They are switchable on the front panel. 6V6, 6L6, EL84, and EL34 output tube sections have all been emulated down to the circuit path of the I/O, ensuring an authentic tube feel.

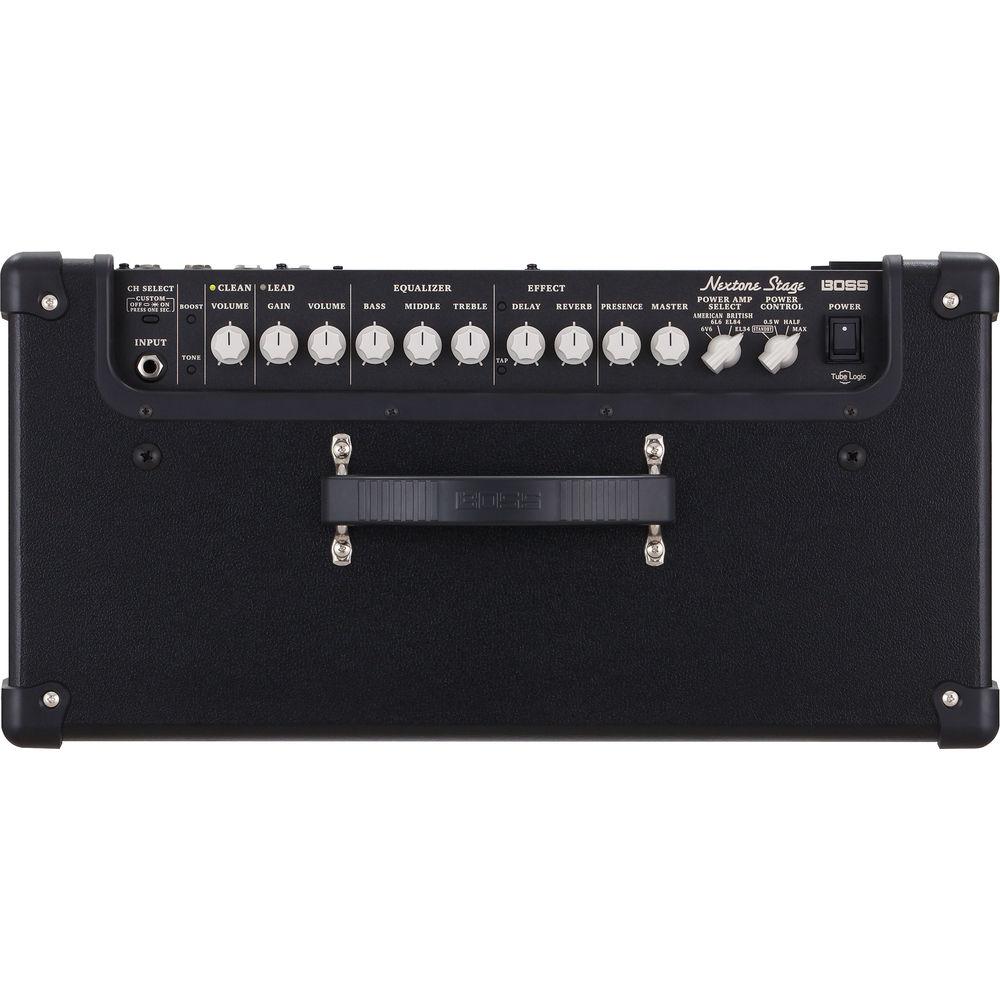

The amp itself pushes 40W of power through a custom 1x12" speaker, giving you two-channel operation. Not only can you select between clean and lead tones, you can also hit the Boost and Tone switches for extra crunch and high-end. Effects such as reverb and delay are built into the amplifier, though more effects are achievable by connecting the amp to Nextone Editor software. The ability to fine-tune tube bias, power-amp sag, equalization, and other settings are possible via the Nextone Editor.

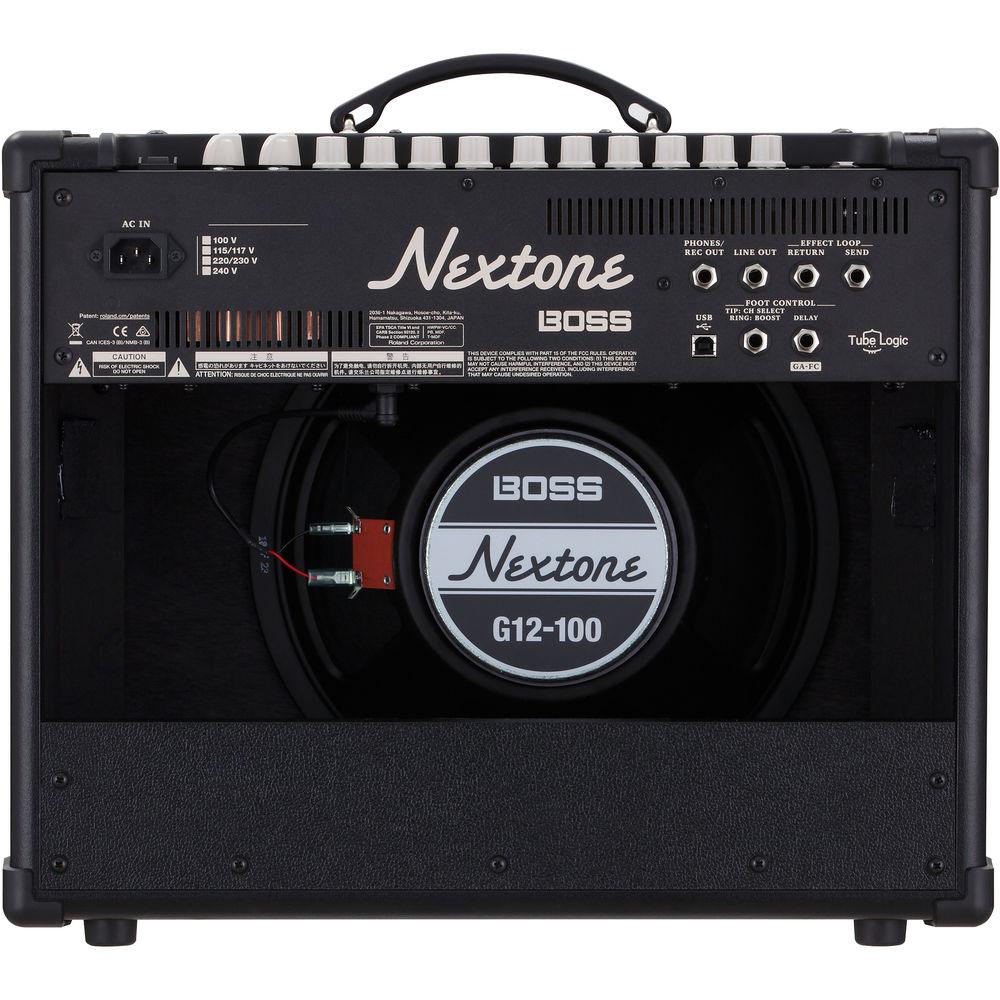

A panoply of I/O options can be found on the rear of the amplifier, including a line out, a record/headphone out, three speaker outs, an effects loop, and a USB connection for reamping and for recording directly to computers. Two footswitch inputs are on hand to help you put footswitches under foot. One receives a TRS input for controlling channel select and boost, while the other allows you to control the onboard delay. Footswitches are available separately, while a power cable is included. - Key Features at a Glance
-
- Authentic Tube Logic tone
- 4 analog Class-AB power amp circuits, selectable from the panel: 6V6, 6L6, EL84, and EL34
- Streamlined combo design with 40 watts of power and custom 12" speaker
- Clean and lead channels with standard and custom mode options
- Dynamic, responsive power control for cranked-up sound and response at reduced volumes
- Nextone Editor (Mac/Windows) for customizing internal amp parameters, including tone stack type, EQ, sag, bias, effects, system settings, and much more
- Boost and Tone switches for adding crunch or sparkle
- Built-in delay, tremolo, and reverb effects, plus loop for patching in external effects
- 3 external speaker jacks (one at 8 Ohms and two at 16 Ohms)
- Line, USB, and phones/recording outputs, with three Air Feel miked cab settings selectable from the Nextone Editor
- Support for direct recording and reamping via USB
- Cranked Sound and Feel at Lower Levels
- With any tube amp, you may want to push the output stage so the amp feels more responsive. Unfortunately, this means turning up the level, which is often frowned upon by sound engineers, bandmates, and neighbors. The Nextone series delivers the complex distortion characteristics of output tubes as they interact with the output transformer and speaker, providing a rich, dynamically responsive sound. With Nextone's adjustable power control, you can always experience this cranked-amp tone while matching the volume to any situation, be it home, studio, or stage.
- Onboard Effects and Switchable Effects Loop
- With its built-in delay, reverb, and tremolo effects, Nextone brings versatility and convenience to gigging guitarists. Using the Nextone Editor, the delay section can be assigned to analog, tape, or SDE-3000 delay types, or to a tremolo effect. The reverb can be assigned to plate, spring, or hall types. Furthermore, each effect type offers a deep set of parameters for dialing in an appropriate tone. The amp also includes a loop for integrating your own effects, with series/parallel operation, loop position, and more selectable via the Nextone Editor.
- Custom Tone
- With a quick button press, you can switch the amp into custom mode. This provides factory-tweaked variations of the standard clean and lead channels. The custom mode channels can be fine-tuned to your liking with the Nextone Editor. Set a channel's tone stack to American or British types, shape the overall tone with a channel EQ, and tweak the playing response by adjusting bias, sag, and more. The Tone switch can be assigned to two different types, and the Boost switch can be set for different characters, or can be assigned to a compressor. A system-wide EQ is available too, enabling you to define the tonal balance of the entire amp. With 99 different user setups available, you're able to customize Nextone's sound for every gig you play.
UPC: 761294513125 In the Box BOSS NEXTONE Stage 40W Combo Amplifier for Electric Guitars Power Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS NEXTONE Stage 40W Combo Amplifier for Electric Guitars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS NEXTONE Stage Specs | | | Amplifier Type | Modeling | | Output Power | 40 W RMS | | Channels | 2 | | Tube Types | None | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | Yes, Series Series and parallel available via the Nextone Editor | | Built-In Effects | Delay, Digital Reverb | | Presets & Storage | User Presets: 99 User presets made possible via the Nextone Editor | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
2 x 1/4" Stereo Footswitch | | Outputs | 1 x 1/4" Stereo Headphone
1 x 1/4" Mono Line Level
1 x 1/4" Mono Effects Send
3 x 1/4" Mono External Speaker
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Presence, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Presence, Treble Tone stack and presence are shared between the two channels | | | | Speaker Inputs | None | | Speaker Through/Output | None | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Open Mono | | Power Rating | 80 W RMS | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 22.2 x 19.2 x 13.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
