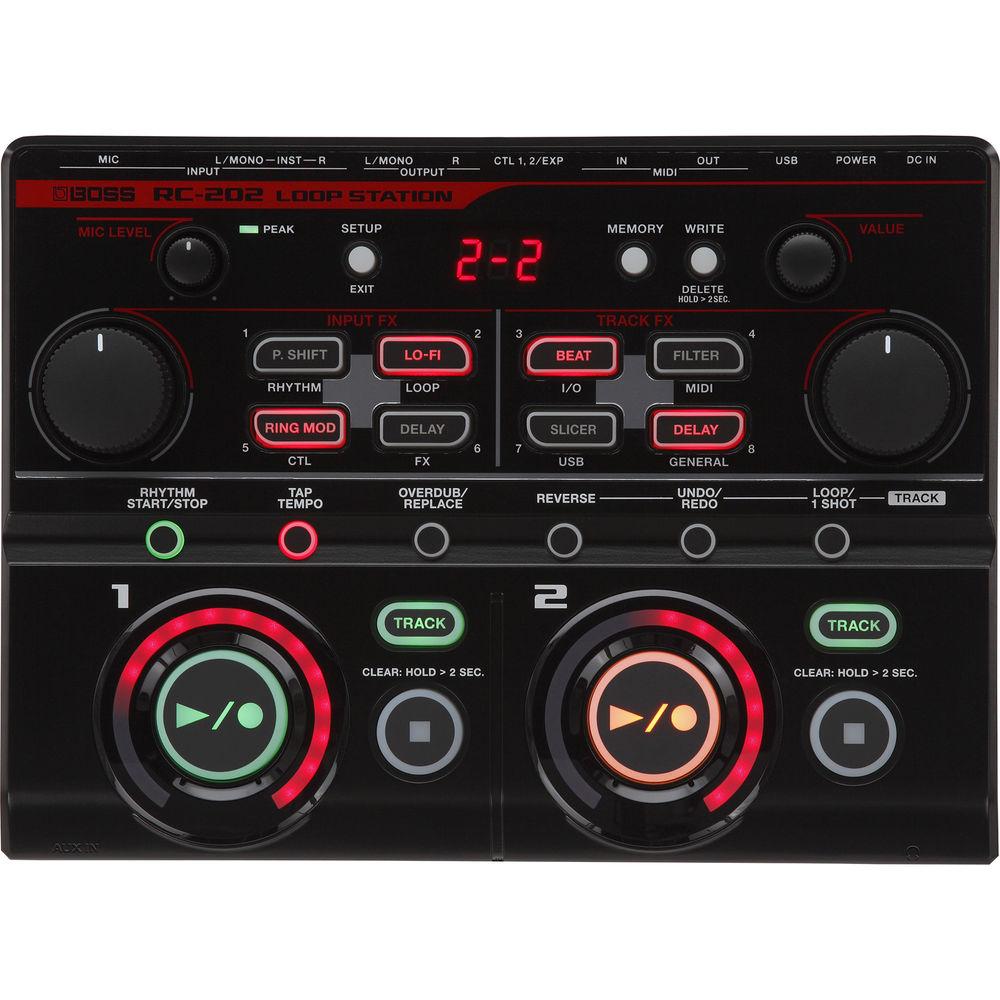

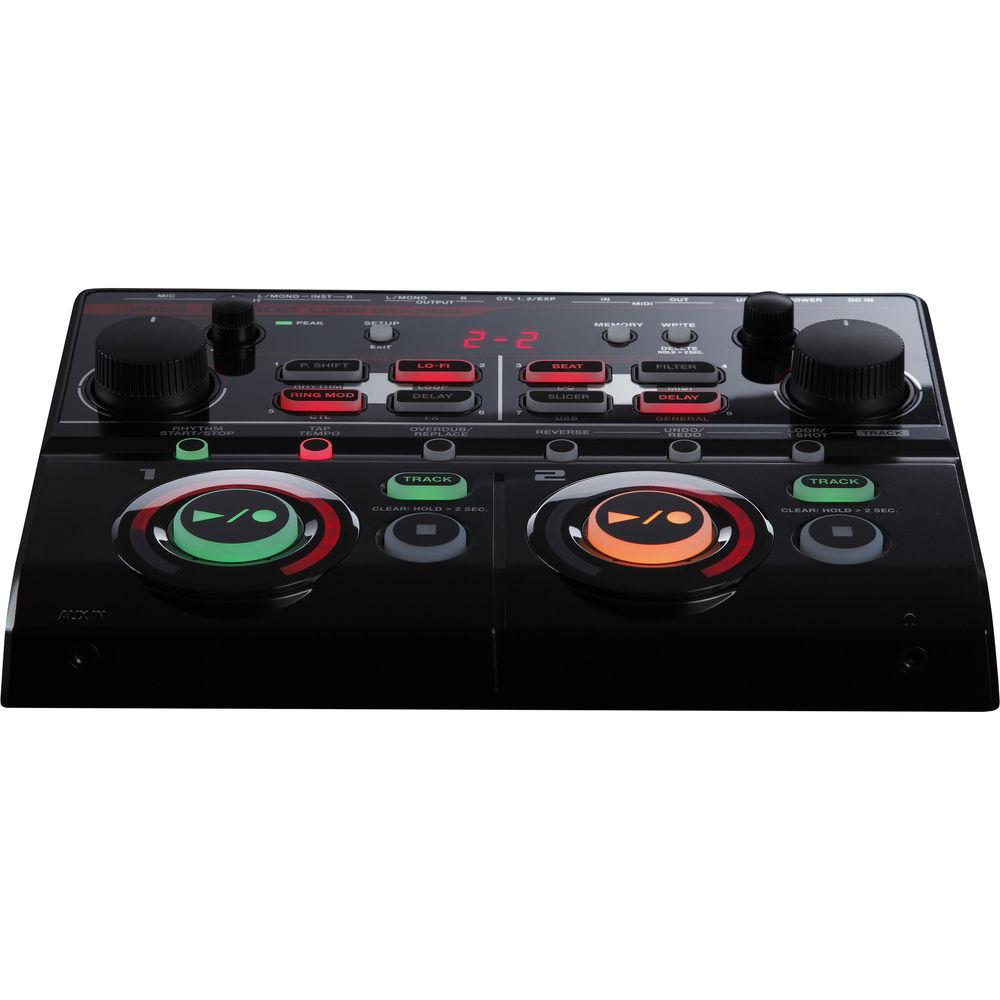

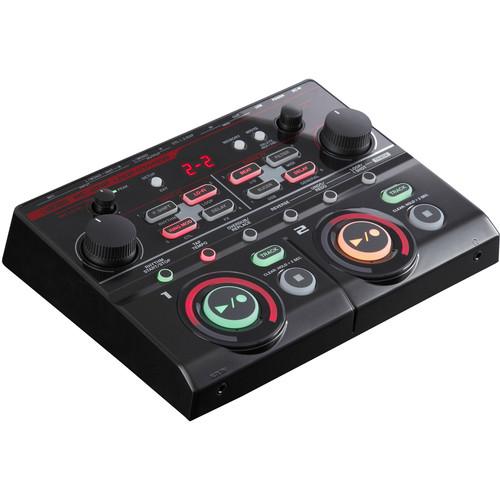

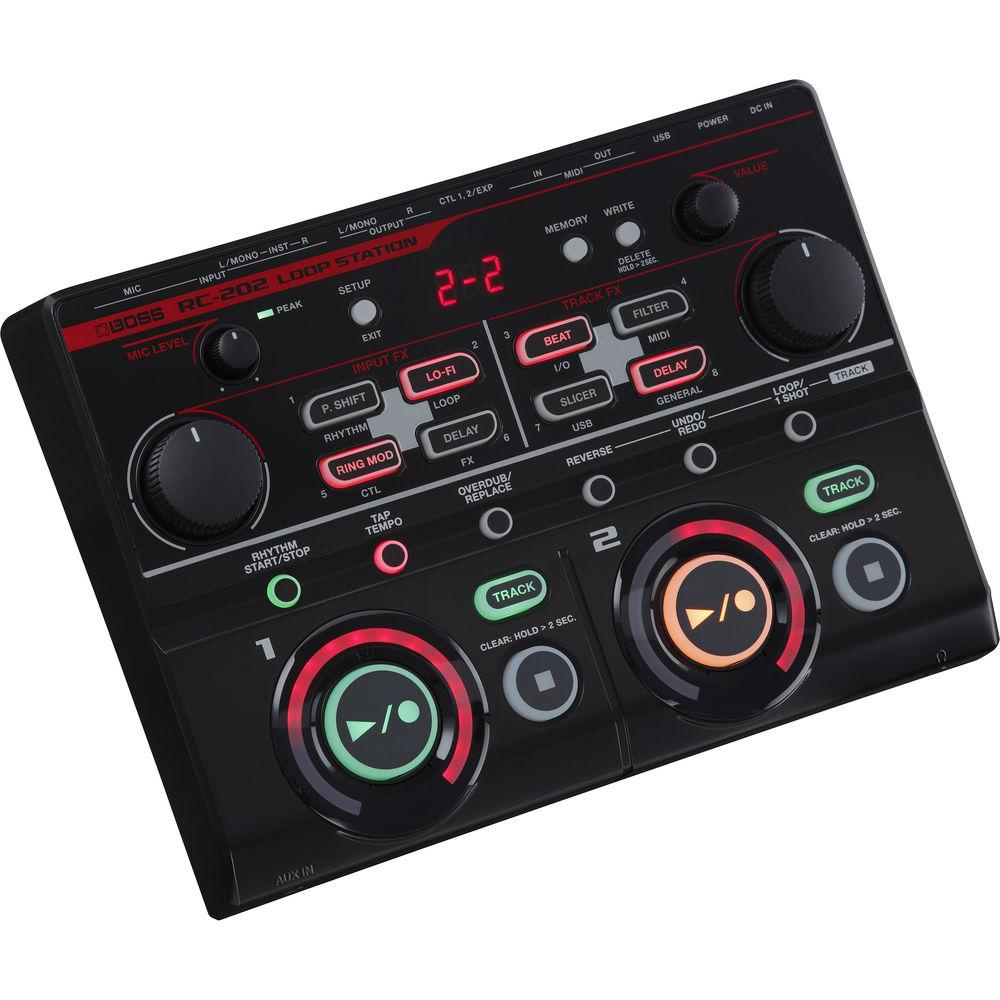

Product description The RC-202 Loop Station from BOSS is a table-top looping/multi-effects unit designed to be operated by hand. Taking its inspiration from the RC-505, this device offers a similar interface, adding a panoply of new features for good measure. You're able to access four input effects and four track effects at the same time, and you can save loops to its memory banks in real time, whilst performing.
The RC-202 offers two stereo loops with dedicated controls and animated status indicators, with the ability to create your loops via XLR mic input, mono/stereo instrument inputs, and a stereo auxiliary input, and MIDI controls, all of which can be used simultaneously to create multi-layered performances in real time.
You can use the USB connection to archive any loops you create, or conversely, to access sounds for sampler-style triggering. The RC-202 is also a USB audio/MIDI interface able to communicate with most DAWs, thus allowing you to integrate your laptop into your performance, record audio, and sync MIDI. - Notable Features
-
- Hand-operable
- 2x simultaneous stereo phrase tracks with dedicated controls and loop-status indicators
- 4x input effects and 4x track effects simultaneously available for processing loops with DJ and sampler-style effects
- 64 phrase memories (8 memories x 8 banks), each containing two phrase tracks, custom effects/playback settings, and more
- Expanded external control via optional footswitches or expression pedal and MIDI
- XLR mic input with phantom power, mono/stereo instrument inputs, and stereo aux input
- 17x onboard rhythm patterns, including odd-measure beats
- USB for phrase import/export and DAW integration with computers
UPC: 761294504529 In the Box BOSS RC-202 Loop Station AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS RC-202 Loop Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS RC-202 Specs | Nominal Input Level | Input microphone (variable): -40 dBu (typ.), -10 dBu (max)
Input instrument: -10 dBu
Auxiliary in: -20 dBu | | Input Impedance | Input microphone 4 kOhms
Input instrument: 1 MOhm
Auxiliary in: 22 kOhms | | Nominal Output Level | Output: -10 dBu | | Output Impedance | Output: 1 kOhm | | Recommended Load Impedance | Output: 10 kOhms or greater | | Recording/Playback | Maximum recording time: Approximately 3 hours (stereo)
Maximum phrase memory: 8 Memory x 8 bank
Number of tracks: 2
Data format: WAV (44.1 kHz, 16-bit linear, stereo) | | Effect Types | Input and track effects: - LPF
- BPF
- HPF
- Phaser
- Flanger
- Synth
- Lo-fi
- Ring modulator
- Guitar to bass
- Slow gear
- Transpose
- Pitch shift
- Robot
- Vocal distortion
- Vocoder
- Natural compressor
- Hard compressor
- Natural limiter
- Hard limiter
- Phone vox
- EQ
- Low isolator
- Mid isolator
- High isolator
- Octave
- Auto pan
- Manual pan
- Tremolo
- Slicer
- Delay
- Panning delay
- Tape echo
- Granular delay
- Roll
- Chorus
- Reverb
- Beat repeat
- Beat shift
- Beat scatter
- Vinyl flick
Master effects: | | Rhythm Types | 17 | | Display | 7 segments, 3 characters (LED) | | USB | Mass storage class

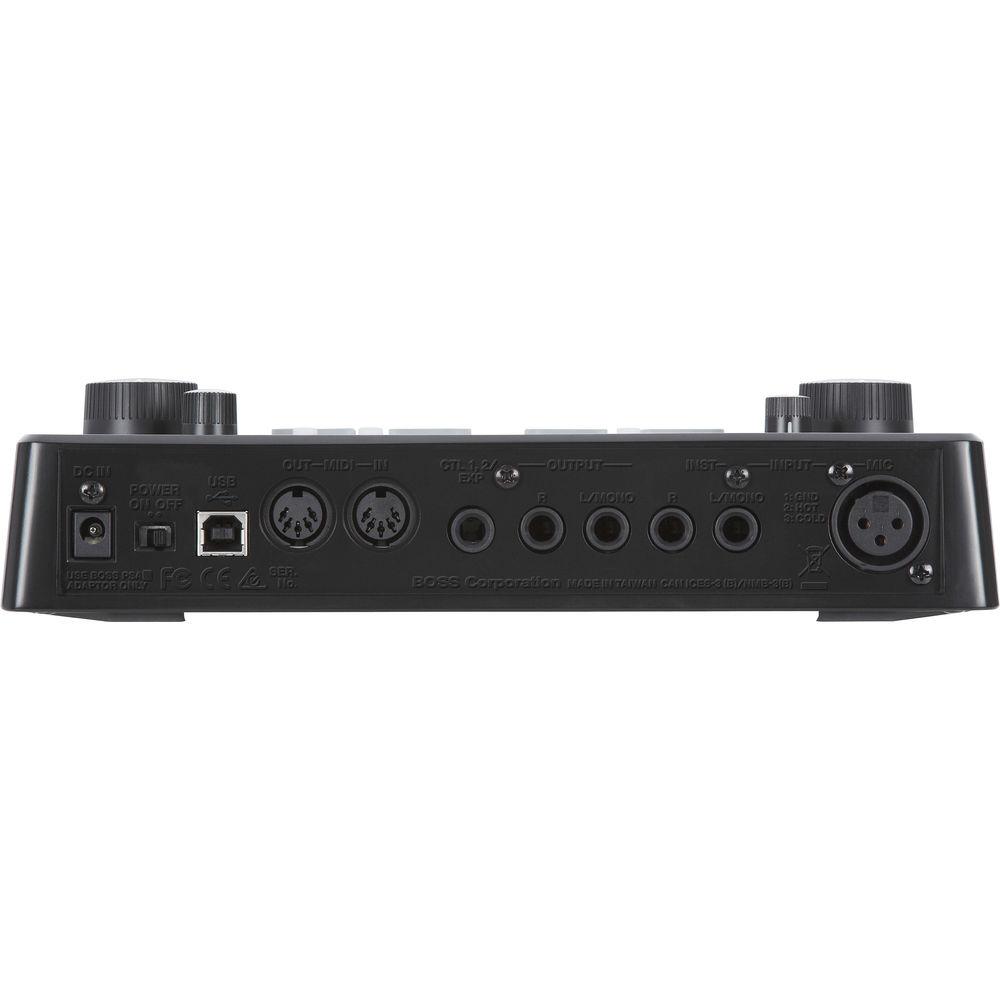

Audio/MIDI | | Connectors | Input microphone jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max)
Input instrument (L/MONO, R) jacks: 1/4-inch phone type
Aux input jack: Stereo miniature phone type
Phones jack: Stereo miniature phone type
Output (L/MONO, R) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
USB port: USB-B Type
MIDI (IN, OUT) connectors
DC IN jack | | Current Draw | 400 mA | | Power Supply | AC adaptor | | Dimensions (W x D x H) | 9.4 x 6.9 x 2.2" / 239 x 175 x 55 mm | | Weight | 2.1 lb / 0.95 kg | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 13.8 x 9.5 x 4.3" |
