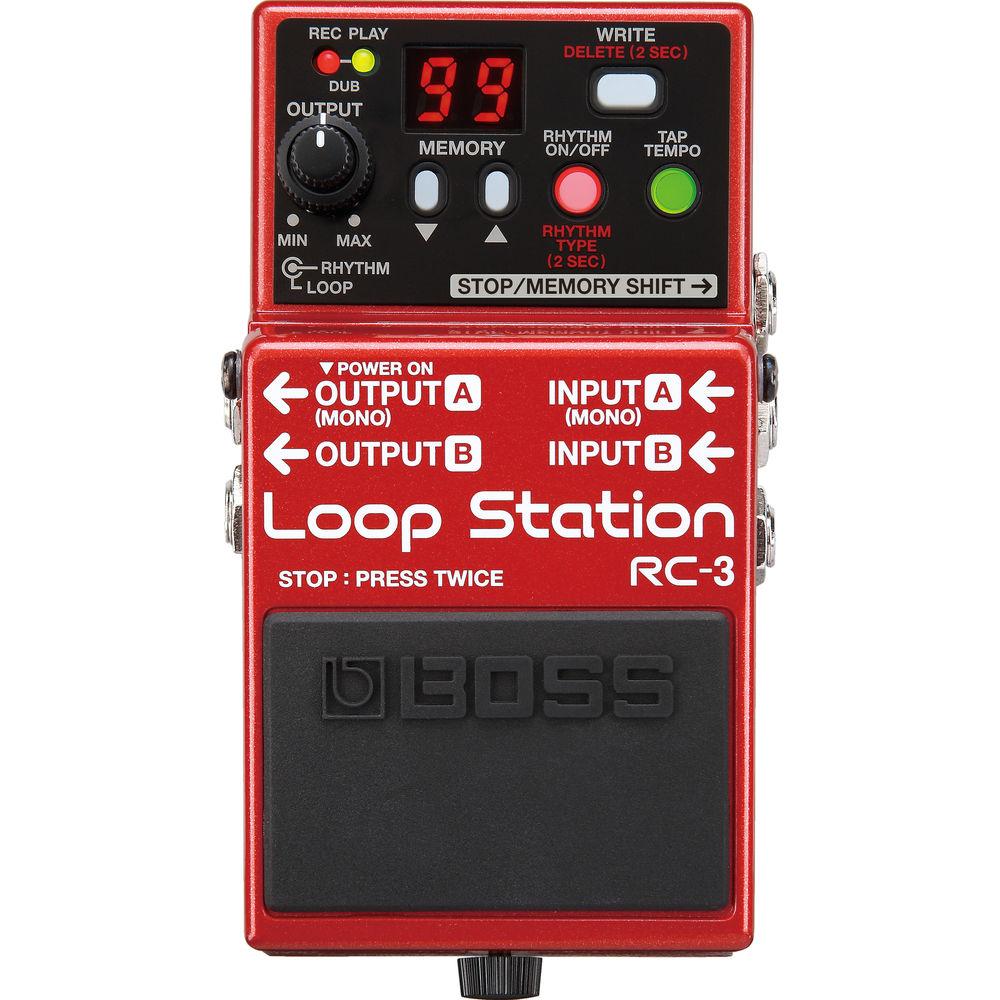

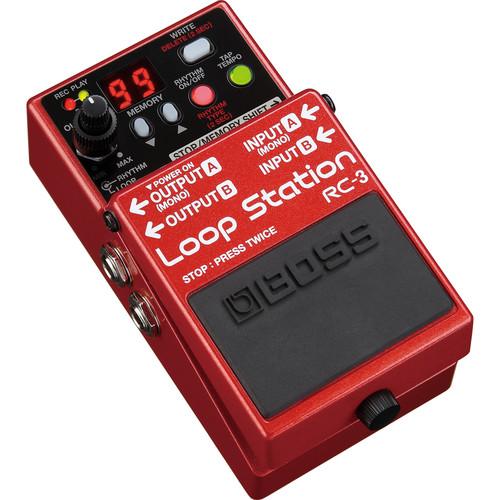

User Manual for BOSS RC-3 Loop Station Pedal Click to enlarge the picture
Contents of the user manual for the BOSS RC-3 Loop Station Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS RC-3 Loop Station Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description The RC-3 Loop Station Pedal from BOSS is a compact and powerful stereo stompbox looper with internal memory that runs on a single 9-volt battery or optional AC power supply, and allows up to three hours of stereo recording time. With 99 onboard memory slots for storing loops, a USB 2.0 port for transferring WAV audio to and from your computer, and a drum loop player including Rock, Pop, Funk, Shuffle, R&B, and Latin patterns, the RC-3 is a powerful tool for practice, composing and creating loop based effects such as ambient background textures. - AUX Input
- In addition to recording your guitar or bass performances and turning them into playable loops, you can also record other external stereo audio sources via the RC-3's AUX IN. Sound from a digital-audio player connected to the AUX input, for example, can easily be recorded and made into a loop
- Auto Record
- The Auto Recording feature starts recording the moment you begin playing your guitar, or as soon as you start a connected audio player. Count-In mode gives you one-bar of rhythm before recording starts. You can Undo/Redo as you go. The pedal allows for up to three hours of recording time
UPC: 761294500071 In the Box BOSS RC-3 Loop Station Pedal 9V Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS RC-3 Loop Station Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS RC-3 Specs | Nominal Input Level | INPUT: -20 dBu
AUX IN: -10 dBu | | Input Impedance | INPUT: 1 MOhm
AUX IN: 22 kOhms | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Recording/Playback | Maximum Recording Time: Approximately 3 hours
Maximum Phrase Memory: 99 phrases
Number of tracks: 1
Data Format: WAV (44.1 kHz, 16-bit linear, stereo) | | Rhythm Types | Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion | | USB Interface | Hi-Speed USB Mass Storage Device Class | | Current Draw | 70 mA (9 VDC) | | Controls | Pedal switch
LOOP OUTPUT knob
RHYTHM OUTPUT knob
DOWN button
UP button
WRITE button
RHYTHM ON/OFF button
TAP TEMPO button | | Indicators | REC, PLAY (DUB) indicators | | Display | 7 segments, 2 characters (LED) | | Connectors | INPUT A Jack: 1/4" phone type
INPUT B Jack: 1/4" phone type
AUX IN Jack: Stereo miniature phone type
OUTPUT A Jack: 1/4" phone type
OUTPUT B Jack: 1/4" phone type
STOP/MEMORY SHIFT Jack: 1/4" TRS phone type
USB Connector
DC IN Jack (9 VDC) | | Power Supply | 9 VDC: Alkaline battery (9V, 6LR61)
AC Adapter (PSA series: sold separately)
*Rechargeable Ni-MH batteries cannot be used | | Current Draw | 70 mA (9 VDC) | | Expected Battery Life | Alkaline battery (9 V, 6LR61): Approx. 3 hours under continuous use
*These figures will vary depending on the actual conditions of use | | Dimensions | 2.88 x 5.13 x 2.38" (73 x 129 x 59 mm) | | Weight | 1 lb (450 g) | | | | Package Weight | 1.38 lb | | Box Dimensions (LxWxH) | 6.05 x 3.75 x 2.8" |
