User Manual for BOSS RC-30 Loop Station Pedal Click to enlarge the picture
Contents of the user manual for the BOSS RC-30 Loop Station Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS RC-30 Loop Station Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

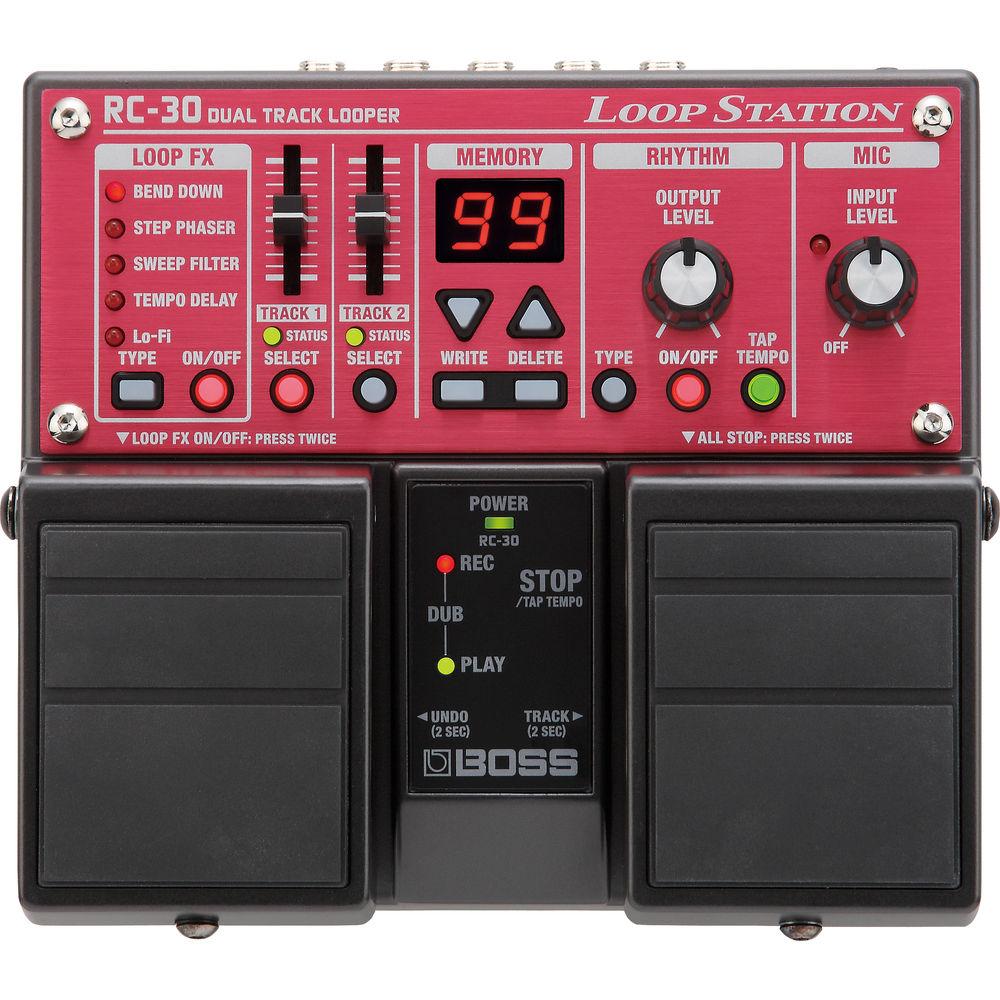

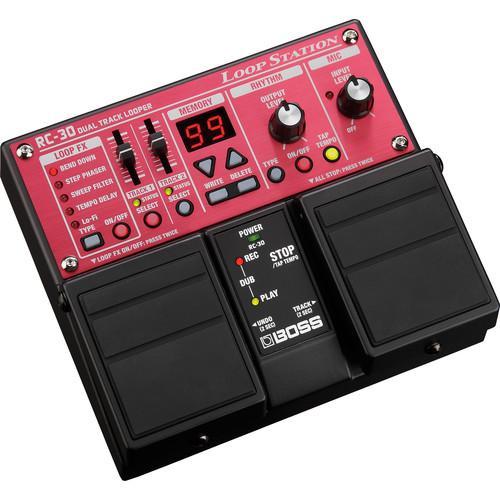

Product description Bring your looping to the next level with the BOSS RC-30 Loop Station Pedal which can loop not one, but two stereo signals, both of which can be individually manipulated. Sounds can be sampled from nearly any sound source using dual 1/4" inputs, an XLR input with 48V phantom power, or a stereo mini-jack input. The RC-30 has up three hours of looping time on internal memory. Loops and phrases can be exchanged with a computer by connecting to the built-in USB 2.0 port. Also built into the unit are effects that can be applied to your phrases, and drum beat patterns from different genres to help keep your rhythms intact. - Twin Stereo Loops
- Create and stack multi-layered loops with twin stereo tracks - each track being independently controllable with dedicated volume faders and track-select buttons. Creating loops is convenient with the Auto Recording feature, which starts recording the moment you begin playing your guitar, bass, keyboard, or singing, or as soon as you start a connected audio player. Count-In mode gives you one-bar of rhythm before recording starts. You can Undo/Redo as you go. The sky's the limit, with three hours of recording time!
- Onboard Effects
- BOSS includes a lineup of creative effects onboard the RC-30. Bend Down provides a dramatic pitch-bend effect. Step Phaser changes phase in incremental steps. Sweep Filter alters frequency in sync with the current tempo. Tempo Delay produces a tempo-synced delay effect. Lo-Fi intentionally degrades the sound to create a distinctive character. Dunk your loops in effects without the cost and hassle of adding external gear.
- Mic Input
- Vocalists can plug a microphone of their choice directly into the RC-30's XLR microphone input, complete with phantom power if you wish to use a condenser mic. Sing, overdub, and make multi-layered loops of your voice, create vocal sound-effects patterns, or point the microphone at your acoustic musical instruments, or anything that makes noise and turn it into a cool loop.
- Rhythm Guide
- To keep your loops tight and in time, play along with one of the basic rhythm patterns in the RC-30's onboard library as you record. Ten types of rhythm types are provided, including Rock, Pop, Funk, Shuffle, R&B, and Latin. A dedicated knob lets you adjust the volume of the rhythm, and you can set the tempo via tap tempo. You can also specify the time signature. When you save a phrase, the rhythm type and time signature will also be saved.
- USB Connectivity
- You can connect the RC-30 to your computer via a standard USB cable, and back up your RC-30 phrases to your computer for safekeeping. You can also load WAV files from your computer directly into the RC-30. The RC-30 accepts 16-bit/44.1 kHz WAV files of up to 1.7GB in size.
- AUX Input
- In addition to recording your instrument performances and turning them into playable loops, you can record other external stereo audio sources via the AUX IN. Sound from a digital-audio player or other device connected to the AUX input can easily be recorded and added to your loop.
- Classic BOSS Design
- The RC-30 can run off of a six AA batteries or an optional external 9 VDC power supply. The electronics are encased in BOSS's iconic durable dual-pedal metal housing with a non-slip rubber base. This pedal utilizes a buffered bypass for silent switching and driving long cable runs even while the pedal is disengaged.
UPC: 761294406427 In the Box BOSS RC-30 Loop Station Pedal 6 x AA Batteries Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS RC-30 Loop Station Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

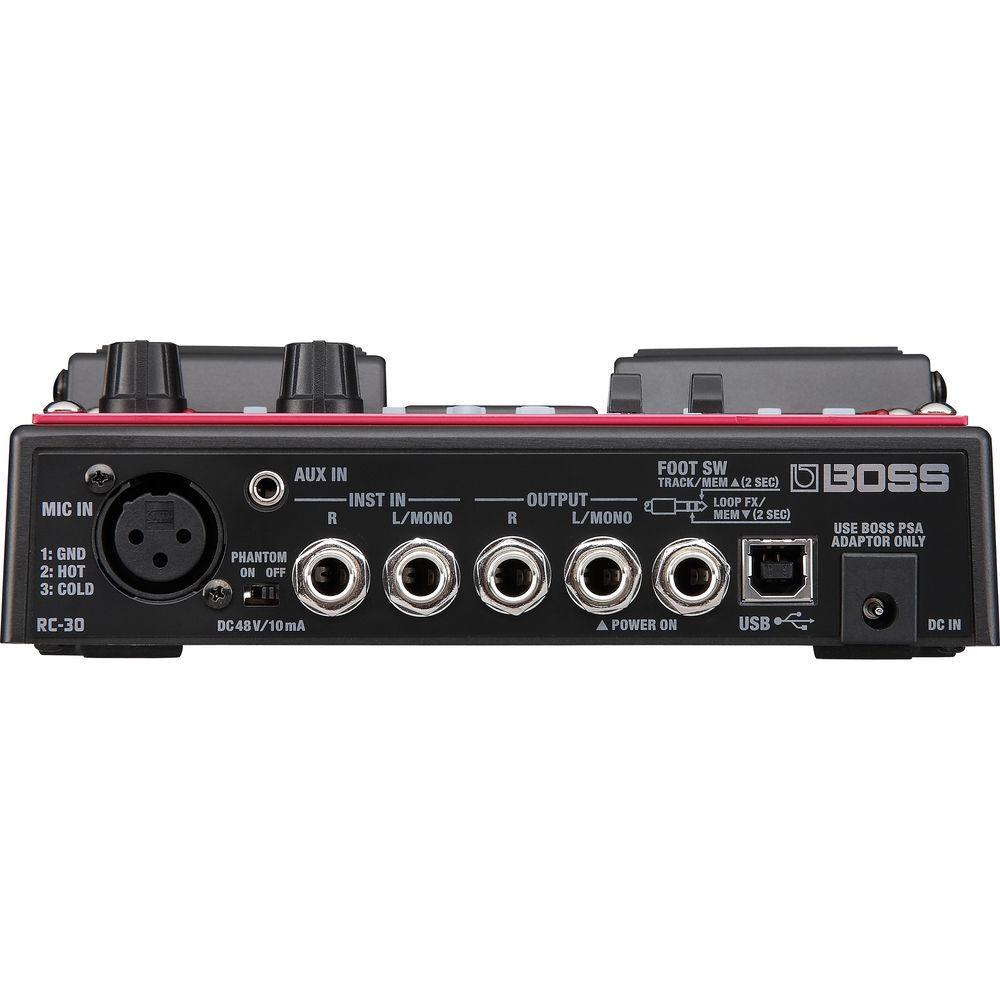

Technical parametersBOSS RC-30 Specs | Inputs | 1 x balanced XLR with 48 V phantom power
2 x unbalanced 1/4" instrument TS
1 x 3.5 mm mini aux jack
1 x 1/4" footswitch jack | | Nominal Input Level | Mic: -40 dBu (variable)
Instrument: -20 dBu
Aux: -10 dBu | | Input Impedance | Mic: 4 kOhm
Instrument: 1 mOhm
Aux: 22 kOhm | | Outputs | 2 x unbalanced 1/4" instrument TS | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Digital I/O | 1 x USB 2.0 (hi-speed mass storage) | | Recording and Playback | Max Recording Time: 3 hours (approx)
Max Phrase Memory: 99 phrases
Number of Tracks: 2 (stereo)
Data Format: WAV (44.1 kHz, 16-bit linear, stereo) | | Rhythm Types | Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R&B, Latin, Percussion | | Effect Types | BEND DOWN, STEP PHASER, SWEET FILTER, TEMPO DELAY, Lo-Fi | | Power Supply | 9 VDC:
6 x Alkaline (AA, LR6) or Carbon-zinc battery (AA, R6)
Optional AC Adapter (PSA-Series, available separately)
*Rechargeable Ni-MH batteries cannot be used | | Battery Life (approx.) | Alkaline Battery: 7.5 hours
Carbon-Zinc Battery: 1.5 hours
*These figures will vary depending on the actual conditions of use | | Current Draw | 195 mA @ 9 VDC | | Display | 7 segments, 2 characters (LED) | | Dimensions | 6.8 x 6.3 x 2.3" / 173 x 158 x 57 mm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 9.055 x 7.559 x 3.622" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
