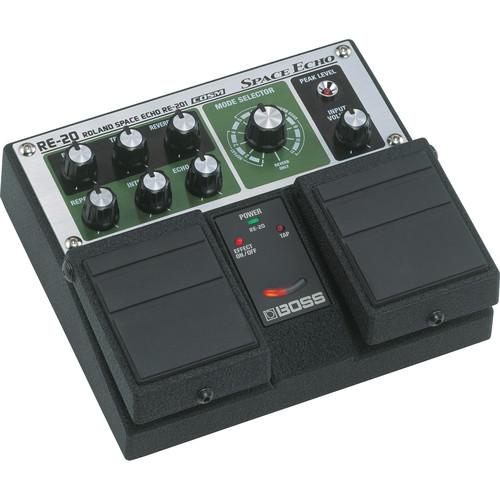

Product description Modeled after the legendary Roland RE-201 using COSM (Composite Object Sound Modeling), the BOSS RE-20 Space Echo Pedal achieves the same warm echo sound, but without the clunky form factor or rigorous maintenance of a real tape echo. The RE-20 maintains the signature tape "wow" and "flutter" sounds of the RE-201, as well as the input saturation and reverb applied to the echoes. While the sound is vintage, the functionality is not. Sounds can be manipulated in real time using the tap-tempo function or a separately available expression pedal like the Roland EV-5. 11 modes are available via the Mode Selector switch, varying the combination of reverb and echo, as well as offering reverb only. The RE-20 can operate in mono or stereo signal chains with its dual 1/4" inputs and outputs. Front panel controls include Input Volume, a Mode Selector, Echo Volume, Intensity, Repeat Rate, Bass, Treble, and Reverb Volume. - Simulates the famous Roland RE-201 with the spacious, analog tone of the original Space Echo
- Faithful modeling of the RE-201's tape flutter and magnetic head sound saturation
- Tap input pedal allows delay time to be set by foot
- Longer delay time than the original RE-201
- Control parameters such as Repeat Rate, Intensity, and more via expression pedal
- Mode Selector knob with 12 placements just like the original Space Echo
- Repeat Rate and Delay Time Modes
- The RE-20 features two modes to select from:
- Normal Mode: The Repeat Rate knob functions over the same range as the RE-201. Additionally, the maximum value that can be set for the tap delay time is three seconds (when the Mode Selector knob is set to the 3 or 7 position)
- Long Mode: The range for the Repeat Rate knob setting is expanded to twice the normal setting. Additionally, the maximum value that can be set for the tap delay time is six seconds (when the Mode Selector knob is set to the 3 or 7 position)
- Rugged Design with Flexible Power Options
- The RE-20 can run off of six AA batteries or an optional external 9 VDC power supply. The electronics are encased in a durable dual-pedal metal housing with a non-slip rubber base. This pedal utilizes a buffered bypass for silent switching and driving long cable runs, even while the pedal is disengaged
UPC: 761294403709 In the Box BOSS RE-20 Space Echo Pedal 6 x AA Batteries Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS RE-20 Space Echo Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS RE-20 Specs | Inputs | 2 x unbalanced 1/4" instrument TS
1 x 1/4" expression pedal | | Nominal Input Level | -20 dBu (INPUT VOLUME knob: center), max +4 dBu | | Outputs | 2 x unbalanced 1/4" instrument TS | | Nominal Output Level | -20 dBu | | Recommended Load Impedance | 10 kOhms or greater | | Display | Virtual Tape Display | | Controls | EFFECT ON/OFF pedal
TAP pedal
BASS knob
TREBLE knob
REVERB VOLUME knob
REPEAT RATE knob
INTENSITY knob
ECHO VOLUME knob
MODE SELECTOR knob
INPUT VOLUME knob
DIRECT switch | | Indicators | POWER (also serves as battery check indicator)
PEAK LEVEL
EFFECT ON/OFF
TAP | | Power Supply | 9 VDC:
6 x Dry battery LR6/R6 (AA) type
Optional AC Adapter (PSA series) | | Battery Life | Alkaline: 32 hours (approximate)
Carbon: 9 hours (approximate)
(These figures will vary depending on the actual conditions of use) | | Current Draw | 75 mA | | Dimensions | 6.8 x 6.3 x 2.3" / 173 x 158 x 57 mm | | Weight | 2.7 lb / 1.2 kg | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 9.055 x 7.559 x 3.465" |
