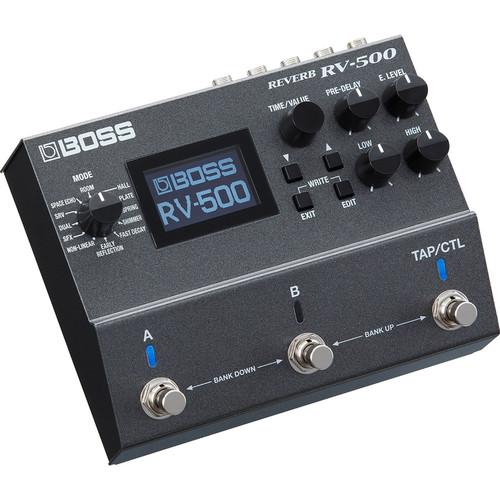

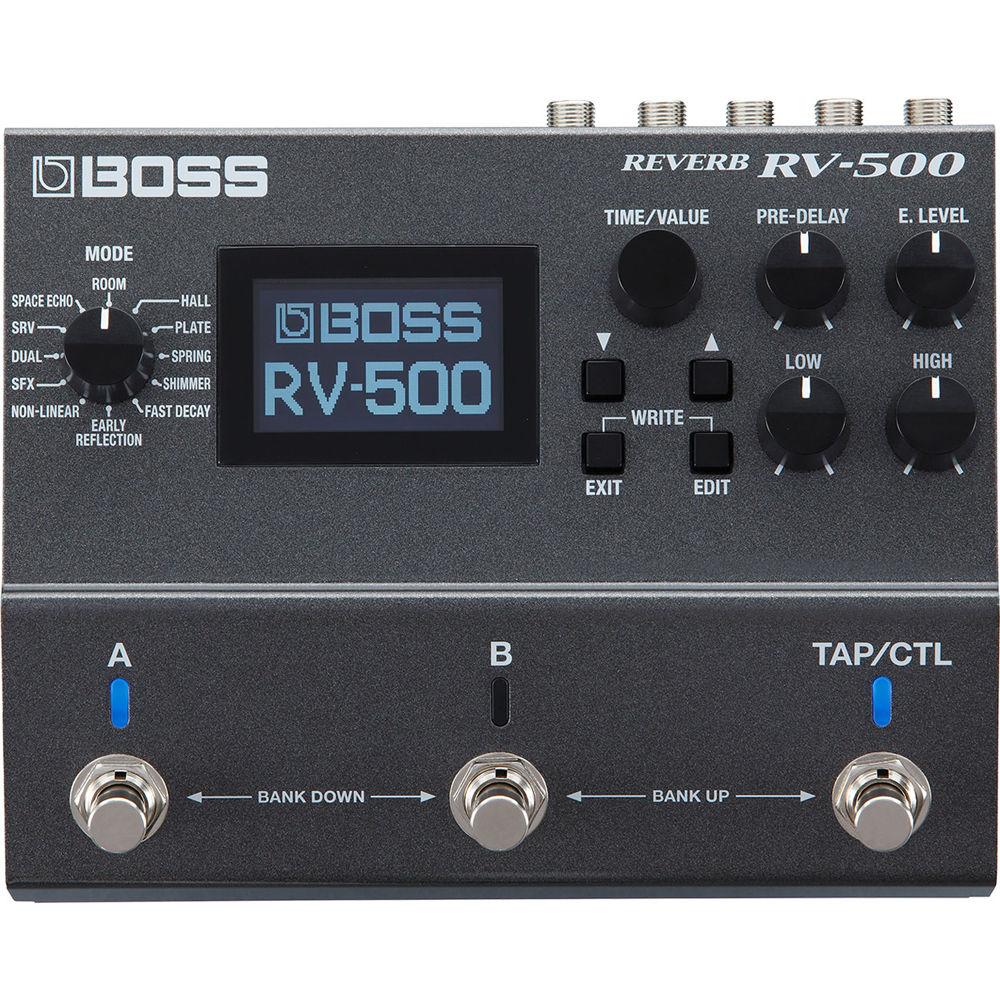

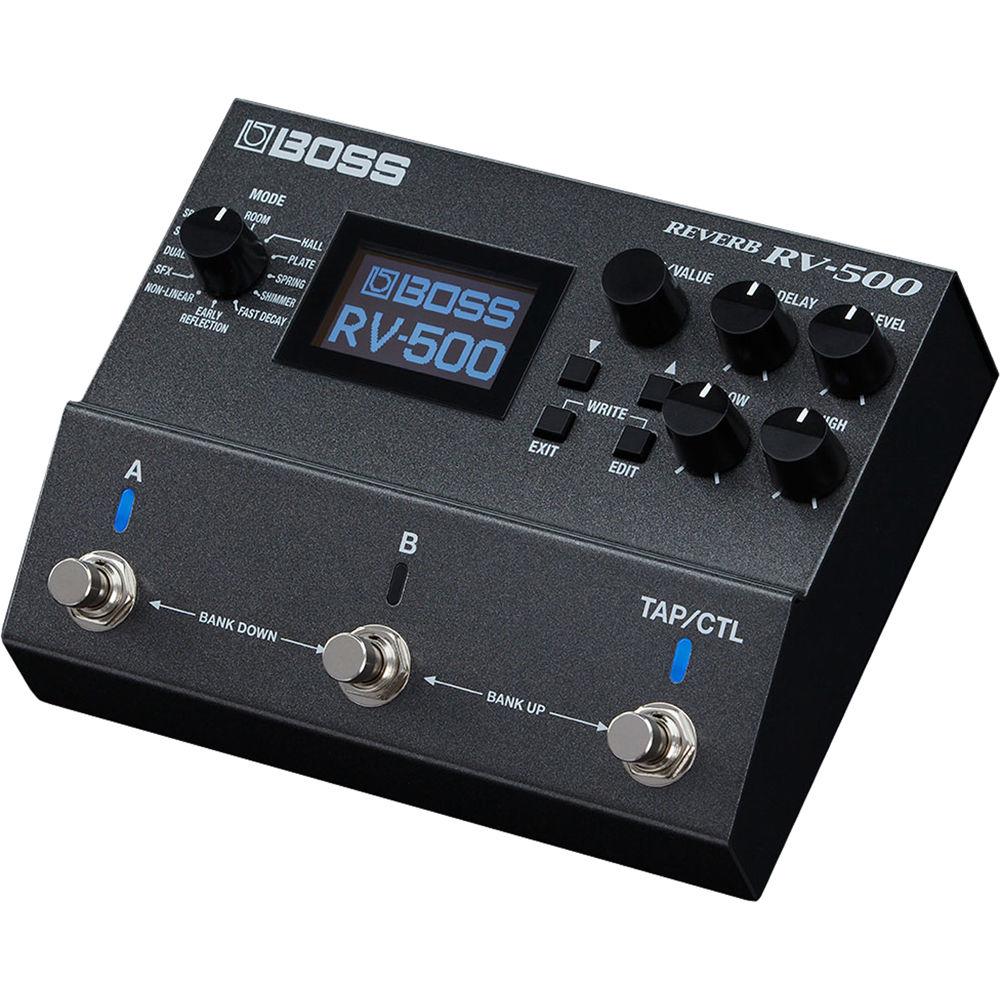

Product description New Products from Roland and BOSS for Music Producers and Musicians Read More acrertwbdc Put 21 different reverb effects under your feet with the BOSS RV-500 pedal, intended primarily for electric guitar. Rooms, halls, plates, springs, it’s all here, alongside more esoteric processes, such as octavized shimmering, as well as the characterful Lo-Fi, Slowverb, and Storm. Classic Roland units have also been emulated, such as Space Echo (the RE-201), and SRV, based on the SRV-2000, a popular unit in the 1980s. The RV-500 provides its sound using 32-bit AD/DA conversion, 32-bit floating-point processing, and sampling rates of 96 kHz.With a panoply of parameters in every effects type, you’ll be able to control your tone to an extensive and deep degree. In addition to dedicated panel knobs for pre-delay, effect level, and tone, you’ll also be able to perform extensive editing via the LCD screen and quadrumvirate of push-buttons. A tap tempo/control footswitch offers more in the way of on-the-fly manipulation. A and B footswitches not only provide bank selection tools—they also give you the ability to engage two reverb as once in a variety of modes (series, parallel, and parallel to different amps/destinations come to mind).In terms of I/O, the RV-500 gives you a bevy of possibilities, what with its dual inputs for stereo instruments, dual outputs, expression/control jack, and MIDI I/O. All in all, you’ll find 297 built-in patch memories in the unit itself, though you can also interface via USB with Editor/Librarian software on your computer for remote editing, storing your custom patches, and more. This pedal runs on four AA batteries, or by means of a power adapter, available separately. - A/B Simul Mode and Independent Delay
- By means of its DSP engine, the RV-500's Dual mode provides two independent reverbs at once; you can feed them both with a full-range input, or with divided frequency ranges on each input to build rich, multi-range sounds. And when you employ A/B Simul mode, you can use any two RV-500 reverb patches at the same time, with your choice of series or parallel connection order and mixed or split A/B output. What's more, each patch also includes a digital delay with a full set of parameters including modulation and EQ, plus the ability to set the reverb and delay effects for series or parallel operation on a per-patch basis.
- Intensive Real-Time Control
- The RV-500 offers freely assignable switches and extensive real-time controls. By default, the A, B, and TAP/CTL switches offer control for patch/bank selection and bypass, plus tap tempo or real-time adjustment of one or more parameters. However, the switches can be customized to access three different mod patches, A/B Simul mode, and other functions. Via the rear-panel CTL 1,2/EXP jack, you can plug in up to two footswitches for further control, or an expression pedal to adjust wah, effect rate, and other parameters. MIDI I/O is also included, enabling further creative possibilities with advanced setups.
- Key Features at a Glance
-
- Effects delivered with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sample rate
- 12 modes and 21 modulation types, all with extensive editing parameters
- Wide range of reverbs, including emulations of notable Roland units
- A/B Simul mode for using two patches at once, with your choice of series/parallel connection, mixed, or split A/B output
- Selectable carryover function allows reverb tails to continue with patch change or effect bypass
- DSP provides independent digital delay with modulation along with each reverb patch
- Graphic LCD and intensive real-time control options
- 297 onboard patch memories and hands-on controls
- Selectable buffered-bypass or true-bypass operation
- MIDI I/O for interfacing with MIDI control devices
- USB-MIDI for connecting to the MD-500 Editor/Librarian or a DAW
- Runs on four AA-size batteries or PSA-series AC adapter (available separately)
- RV-500 Modes and Algorithms
-
- Room: Small, medium, large, and ambience
- Hall: 3 different hall sizes
- Plate: Classic studio-style reverberation
- Spring: Choose from one to three springs
- Shimmer: 2 voices of pitch-shifted reverb
- Fast Decay: Esoteric reverb with quick decay for increased clarity
- Early Reflection: 4 types with envelope parameters to shape sound in a quirky manner
- Non-Linear: Includes gate, reverse, and granular types
- SFX: 3 characterful reverb types for special effects called Lo-Fi, Slowverb, and Storm
- Dual: 2 independent reverbs that can accept a full-range or frequency-divided input
- SRV: Recreates the Roland SRV-2000, a classic rack reverb from the 1980s
- Space Echo: Recreates the Roland RE-201 Space Echo, a coveted tape-echo unit
UPC: 761294511268 In the Box BOSS RV-500 Reverb Pedal 4 x AA Batteries Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Switches Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS RV-500 Reverb Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS RV-500 Specs | Sampling Frequency | 96 kHz | | AD/DA Conversion | 32-bit | | Processing | 32-bit floating point | | Modes | 12x (room, hall, plate, spring, shimmer, fast decay, early reflection, non-linear, SFX, dual, SRV, space echo) | | Memory | 198 (2 x 99 banks, segmented into A and B categories)
297 (3 x 99 banks, segmented into A, B, and C categories) | | Nominal Input Level | -10 dBu | | Maximum Input Level | 8 dBu | | Nominal Output Level | -10 dBu | | Maximum Output Level | 8 dBu | | Impedance | Inputs: 1 MOhm
Outputs: 2 kOhms
| | Recommended Load Impedance | Outputs: 20 kOhms or greater | | Controls | A Switch
B Switch
TAP/CTL Switch
DOWN Button
UP Button
EXIT Button
EDIT Button
MODE Knob
TIMEVALUE Knob
PRE-DELAY Knob
E.LEVEL Knob
LOW Knob

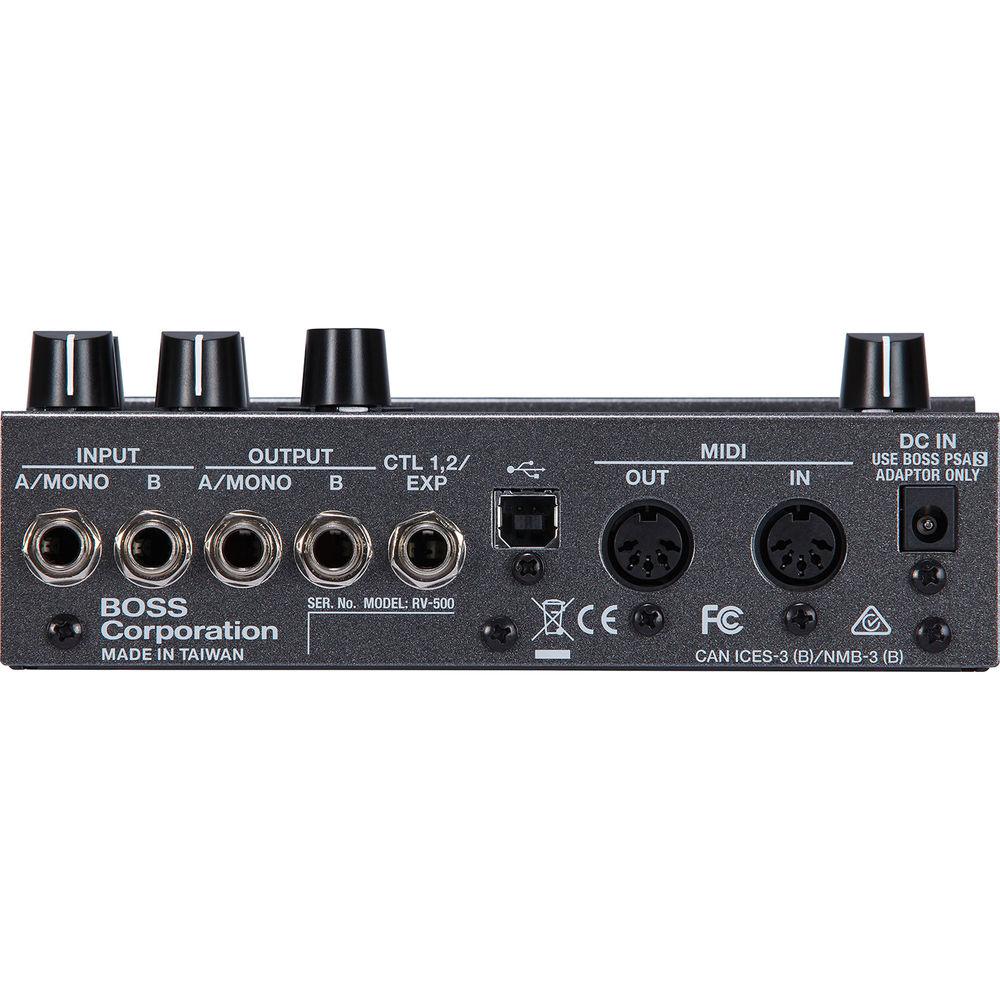

HIGH Knob | | Bypass | Buffered or true (with relays) | | Display | Graphic LCD (128 x 64 dots, backlit LCD) | | I/O | 2 x 1/4" Input jack, phone type
2 x 1/4" Output jacks, phone type
1 x 1/4" TRS CTL1, 2/EXP2 jack, phone type
1 x USB Type-B computer port
1 x 5-Pin DIN MIDI Input
1 x 5-Pin DIN MIDI Output
1 x DC input jack for power | | Power Supply | 4 x AA batteries (LR6), AC adapter (available separately) | | Current Draw | 225 mA | | Expected Battery Life | Alkaline: approximately 4.5 hours, depending on condition of use | | Dimensions (W x D x H) | 6.7 x 5.4 x 2.4" / 17.0 x 13.8 x 6.2 cm | | Weight | 2.2 lb / 1.0 kg (including battery) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 9.9 x 7.8 x 4.5" |
