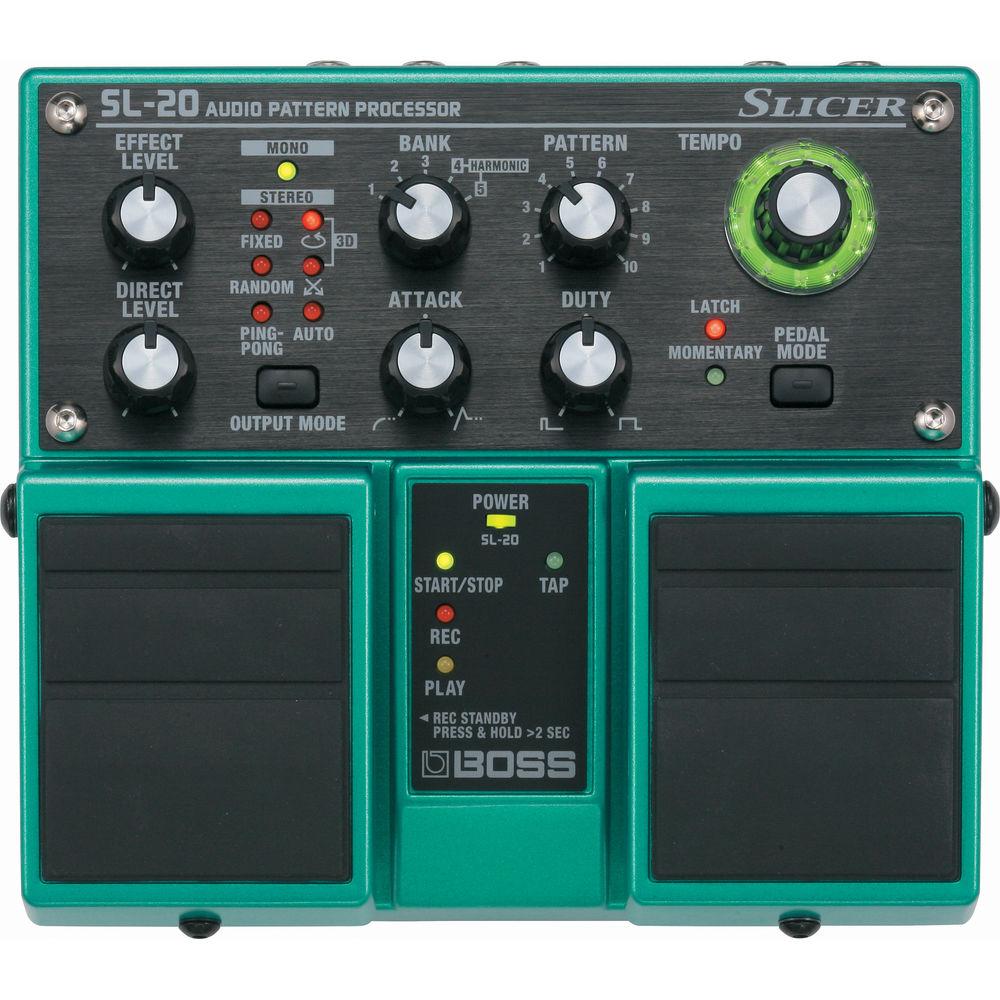

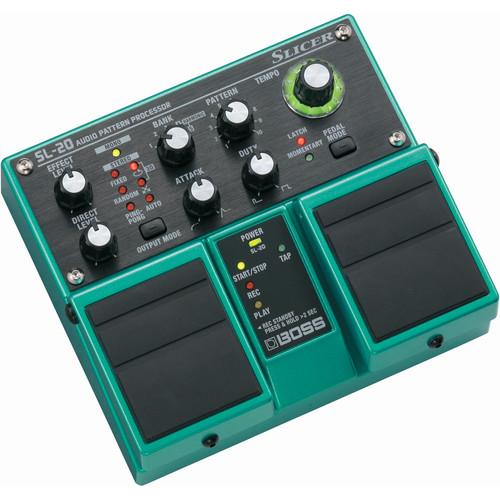

User Manual for BOSS SL-20 Slicer Pedal Click to enlarge the picture
Contents of the user manual for the BOSS SL-20 Slicer Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
 |
User manual for the BOSS SL-20 Slicer Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|
Product description Create exciting rhythmic mayhem with the BOSS SL-20 Slicer. The Slicer is a percussive melody generator which can use one of 50 Slice patterns at a tempo you select to create guitar sounds with a serious groove. Using the stereo outputs, those sounds can be expanded further for spacious panned effects. Tempo can be selected via tapping the footswitch or with a MIDI clock sync. An external expression pedal can be plugged in to control attack, duration, effect level, and direct level for varying your performance. - Groove and Melody Maker
- The SL-20 transforms your music into percussive "chopped" grooves. Fifty rhythmic patterns are onboard, with adjustable note attack and duration, plus Harmonic Slice effects. Create high-energy patterns onstage in real-time, or use the SL-20 as a songwriting and recording tool. You can also play the sliced sounds in realtime while capturing them with Loop Record
- Flexible Control
- An internal tap-tempo feature is included, as well as the ability to sync to an external MIDI clock. Sound characteristics of the SL-20 such as attack, duration, effect level, and direct level can be controlled by the onboard knobs or from an external expression pedal
- Universal Effect
- The SL-20 is great for guitarists, but it's equally useful for other instrumentalists as well. Plug in a bass, keyboard, portable music player, or any other instrument or music-playback device. DJs and dance-music artists can also incorporate the SL-20 as a rhythmic-performance tool live and in the studio
- Rugged Design with Flexible Power Options
- The SL-20 can run off of six AA batteries or an optional external 9 VDC power supply. The electronics are encased in a durable dual-pedal metal housing with a non-slip rubber base. This pedal utilizes a buffered bypass for silent switching and driving long cable runs, even while the pedal is disengaged
UPC: 761294406199 In the Box BOSS SL-20 Slicer Pedal 6 x AA Batteries Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS SL-20 Slicer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

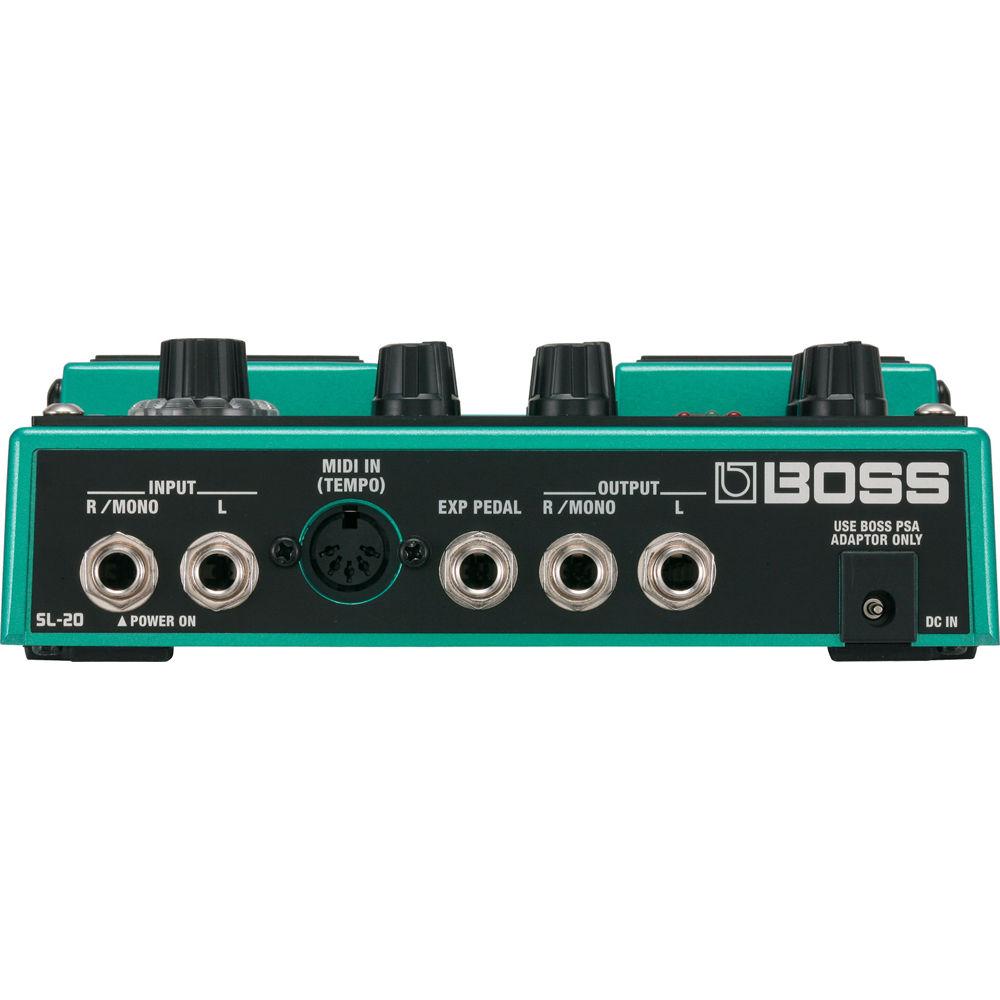

Technical parametersBOSS SL-20 Specs | Inputs | 2 x unbalanced 1/4" instrument TS
1 x 1/4" expression pedal jack | | Nominal Input Level | Instrument: -20 dBu | | Input Impedance | 1 MOhm | | Outputs | 2 x unbalanced 1/4" instrument TS | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Tempo | 30-250 BPM | | Maximum Recording Time | 40 seconds | | Controls | START/STOP pedal
TAP pedal
EFFECT LEVEL knob
DIRECT LEVEL knob
BANK knob
PATTERN knob
ATTACK knob
DUTY knob
TEMPO knob
OUTPUT MODE button
PEDAL MODE button | | Indicators | POWER (also serves as the battery check indicator)
START/STOP
REC
PLAY
TAP
MONO
FIXED
RANDOM
PING-PONG
AUTO
3D PANNNER
3D CROSS
LATCH
MOMENTARY
TEMPO | | Power Supply | 9 VDC:
Dry battery, 6x AA (LR6/R6)
Optional AC Adapter (PSA-Series, available separately) | | Current Draw | 110 mA @ 9 VDC | | Dimensions | 6.8 x 6.3 x 2.3" / 173 x 158 x 57 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 9.055 x 7.638 x 3.386" |
