User Manual for BOSS SYB-5 Bass Synthesizer Pedal Click to enlarge the picture
Contents of the user manual for the BOSS SYB-5 Bass Synthesizer Pedal
- Product category: Effects Pedals BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Effects Pedals
|
User manual for the BOSS SYB-5 Bass Synthesizer Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

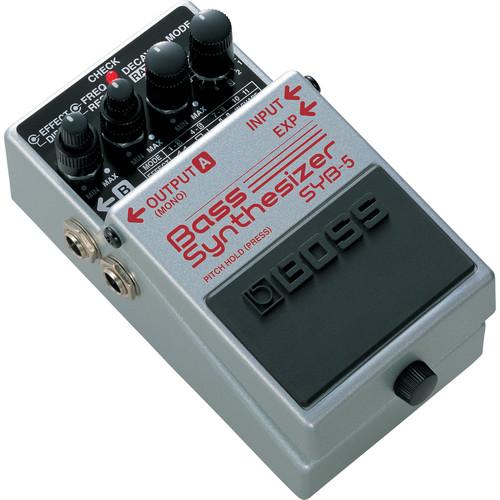

Product description Delivering a sound made popular by funk music and related styles, the BOSS SYB-5 Bass Synthesizer Pedal is a full-featured bass synth in a rugged compact pedal. The unit incorporates a dual-system bass synthesizer which creates sounds in two different ways, and eleven modes comprised of variations on four different waveforms give you a wide variety of synth tones, each of which can be modulated according to the envelope and LFO settings you apply. You can also plug in an optional expression pedal (sold separately) to control parameters while you actually play the bass, which adds an additional dimension of expression to your playing.
Another useful feature of the SYB-5 is the Hold function. By depressing and holding the pedal while playing a note, you can hold the synth note as long as you hold the pedal down. Then you can solo or play additional parts over the synth tone accompaniment. In addition, the SYB-5 can be used with mono or stereo output. In the stereo output mode, the effect sound and direct sound can be output separately to two different amplifiers. An optional expression pedal (sold separately) can be connected to switch sounds while you're playing. Housed in the durable steel chassis BOSS is famous for, the SYB-5 operates with a single 9V battery or a PSA-series 9 VDC power supply. - Saw, Square, and Pulse Synth Waves
- Eleven different permutations of these waveforms give you a solid foundation of synth options to tweak
- Stereo Output
- Stereo output for plugging into multiple amps at once
- Sound Hold Function
- Keep the pedal depressed for a continuous synth note, as you jam on top of it
- Expression Pedal Input
- For increased control of the SYB-5, plug an optional expression pedal into the EXP jack. You can now modulate the synth tone with your foot as you jam for a more expressive playing experience
UPC: 761294086520 In the Box BOSS SYB-5 Bass Synthesizer Pedal 9V Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS SYB-5 Bass Synthesizer Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS SYB-5 Specs | Nominal Input Level | -20 dBu | | Input Impedance | 1 MOhm | | Nominal Output Level | -20 dBu | | Output Impedance | 1 kOhm | | Recommended Load Impedance | 10 kOhms or greater | | Residual Noise | -96 dBu (IHF-A, Typ.); all knobs at center position | | Connectors | Input jack, Output A (MONO) jack, Output B jack, EXP jack, AC adapter jack (DC 9 V) | | Power Supply | DC 9 V: Dry battery / 9 V type (6F22 (carbon), 6LR61 (alkaline)), AC Adapter (PSA-series: optional) | | Current Draw | 50 mA (DC 9 V) | | Dimensions | 2.9 x 5.13 x 2.4" (73 x 129 x 59 mm) | | Weight | 1 lb (440 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.906 x 3.701 x 2.52" |
