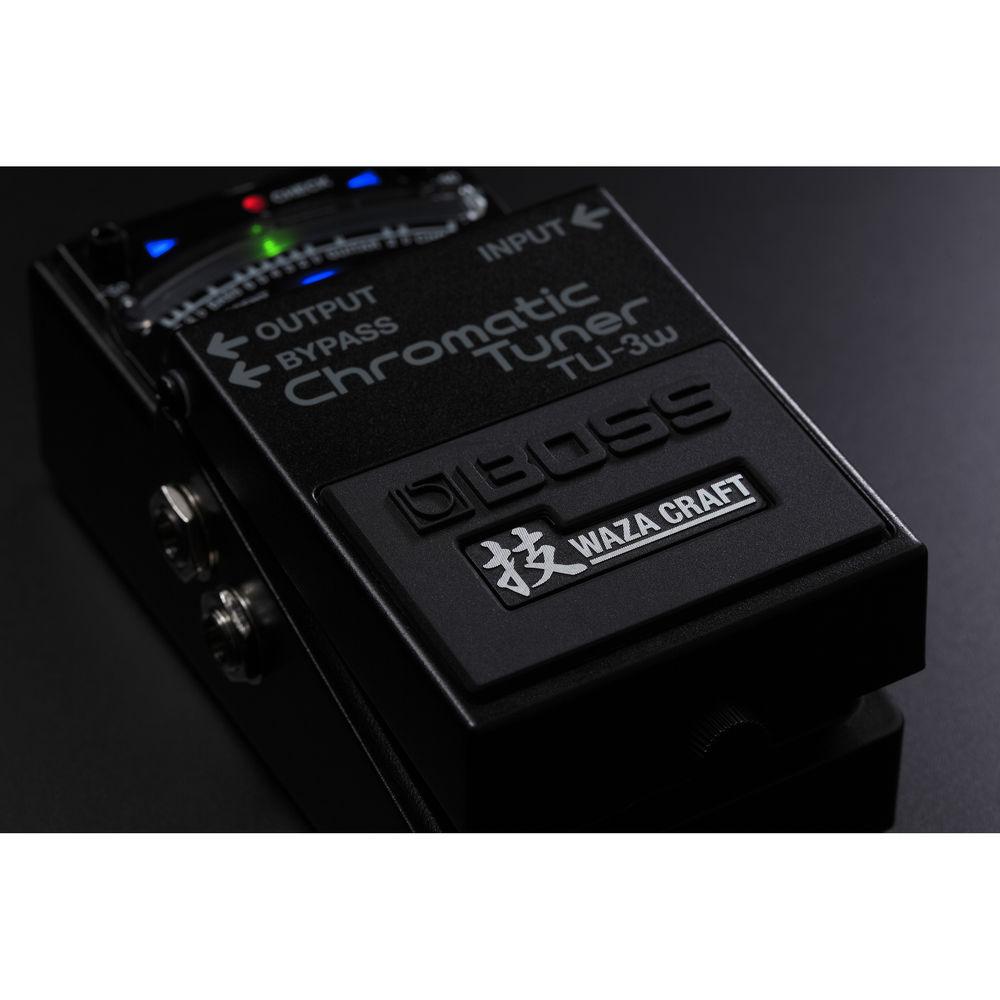

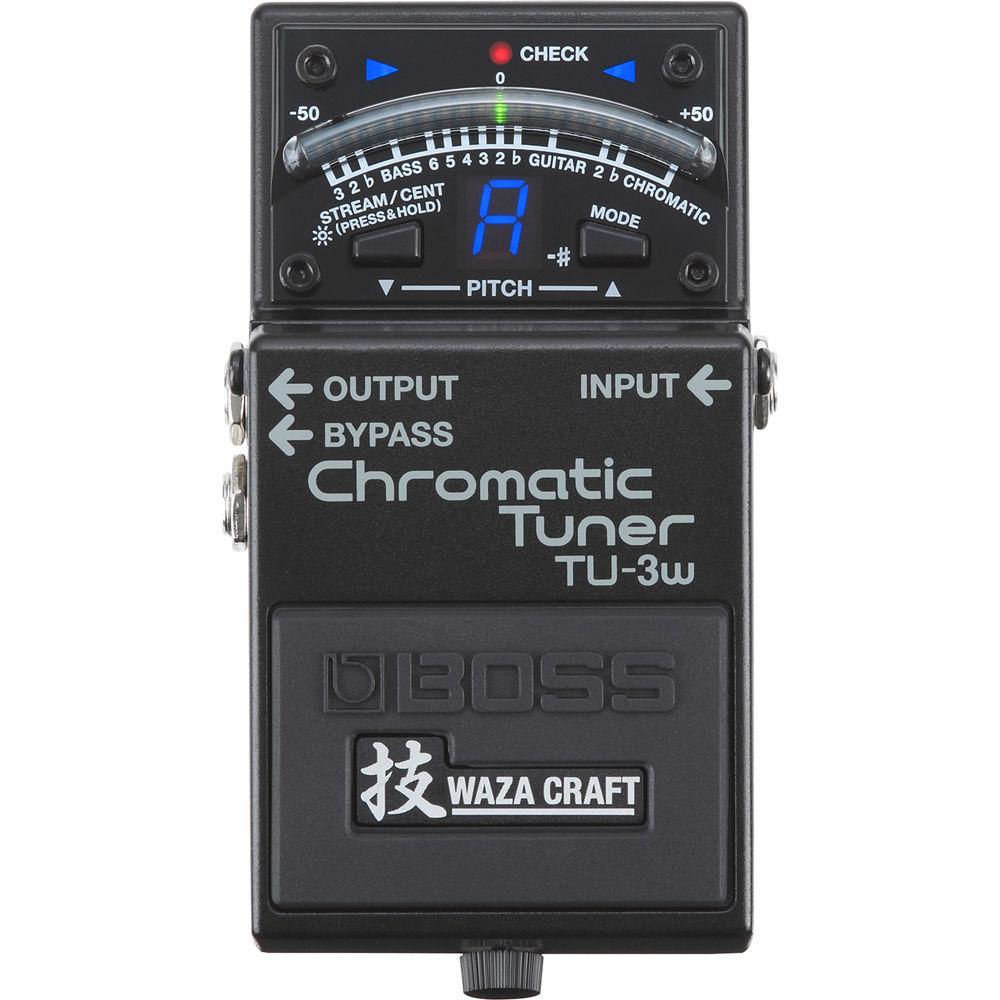

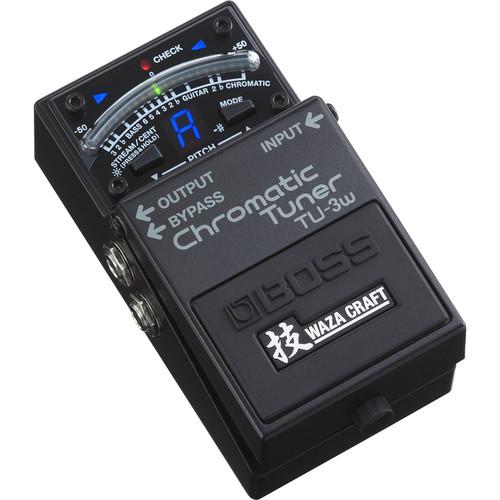

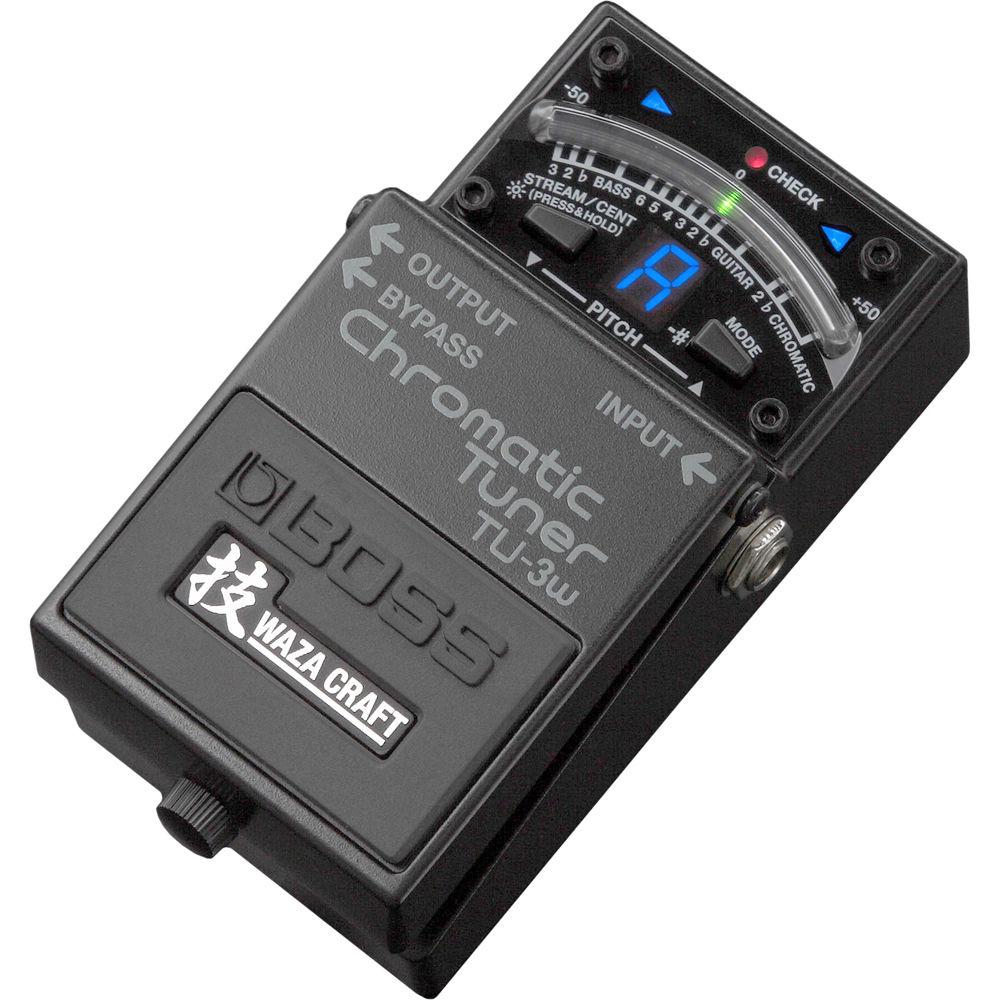

Product description With the TU-3W Chromatic Tuner, Boss offers a stompbox tuner from the Waza Craft series, which aims to provide high-quality tone and touch response by using analog components in the circuit design. Boss designed the tuner to deliver industry-standard tuning with +/-1 cent tuning accuracy and a transparent signal transfer.
The TU-3W features selectable buffered or true-bypass operation. The signal buffer decreases tone-sucking, essential when using long instrument cables or gargantuan pedal setups, while true-bypass mode enables your signal to pass through the pedal without an added electrical footprint.

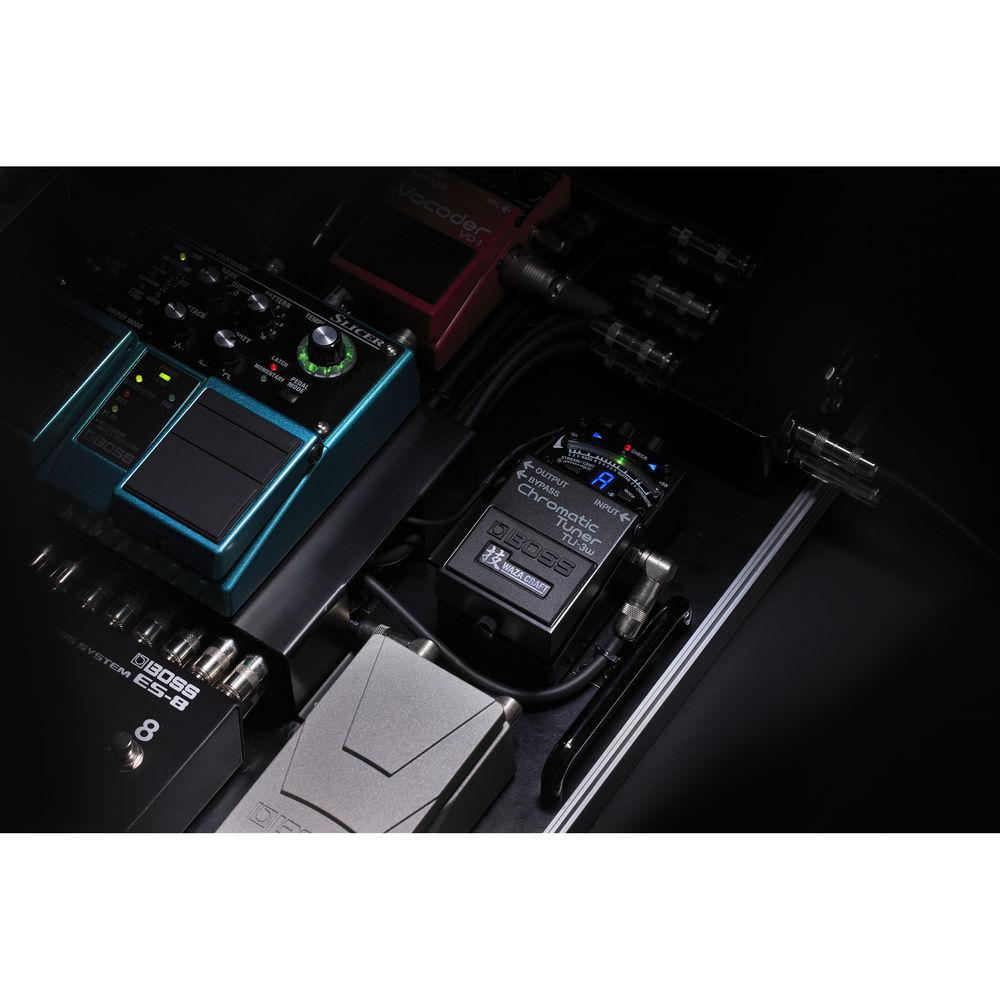

With the TU-3W's DC output, you can daisy chain pedals for power to help minimize your rig's number of wall warts. The tuner takes up the same amount of real estate as most standard Boss pedals and runs on a 9V battery (included), or a power supply (available separately). -
- +/-1 cent tuning accuracy
- Waza Craft series
- Circuit design includes analog components
- Signal buffer for maintaining tone throughout the signal chain
- True-bypass mode for pure signal passage
- Can provide power for other Boss pedals through DC output
UPC: 761294510452 In the Box BOSS TU-3W Chromatic Tuner 9V Alkaline Battery (6LR61) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS TU-3W Chromatic Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS TU-3W Specs | Tuning Range | C0 (16.35 Hz) - C8 (4.18 kHz) | | Reference Pitch | A4 = 436-445 Hz (1 Hz steps) | | Tuning Accuracy | +/-1 cent | | Modes | Chromatic
Chromatic flat x 2
Guitar
Guitar flat x 2
Bass

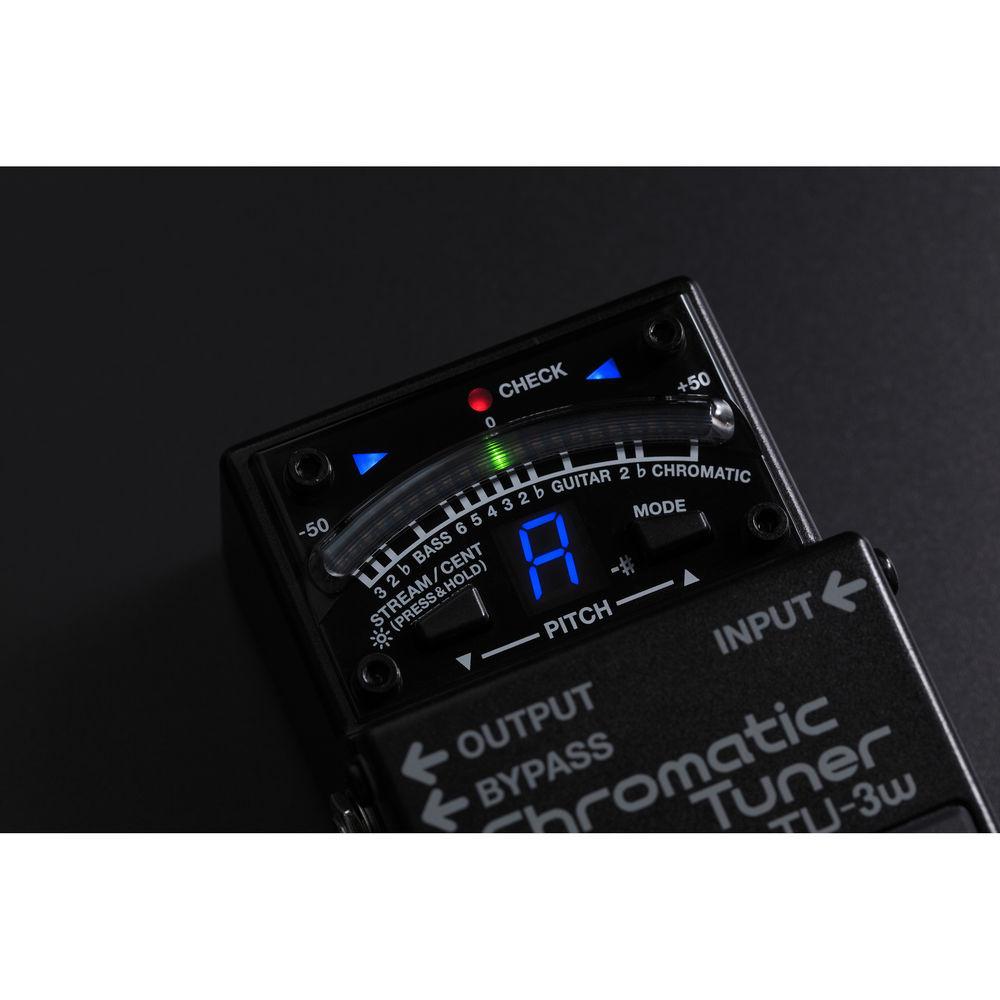

Bass flat x 3 | | Display Mode | Cent
Stream | | Bypass | Buffered bypass or true bypass | | Controls | Pedal switch

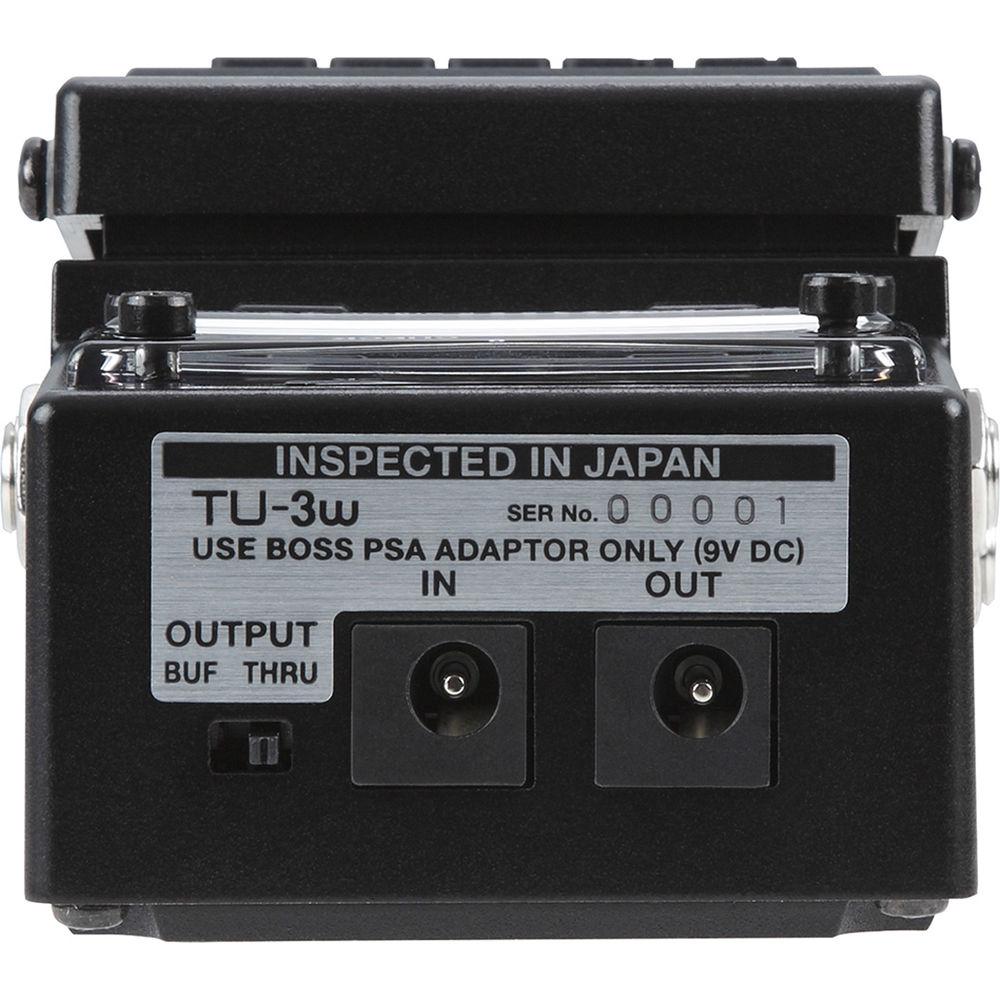

Output switch (buffer/thru)
Mode button
Stream/cent button | | Nominal Input Level | -20 dBu | | Input Impedance | 1 MOhm | | Nominal Output Level | -20 dBu | | Ouput Impedance | 1 kOhm | | Recommended Load Impedance | ≥10 kOhms | | Indicators | Tuning check (serves also as battery check) | | Jacks | Input
Output
DC in
DC out | | Current Draw | 60 mA (9 VDC)
110 mA (9 VDC, when in High Brightness mode) | | Battery Life (approx.) | Alkaline: 6 hours
Carbon: 0.5 hours | | Power Options | 1 x 9 V alkaline battery (6LR61) or 9 V carbon-zinc battery (6F22)
AC adaptor: PSA series (sold separately)
Parallel DC cord: PCS-20A (8 terminals) (sold separately) | | Dimensions (W x D x H) | 2.9 x 5.1 x 2.4" / 73 x 129 x 59 mm | | Weight (with battery) | 1 lb / 460 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 5.9 x 3.7 x 2.8" |
