BOSS VE-2 Vocal Harmonist

Search your instruction manual in PDF to download

User Manual for BOSS VE-2 Vocal Harmonist

Click to enlarge the picture
BOSS VE-2 Vocal Harmonist Contents of the user manual for the BOSS VE-2 Vocal Harmonist
  • Product category: Effects Pedals BOSS
  • Brand: BOSS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BOSS Effects Pedals

BOSS VE-2 Vocal Harmonist BOSS VE-2 Vocal Harmonist BOSS VE-2 Vocal Harmonist
User manual for the BOSS VE-2 Vocal Harmonist contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BOSS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!



Product description

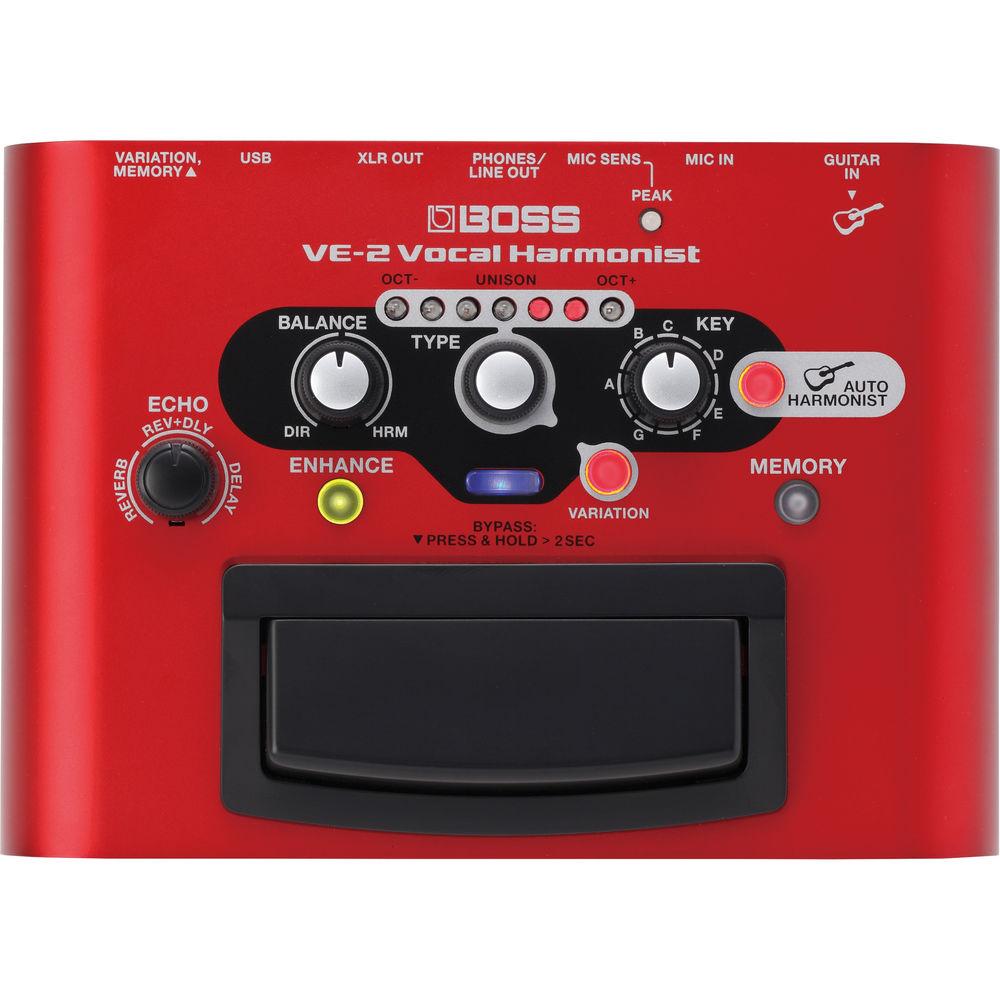

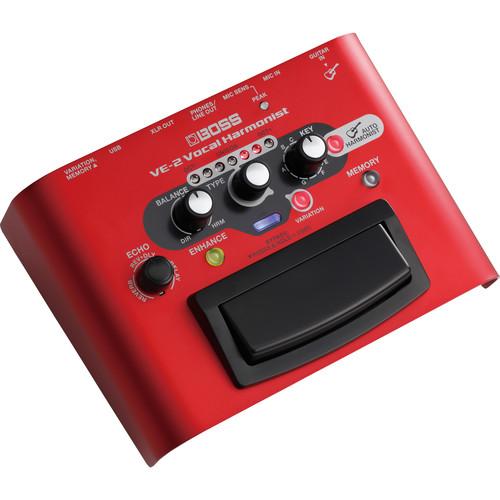

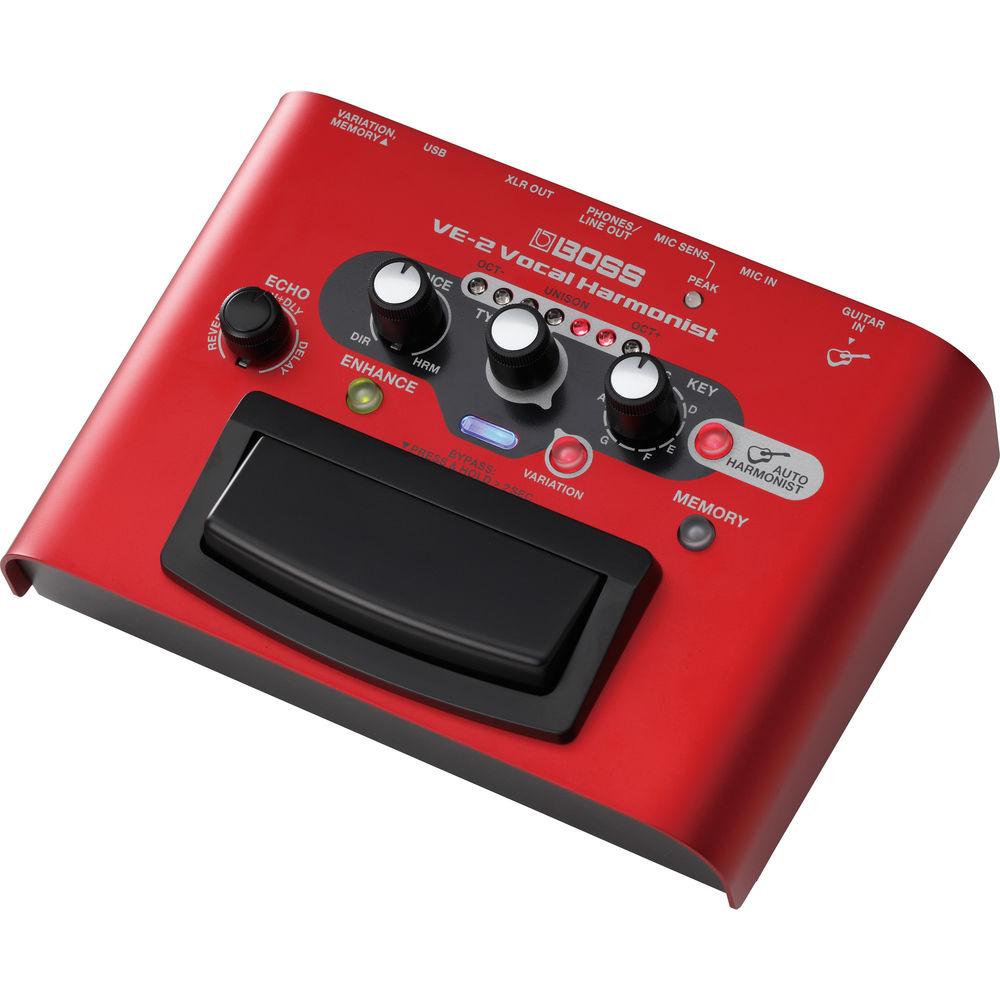

The BOSS VE-2 Vocal Harmonist delivers a complete effects solution for all singers, and offers auto-key detect features for those that perform with a guitar. This portable, battery-powered stompbox has everything you need to create polished vocal sounds everywhere you sing, from concert stages and street performances, to practicing at home.

The VE-2 creates harmonized vocals that follow your singing, with pitch that either automatically follows the chords played on a connected guitar, uses a preset key, or a combination of the two. Using one of these three operation modes, it's easy to create real-time harmonies in any key, even if you have no experience with musical gear or music theory.

In addition to harmony, the VE-2 provides essential effects to enhance your voice, such as high-quality reverb/delay and an enhancer with real-time pitch correction. Also, a USB audio function allows you to connect to your computer and easily capture your effected vocal sounds for music recordings.
    • Real-time vocal harmonies and high-quality effects in an affordable, easy-to-operate pedal
    • Auto-Harmony function automatically detects chords played on a connected guitar and generates matching harmonies, even during mid-song key changes
    • Solo singers can create harmonies by manually setting the song key with a dedicated panel knob
    • Hybrid mode creates harmonies based on both guitar chord input and the manual key setting, perfect for songs where the guitar part transitions between rhythm and lead playing
    • 24 harmony types to choose from (12 one- and two-voice harmonies plus variations that provide even fuller sounds)
    • User-friendly interface that’s simple to use, even for vocalists not familiar with using effects
    • Easily dial up reverb and delay effects with a single knob
    • Enhance feature controls dynamics and applies subtle pitch correction as you sing
    • Three memories for storing favorite settings
    • Runs on four AA batteries or optional PSA-series AC adapter
    • XLR mic input with phantom power (phantom power is available even when running on batteries)
    • USB audio function for capturing processed vocal sounds into your computer
    • Integrated multi-function footswitch allows you to turn harmony on/off or bypass the VE-2’s sound entirely as you perform, and you can connect up to two optional footswitches (sold separately) for more control if desired
    • XLR input accepts a variety of professional microphone types, including condenser mics that require phantom power to operate
    • Phantom power is available even when the VE-2 is operated on batteries, letting you use a condenser mic everywhere you perform
UPC: 761294504499 In the Box BOSS VE-2 Vocal Harmonist
  • 4 x Alkaline Battery (AA, LR6)
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the BOSS VE-2 Vocal Harmonist in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BOSS VE-2 Specs

    Nominal Input Level MIC IN: -40 dBu (MicSens = Center)
    GUITAR IN: -10 dBu
    Input Impedance MIC IN: 4 kOhms
    GUITAR IN: 1 MOhm
    Nominal Output Level XLR OUT: -40 dBu
    PHONES/LINE OUT: -20 dBu
    GUITAR THRU: -10 dBu
    Output Impedance XLR OUT: 600 ohms
    PHONES/LINE OUT: 33 ohms
    Effects Effect Types: HARMONY, ECHO, ENHANCE
    Number of Harmony Types: 12 x 2 (VARIATION)
    Memory 3 user presets

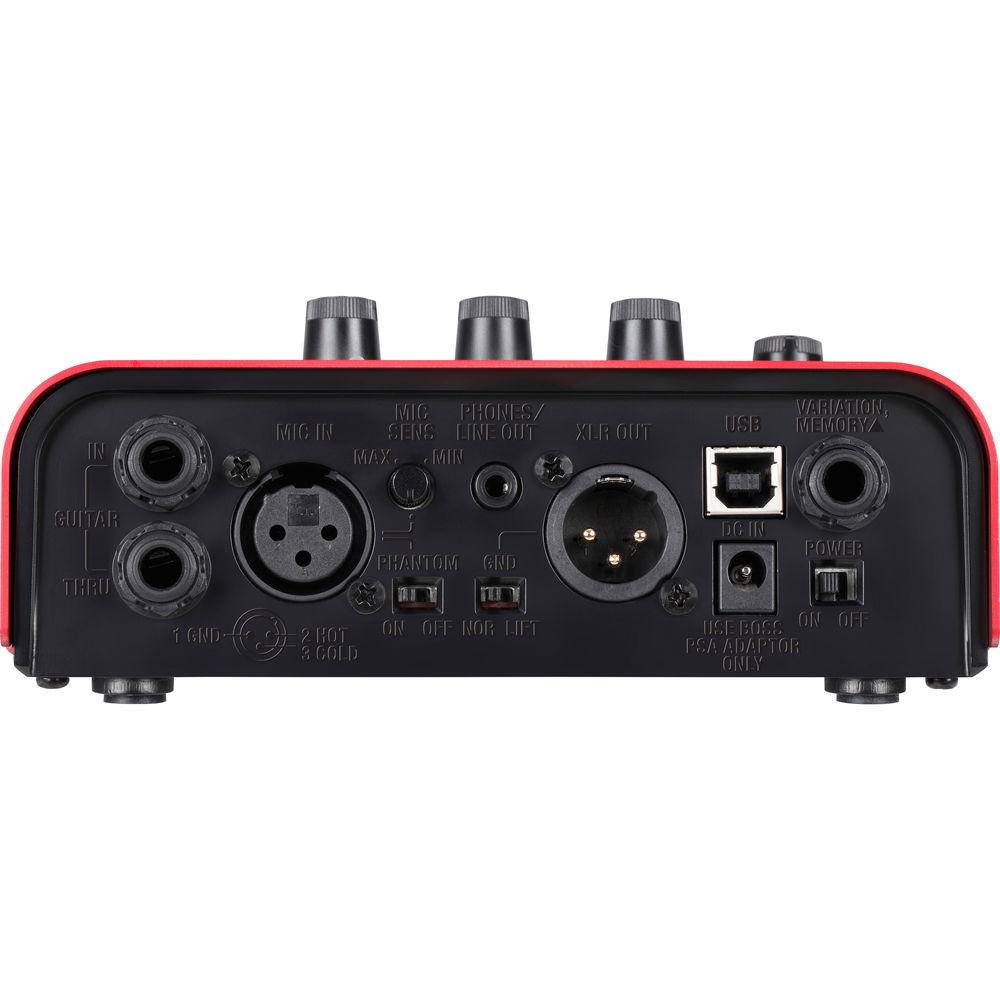

    Connectors MIC IN jack: XLR type, balanced, phantom power (DC 46 V, 10 mA Max)
    GUITAR IN jack: 1/4" phone type
    GUITAR THRU jack: 1/4" phone type
    XLR OUT jack: XLR type
    PHONES/LINE OUT jack: 3.5mm phone type
    VARIATION, MEMORY INC jack: 1/4" TRS phone type
    USB COMPUTER port: USB type B
    DC IN jack
    Power Supply 4x rechargeable Ni-MH battery (AA, HR6)
    4x alkaline battery (AA, LR6)
    AC adapter (sold separately)
    Current Draw 200 mA max. (9 V)
    Expected Battery Life Rechargeable Ni-MH battery: Approx. 12 hours (phantom power: OFF), Approx. 8 hours (phantom power: ON), (when using batteries having a capacity of 2,450 mAh)
    Alkaline battery: Approx. 11 hours (phantom power: OFF), Approx. 7 hours (phantom power: ON)
    Note: These figures will vary depending on the specifications of the batteries and the actual conditions of use.
    Dimensions 6.1 x 4.6 x 2.5" / 156.0 x 116.0 x 64.0 mm
    Weight 1.3 lb / 600 g
    Package Weight 1.95 lb
    Box Dimensions (LxWxH) 8.7 x 6.7 x 4.4"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 62 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to BOSS VE-2 Vocal Harmonist

    Subject: guitar input
    Date: 18.11.2022 16:34:18Name: Doug
    Hello- Boss VE-2 worked great now though when I plug in guitar there is nothing, will not play through to amp. Microphone works properly but not guitar, I tried different cables and different guitars with no success. Is there a reset or something else?
    Post reply

    Subject: query
    Date: 17.05.2022 04:44:32Name: Barry Ireland
    how do i perform a factory reset on my Boss VE-2.
    thank you
    Post reply

    Subject: VE-2
    Date: 01.01.2022 00:29:51Name: Montezel Joao
    I have a VE-2 vocal Harmonist is not working when I turn on the led lights turn on then off could you tell me who does repair in Dao Paulo Br?

    Tnks
    Post reply

    Subject: Boss ve2 noises through amp speaker
    Date: 29.11.2021 19:58:44Name: Ian clark
    Hi , I recently purchased a boss ve2 Harmonist pedal , when switched on it intermittently pops and bangs through my Roland ac60 amp , all connections are fine and amp is fine until ve2 is connected, what can be causing this ?, thanks for any help
    Post reply

    Subject: Boss VE-2
    Date: 29.03.2021 00:20:04Name: roger
    plug ins?
    where do you plug guitar in or out
    also what or the variation memory?
    Post reply
