User Manual for BOSS Waza Amp Head 75 - 75W Amplifier Head for Electric Guitar Click to enlarge the picture
Contents of the user manual for the BOSS Waza Amp Head 75 - 75W
- Product category: Guitar Amplifiers BOSS
- Brand: BOSS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BOSS Guitar Amplifiers
 |
User manual for the BOSS Waza Amp Head 75 - 75W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BOSS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BOSS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BOSS product will considerably shorten its lifespan!
|

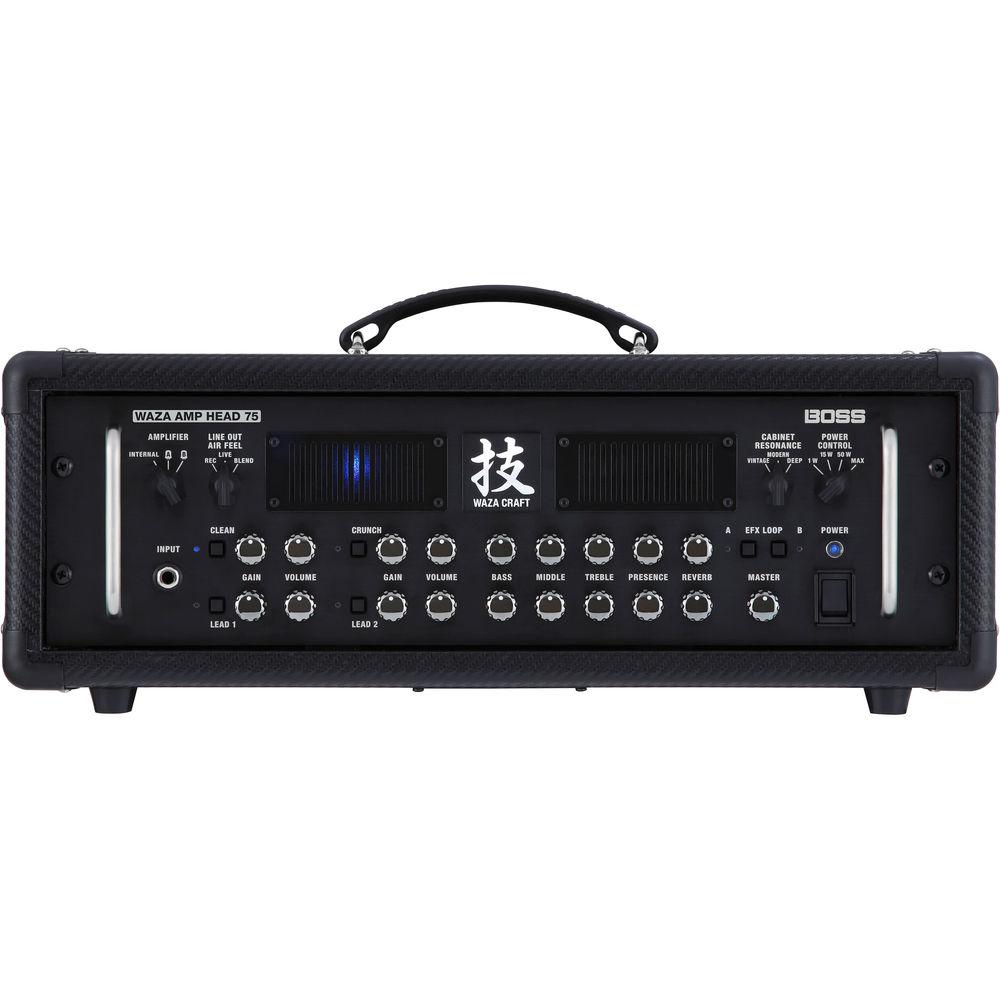

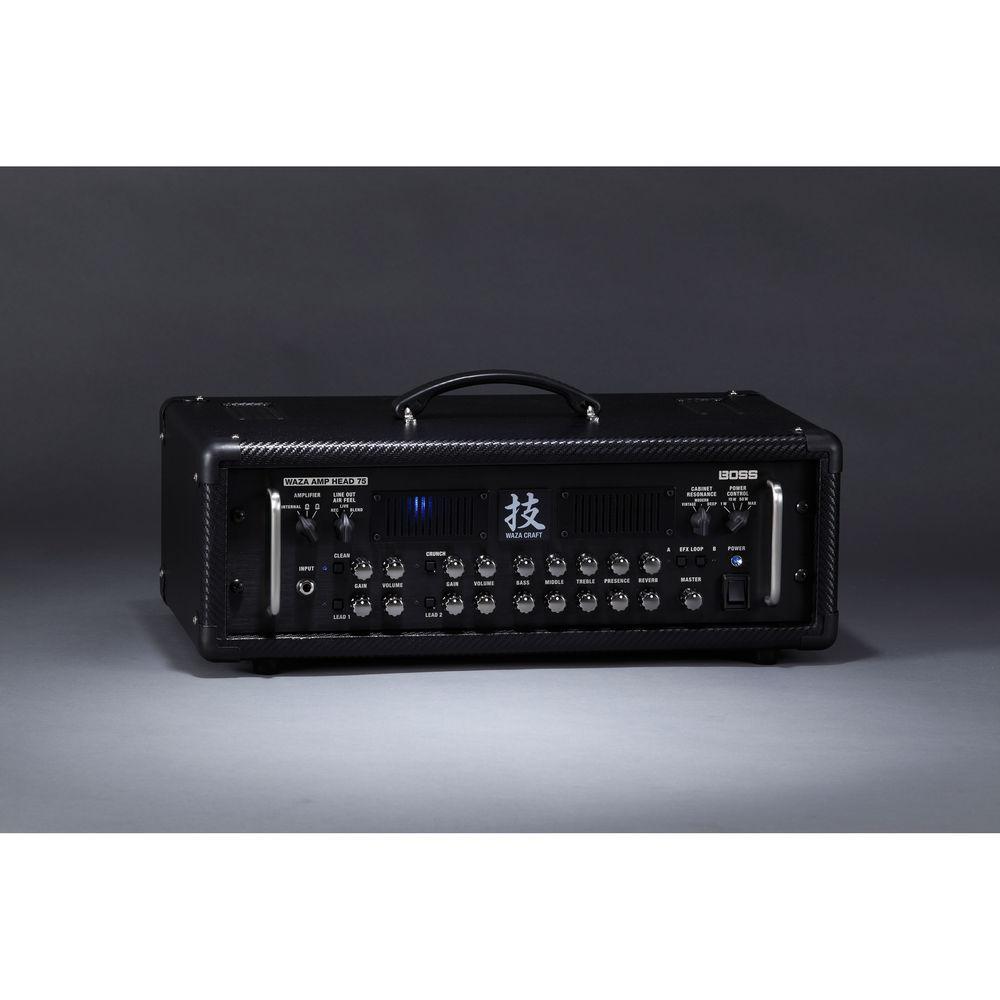

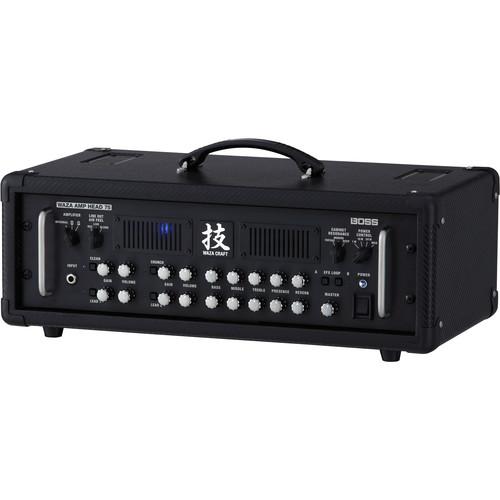

Product description Intended for electric guitar players, the BOSS Waza Amp Head 75 is a four-channel, 75W amplifier head with three speaker outputs, two analog line outputs, a headphone output, and a USB port for recording sound from the amp straight to your computer. The amplifier utilizes a solid-state design, though it can be voiced to give you the sound of a tube amplifier at loud or quiet volumes, thanks to a Power Control switch and its Amplifier knob. This knob boasts three selection points: Internal, A, and B. Internal provides the sound of a modeled EL34 tube amplifier, while A and B provide access to two installable tone capsules that significantly change the tone of the amplifier. By default, the amp ships with one tone capsule which aims to give you the famed Waza Brown Sound, though it can be swapped up for other options.Four channels are provided for clean, crunch, and two lead tones; all channels are switchable via the included foot controller. You’ll find controls for gain, channel volume, a three-knob tone stack, presence, and reverb. The Waza Amp Head 75 offers two effects loops, both of which are switchable between parallel and series. This amplifier is compatible with the matching Waza Amp Cabinet412 and Cabinet212, both available separately. To change the tone of these cabinets, a three-position Cabinet Resonance switch is provided. Similarly, to sculpt the tone of the included line outputs, you'll find a control labeled "Line Out Air Feel."MIDI control is offered via a 5-pin DIN input, while a bevy of analog connections can be seen on the rear panel, including three speaker outputs, a headphones output, two line outputs, two effects loop, a foot controller input, and a USB port. The Waza Amp Head 75 can be unscrewed from its case to be mounted in a standard 19” rack. When mounted, the amp will take up 3 RU. - Power Control
- No tube amp player can resist cranking up the volume to get a true feeling of how an amp performs at its peak. When the output section is really working, you get a richer overtone texture and a more dynamically responsive feel. With the Waza Amp Head 75's built-in power control capability, you can enjoy a harmonically rich tone at virtually any volume by switching the power control among 1, 15, 50, or 75W.
- Amplifier Switch
- With this switch, you can choose the basic tonal profile for the amplifier. The internal sound emulates amps that utilize EL34 tubes. The amp ships with a tone capsule pre-installed in slot A, which gives you the Waza Brown Sound. You can swap this tone capsule out with others available from BOSS, or add additional tone capsules to slot B.
- FX Loops
- The Waza Amp Head 75 includes features two effects loops with selectable parallel or series routing, which allow for creativity in combining your stompbox effects and rack gear with the amplifier. The parallel/series switch is found on the rear of the amp, and both loops can be engaged with the included foot controller.
- Line Outputs and Record Outputs
- A line output with switchable, emulated cabinet voicings is also included, allowing for direct connectivity to external mixers or recording devices. With the Air Feel switch, you can to change the sound character of the mic voicing to taste. XLR and 1/4" jacks are available for line-out purposes, though you'll also find a USB port for recording directly to your computer.
- Cabinet Resonance Switch
- A special Cabinet Resonance switch on the amp can help you sculpt the sound coloration of your connected cabinet. Included tones here are Vintage, Modern, and Deep.
- Included Foot Controller
- A foot controller is included, which allows you to switch between the four channels and turn on/disengage both effects loops. Also, two expression pedal inputs can be found on the back of the foot controller. These allow you continuous control over channel volume and master volume. Expression pedals are available separately.
UPC: 761294511992 In the Box BOSS Waza Amp Head 75 - 75W Amplifier Head for Electric Guitar Pre-Installed Tone Capsule Power Cord Foot Controller 1/4" TRS Cable for Foot Controller 1/4" TS Speaker Cable Limited 3-Year Warranty on Parts Limited 2-Year Warranty on Labor Limited 90-Day Warranty on Foot Controller Table of Contents
|
Upload User Manual
Have you got an user manual for the BOSS Waza Amp Head 75 - 75W Amplifier Head for Electric Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBOSS Waza Amp Head 75 Specs | | | Amplifier Type | Solid-State | | Output Power | 75 W RMS | | Channels | 4 | | Output Impedance | 8/16 Ohms Mono | | Effects Loop | Yes 2 FX Loops, switchable between parallel and series | | Built-In Effects | Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Stereo Footswitch
2 x 1/4" Mono Effects Return
1 x 5-Pin DIN Series MIDI | | Outputs | 3 x 1/4" Mono External Speaker
2 x 1/4" Mono Effects Send
1 x 1/4" Stereo Headphone
1 x 1/4" Mono Line Level
1 x XLR Mono DI
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Presence, Treble
Channel 3: Bass, Channel Volume, Gain, Presence, Treble
Channel 4: Bass, Channel Volume, Gain, Mid, Presence, Treble | | | | Dimensions (WxHxD) | 20.8 x 8.9 x 11.9" / 529.0 x 225.0 x 302.0 mm Amplifier | | Weight | 33.07 lb / 15 kg Amplifier |
